Toyota COROLLA 后保险杠及附件 — Figure 5202

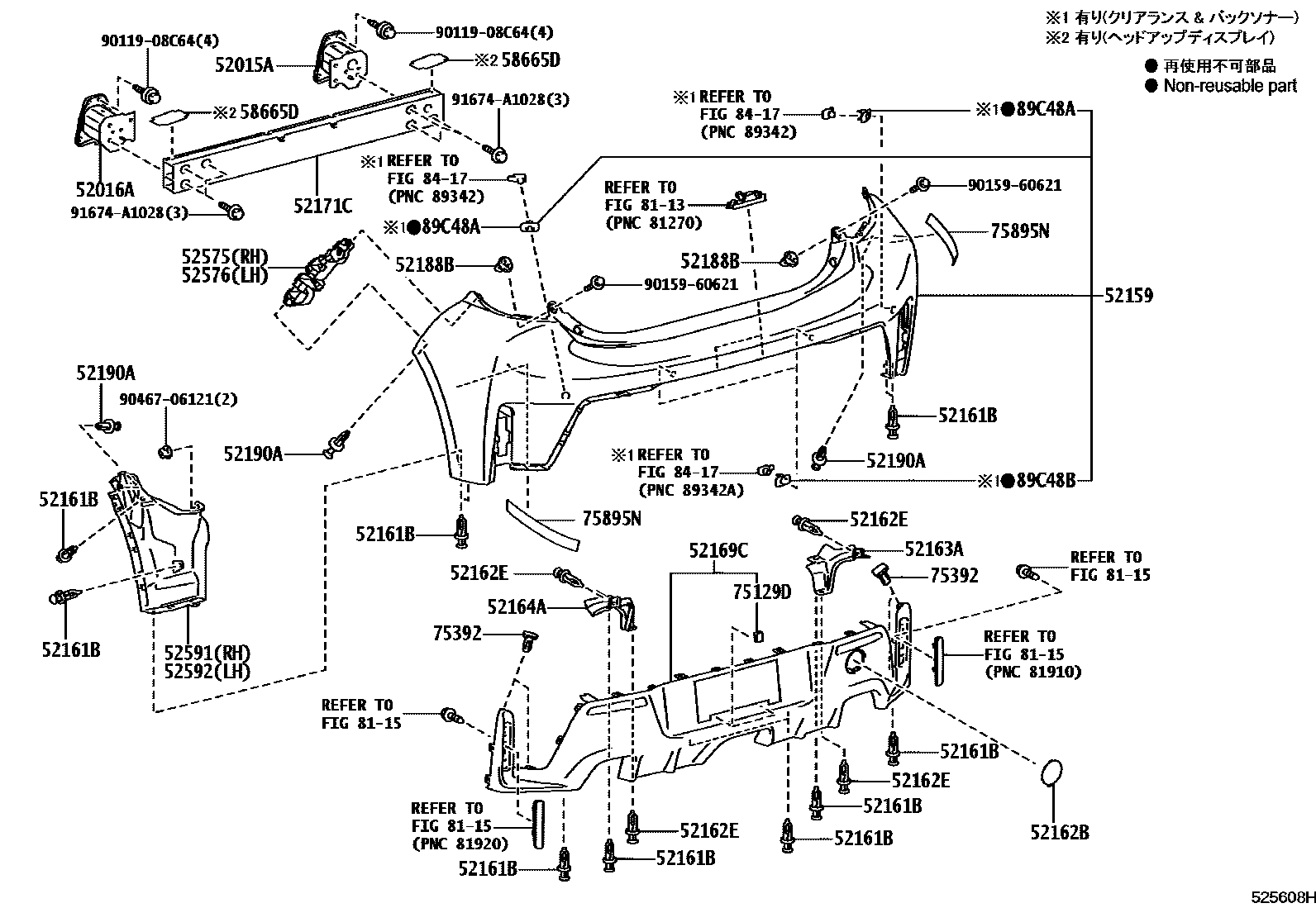

Toyota COROLLA EPC diagram 5202, 后保险杠及附件, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52015A | Rear bumper right arm sub-assembly | 52015-12440 |
| 52016A | Rear bumper left arm sub-assembly | 52016-12390 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52162B | Rear bumper No. 1 fender | 52162-12080 |
| 52162E | Rear bumper insert | 52161-16010 |
| 52163A | Rear bumper right side fender | 52163-12120 |
| 52164A | Rear bumper left fender | 52164-12110 |
| 52169C | Rear bumper lower cover | 52169-12270 |
| 52171C | Toyota part | 52171-12330 |
| 52188B | Rear bumper installation spacer | 52188-33040 |
| 52575 | Rear bumper right side fixing bracket | 52575-12270 |
| 52576 | Rear bumper left side fixing bracket | 52576-12260 |
| 52591 | Rear bumper right seal | 52591-12360 |
| 52592 | Rear bumper left seal | 52592-12220 |
| 58665D | Toyota part | 58665-12010 |
| 75129D | Toyota part | 75129-21010 |
| 75392 | External protective strip fixings | 75392-35220 |
| 75895N | Toyota part | 75895-53010 |
| 89C48B | Toyota part | 89348-K0231 |
