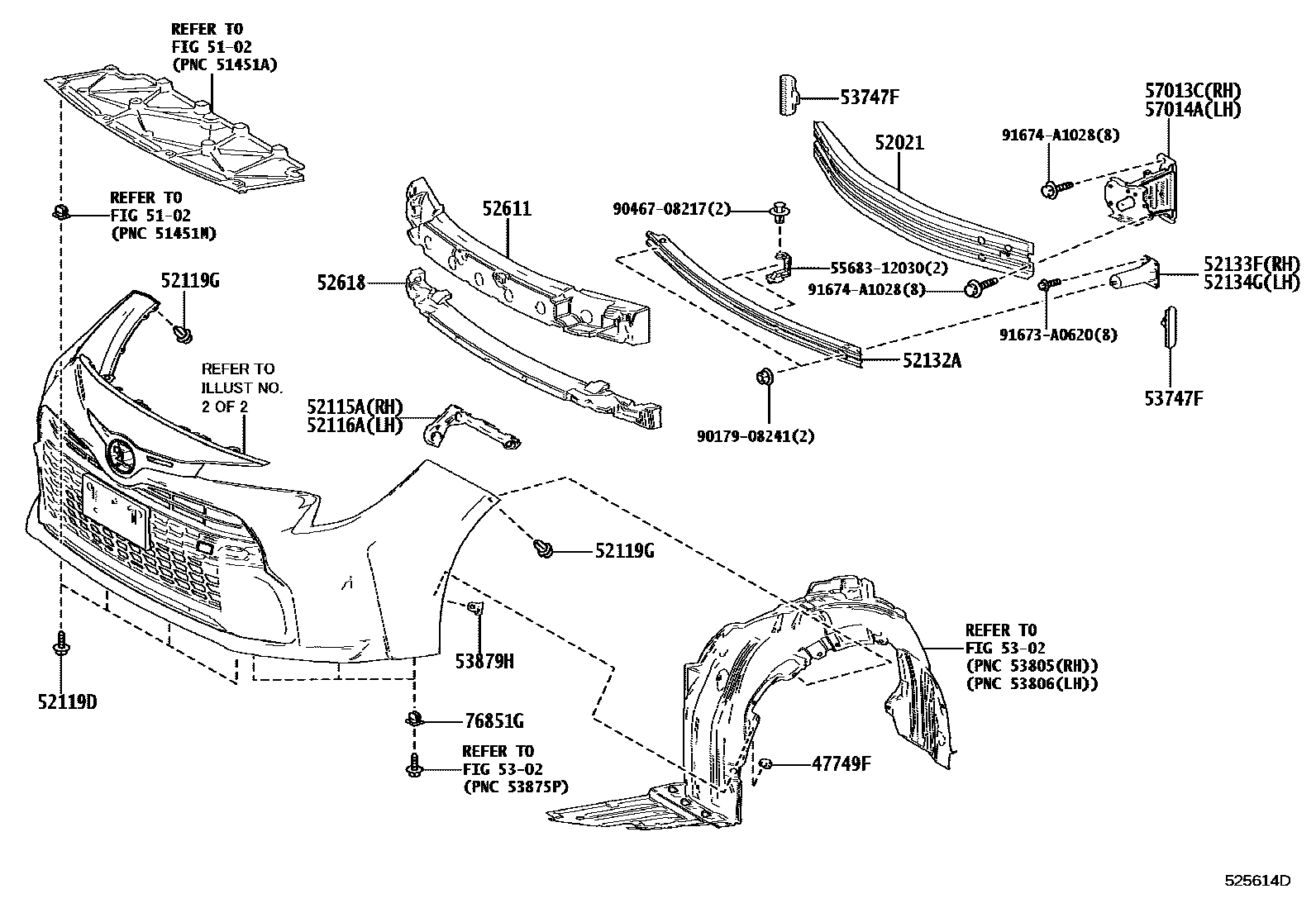

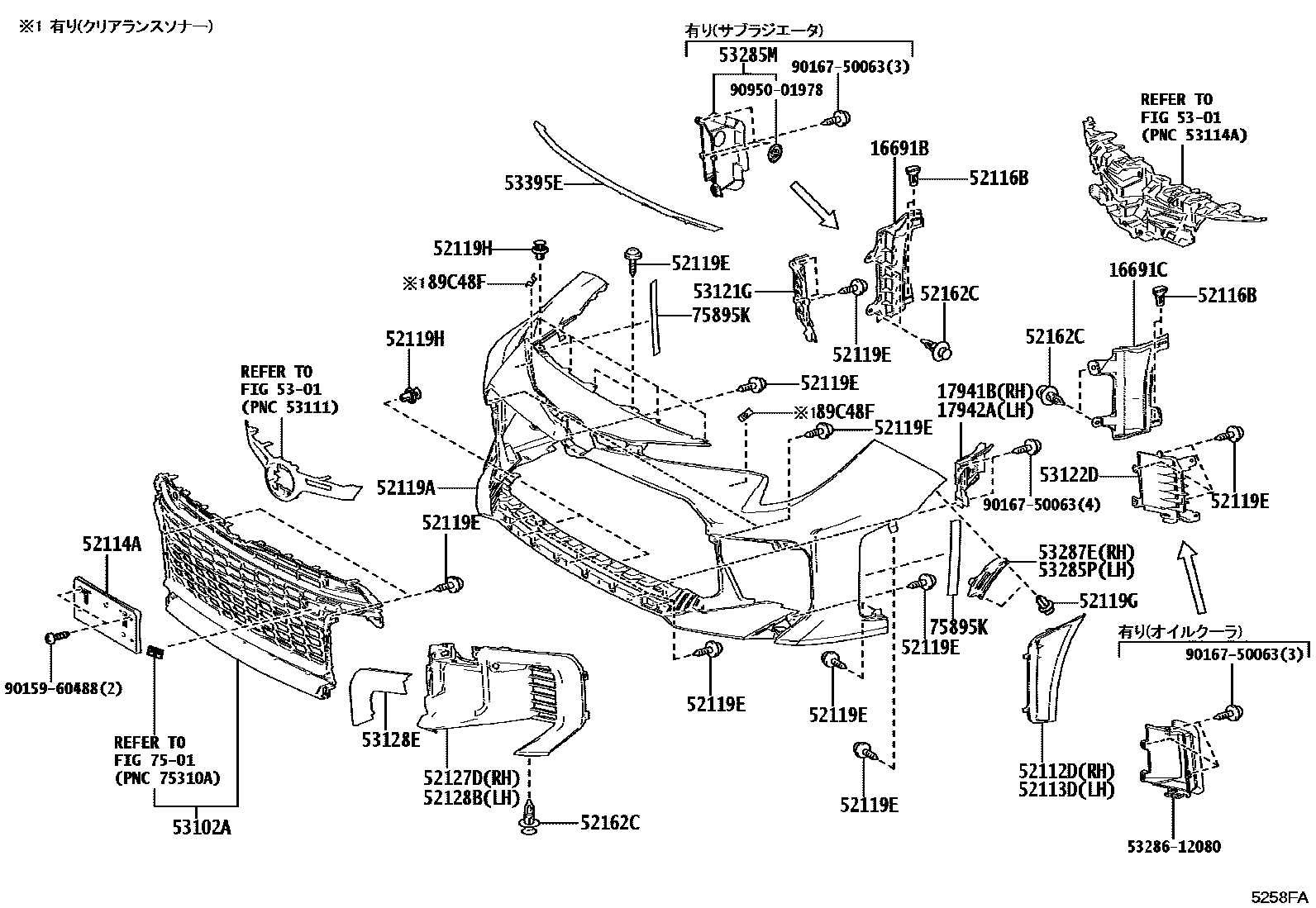

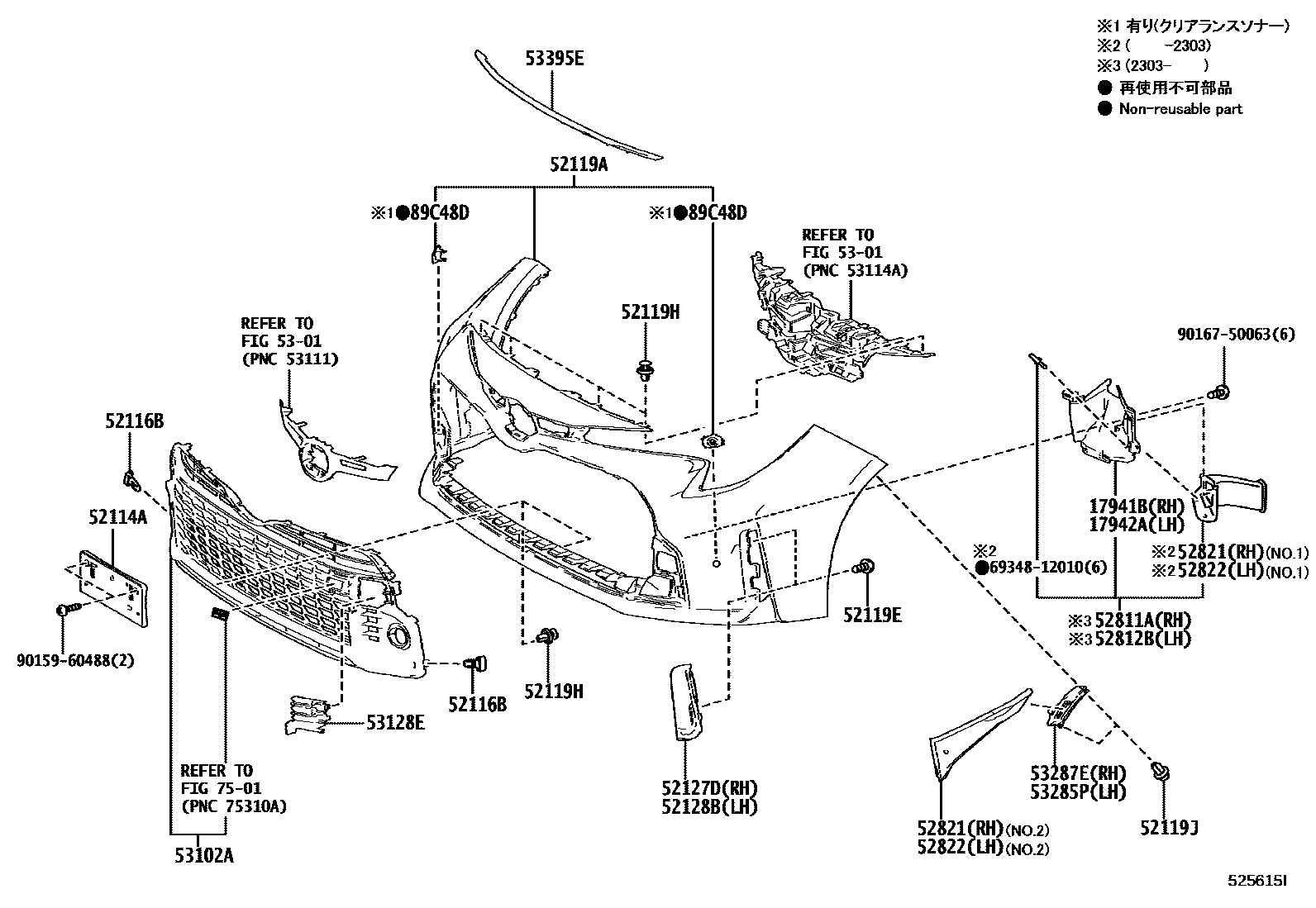

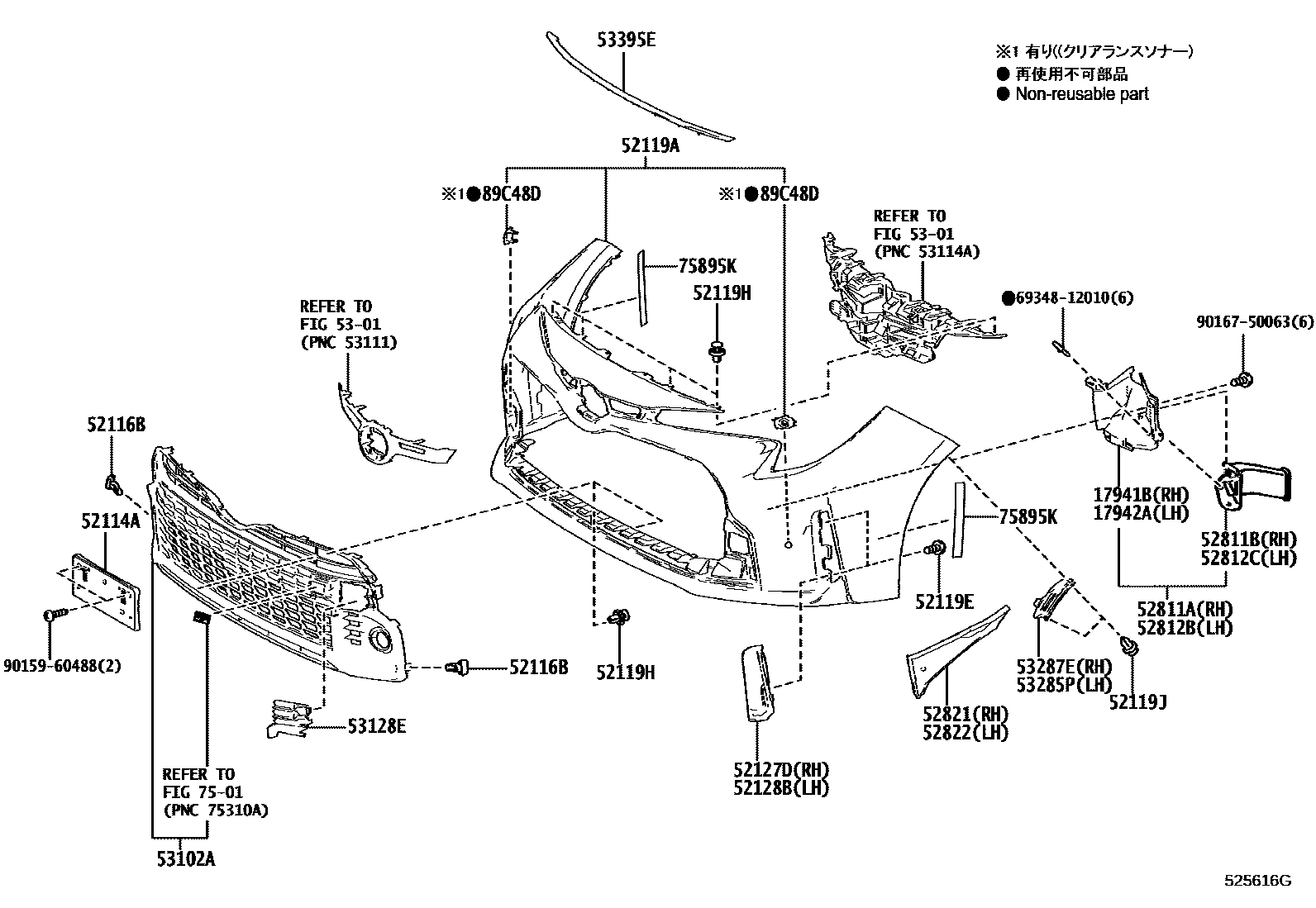

Toyota COROLLA 前保险杠及附件 — Figure 5201
Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 4 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17941B | Toyota part | 17941-18010 · 17941-18020 |
| 17942A | Toyota part | 17942-18010 · 17942-18020 |
| 47749F | Toyota part | 47749-30090 |
| 52021 | Front bumper reinforcement sub-assembly | 52021-12400 |
| 52114A | Front bumper extension mounting bracket | 52114-12350 |
| 52115A | Front bumper right side bracket | 52115-12500 |
| 52116A | Front bumper left bracket | 52116-12480 |
| 52116B | front bumper fixings | 75392-35220 |
| 52119D | Toyota part | 90159-60477 |
| 52119E | Toyota part | 90167-50063 |
| 52119G | Toyota part | 90467-05170 |
| 52119J | Toyota part | 90467-05170 |
| 52127D | Front bumper right hole cover | 52127-12460 |
| 52128B | Front bumper left hole cover | 52128-12360 |
| 52132A | No. 2 front bumper reinforcement | 52132-12160 |
| 52133F | Front bumper right side bracket | 52133-12190 |
| 52134G | Front bumper left bracket | 52133-12190 |
| 52611 | front bumper energy absorber | 52611-12390 |
| 52618 | Front bumper lower shock absorber | 52618-12080 |
| 52811A | No. 1 cold air intake pipe | 53207-12050 |
| 52811B | Toyota part | 52821-12010 |
| 52812B | Toyota part | 53209-12150 |
| 52812C | Toyota part | 52822-12010 |
| 52821 | Right air intake pipe | 52821-12010 · 53861-12020 |
| 52822 | left air intake pipe | 52822-12010 · 53862-12020 |
| 53102A | Toyota part | 53102-12290 · 53102-12291 · 53102-12300 · 53102-12301 |
| 53128E | Toyota part | 53128-12160 |
| 53285P | Toyota part | 53864-12010 · 53864-12011 |
| 53287E | Toyota part | 53863-12010 · 53863-12011 |
| 53395E | Engine cover to front end plate seal | 53395-12140 |
| 53747F | Toyota part | 16691-37020 |
| 53879H | Front fender lining fixing parts | 53879-30090 |
| 57013C | Right front longitudinal beam bracket sub-assembly | 57013-12080 |
| 57014A | Left front longitudinal beam bracket sub-assembly | 57014-12080 |
| 75895K | Toyota part | 75895-53010 |
| 76851G | Toyota part | 90189-06237 |
