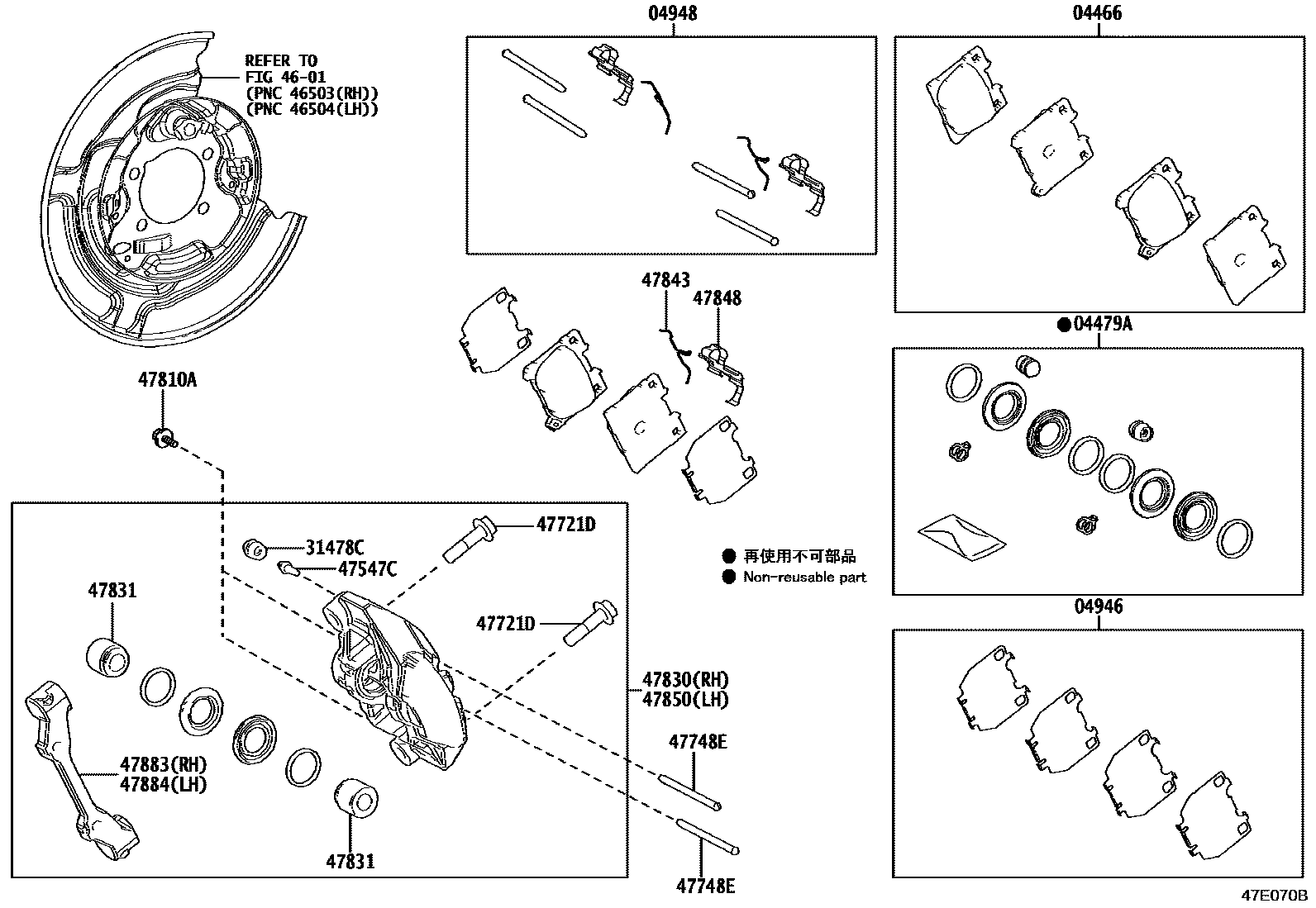

Toyota COROLLA 后盘式制动器卡钳和防尘罩 — Figure 4707
Toyota COROLLA EPC diagram 4707, 后盘式制动器卡钳和防尘罩, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04466 | Rear disc brake pad assembly | 04466-52200 |
| 04479A | Rear disc brake cylinder assembly | 04479-52280 |
| 04946 | Silencer spacer assembly (for rear disc brake) | 04946-52120 |
| 04948 | Rear disc brake mounting assembly | 04948-52050 |
| 31478C | Bleed plug cap (for rear disc brake) | 31478-50020 |
| 47547C | Bleed plug (for rear disc brake) | 47547-35020 |
| 47721D | Bolt (for rear disc brake cylinder retainer) | 90015-AA604 |
| 47748E | Holed pin (for rear disc brake) | 47735-52310 |
| 47810A | Hexagonal bolt (for rear brake caliper) | 90105-12174 |
| 47830 | Right rear disc brake cylinder assembly | 47830-52250 |
| 47831 | rear disc brake piston | 47731-18030 |
| 47843 | Rear disc brake pin retaining clip | 47843-52250 |
| 47848 | Anti-vibration spring No. 1 (for rear disc brake) | 47848-52250 |
| 47850 | Left rear disc brake cylinder assembly | 47850-52250 |
| 47883 | Right rear brake caliper bracket | 47883-52040 |
| 47884 | Left rear brake caliper bracket | 47883-52040 |
