Toyota COROLLA Front Drive Shaft — Figure 4302

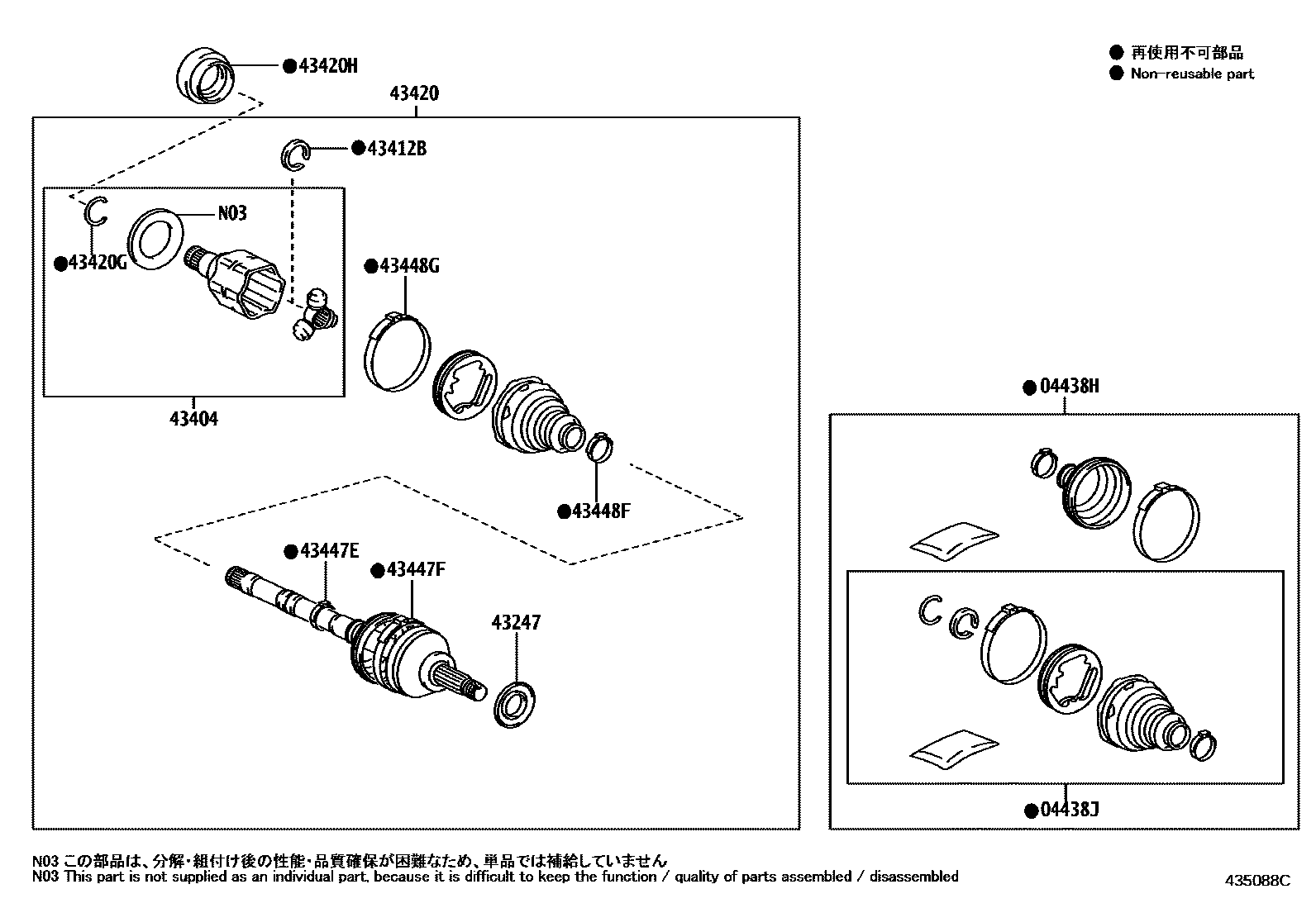

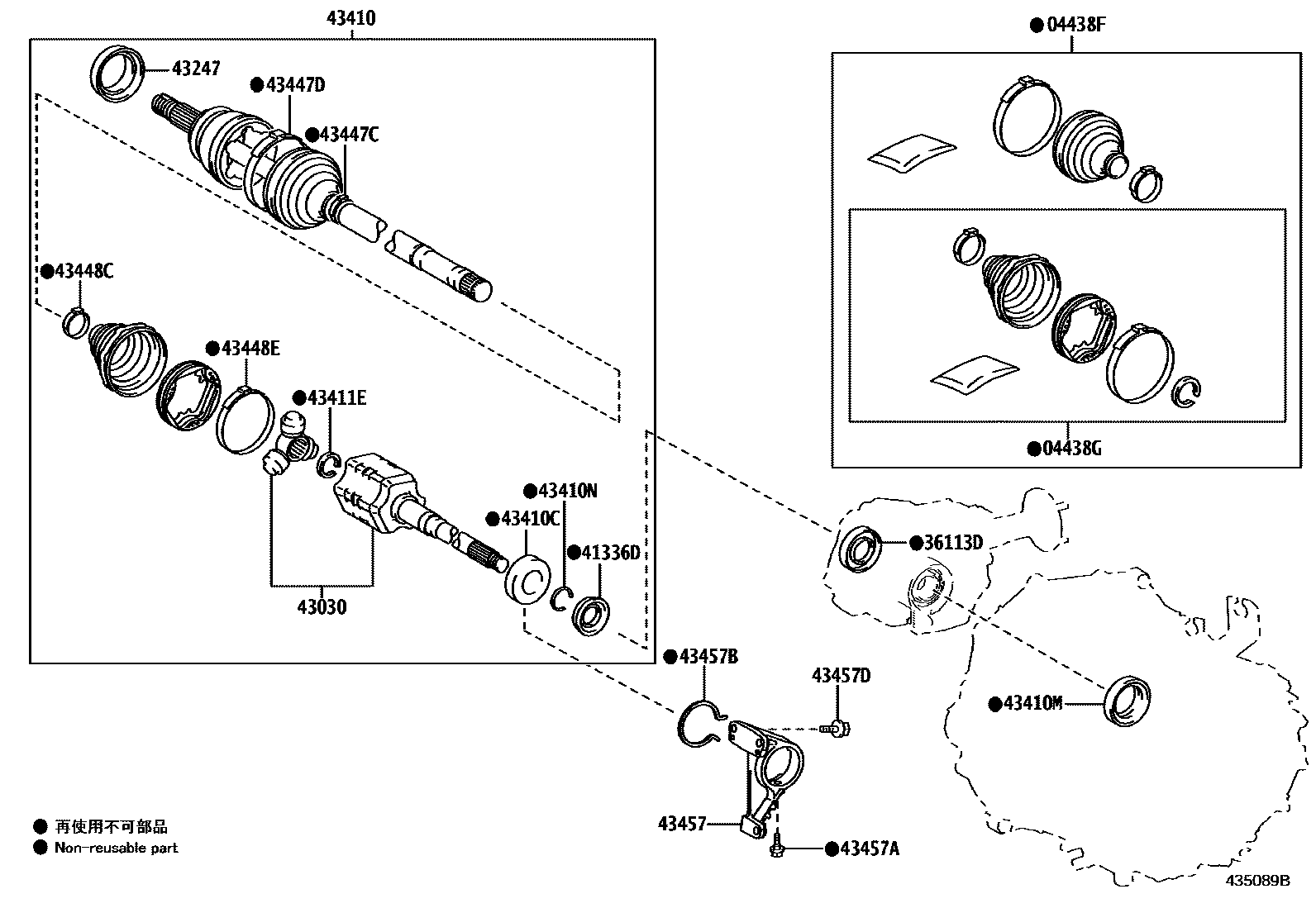

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 2 images and 30 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04438F | Right front driveshaft inboard and outboard dust boot assembly | 04427-12800 |
| 04438G | Right front drive shaft inner universal joint dust boot assembly | 04437-48161 |
| 04438H | Left front driveshaft inboard and outboard dust boot assembly | 04427-12810 |
| 04438J | Left front drive shaft inner universal joint dust boot assembly | 04438-33150 |
| 36113D | Toyota part | 90311-35056 |
| 41336D | Right front driveshaft dust cover | 41336-78020 |
| 43030 | Right front drive shaft inner universal joint assembly | 43030-12150 |
| 43247 | No. 2 front wheel bearing dust cover | 43247-76010 |
| 43404 | Left front axle inner universal joint assembly | 43404-12020 |
| 43410 | Right front driveshaft assembly | 43410-12C40 |
| 43410C | Bearings (for front driveshaft) | 90363-36006 |
| 43410M | Toyota part | 90316-34001 |
| 43410N | Hole snap ring (for right front driveshaft) | 43425-78040 |
| 43411E | Inner shaft snap ring (for right front axle inner drive shaft) | 43425-58030 |
| 43412B | Inner shaft snap ring (for left front axle inner drive shaft) | 43425-58030 |
| 43420 | Left front drive shaft assembly | 43420-12B70 |
| 43420G | Hole snap ring (for left front driveshaft) | 43425-78050 |
| 43420H | Toyota part | 90311-50058 |
| 43447C | Clamp (for the outer universal joint dust cover of the right front axle) | 42345-24020 |
| 43447D | No. 2 clip (for the universal joint dust cover on the outside of the right front axle) | 42345-58140 |
| 43447E | Clamp (for left front axle outer universal joint dust cover) | 42345-24020 |
| 43447F | No. 2 clip (for left front axle outer universal joint dust cover) | 42345-58140 |
| 43448C | Clamp (for the universal joint dust cover inside the right front axle) | 42345-48140 |
| 43448E | No. 2 clip (for the universal joint dust cover inside the right front axle) | 42345-48130 |
| 43448F | Clamp (for left front axle inner universal joint dust cover) | 42345-48140 |
| 43448G | Clamp No. 2 (for the universal joint dust cover inside the left front axle) | 42345-48130 |
| 43457 | drive shaft bearing bracket | 43457-52040 |
| 43457A | Bolts (for securing the No. 1 drive shaft bearing bracket) | 90119-10461 |
| 43457B | Hole snap ring (for drive shaft bearing bracket) | 90521-75002 |
| 43457D | Bolts (for securing the No. 2 drive shaft bearing bracket) | 90105-10381 |
