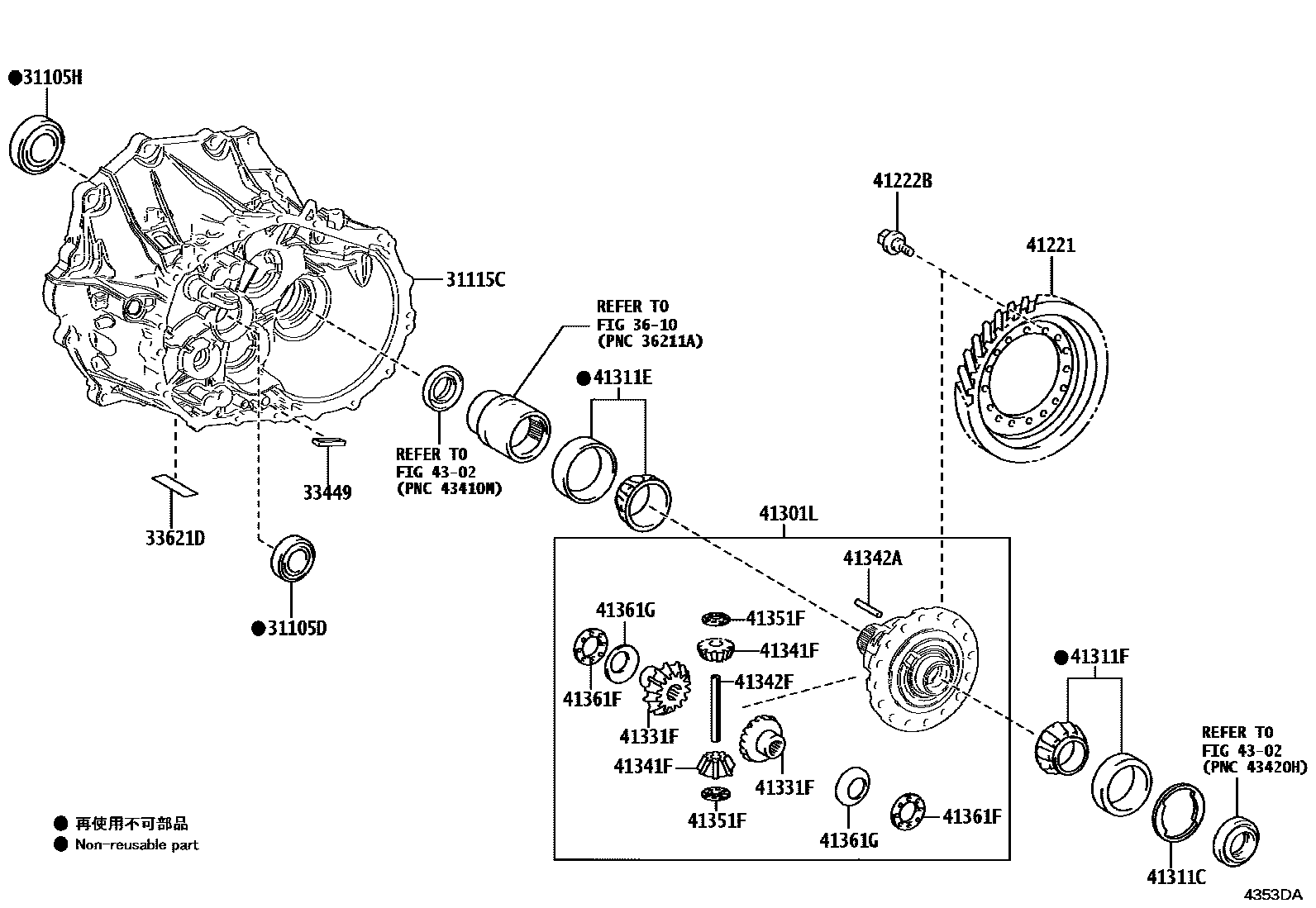

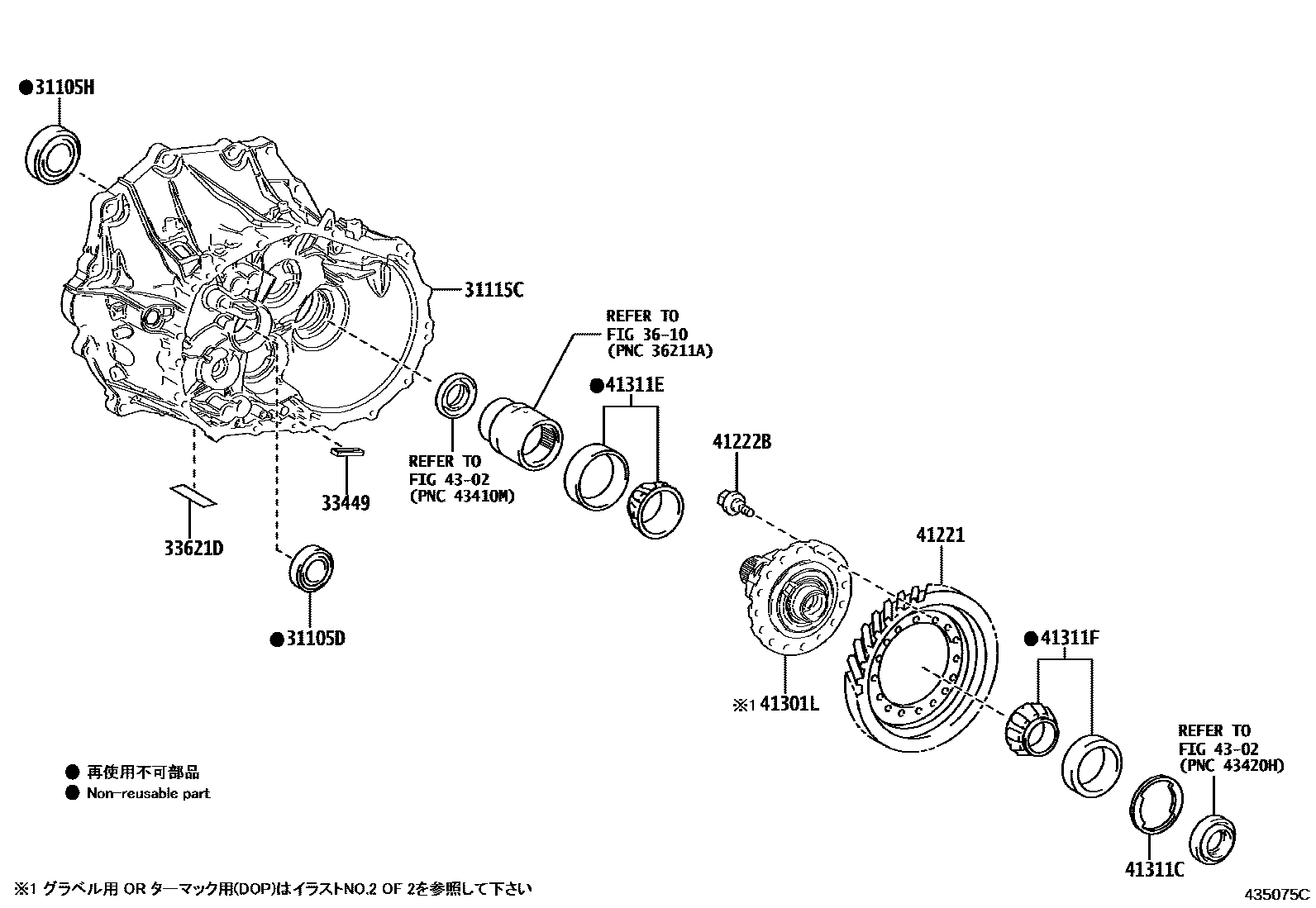

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 3 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-30017 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-55004 |
| 31115C | Front transmission axle housing (MTM) | 31115-52160 |
| 33449 | derailleur magnet | 33449-60010 |
| 33621D | Transaxle oil information label | 33621-12150 · 33621-28021 |
| 41221 | Front differential ring gear | 41221-12640 · 41221-52590 |
| 41222B | Bolt (for front differential ring gear assembly) | 90105-12319 |

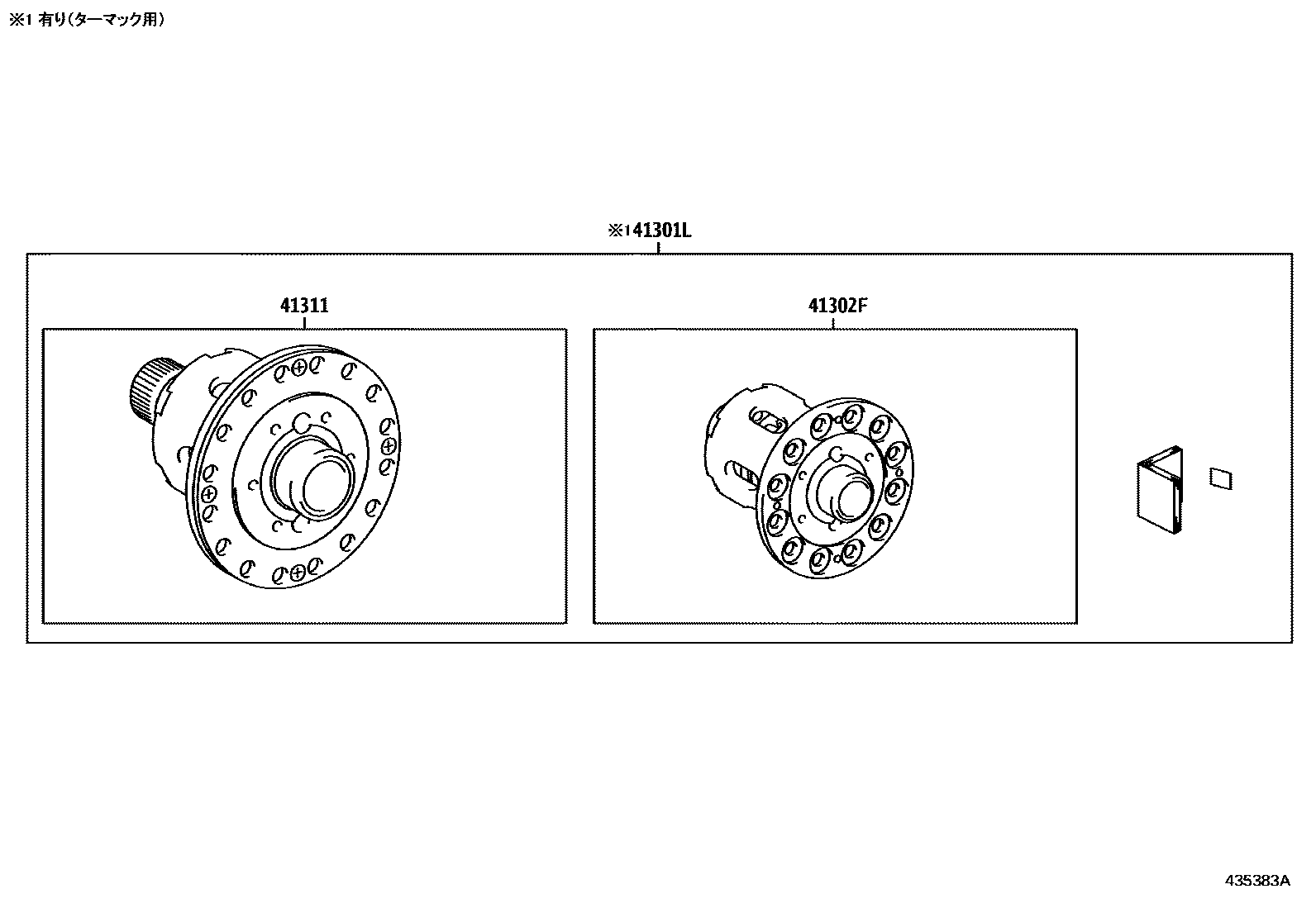

| 41301L | No. 1 front differential housing sub-assembly | 41301-52340 · 41301-52471 |
| 41302F | Front differential housing sub-assembly | 41301-52400 · 41301-52410 |
| 41311 | front differential case | 41301-52380 · 41301-52390 |
| 41311C | Rear gasket (for front differential case) | 90564-62078 · 90564-62079 · 90564-62080 · 90564-62081 · 90564-62082 · 90564-62083 · 90564-62084 · 90564-62085 · 90564-62086 · 90564-62087 · 90564-62088 · 90564-62089 · 90564-62090 · 90564-62091 · 90564-62092 · 90564-62093 · 90564-62094 · 90564-62095 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-50197 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-55104 |
