Toyota COROLLA 车轮和车轮盖 — Figure 4103

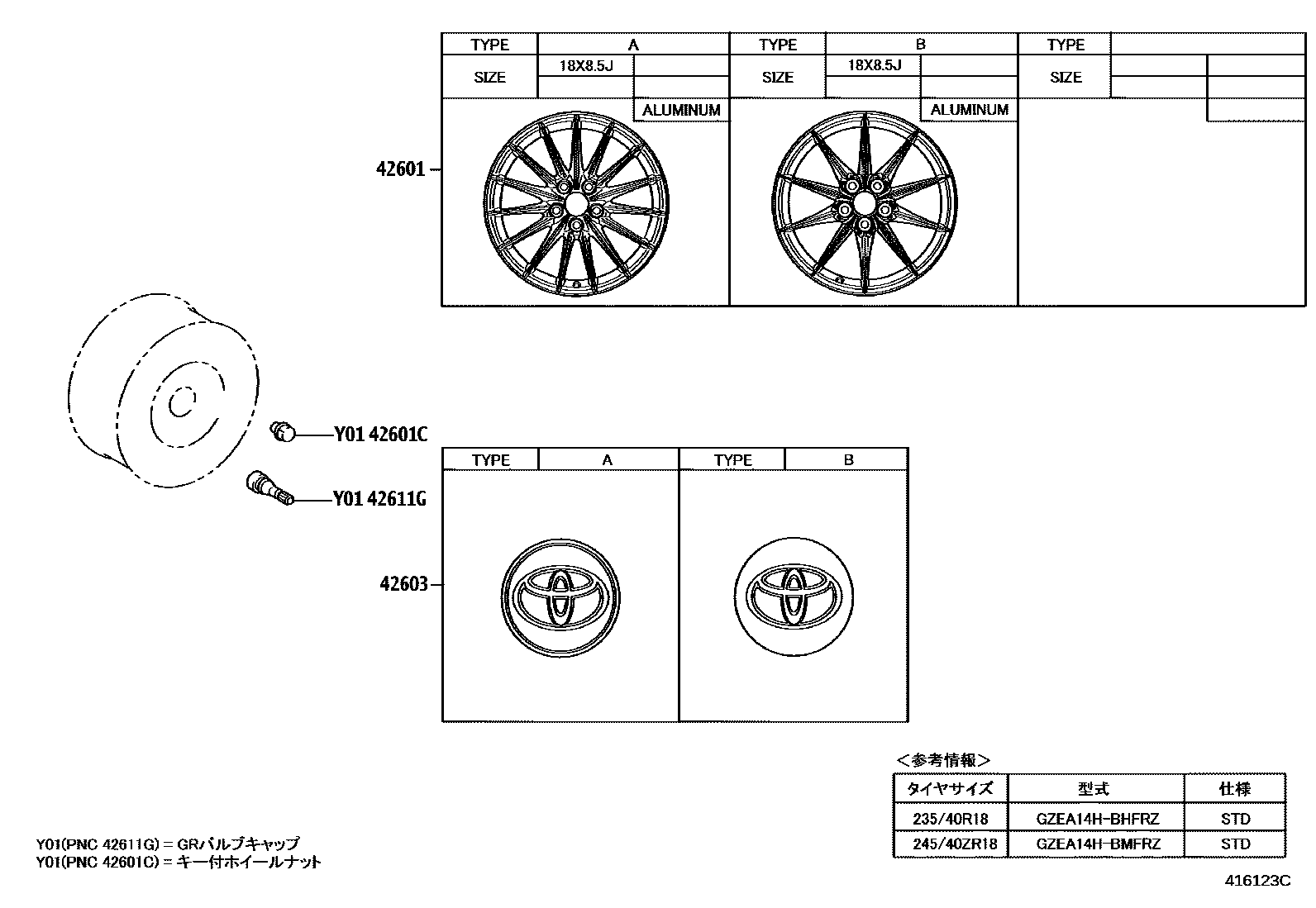

Toyota COROLLA EPC diagram 4103, 车轮和车轮盖, with 2 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42601 | spoke wheel | 42611-12F40 · 42611-12G80 |
| 42601C | Hub nut (for axle) | 90942-01115 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-48150 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
