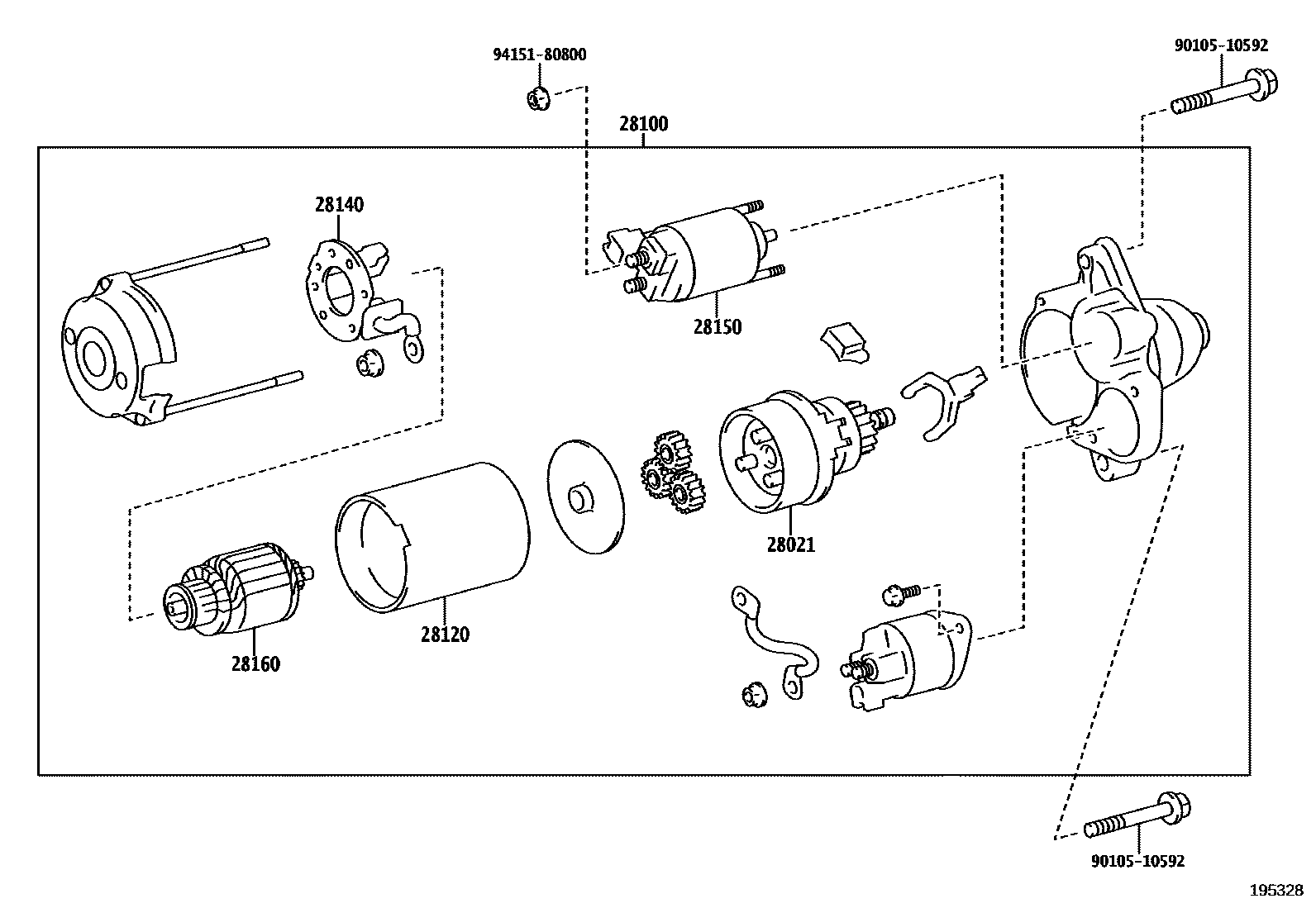

Toyota COROLLA 起动机 — Figure 1904
Toyota COROLLA EPC diagram 1904, 起动机, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-25070 |
| 28100 | Starter assembly | 28100-18010 |
| 28120 | Starter yoke assembly | 28120-18010 |
| 28140 | Starter brush holder assembly | 28140-37050 |
| 28150 | Starter electromagnetic switch assembly | 28150-18010 |
| 28160 | Starter armature assembly | 28160-31090 |
