Toyota COROLLA Alternator — Figure 1903

Toyota COROLLA EPC diagram 1903, Alternator, with 1 images and 15 PNC and OE references.

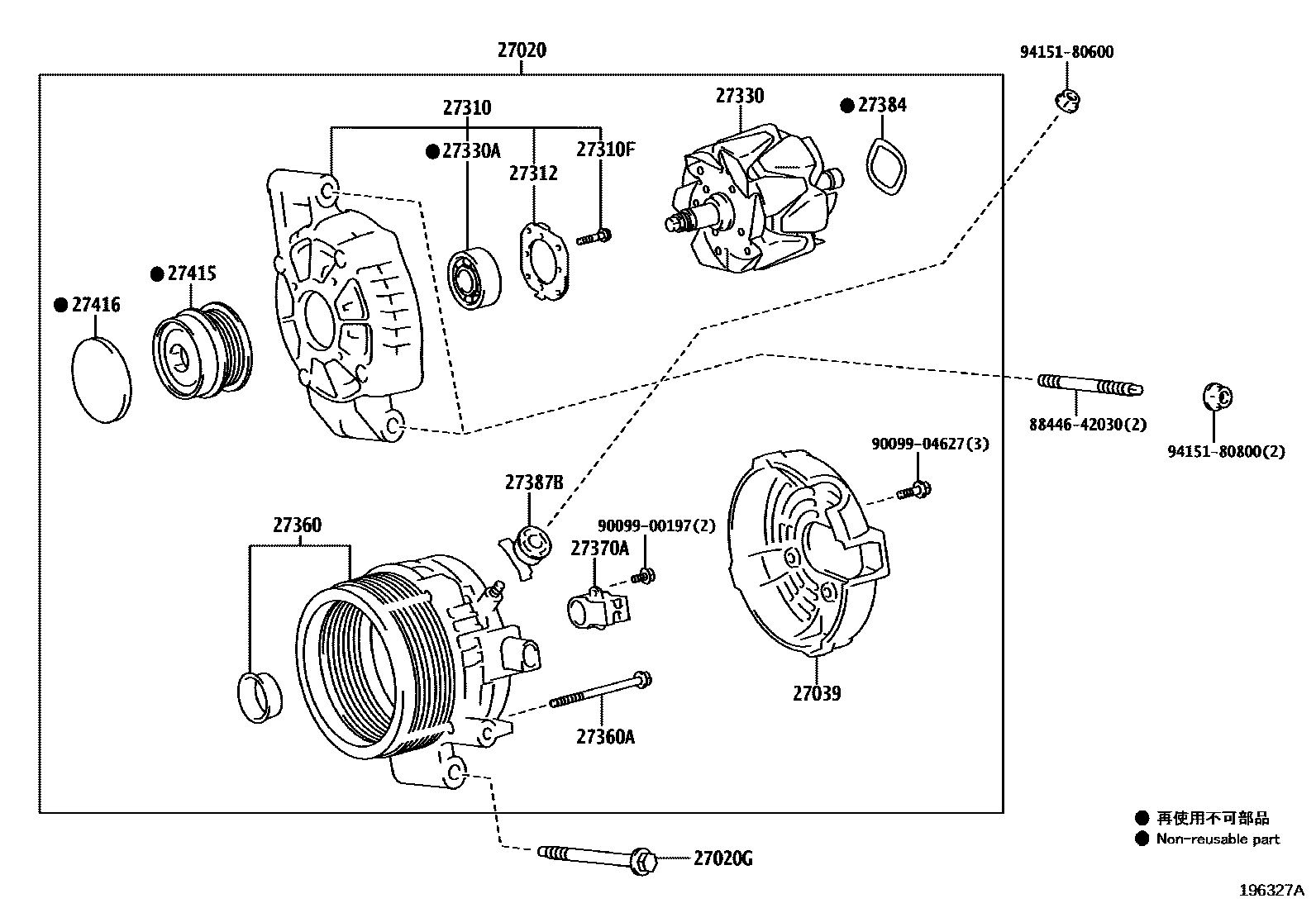

Toyota COROLLA Alternator EPC diagram — 196327A
Alternator — 196327A (202212 – 999999)

PNC and OE references

PNCPart nameOE numbers
27020Alternator Assembly27060-18020
27020GBolt No. 2 (for generator)90119-08C78
27039Alternator Rear End Cover27039-37220
27310Alternator Drive End Frame Assembly27310-24150
27310FToyota part90099-00268
27312Retainer Plate27312-72100
27330Alternator Rotor Assembly27330-47330
27330ABearings (for generator rotor)90099-10223
27360Alternator Stator Coil Assembly27360-18040
27360AToyota part90099-04626
27370AAlternator Brush Holder Assembly27370-31220
27384Washer27384-38130
27387BGenerator terminal insulation pad27387-20130
27415PULLEY, ALTERNATOR W/CLUTCH27415-0W280
27416Generator pulley cover27416-0W050
