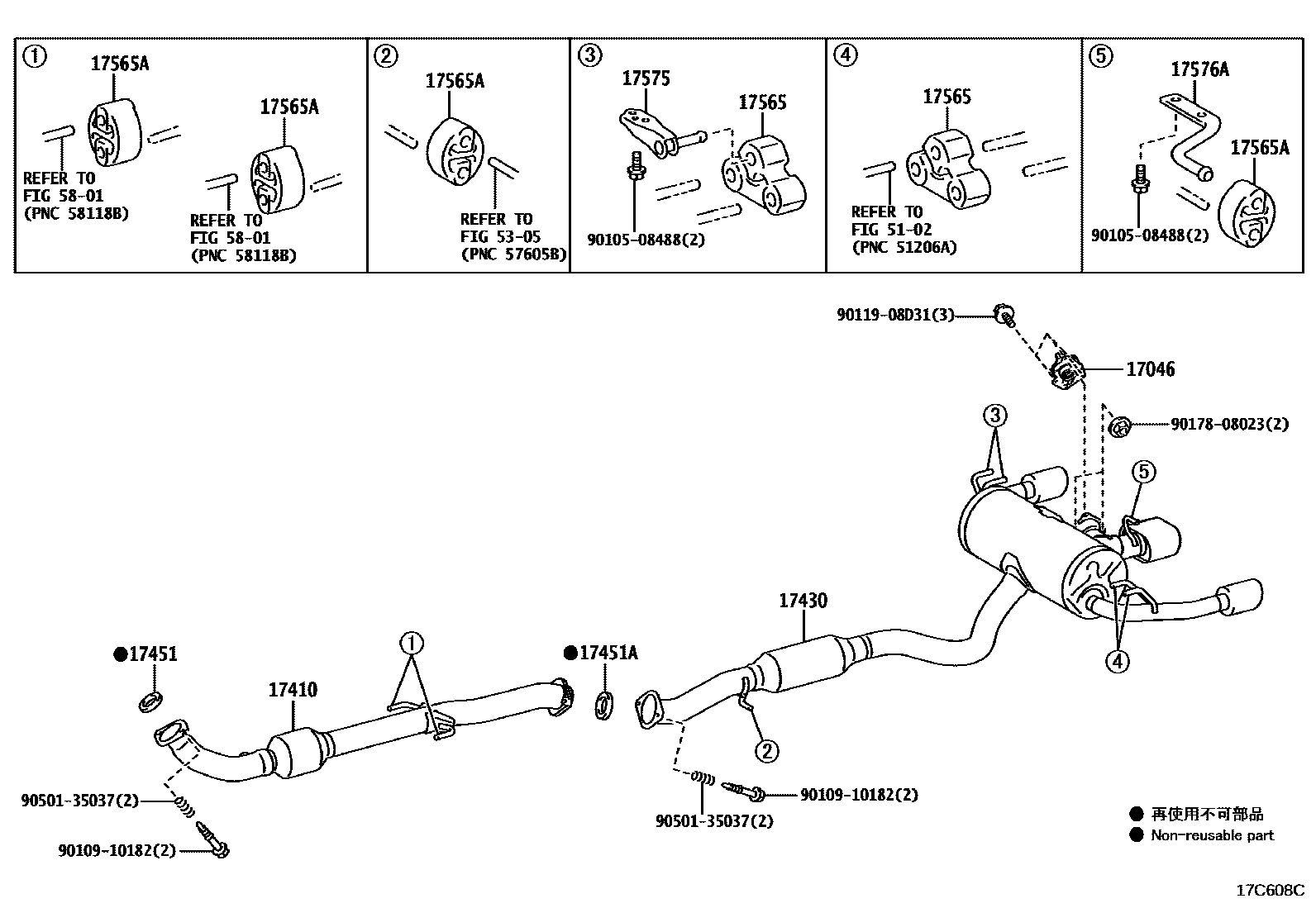

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17046 | Exhaust pipe exhaust control actuator sub-assembly | 17046-38020 |
| 17410 | Front exhaust pipe assembly | 17410-18081 |
| 17430 | Exhaust tailpipe assembly | 17405-18090 |
| 17451 | Exhaust pipe gasket | 17451-28040 · 17451-28041 |
| 17451A | No. 2 exhaust pipe gasket | 17451-52050 |
| 17565 | No. 5 exhaust pipe lifting lug | 17566-25010 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-28010 |
| 17575 | No. 5 exhaust pipe bracket | 17575-37030 |
| 17576A | No. 6 exhaust pipe bracket | 17576-18030 |
