Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 2 images and 25 PNC and OE references.

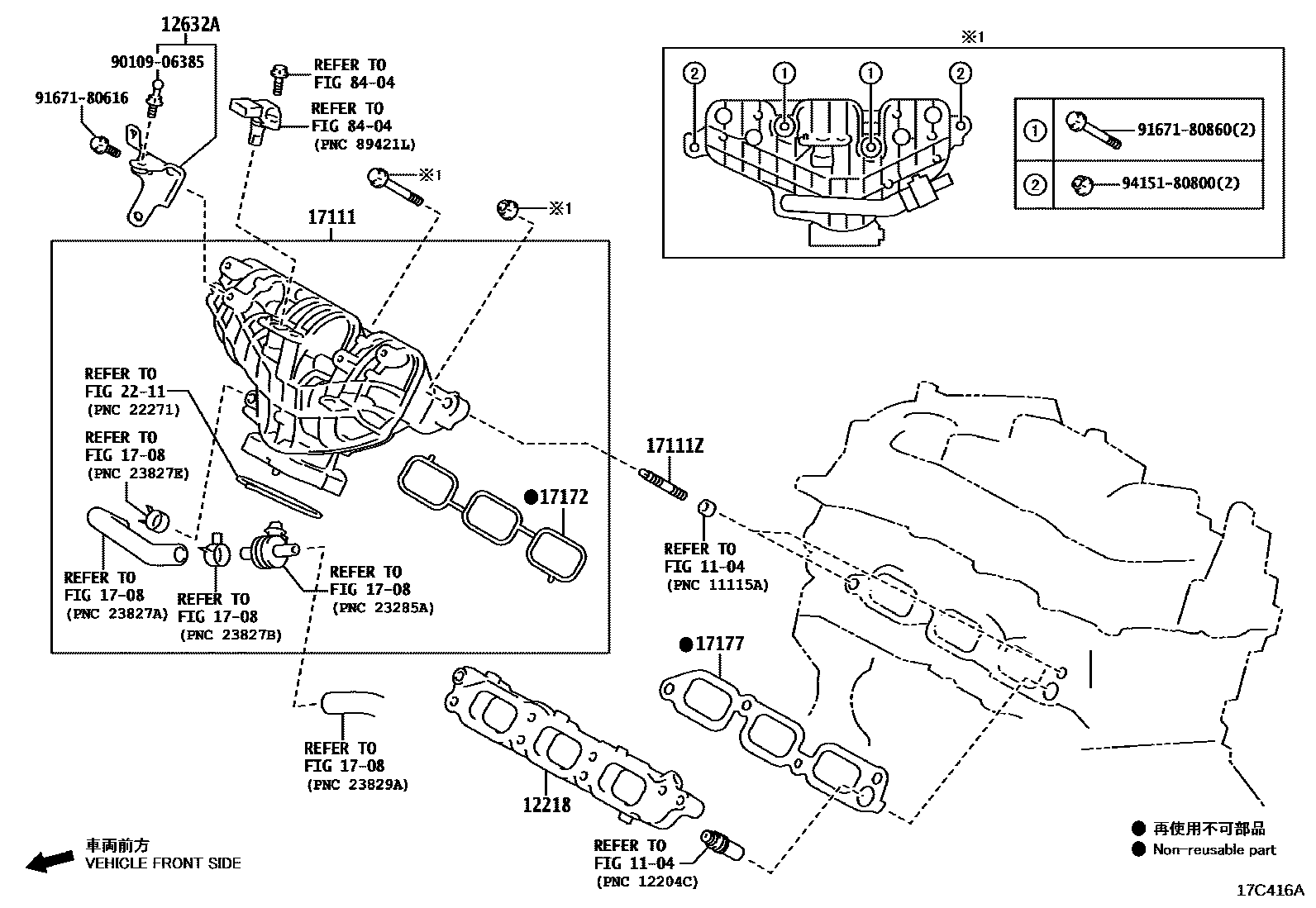

Toyota COROLLA Manifold EPC diagram — 17C416A
Manifold — 17C416A (202212 – 999999)

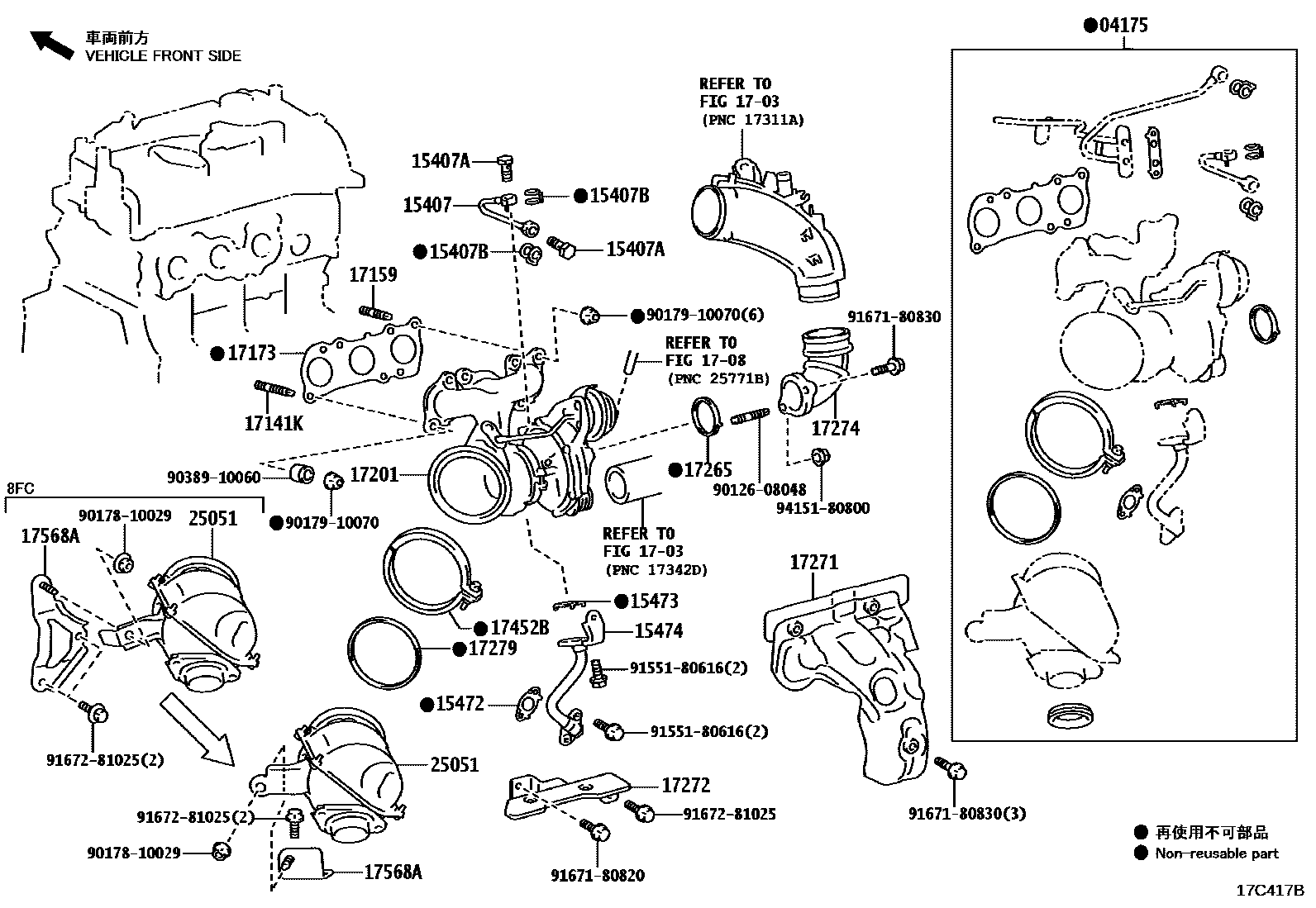

Toyota COROLLA Manifold EPC diagram — 17C417B
Manifold — 17C417B (202212 – 999999)

PNC and OE references

PNCPart nameOE numbers
04175Turbocharger gasket assembly04175-18010
12218Toyota part12218-18010
12632AToyota part12632-18010
15407Turbine oil inlet pipe sub-assembly15407-18010
15407AConnector bolt (for turbine oil inlet pipe)90401-12097
15407BGasket (for turbine oil inlet pipe)90904-30004
15472No. 1 turbine oil outlet pipe gasket15472-18010
15473No. 2 turbine oil outlet pipe gasket15473-18010
15474Turbine oil outlet pipe15474-18010
17111Intake Manifold17120-18010
17111ZStud bolts (for intake manifold to cylinder head)90126-08056
17141KStud bolts (for exhaust manifold to cylinder head)90126-10024
17159Studs (for manifold to cylinder head)90126-10048
17172Gasket (manifold to cylinder head)17171-18010
17173Gasket (exhaust manifold to cylinder head)17173-18010
17177No. 1 gasket (intake manifold to cylinder head)17177-18010
17201Turbocharger sub-assembly17201-18030
17265Toyota part22271-47060
17271No. 1 turbine vibration isolation pad17271-18010
17272No. 2 turbine vibration isolation pad17272-18010
17274Compressor oil inlet elbow pipe17274-18010
17279Turbine outlet elbow gasket17279-0W010
17452BToyota part17452-36020
17568AToyota part17568-18010
25051Exhaust manifold three-way catalytic converter sub-assembly25051-18020
