Toyota COROLLA Engine Mounting — Figure 1107

Toyota COROLLA EPC diagram 1107, Engine Mounting, with 1 images and 7 PNC and OE references.

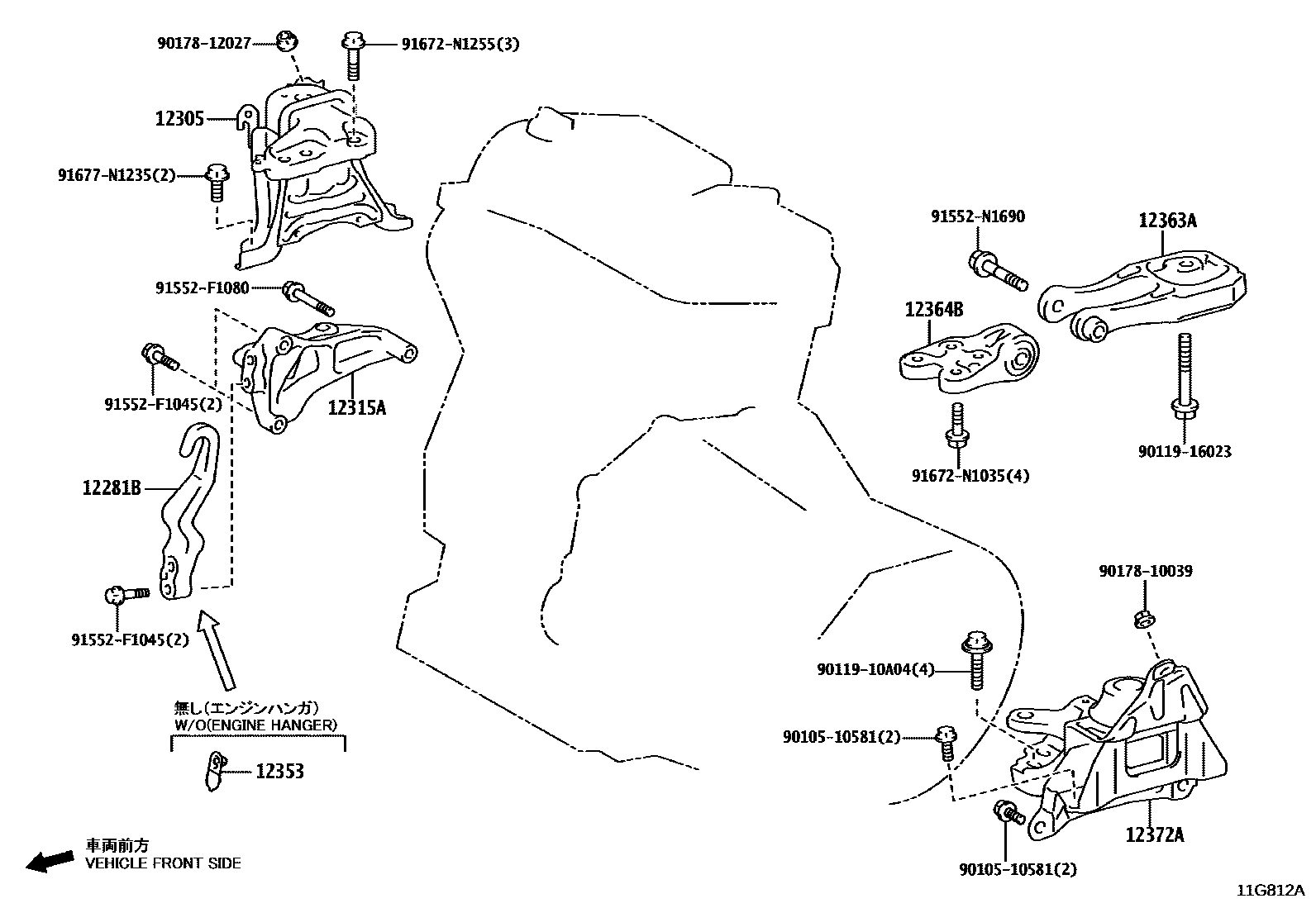

Toyota COROLLA Engine Mounting EPC diagram — 11G812A
Engine Mounting — 11G812A (202212 – 999999)

PNC and OE references

PNCPart nameOE numbers
12281BToyota part12281-25030
12305Engine right side mounting vibration isolation pad sub-assembly12305-18060
12315AEngine right side mounting bracket (for transversely mounted engine)12315-18010
12353Toyota part12353-15010
12363AEngine movement control lever12363-18010
12364BEngine No. 2 motion control lever12364-18020
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-18020
