Toyota COROLLA Timing Gear Cover & Rear End Plate — Figure 1106

Toyota COROLLA EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 1 images and 9 PNC and OE references.

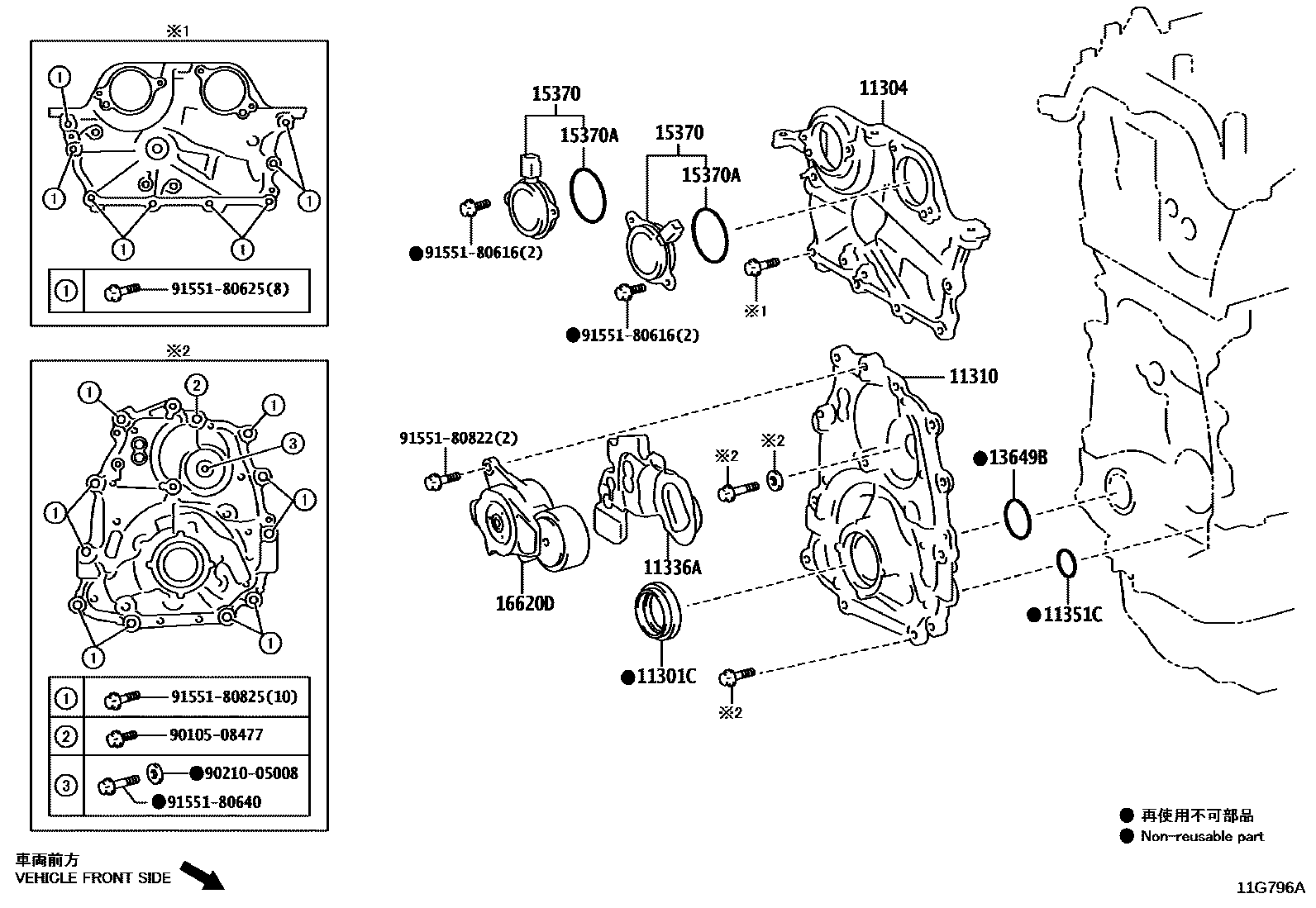

Toyota COROLLA Timing Gear Cover & Rear End Plate EPC diagram — 11G796A
Timing Gear Cover & Rear End Plate — 11G796A (202212 – 999999)

PNC and OE references

PNCPart nameOE numbers
11301COIL SEAL (FOR TIMING GEAR OR CHAIN CASE)90311-40044
11304No. 2 timing chain or timing belt cover11322-18010
11310Toyota part11310-18020
11336ATiming gear cover vibration isolation pad11336-18010
11351CO-ring90301-20012
13649BO-ring96723-35028
15370Toyota part15370-25020
15370AToyota part90301-44006
16620DPoly V-belt tensioner assembly16620-18010
