Toyota COROLLA antenna — Figure 8604

Toyota COROLLA EPC diagram 8604, antenna, with 2 images and 9 PNC and OE references.

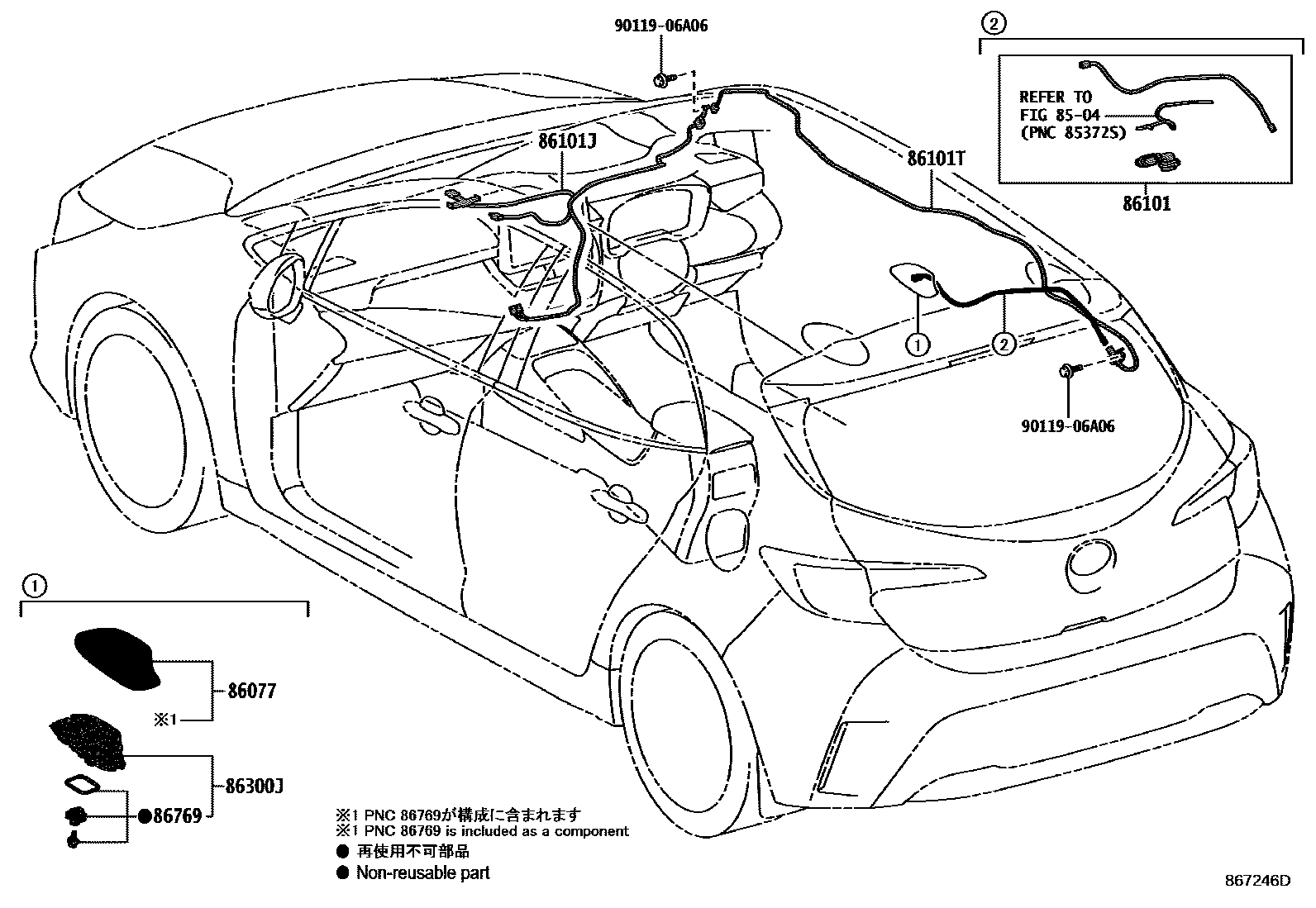

Toyota COROLLA antenna EPC diagram — 867246D
antenna — 867246D (201806 – 201909)

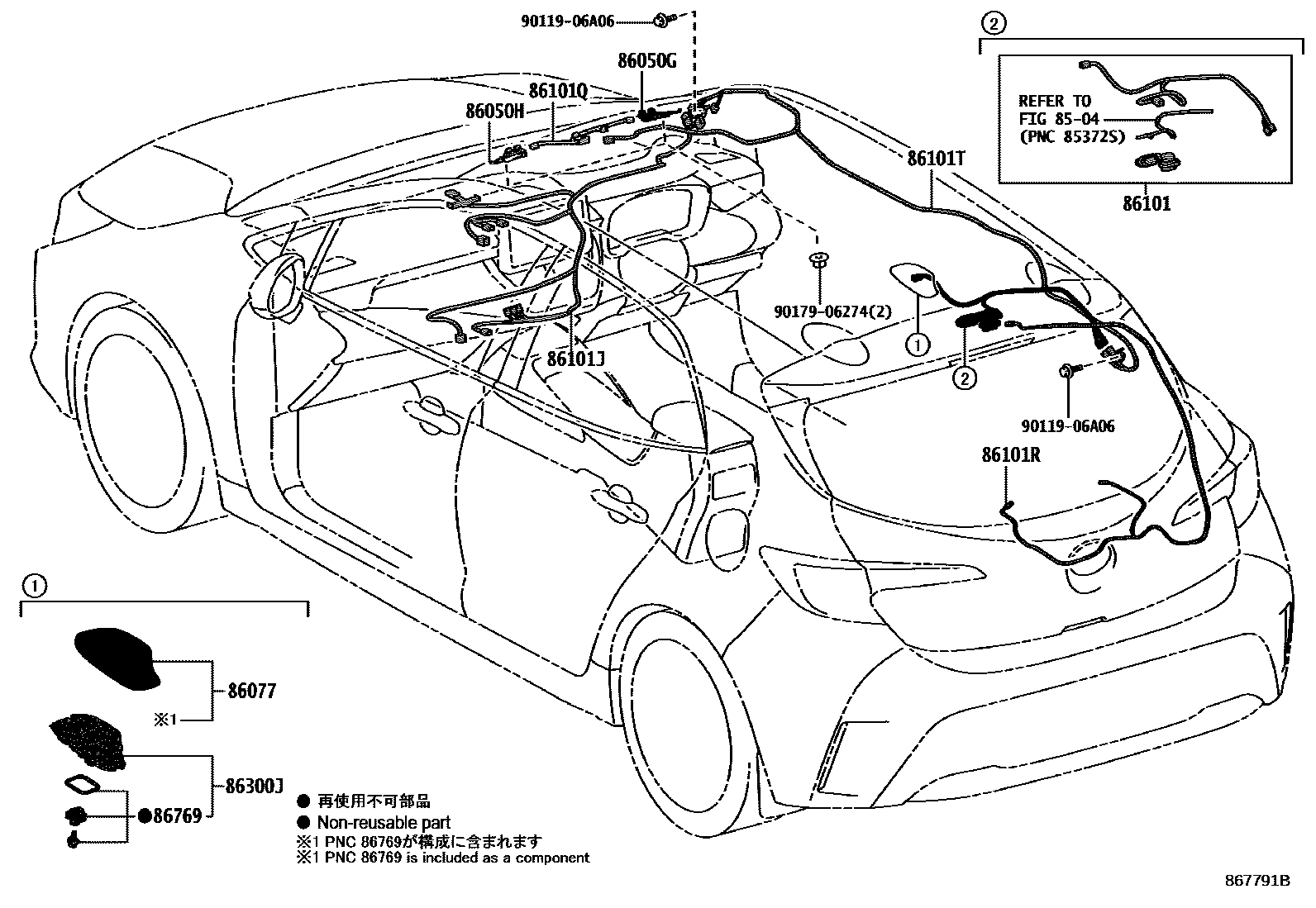

Toyota COROLLA antenna EPC diagram — 867791B
antenna — 867791B (201909 – 999999)

PNC and OE references

PNCPart nameOE numbers
86050GToyota part86050-53180
86050HToyota part86050-53190
86101Antenna wire sub-assembly86101-12D40 · 86101-12L50 · 86101-12R10 · 86101-12R60
86101JNo. 2 antenna wire sub-assembly86101-12C70 · 86101-12J50 · 86101-12Q40 · 86101-12Q50 · 86101-12S40
86101QNo. 4 antenna wire sub-assembly86101-12J90 · 86101-12Q60
86101RNo. 5 antenna wire sub-assembly86101-12L30
86101TAntenna wire sub-assembly86101-12C20 · 86101-12L60 · 86101-12R70 · 86101-12S20
86300JRoof antenna assembly86300-42250 · 86760-12030 · 86760-K0010
86769Toyota part86769-12010 · 86769-K0010
