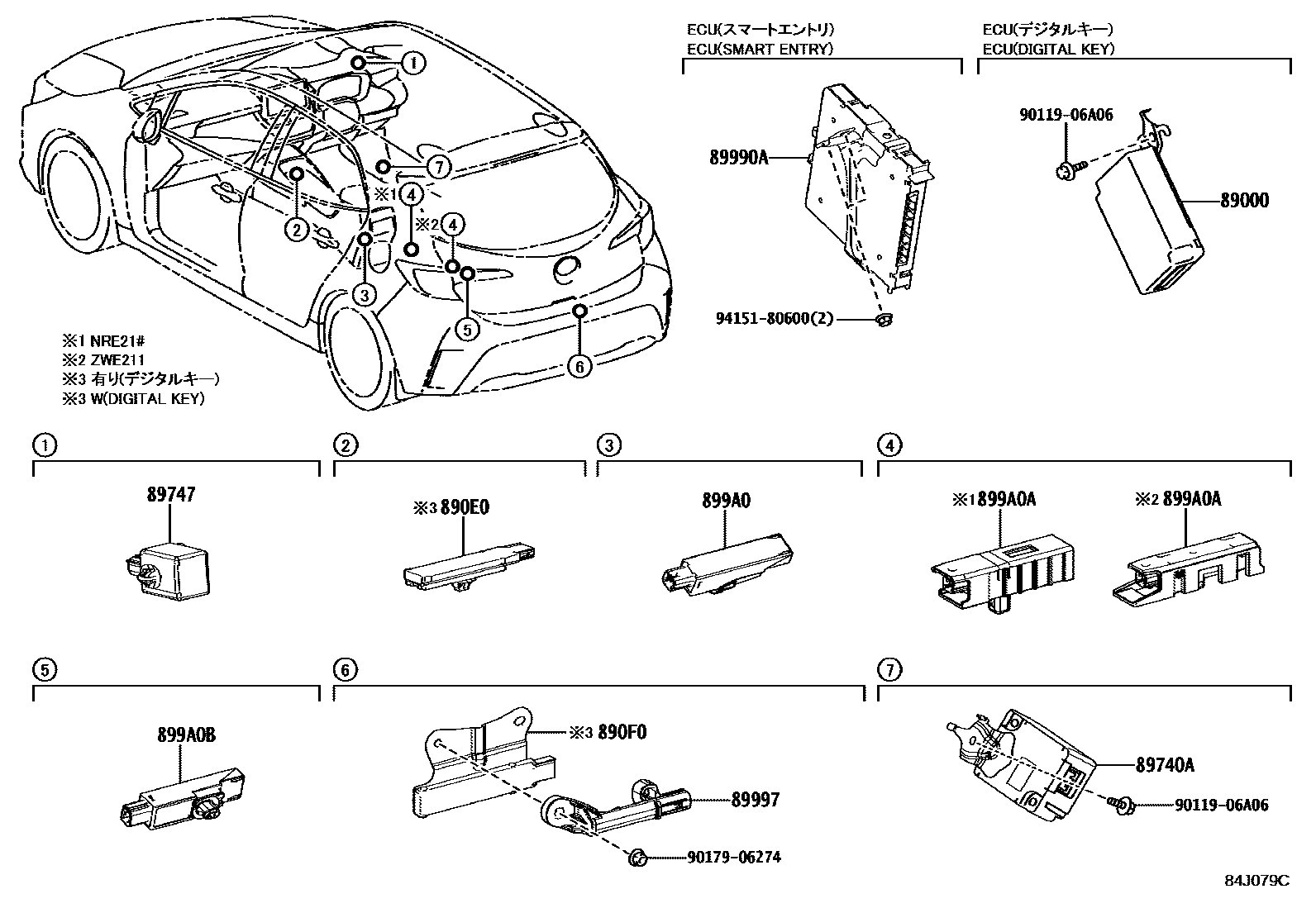

Toyota COROLLA 遥控门锁 — Figure 8420
Toyota COROLLA EPC diagram 8420, 遥控门锁, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89000 | Toyota part | 89000-12070 · 89000-12071 |
| 890E0 | Toyota part | 890E0-12050 |
| 890F0 | Toyota part | 890F0-47010 |
| 89740A | Toyota part | 89740-12420 |
| 89747 | Remote door lock buzzer | 89747-30040 |
| 89990A | Smart key ECU assembly | 899H0-12060 · 899H0-12061 · 899H0-12070 · 899H0-12071 · 899H0-12200 · 899H0-12201 · 899H0-12210 · 899H0-12211 · 899H0-12590 · 899H0-12600 · 899H0-12601 · 899H0-12602 · 899H0-12860 · 899H0-12870 |
| 89997 | electronic key antenna | 89997-30100 |
| 899A0 | No. 1 electronic key antenna assembly in car | 899A0-12080 |
| 899A0A | Electronic key antenna assembly in car No. 2 | 899A0-12090 · 899A0-12110 |
| 899A0B | Electronic key antenna assembly in car No. 3 | 899A0-12130 |
