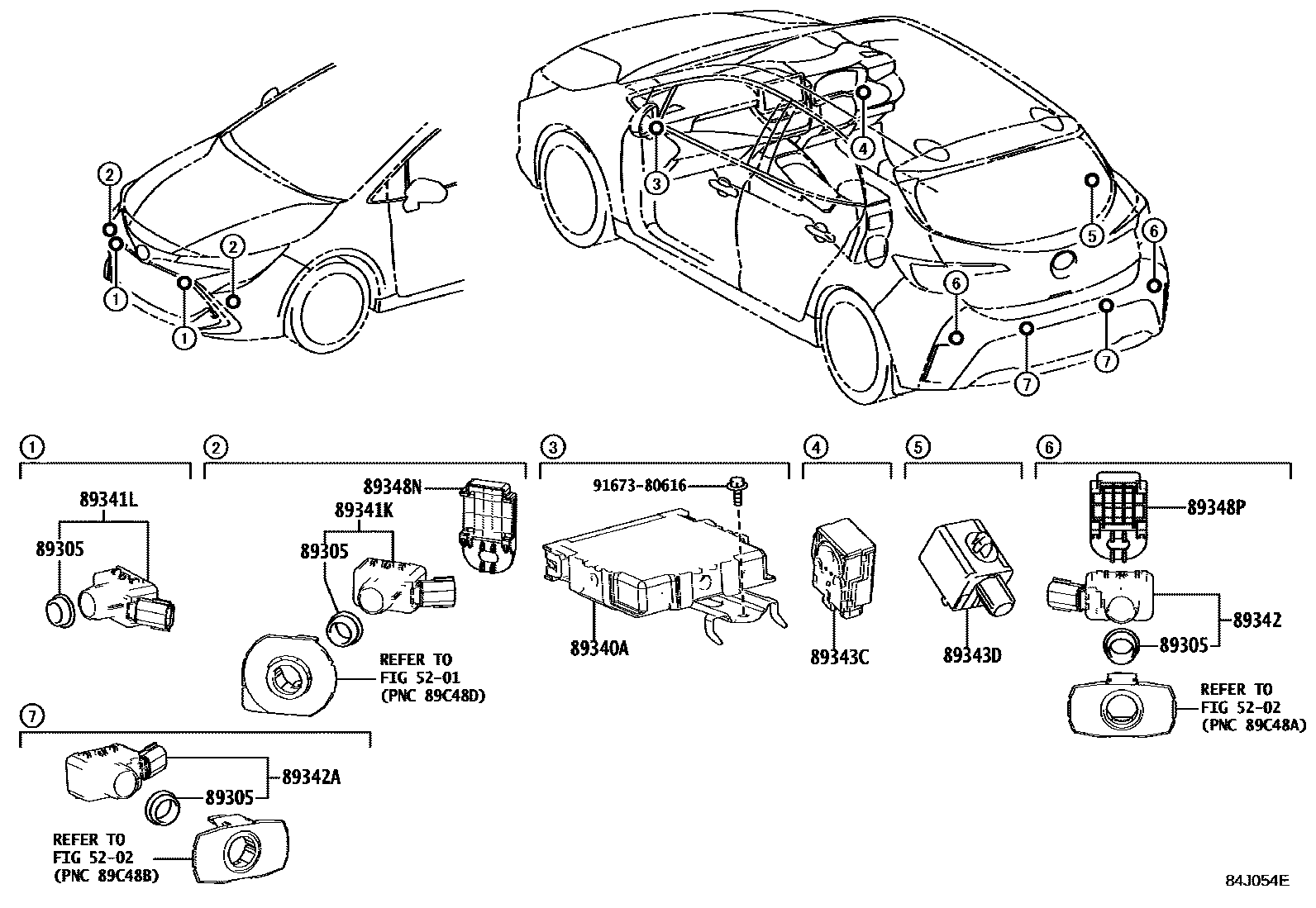

Toyota COROLLA 测距雷达和倒车雷达 — Figure 8417
Toyota COROLLA EPC diagram 8417, 测距雷达和倒车雷达, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89305 | Toyota part | 89305-47010 · 89305-52010 |
| 89340A | Distance warning ECU assembly | 89340-12160 · 89340-12170 · 89340-12580 · 89340-12A10 |
| 89343C | No. 1 distance warning buzzer | 89343-48010 |
| 89343D | No. 2 vehicle distance warning buzzer | 89747-30040 |
| 89348N | Toyota part | 89348-50220 · 89348-58130 |
| 89348P | Toyota part | 89348-50220 · 89348-58130 |
