Toyota COROLLA 电子燃油喷射系统 — Figure 8404

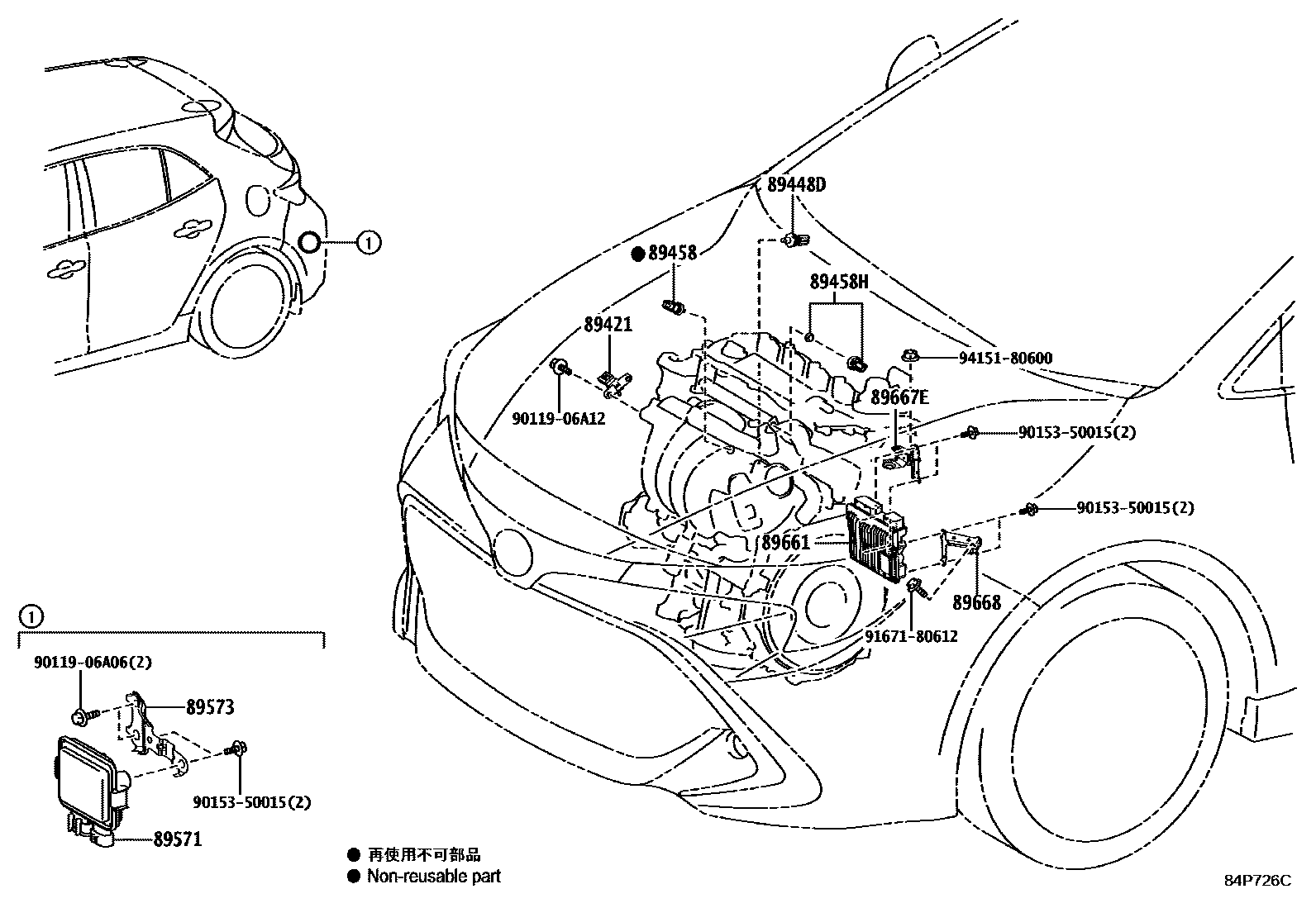

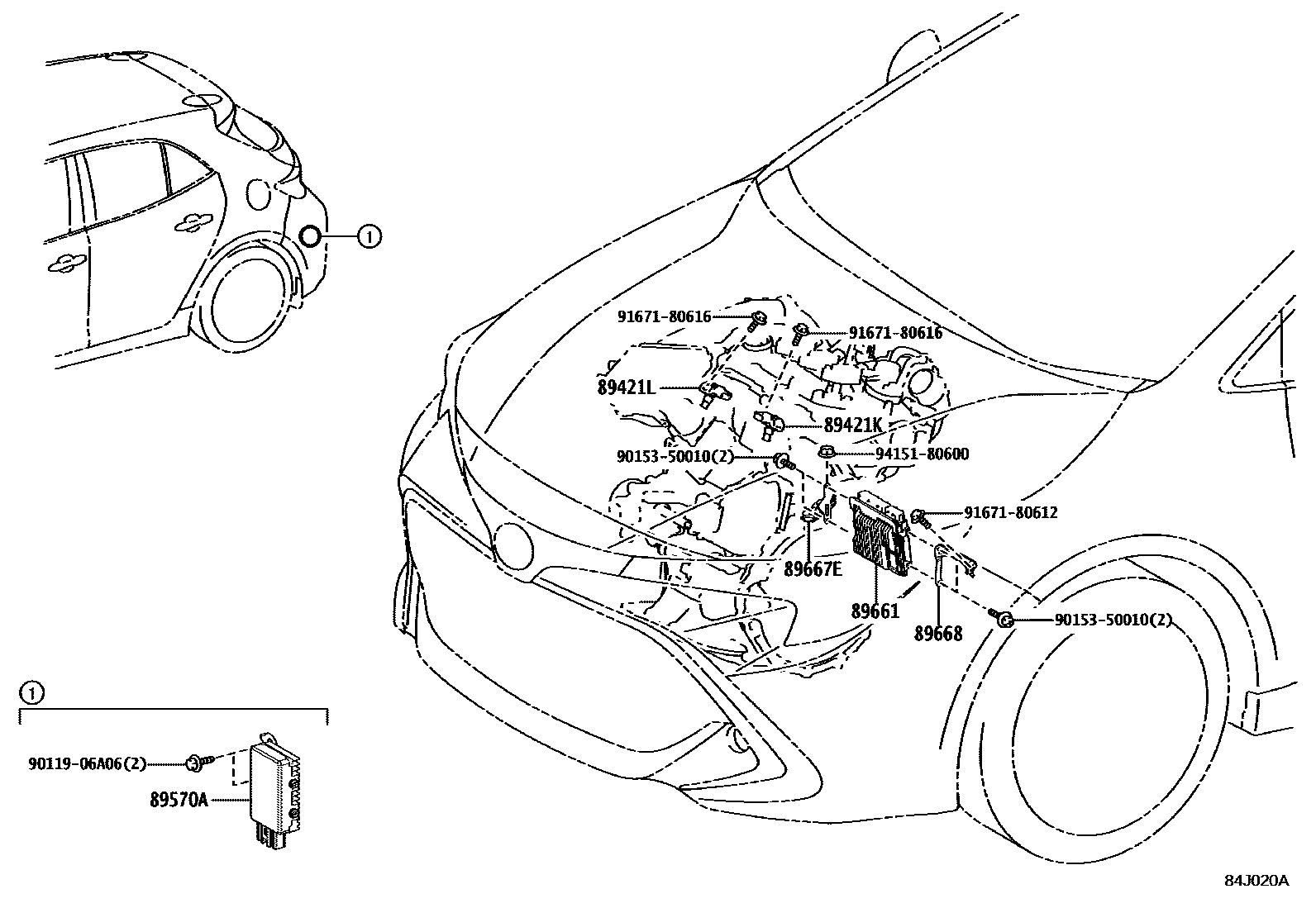

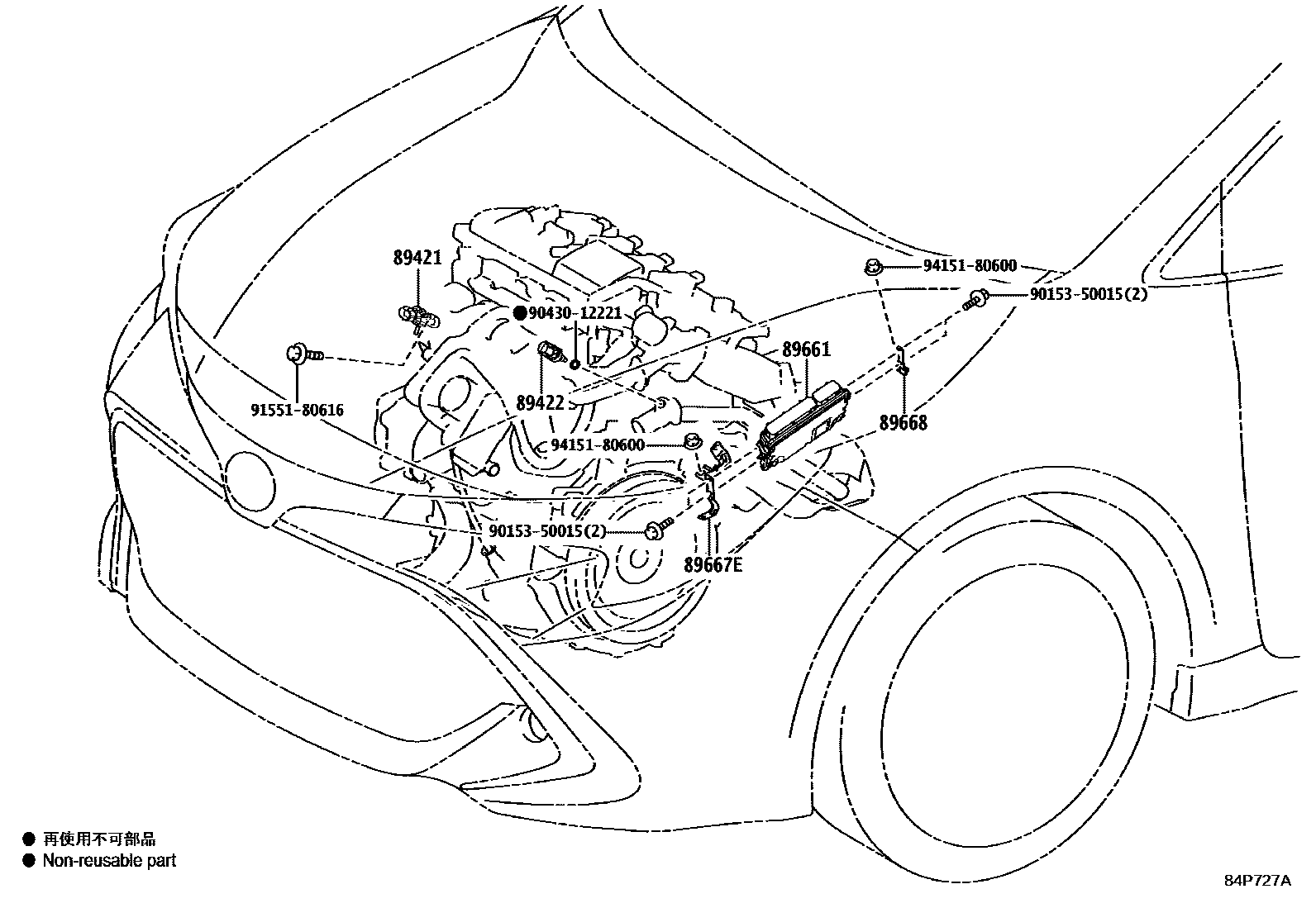

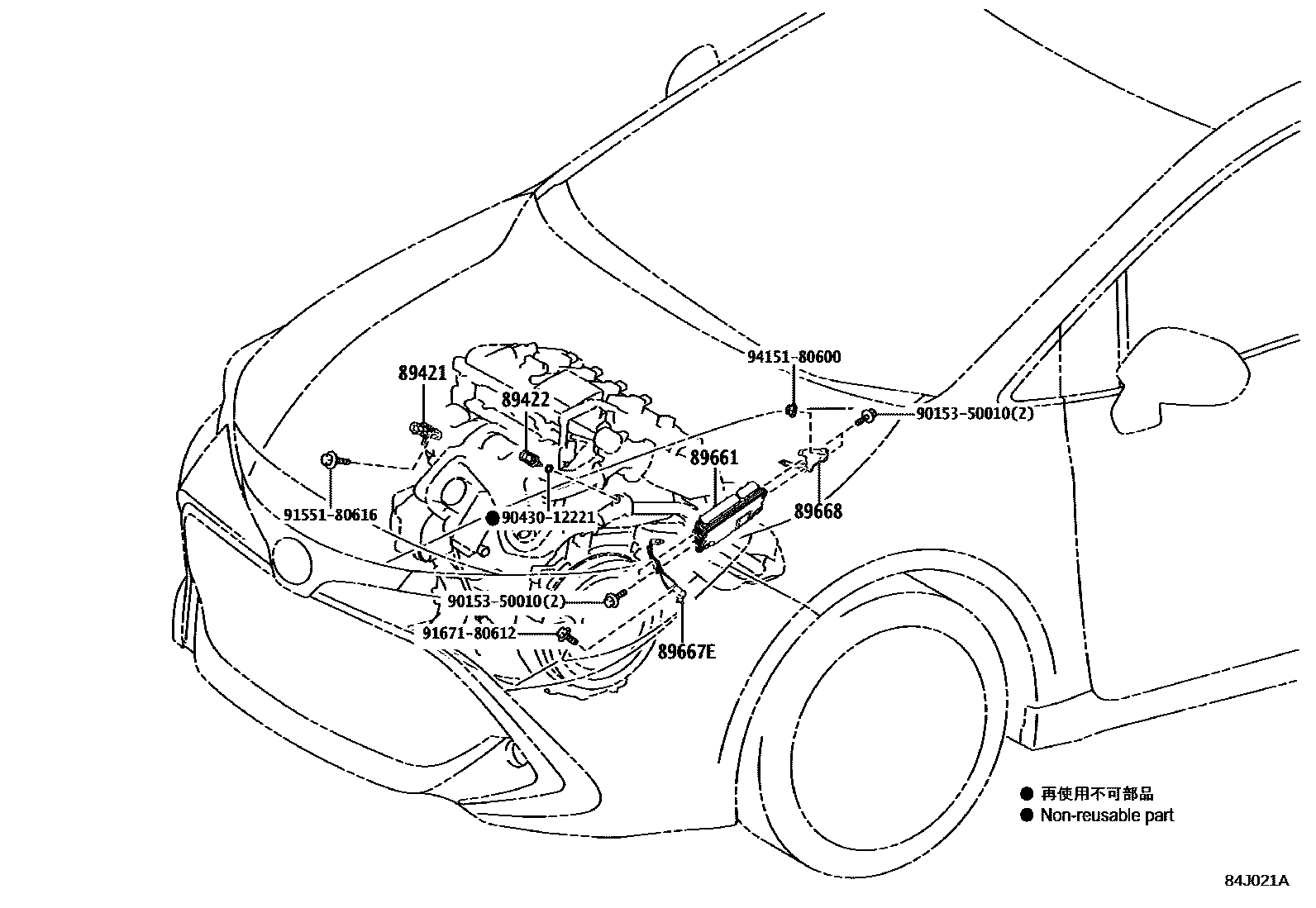

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-26030 · 89421-33010 |
| 89421K | Toyota part | 89421-78010 |
| 89421L | Toyota part | 89421-78010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-33030 |
| 89448D | Toyota part | 89448-33010 |
| 89458 | fuel pressure sensor | 89458-33030 |
| 89458H | Toyota part | 89458-33041 · 89458-33042 |
| 89570A | Fuel pump control ECU assembly | 89570-12410 |
| 89571 | Fuel pump control ECU | 89571-48010 |
| 89573 | Fuel pump control ECU bracket | 89573-12110 |
| 89661 | Engine control ECU | 89661-12W10 · 89661-12Z20 · 89661-12Z40 · 89661-12Z41 · 89661-12Z42 · 89661-12Z50 · 89661-12Z51 · 89661-12Z52 · 89661-12Z60 · 89661-12Z61 · 89661-12Z62 · 89661-16820 · 89661-1AF70 · 89661-1AG20 |
| 89667E | No. 1 engine control ECU bracket | 89667-10050 · 89667-12350 · 89667-47100 · 89667-47120 |
| 89668 | No. 2 engine control ECU bracket | 89668-12280 · 89668-12320 · 89668-47050 · 89668-47070 |
