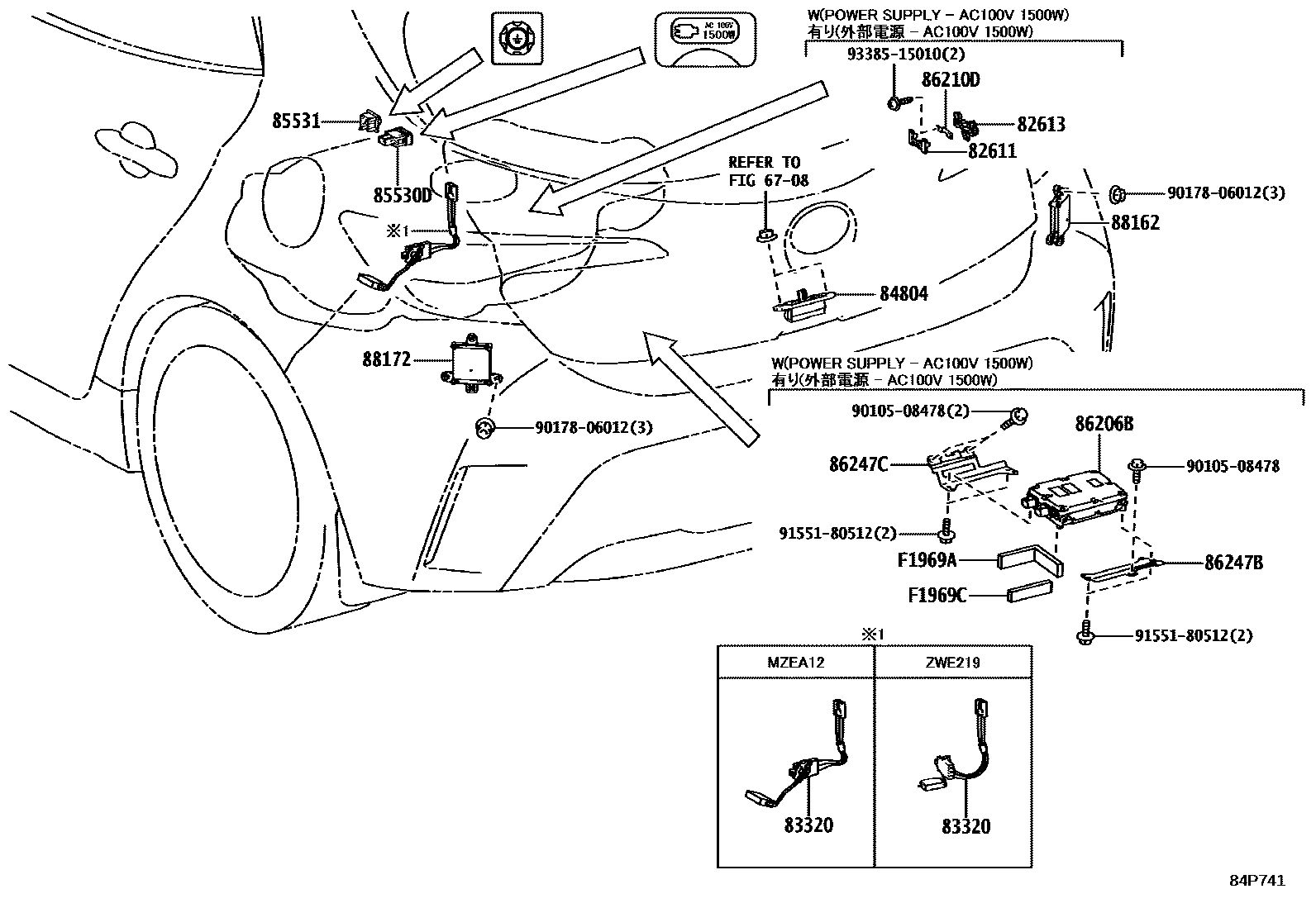

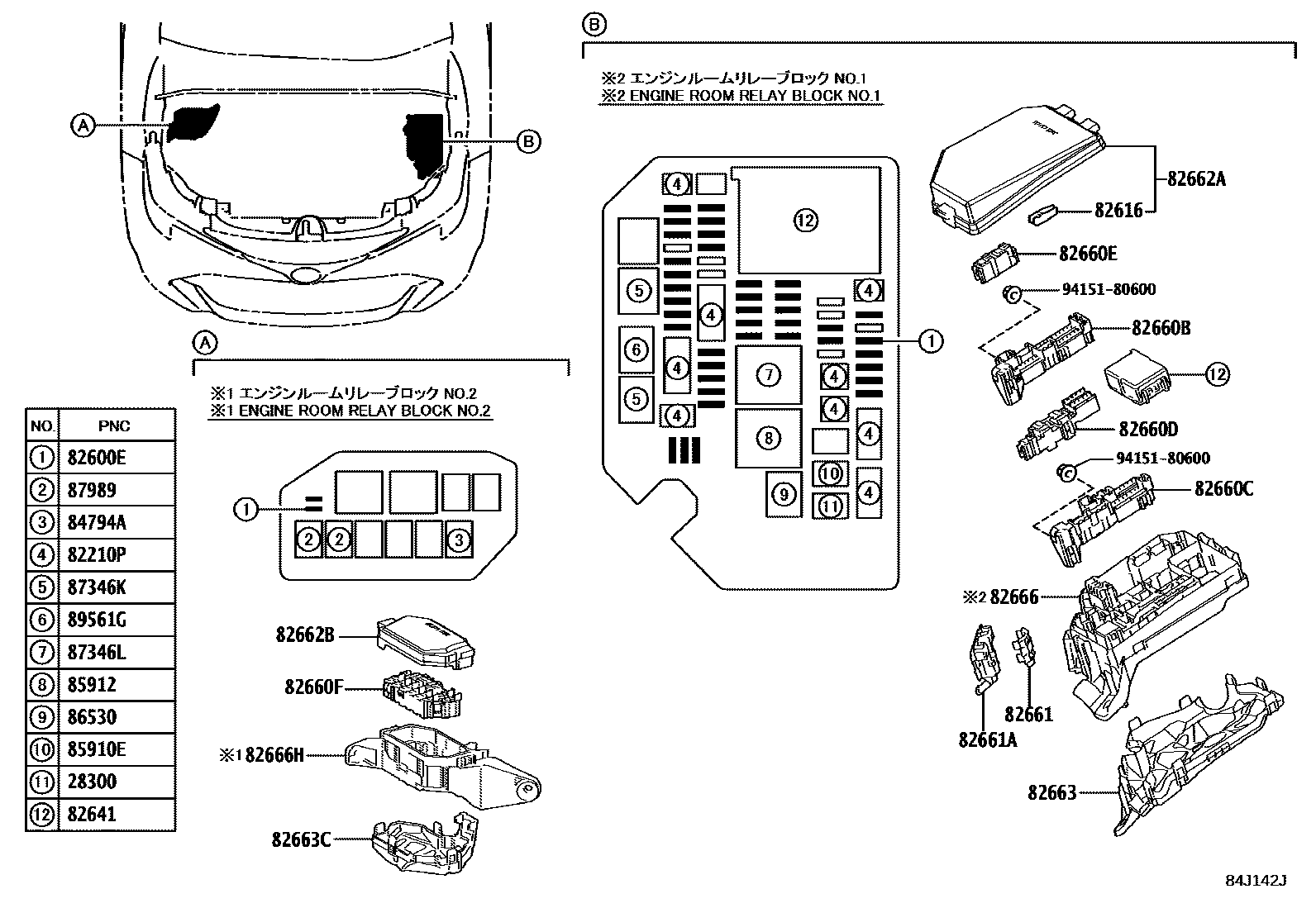

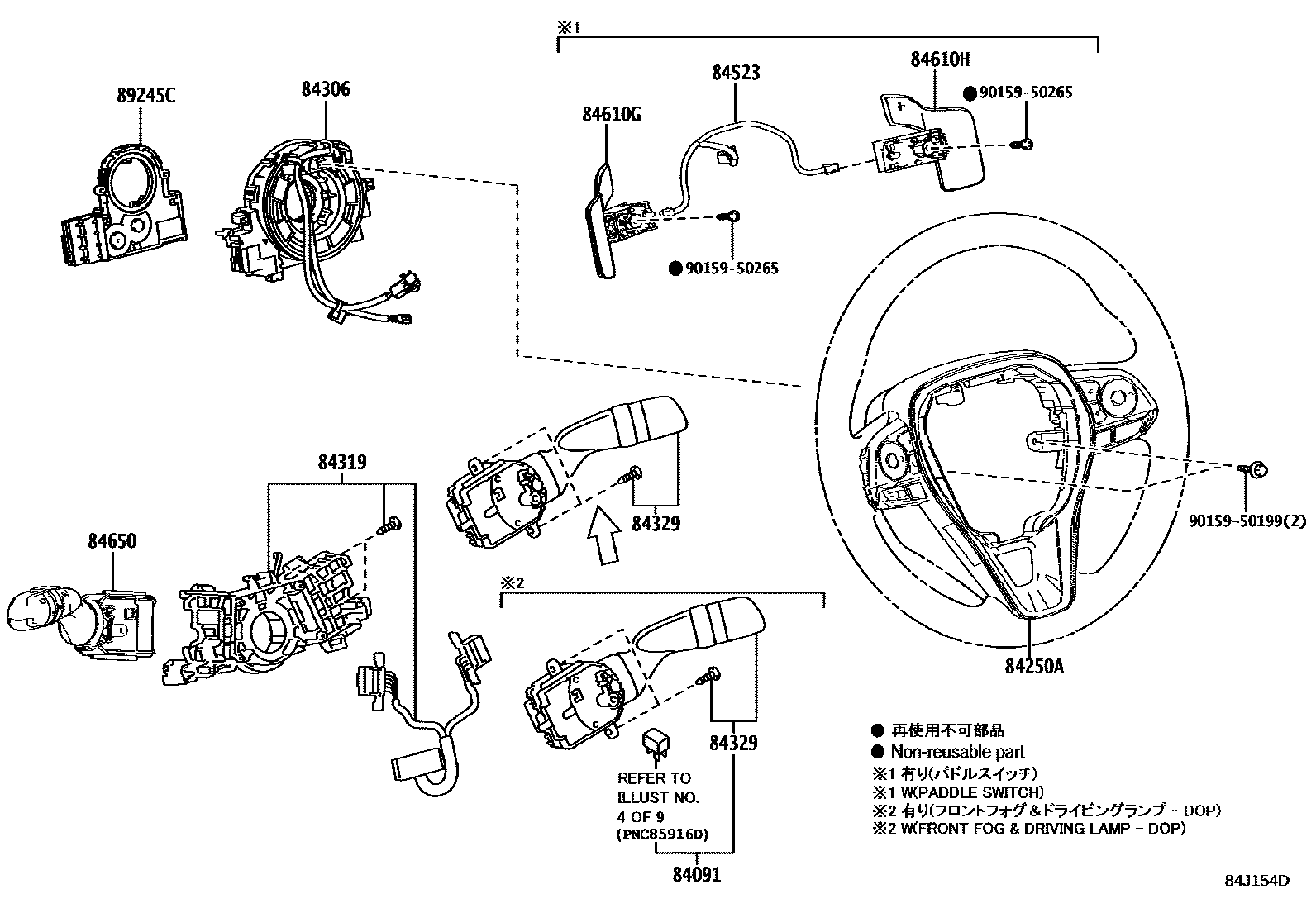

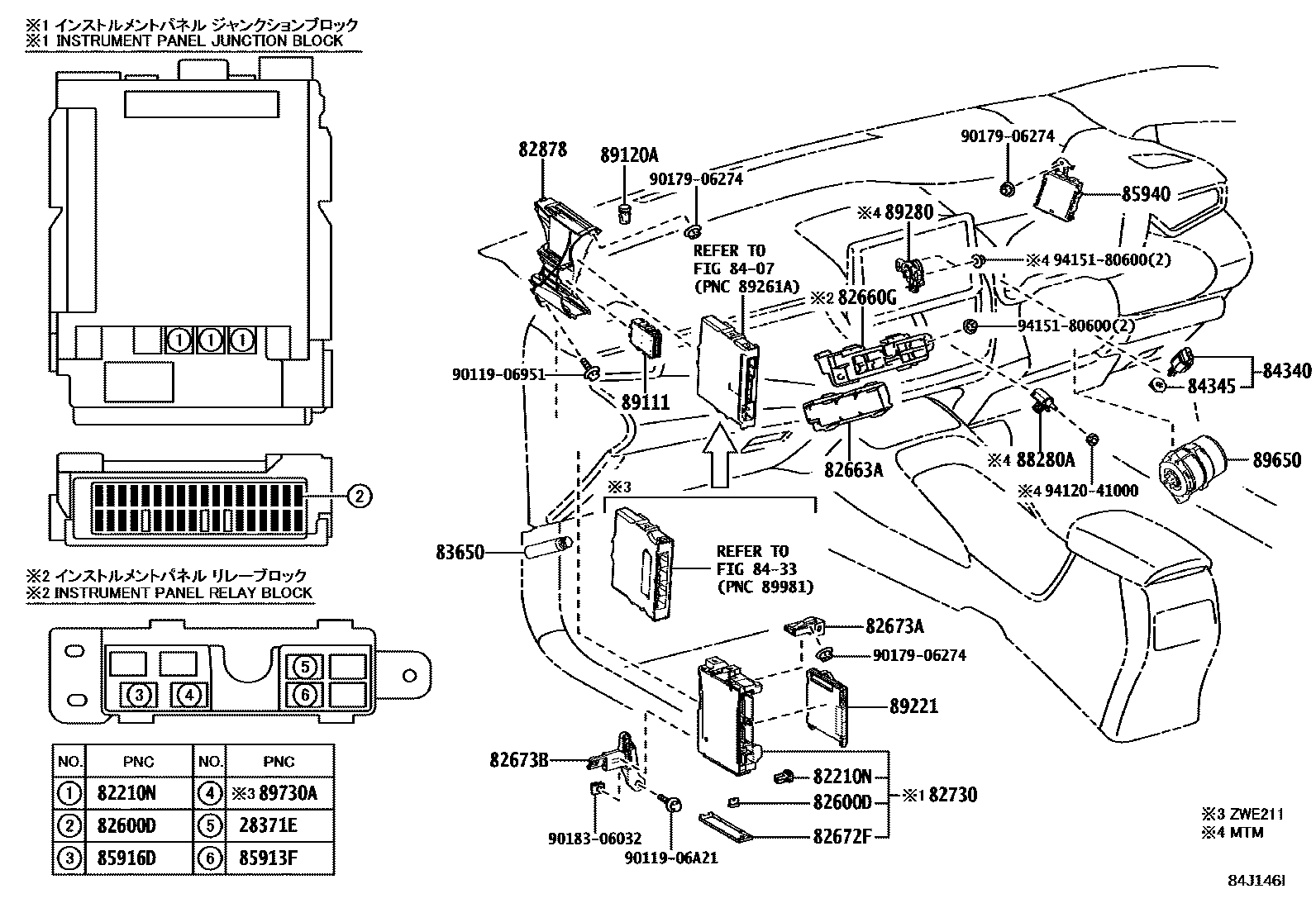

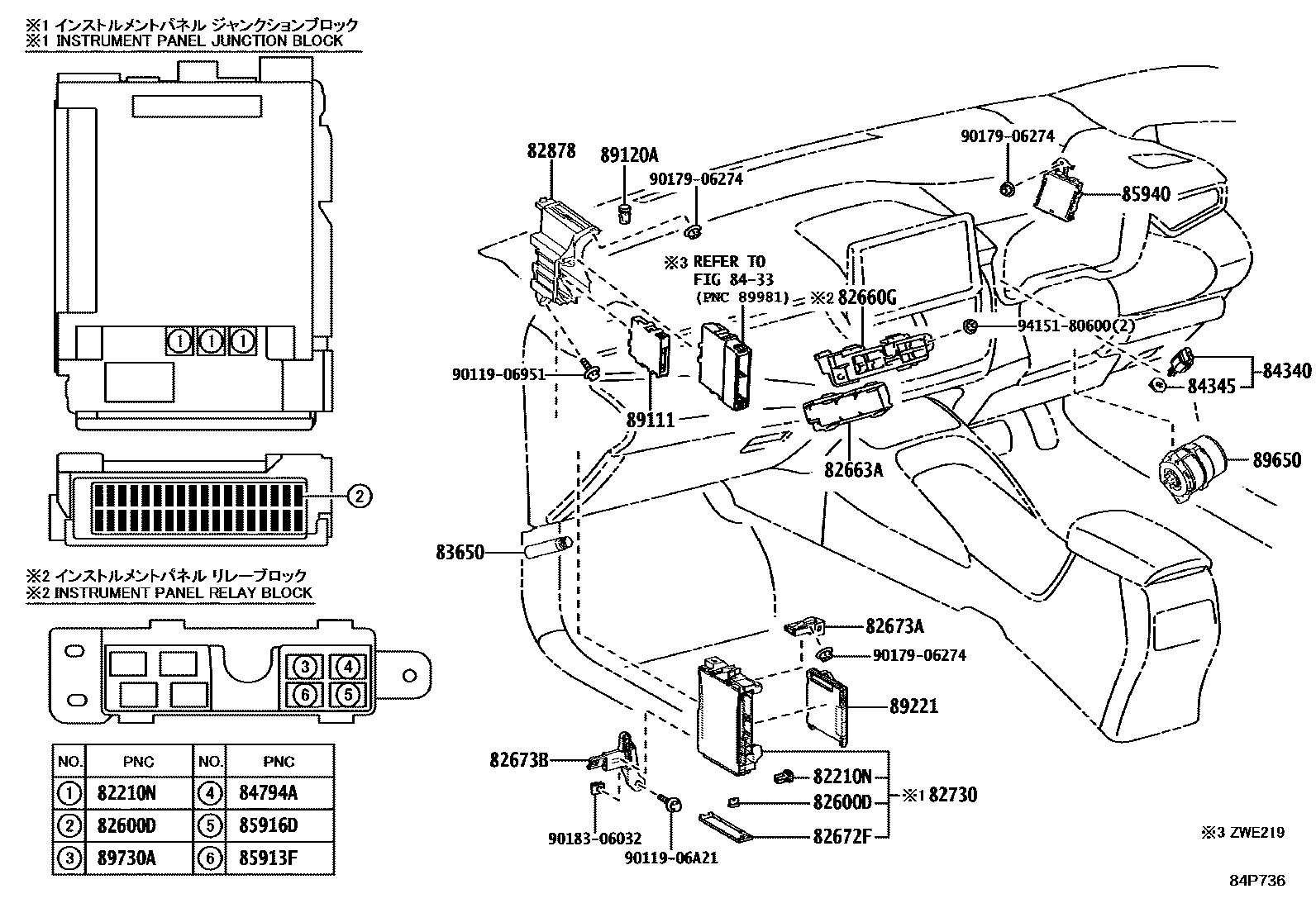

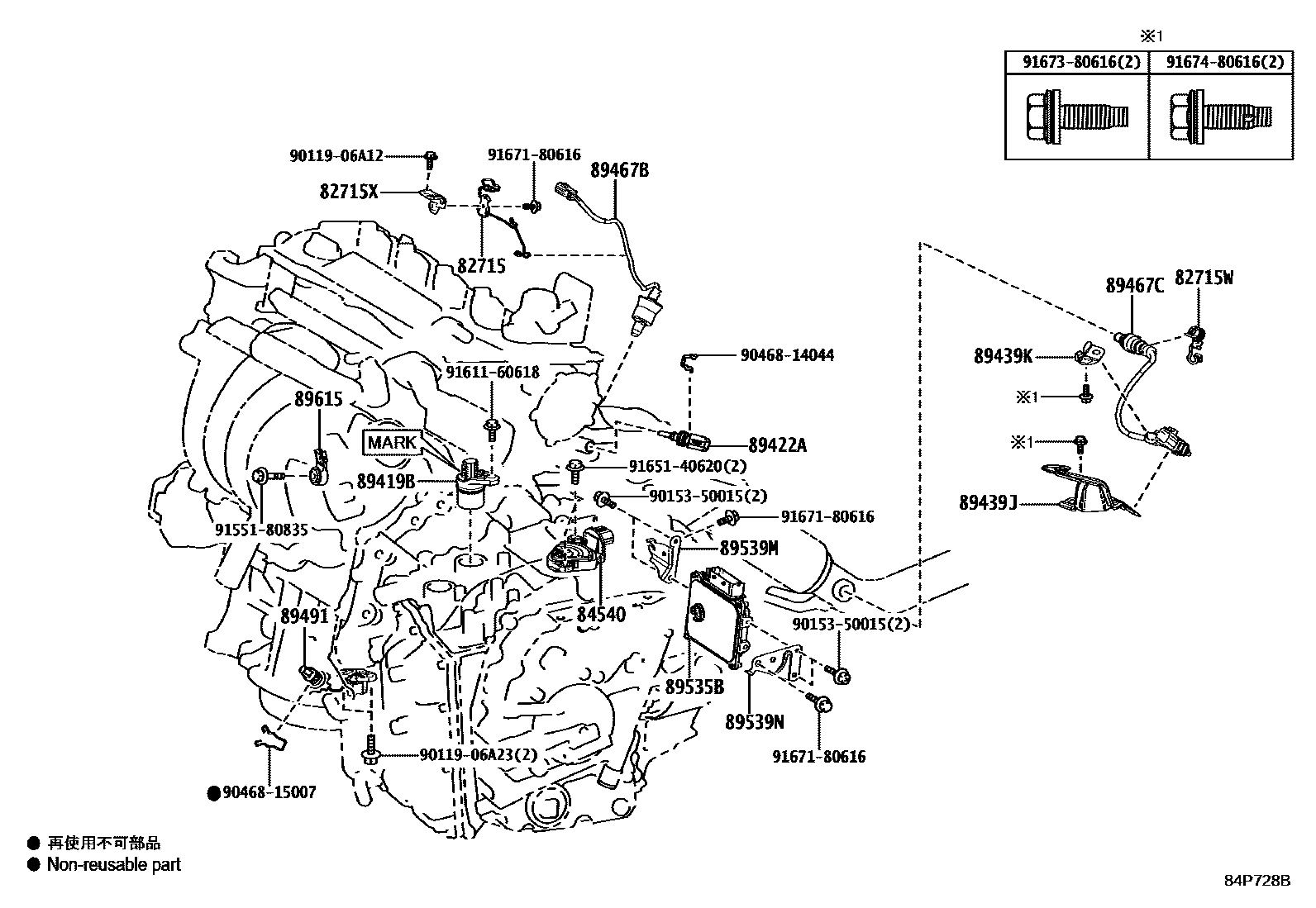

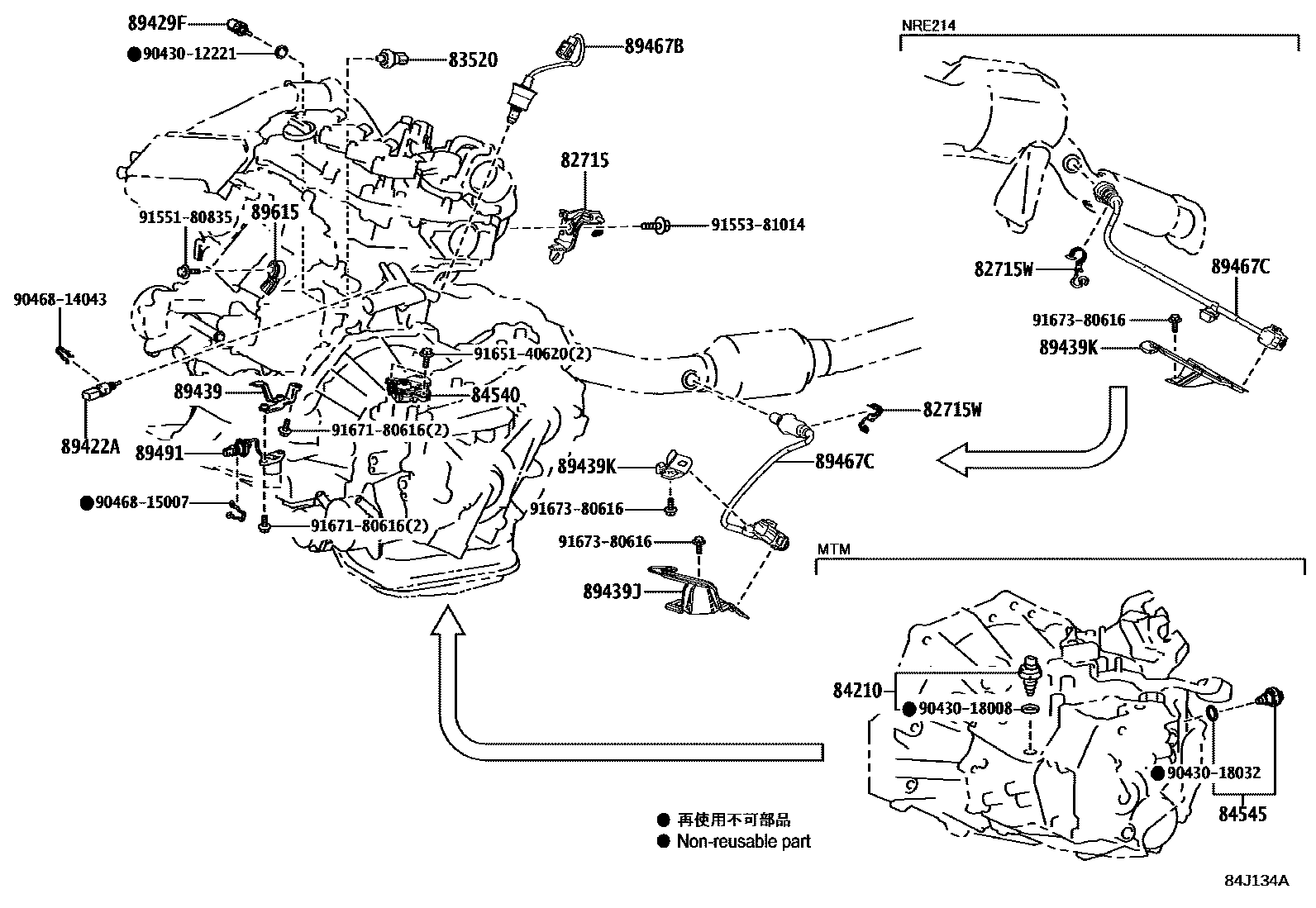

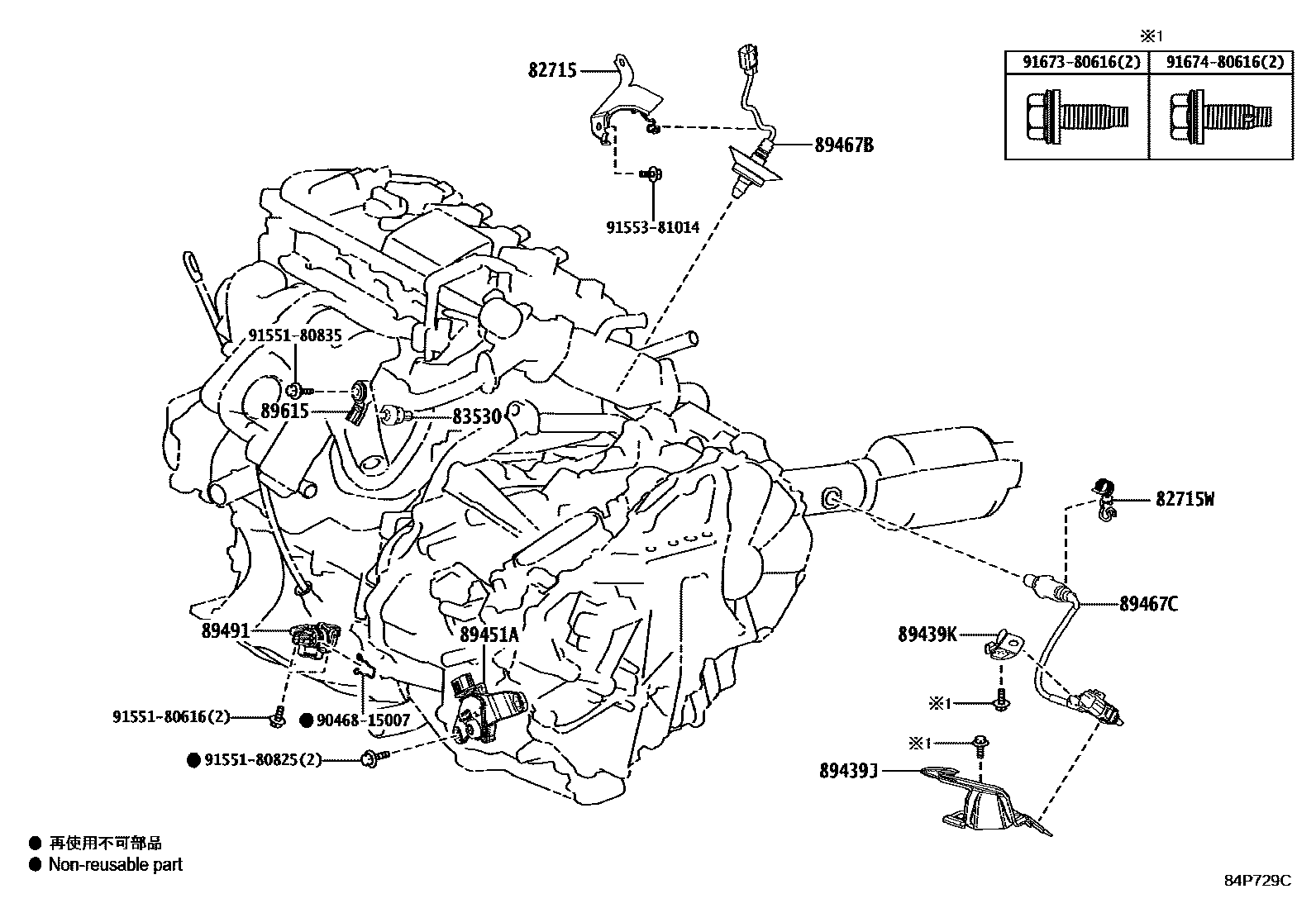

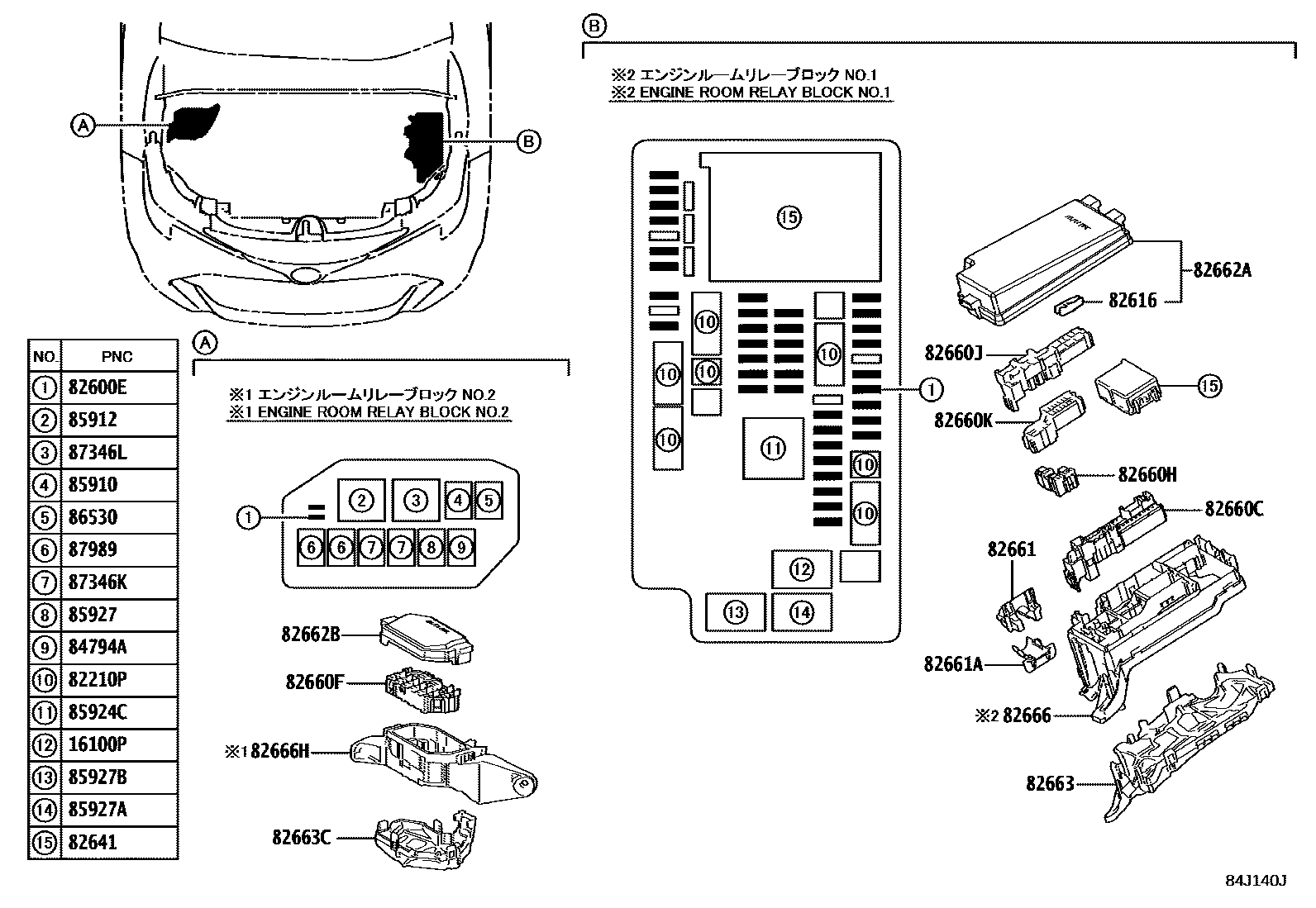

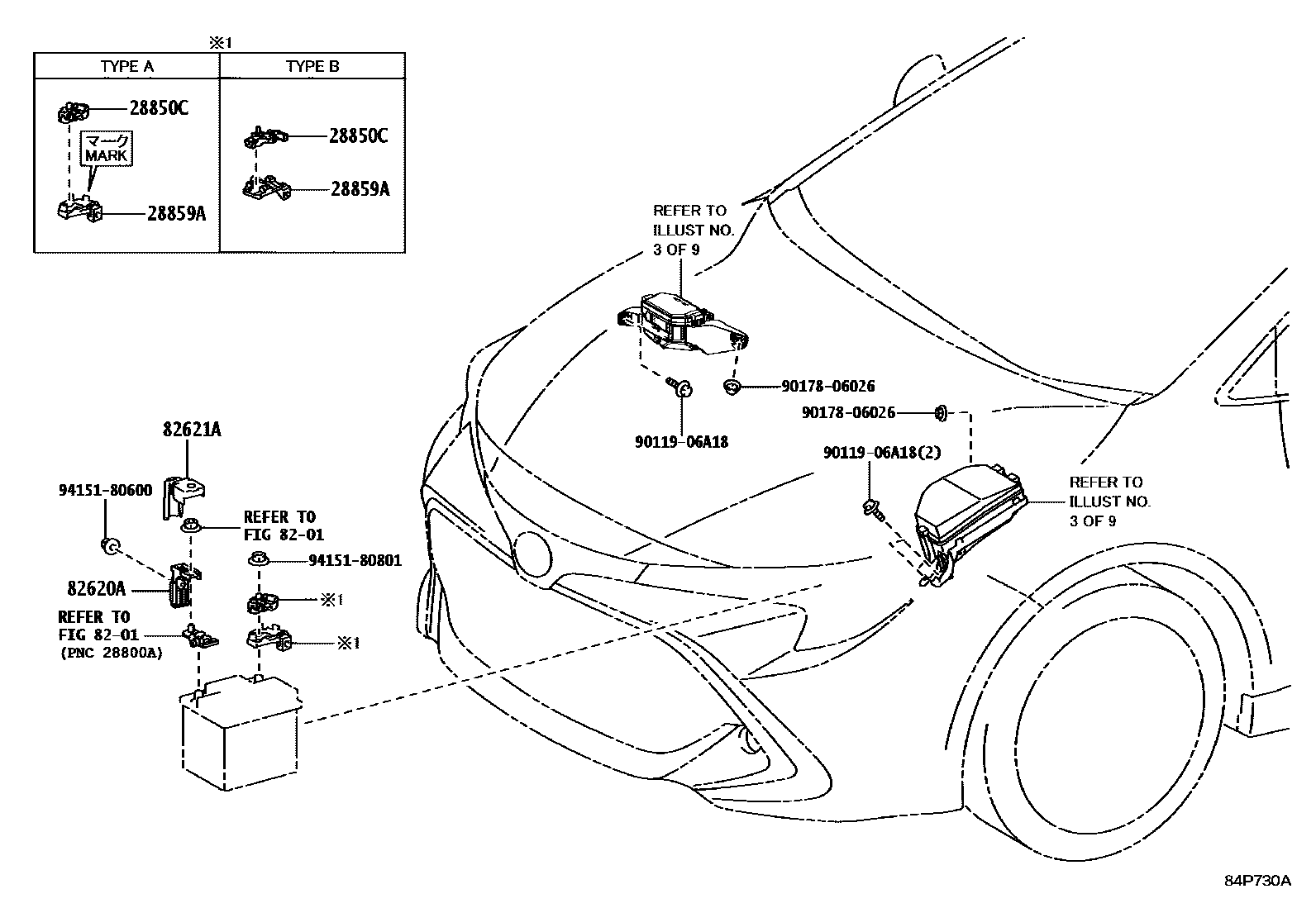

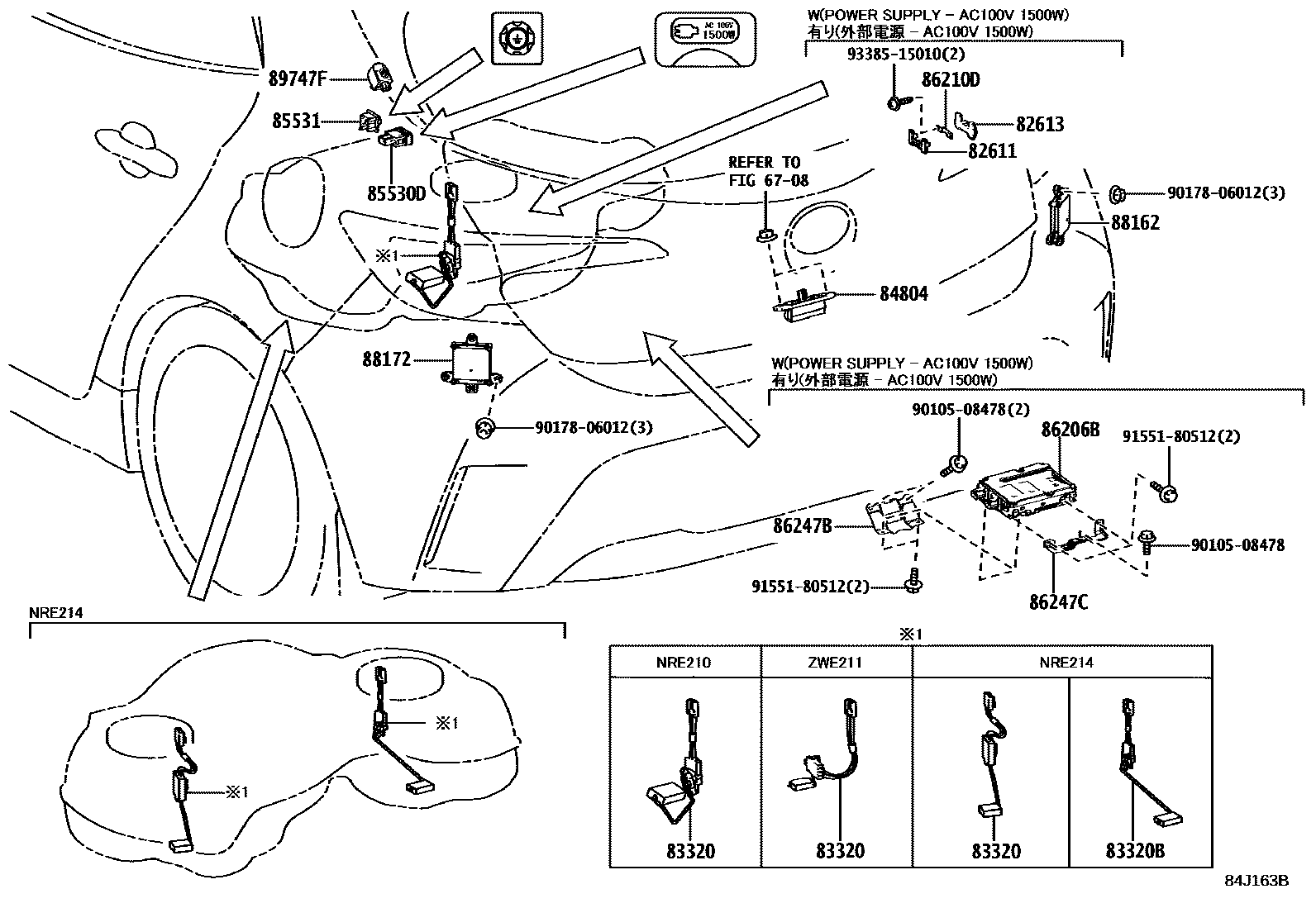

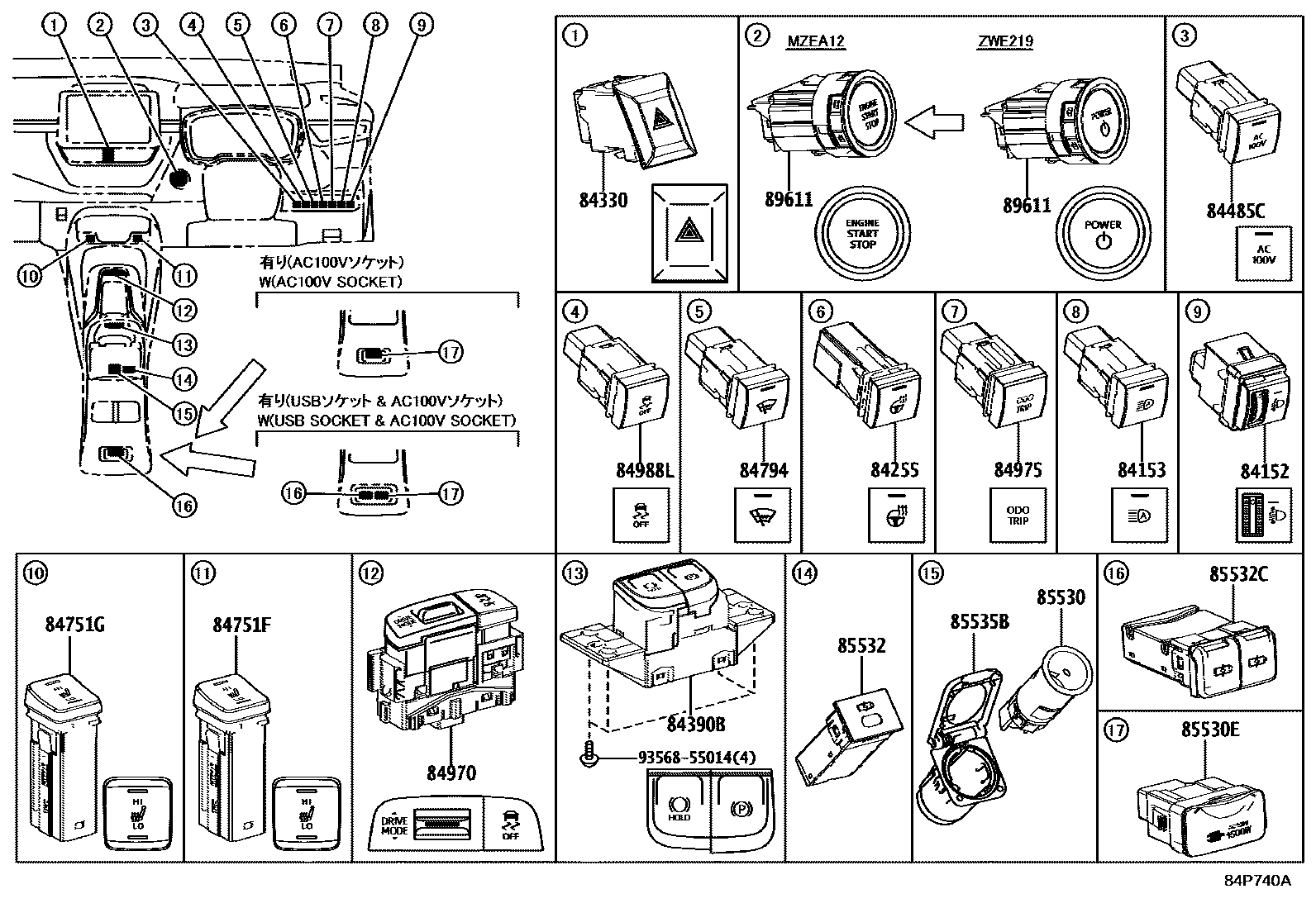

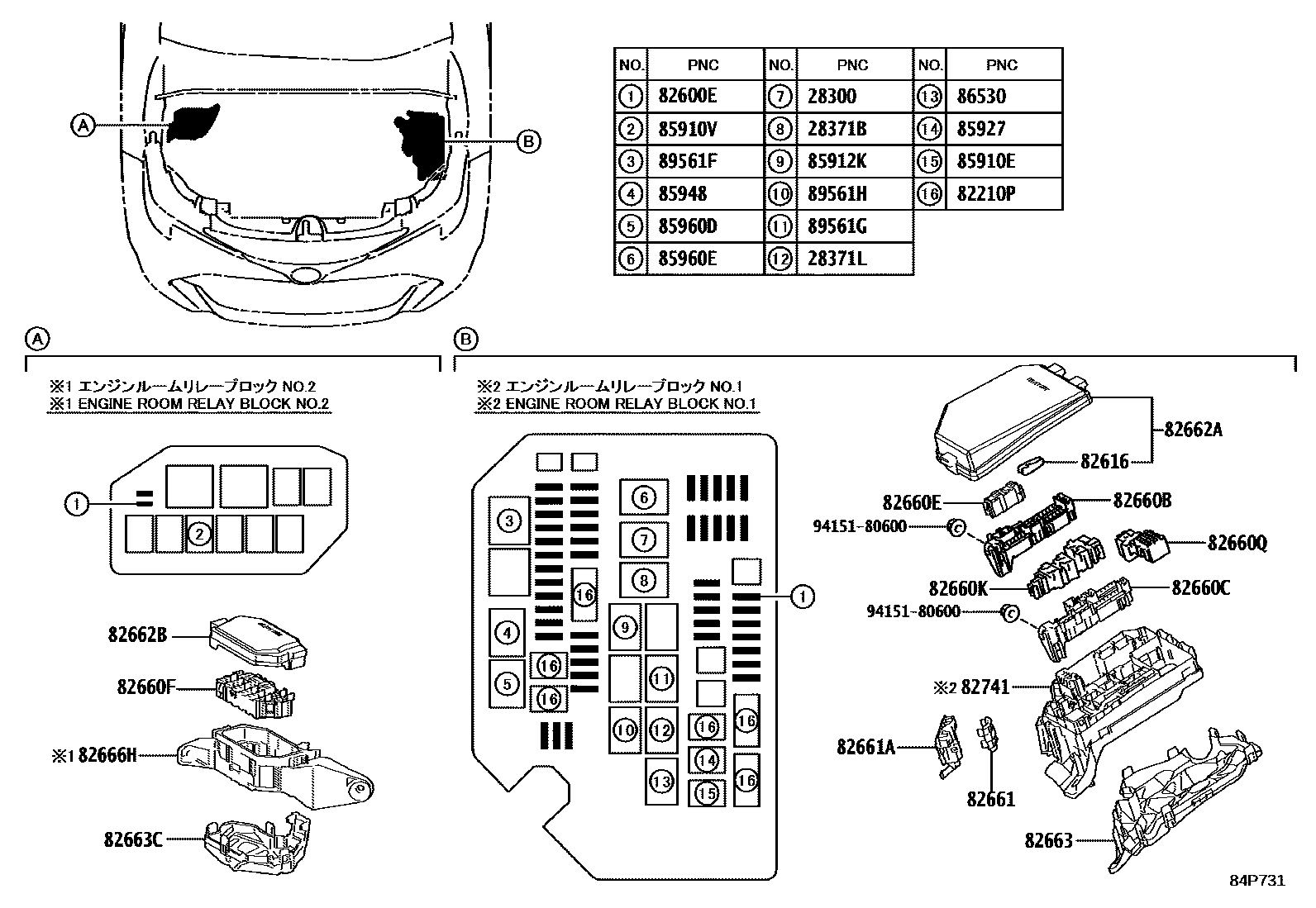

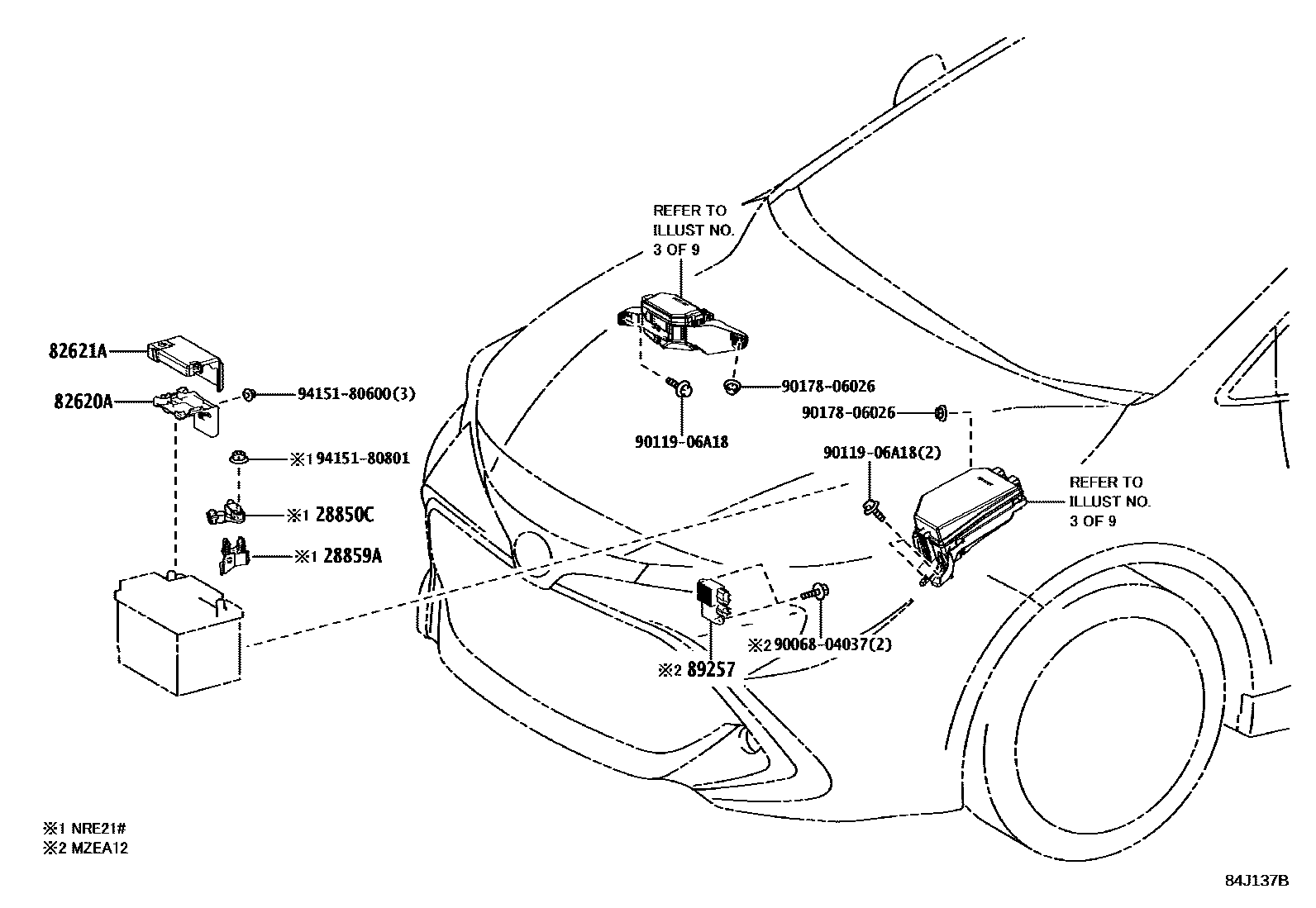

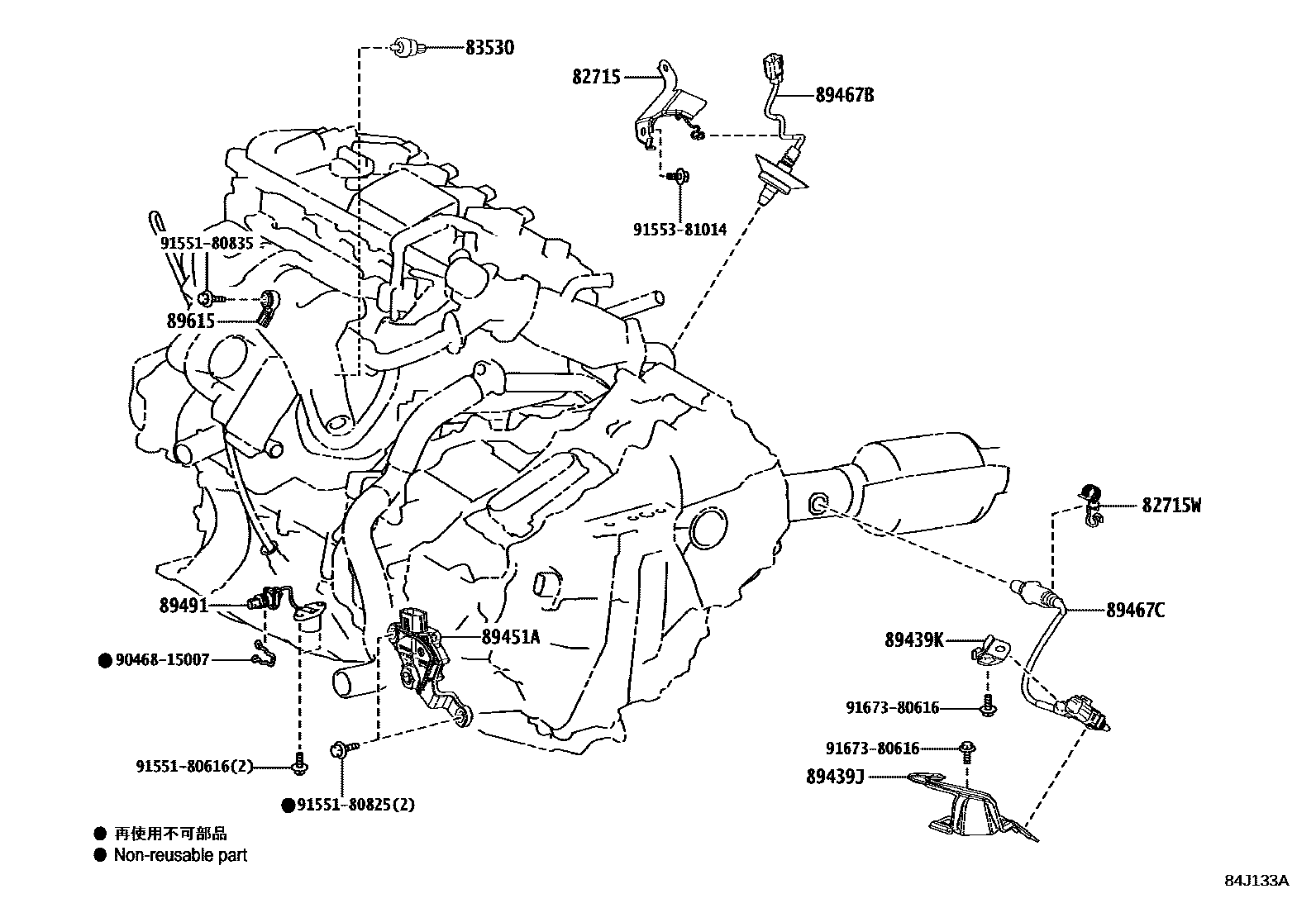

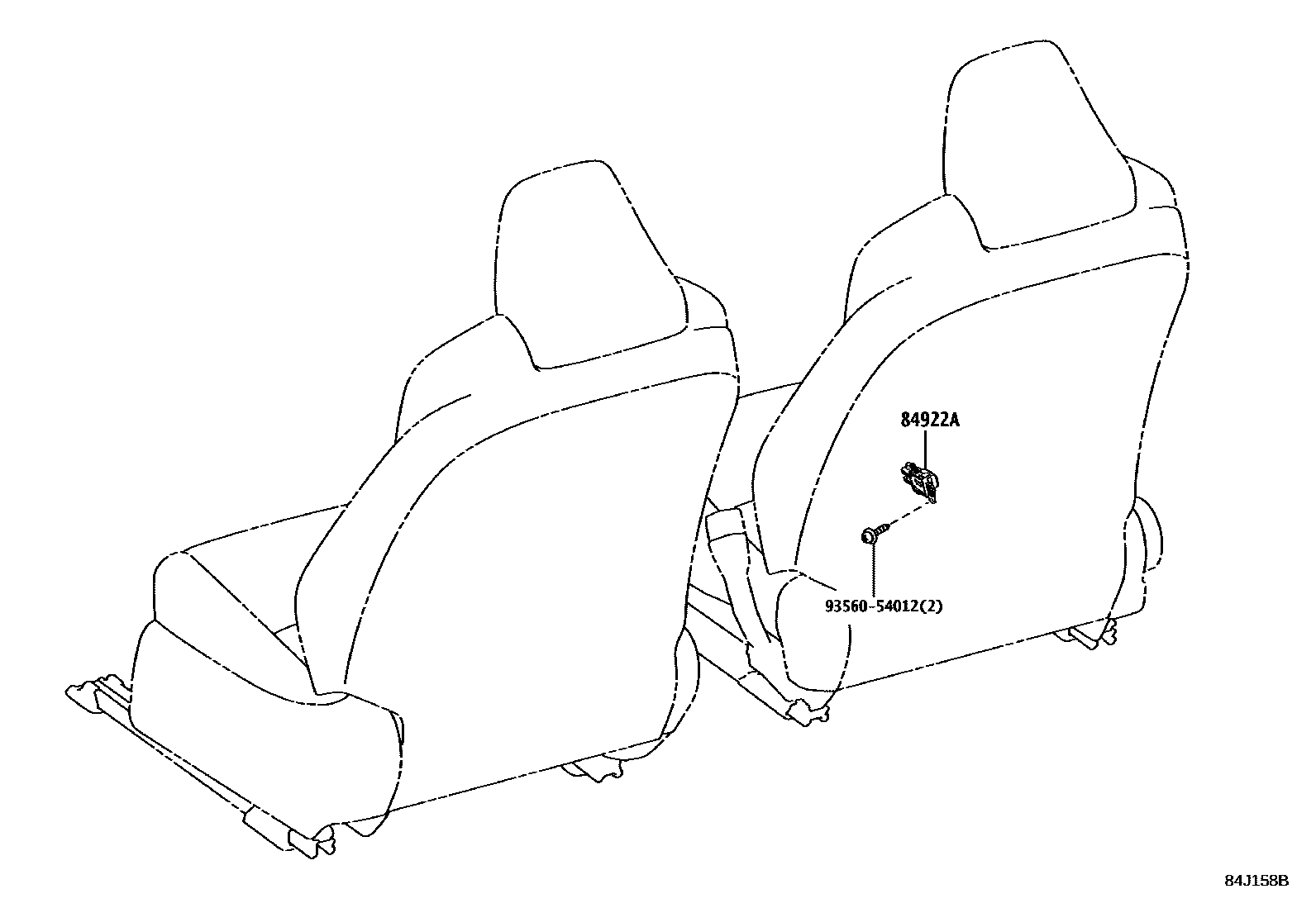

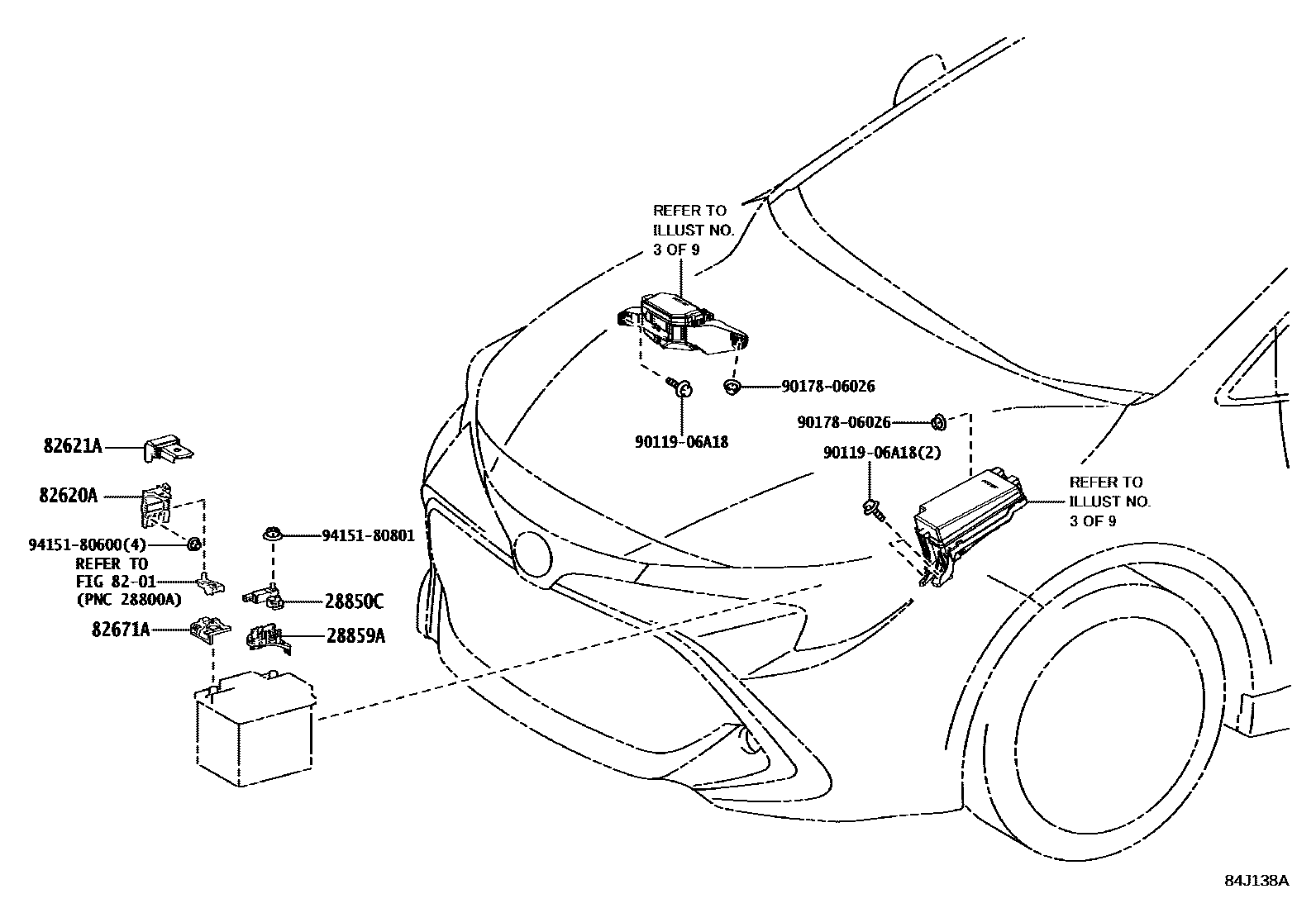

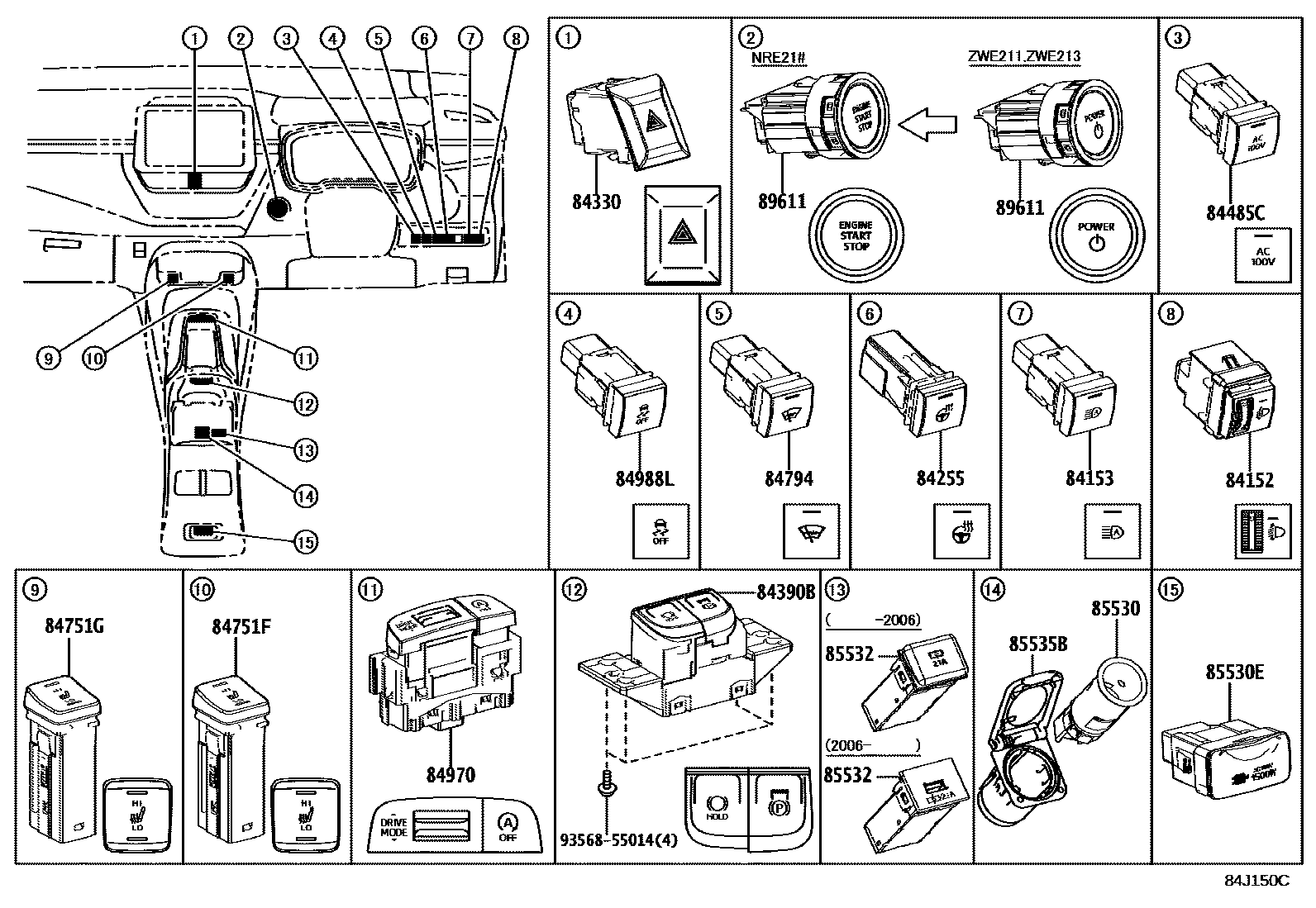

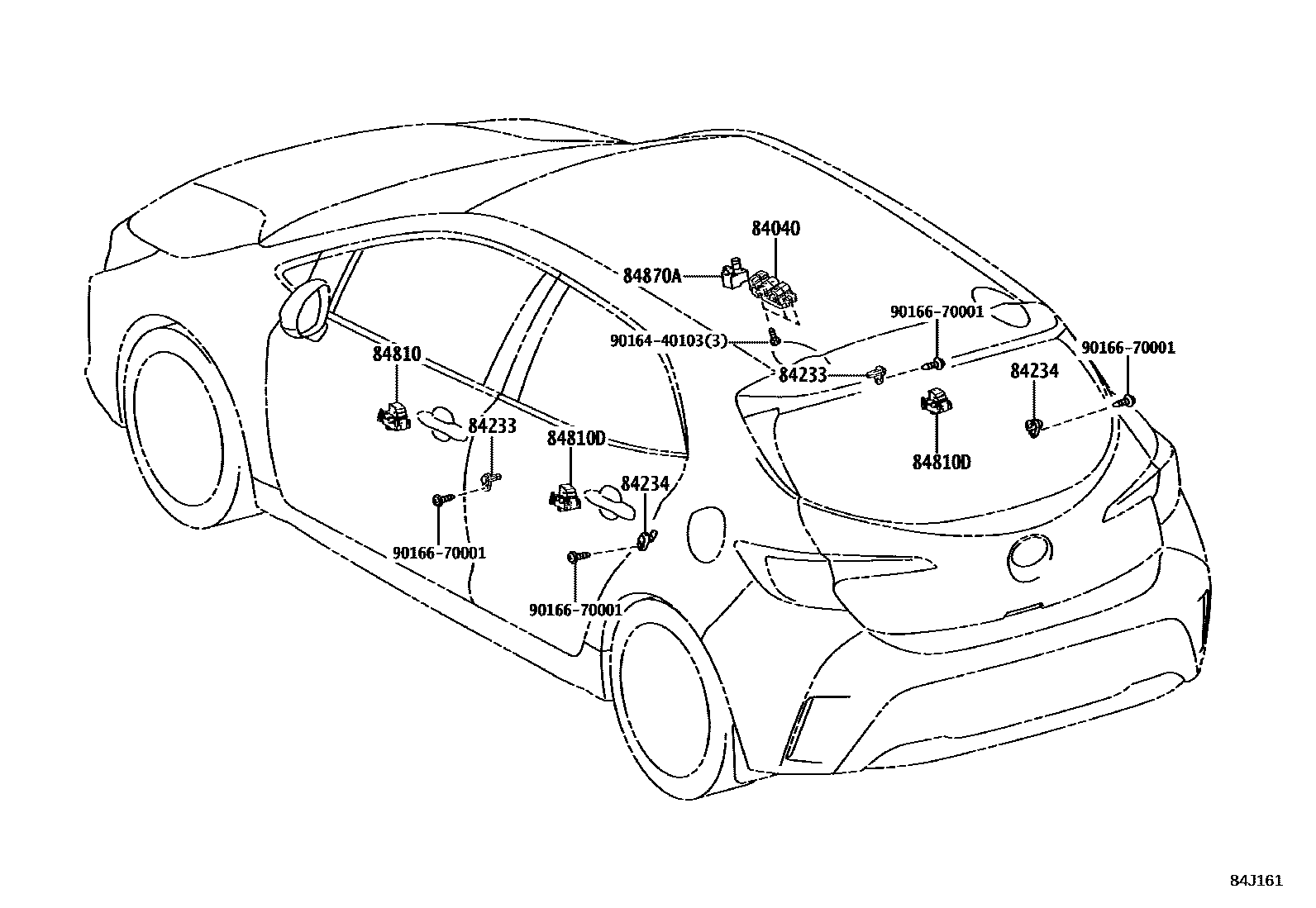

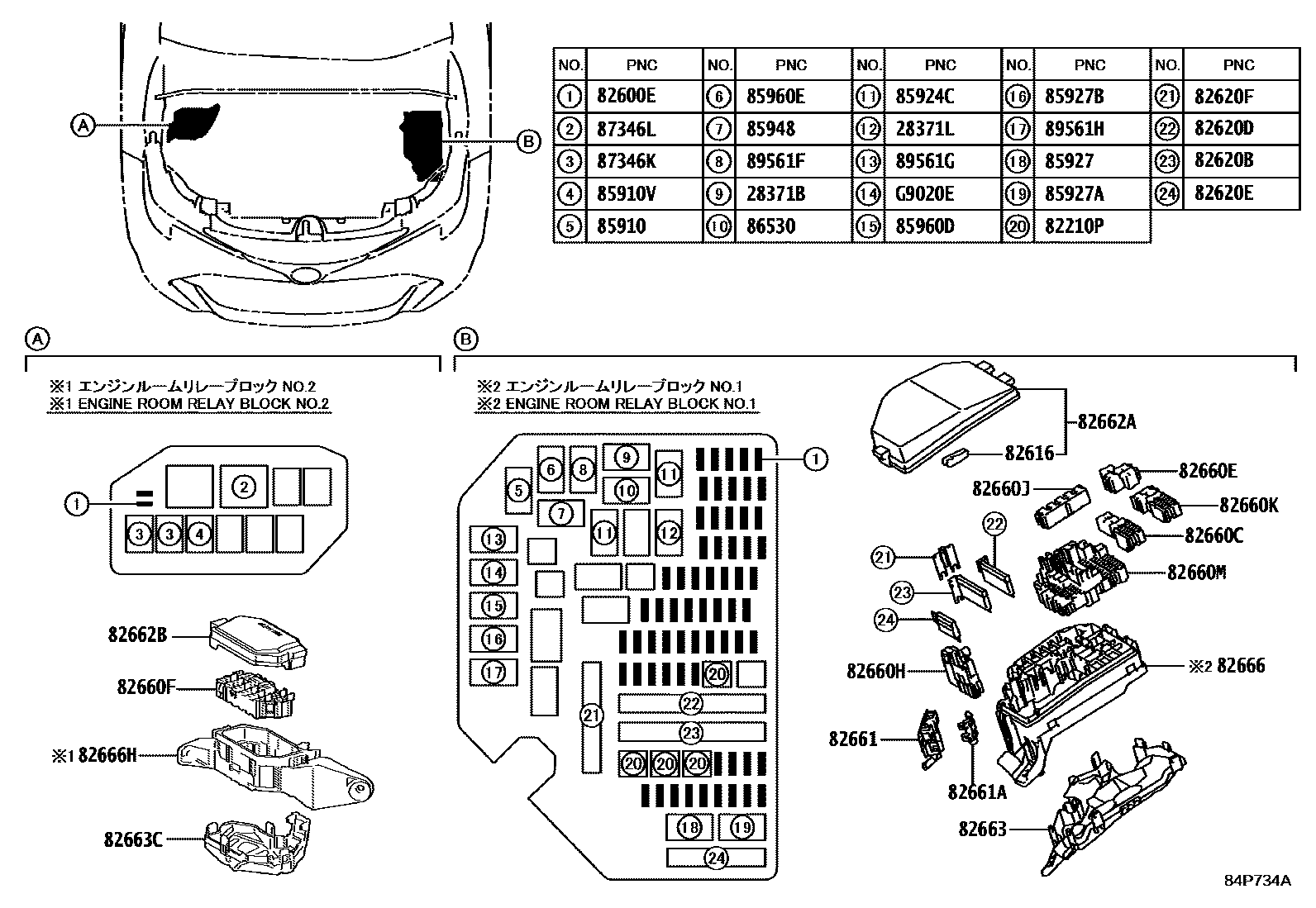

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 20 images and 150 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100P | water pump relay | 90987-02027 |
| 28300 | Starter relay assembly | 28300-21020 |
| 28371B | Toyota part | 90987-02027 |
| 28371E | Toyota part | 90987-02027 |
| 28371L | Toyota part | 90987-02027 |
| 28850C | Toyota part | 28850-25010 · 28850-37080 · 28850-K0010 |
| 28859A | Toyota part | 28859-24010 · 28859-37040 · 28859-37050 · 28859-37080 · 28859-F2100 |
| 82210N | Instrument panel fuse | 90982-08306 |
| 82210P | Engine room fuse | 90982-08294 · 90982-08295 · 90982-08296 · 90982-08299 · 90982-08300 · 90982-08301 · 90982-08302 · 90982-08303 · 90982-08304 · 90982-08305 · 90982-08307 · 90982-08308 |
| 82600D | Dashboard fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09025 · 90982-09026 |
| 82600E | Engine room fuse | 90982-09019 · 90982-09020 · 90982-09021 · 90982-09022 · 90982-09023 · 90982-09024 · 90982-09025 |
| 82611 | fuse box cover | 82611-47060 |
| 82613 | fuse box cover | 82613-28010 · 82613-47020 |
| 82616 | fuse puller | 82616-58010 |
| 82620A | Fuse box assembly | 82620-12310 · 82620-16150 · 82620-47090 |
| 82620B | Fuse box assembly | 82620-12330 |
| 82620D | Fuse box assembly | 82620-16100 |
| 82620E | Fuse box assembly | 82620-16120 |
| 82620F | Toyota part | 82620-16140 |
| 82621A | Fuse cover | 82621-12040 · 82621-47020 · 82821-78140 |
| 82641 | Integrated relay No. 1 | 82641-47050 |
| 82660B | Relay assembly | 82660-12360 · 82660-16530 |
| 82660C | Relay assembly | 82660-12390 · 82660-12420 · 82660-16490 |
| 82660D | Relay assembly | 82660-12400 |
| 82660E | Relay assembly | 82660-12470 · 82660-16510 |
| 82660F | Relay assembly | 82660-12410 |
| 82660G | Relay assembly | 82660-12460 |
| 82660H | Relay assembly | 82660-12430 · 82660-16480 |
| 82660J | Toyota part | 82660-0D050 · 82660-47070 |
| 82660K | Toyota part | 82660-0A060 · 82660-16500 · 82660-47090 |
| 82660M | Toyota part | 82660-16470 |
| 82660Q | Toyota part | 82660-0A050 |
| 82661 | No. 1 relay box cover | 82661-12350 · 82661-47020 · 82661-76020 |
| 82661A | No. 2 relay box cover | 82661-12340 · 82661-47030 · 82661-76030 |
| 82662A | No. 1 relay box upper cover | 82662-12E30 · 82662-12E80 · 82662-12E90 · 82662-12F20 · 82662-12F70 |
| 82662B | No. 2 relay box upper cover | 82662-12E40 · 82662-12E50 · 82662-12F00 |
| 82663 | Relay box lower cover | 82663-12160 · 82663-16020 · 82663-47070 |
| 82663A | No. 2 relay box lower cover | 82663-12150 |
| 82663C | No. 4 relay box lower cover | 82663-47090 |
| 82666 | Connector holder | 82666-12650 · 82666-12660 · 82666-16050 |
| 82666H | Connector holder No. 2 | 82666-47620 |
| 82671A | junction box | 82671-47040 |
| 82672F | Junction box cover | 82672-12610 · 82672-12640 · 82672-12650 |
| 82673A | Junction box bracket | 82673-47190 |
| 82673B | Junction box bracket | 82673-47210 |
| 82715 | Wire harness clamp bracket | 82715-10310 · 82715-10360 · 82715-12V90 · 8946A-12030 |
| 82715W | Toyota part | 82729-20040 |
| 82715X | Toyota part | 82715-12X50 |
| 82730 | Instrument panel junction box assembly | 82730-12N90 · 82730-12Z20 · 82730-12Z30 · 82730-12Z50 |
| 82741 | Engine room relay box | 82741-0A020 |
| 82878 | Left ECU integrated box | 82878-16010 · 82878-47020 |
| 83320 | Fuel gauge sensor assembly | 83320-10250 · 83320-10260 · 83320-10270 · 83320-10280 · 83320-76010 |
| 83320B | Fuel gauge No. 2 sensor assembly | 83320-10290 |
| 83520 | Oil pressure gauge sensor assembly | 83520-60060 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12060 |
| 83650 | fuse | 90986-01005 |
| 84040 | Multi-channel network main switch assembly | 84040-12190 · 84040-12200 · 84040-12230 · 84040-16030 · 84040-30330 · 84040-52060 |
| 84091 | Satellite switch assembly | 84091-12080 · 84091-12090 · 84091-42010 · 84091-42020 |
| 84152 | Headlight beam height adjustment switch | 84152-12100 · 84152-16040 |
| 84153 | Automatic high beam switch | 84153-16010 · 84153-33040 |
| 84210 | Reversing light switch assembly | 84210-52050 |
| 84233 | Door control light switch assembly (for front door) | 84231-60070 |
| 84234 | Door control light switch assembly (for rear door) | 84231-53010 |
| 84250A | Steering wheel decorative cover switch assembly | 84250-12690 · 84250-12730 · 84250-12740 |
| 84255 | Steering heater switch | 84255-16010 · 84255-33010 |
| 84306 | Spiral cable sub-assembly | 84308-12020 · 84308-33110 · 84308-52010 · 84308-78040 |
| 84319 | Steering wheel switch housing | 84319-33030 |
| 84329 | turn signal switch | 84329-12120 · 84329-12130 · 84329-33020 · 84329-33030 · 84329-52010 · 84329-K0010 · 84329-K0020 · 84329-K0030 |
| 84330 | Hazard warning signal switch assembly | 84332-12600 |
| 84340 | brake light switch assembly | 84340-19085 · 84340-19095 |
| 84345 | Brake light switch base adjuster | 84345-51010 |
| 84390B | Electric parking brake switch assembly | 84390-12020 · 84390-12030 · 84390-12060 · 84390-12070 · 84390-12130 · 84390-12150 |
| 84485C | Toyota part | 84485-12010 · 84485-12020 |
| 84523 | No. 1 switch harness | 84523-11010 |
| 84540 | Neutral start switch assembly | 84540-12240 · 84540-52070 |
| 84545 | Toyota part | 84545-52010 |
| 84610G | Toyota part | 84610-33010 · 84610-33011 |
| 84610H | Toyota part | 84610-33020 · 84610-33021 |
| 84650 | Windshield wiper switch assembly | 84652-12B40 · 84652-12B50 |
| 84751F | Seat heater switch | 84751-12120 · 84751-12140 |
| 84751G | Seat heater switch | 84751-12130 · 84751-12150 |
| 84794 | Front wiper de-icer switch | 84794-53020 · 84871-60060 |
| 84794A | Front wiper de-icer relay | 90987-02027 |
| 84804 | Toyota part | 84804-12050 |
| 84810 | Electric window lift switch assembly | 84810-12100 · 84810-12120 · 84810-30230 |
| 84810D | Rear electric window lift switch assembly | 84810-12100 · 84810-12120 · 84810-30230 |
| 84870A | Exterior rearview mirror switch assembly | 84872-12160 · 84872-12190 · 84872-12220 · 84872-16020 · 84872-47020 |
| 84970 | Combination switch assembly | 84970-12210 · 84970-12220 · 84970-12260 · 84970-12330 · 84970-12340 · 84970-12350 · 84970-12500 · 84970-12530 |
| 84975 | trip odometer switch | 84975-12010 |
| 84988L | VSC off switch | 84988-12020 · 84988-12030 |
| 85530 | No. 1 power socket assembly | 85530-42010 |
| 85532 | Toyota part | 85532-12010 · 85532-12020 · 85532-60060 |
| 85532C | Toyota part | 85532-78010 |
| 85535B | No. 1 power outlet cover | 85535-12080 |
| 85910 | Circuit breaking relay assembly | 90987-02027 |
| 85910E | Injector relay | 90987-02027 |
| 85910V | seat heater relay | 90987-02027 |
| 85912 | defogger relay | 90987-04010 |
| 85912K | Toyota part | 90987-02027 |
| 85913F | Steering heater relay | 90987-02027 |
| 85916D | fog light relay | 90987-02027 |
| 85924C | Toyota part | 90987-02025 · 90987-02027 |
| 85927 | cooling fan relay | 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85927B | Cooling fan relay No. 3 | 90987-02027 |
| 85940 | Windshield wiper relay assembly | 85940-12230 |
| 85948 | windshield wiper relay | 90987-02027 |
| 85960D | Toyota part | 90987-02027 |
| 85960E | Toyota part | 90987-02027 |
| 86206B | Voltage inverter sub-assembly | 8624A-12010 · 8624A-33020 |
| 86210D | High voltage fuse | 90982-11053 |
| 86247B | Toyota part | 86247-10010 · 86247-12060 |
| 86247C | Toyota part | 86247-12010 · 86247-12080 |
| 86530 | Speaker relay assembly | 90987-02027 |
| 87346K | PTC heater relay | 90987-02027 |
| 87346L | PTC heater relay | 90987-02025 |
| 87989 | Rearview mirror control relay | 90987-04004 |
| 88162 | Blind spot monitor right sensor | 88162-12020 · 88162-12021 · 88162-12022 · 88162-12023 · 88162-12100 |
| 88172 | Blind spot monitor left sensor | 88162-12020 · 88162-12021 · 88162-12022 · 88162-12023 · 88162-12100 |
| 88280A | Clutch switch assembly | 88280-70010 |
| 89111 | Network gateway ECU | 89111-12020 · 89111-12030 · 89111-12170 · 89111-12190 |
| 89120A | Automatic light control sensor | 89121-30020 |
| 89221 | Multi-channel network body ECU | 89220-12720 · 89220-12730 · 89220-12740 · 89220-12760 · 89220-12A50 · 89220-12A60 · 89220-12A70 · 89220-12A80 · 89220-12A90 · 89220-12B00 · 89220-1A020 · 89220-1A021 · 89220-1A030 · 89220-1A031 · 89220-1A040 · 89220-1A041 · 89220-1A050 · 89220-1A051 · 89220-1A060 · 89220-1A061 · 89220-1A070 · 89220-1A071 · 89220-1A080 · 89220-1A081 · 89220-1A090 · 89220-1A091 · 89220-1A100 · 89220-1A101 · 89220-1A110 · 89220-1A111 · 89220-1AC50 · 89220-1AC51 · 89220-1AC60 · 89220-1AC61 · 89220-1AC70 · 89220-1AC71 |
| 89245C | steering sensor | 8924B-50010 · 8924B-V1010 |
| 89257 | Cooling fan ECU | 89257-K0020 |
| 89280 | Clutch pedal stroke sensor assembly | 89280-10010 |
| 89419B | Toyota part | 89419-12011 · 89419-K2010 |
| 89422A | water temperature sensor | 89422-33040 · 89422-47010 |
| 89429F | temperature sensor | 89429-12010 |
| 89439 | Sensor holder | 15367-47010 |
| 89439J | Toyota part | 82715-47A60 |
| 89439K | Toyota part | 82715-10330 · 82715-47690 |
| 89451A | shift lever position sensor | 89451-10010 · 89451-28020 |
| 89467B | air fuel ratio sensor | 89467-12270 · 89467-12280 · 89467-12340 · 89467-47030 |
| 89467C | No. 2 air-fuel ratio sensor | 89465-47090 · 89467-12290 · 89467-12320 · 89467-76010 |
| 89491 | Engine oil level sensor | 89491-28090 · 89491-28091 · 89491-33052 · 89491-47010 · 89491-47011 · 89491-50081 · 89491-50082 |
| 89535B | Toyota part | 89535-12290 |
| 89539M | No. 1 transmission control ECU bracket | 89539-12070 |
| 89539N | No. 2 transmission control ECU bracket | 89539-12080 |
| 89561F | Toyota part | 90987-02027 |
| 89561G | Toyota part | 90987-02027 |
| 89561H | Toyota part | 90987-02033 |
| 89611 | push button start switch | 89611-12010 · 89611-12020 · 89611-16010 · 89611-16020 |
| 89615 | knock control sensor | 89615-20090 |
| 89650 | Power steering ECU assembly | 89650-12J30 · 89650-12J40 · 89650-12M00 · 89650-12M10 · 89650-12N60 |
| 89730A | Relay (for safety warnings) | 90987-02027 |
| 89747F | Blind spot monitor buzzer | 89747-52010 |
| F1969A | Toyota part | F1969-12010 |
| F1969C | Toyota part | F1969-12020 |
| G9020E | Hybrid water pump relay | 90987-02027 |
