Toyota COROLLA 线束和卡夹 — Figure 8202

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 35 images and 128 PNC and OE references.

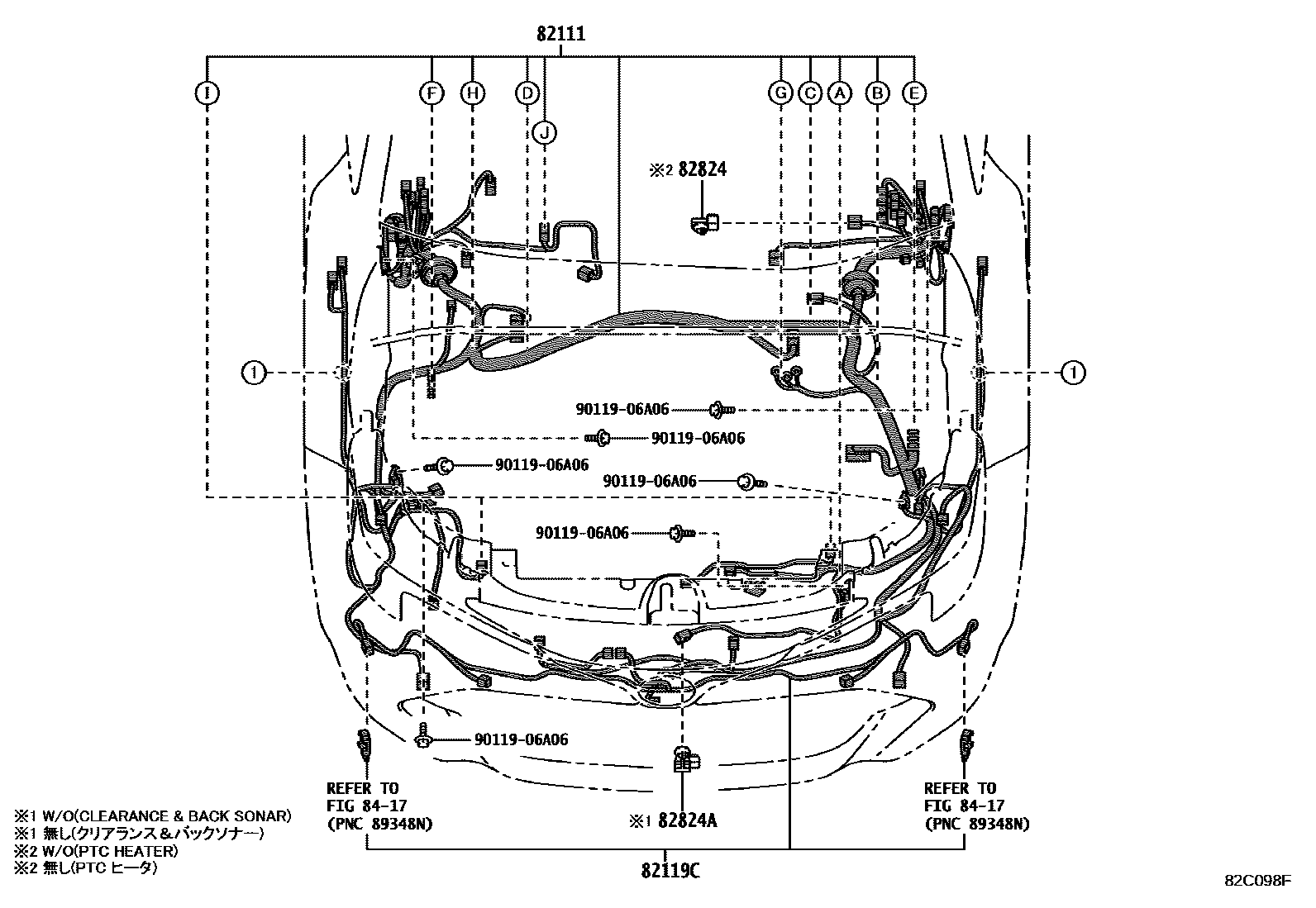

Toyota COROLLA 线束和卡夹 EPC diagram — 82C098F
线束和卡夹 — 82C098F (201806 – 999999)

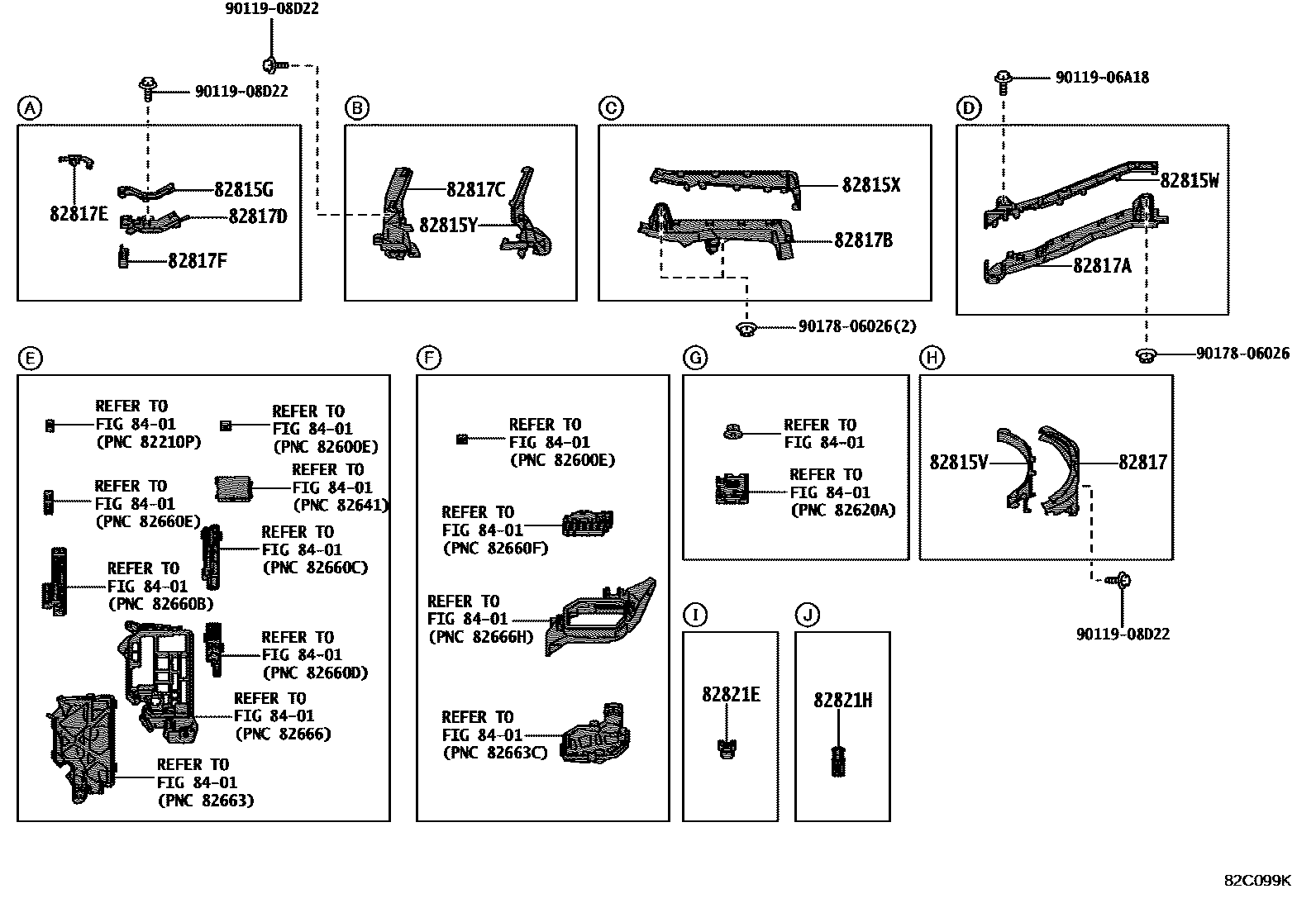

Toyota COROLLA 线束和卡夹 EPC diagram — 82C099K
线束和卡夹 — 82C099K (201806 – 999999)

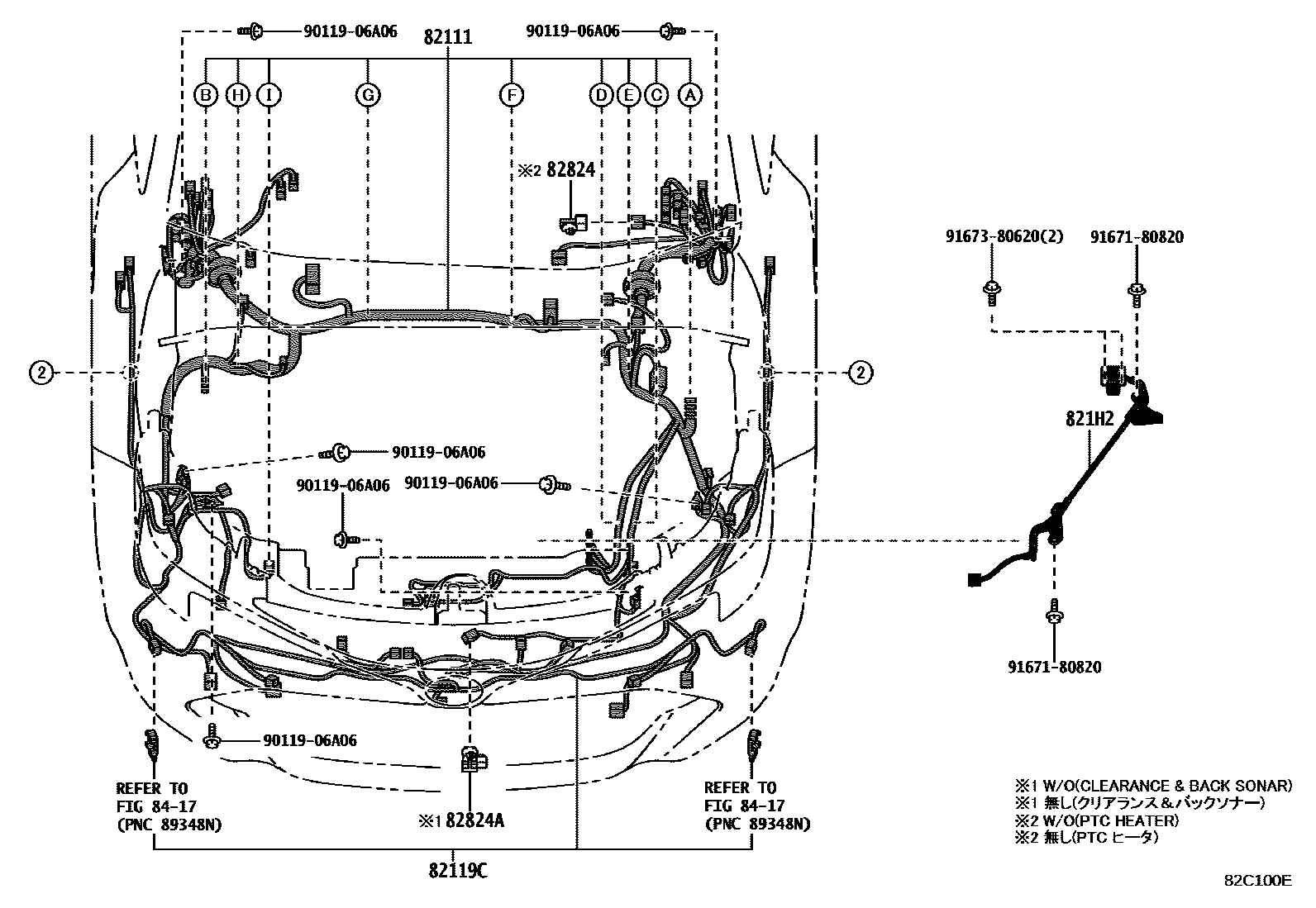

Toyota COROLLA 线束和卡夹 EPC diagram — 82C100E
线束和卡夹 — 82C100E (201806 – 999999)

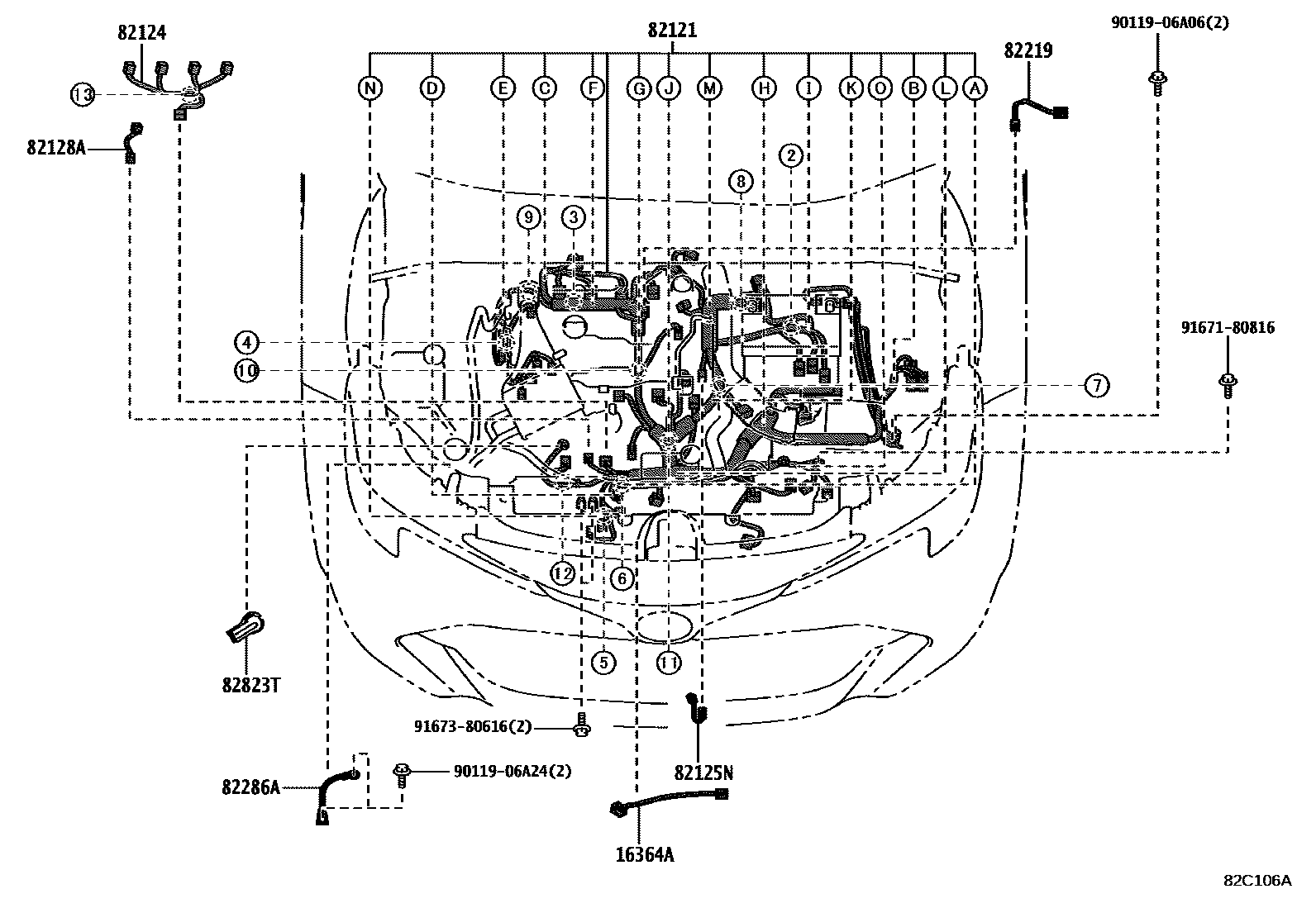

Toyota COROLLA 线束和卡夹 EPC diagram — 82C106A
线束和卡夹 — 82C106A (201808 – 999999)

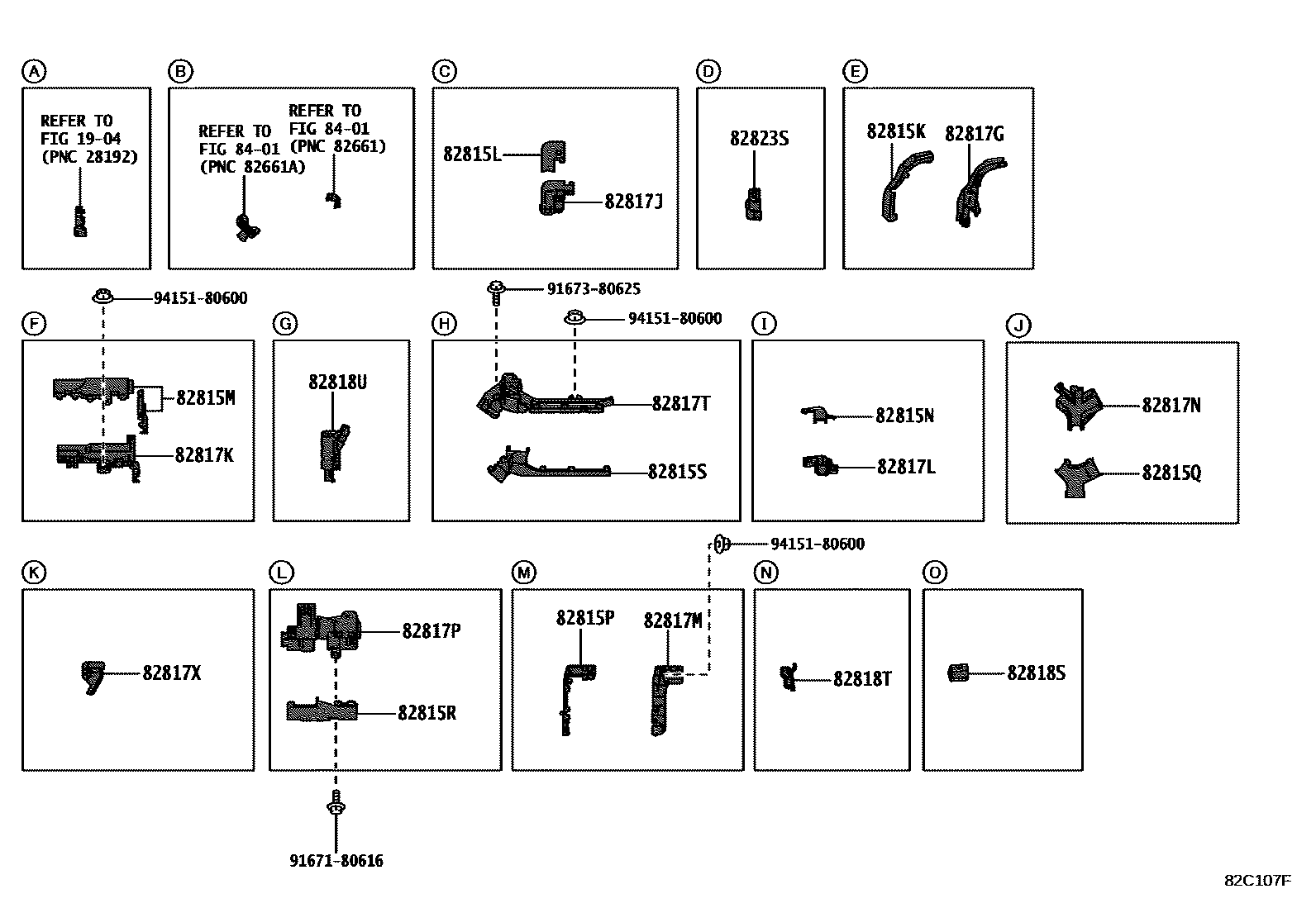

Toyota COROLLA 线束和卡夹 EPC diagram — 82C107F
线束和卡夹 — 82C107F (201808 – 999999)

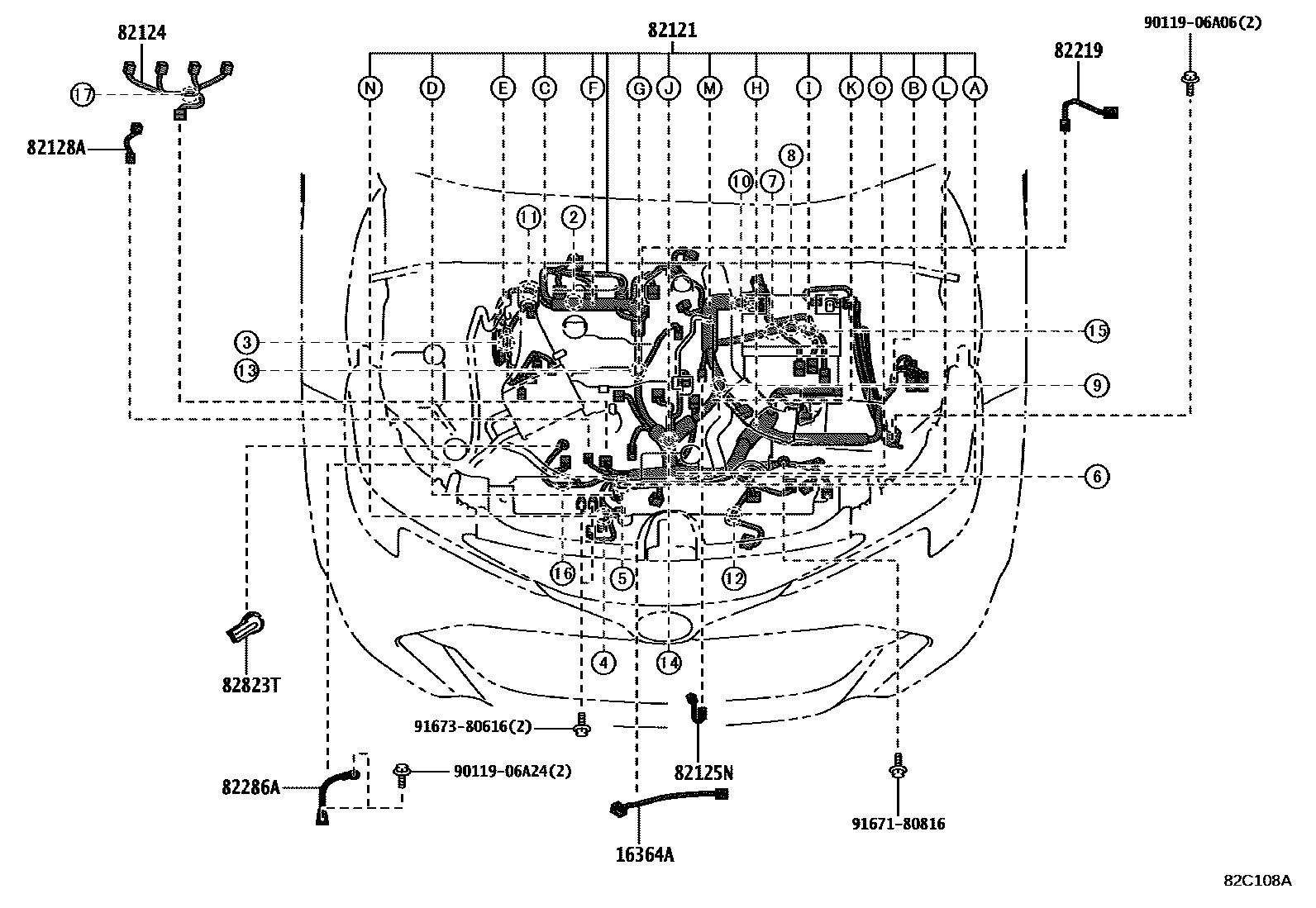

Toyota COROLLA 线束和卡夹 EPC diagram — 82C108A
线束和卡夹 — 82C108A (201806 – 999999)

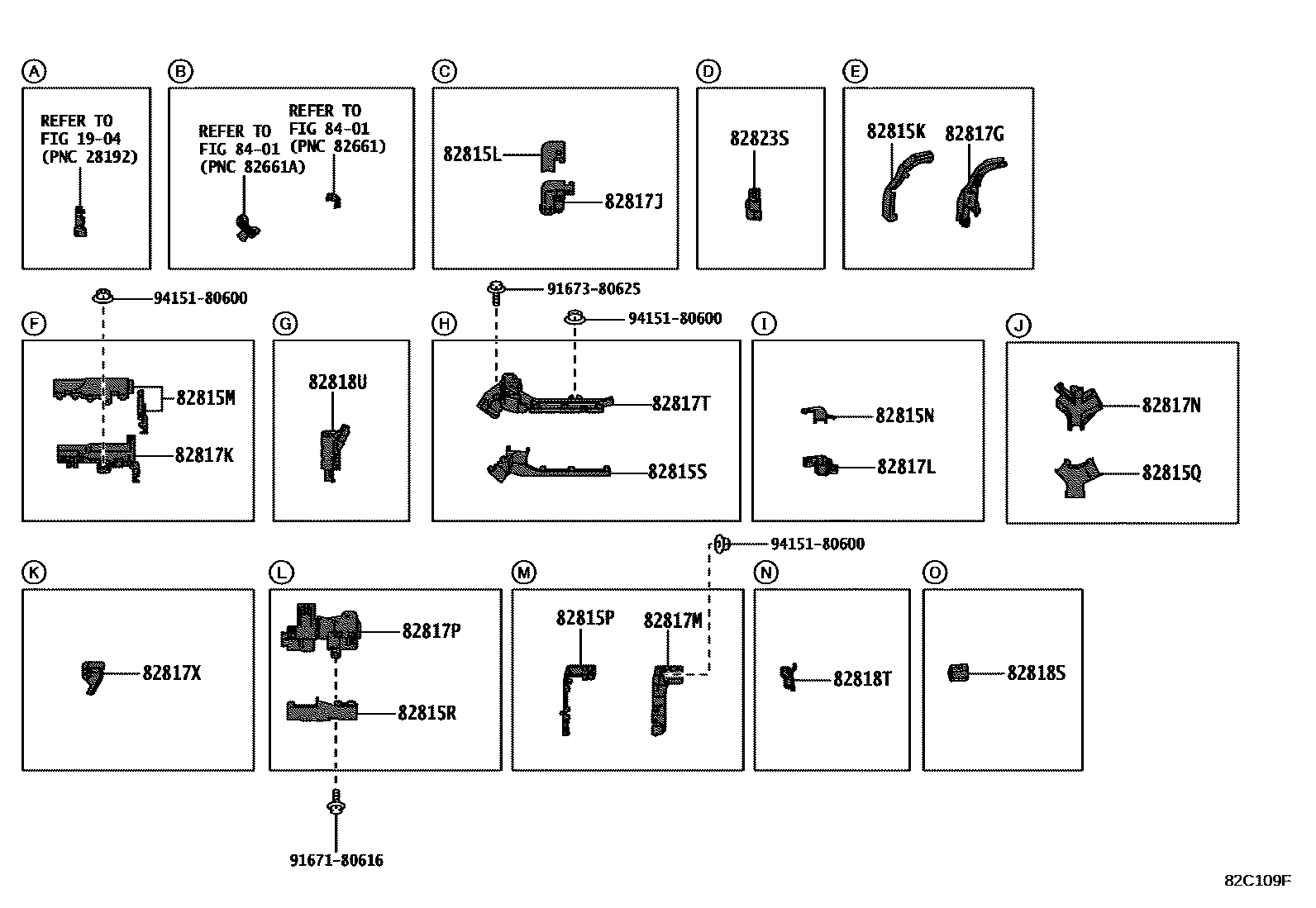

Toyota COROLLA 线束和卡夹 EPC diagram — 82C109F
线束和卡夹 — 82C109F (201806 – 999999)

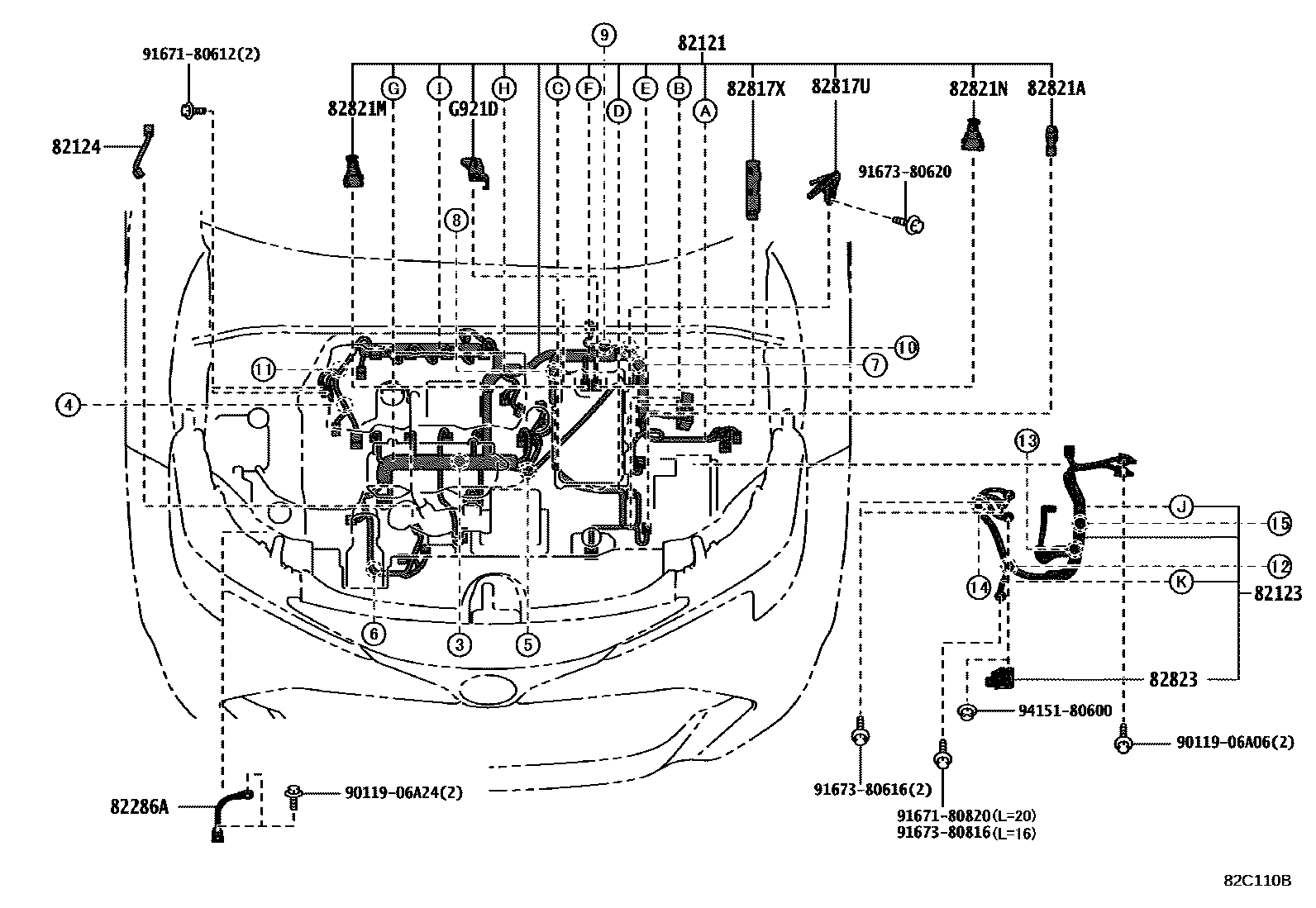

Toyota COROLLA 线束和卡夹 EPC diagram — 82C110B
线束和卡夹 — 82C110B (201806 – 999999)

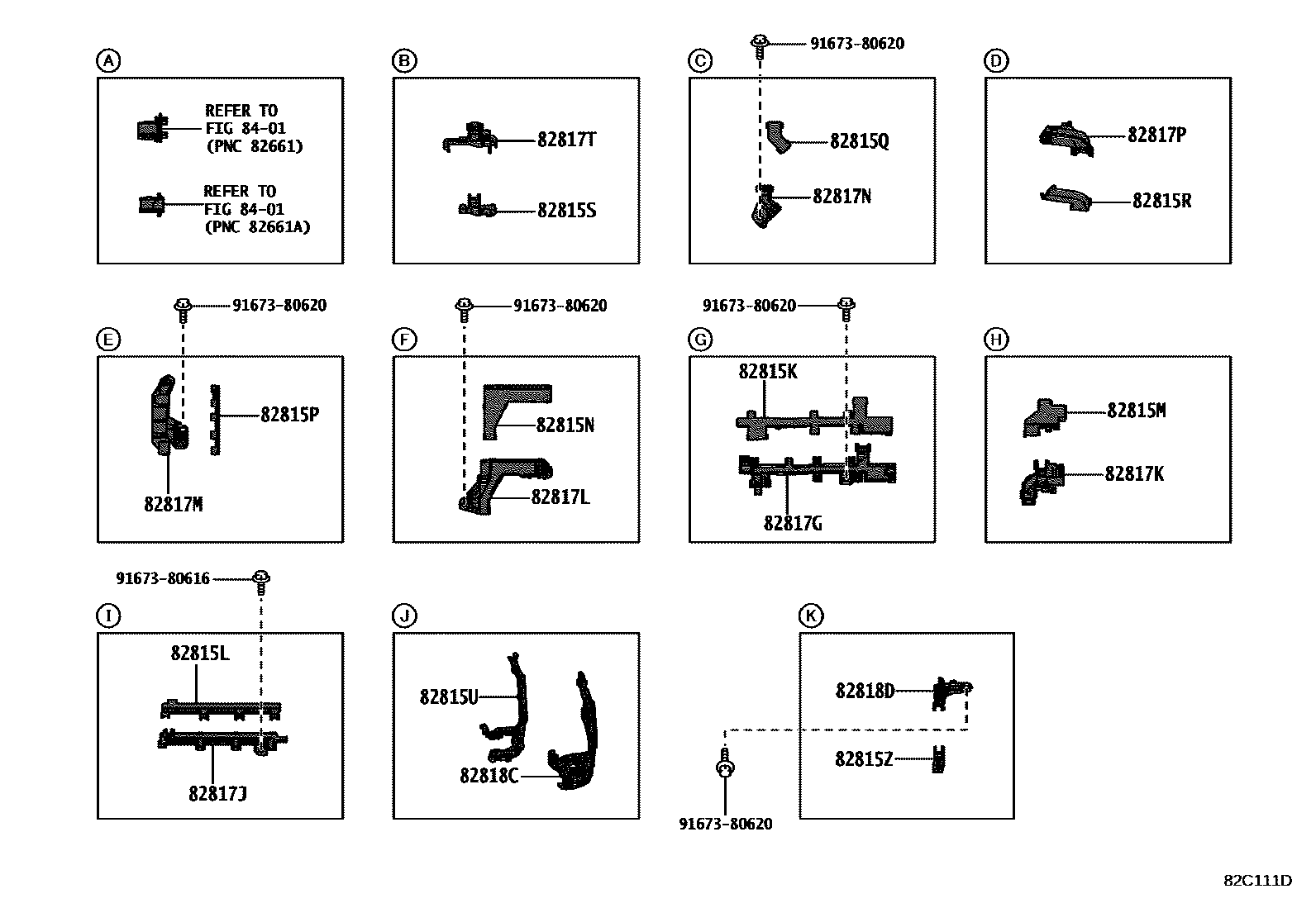

Toyota COROLLA 线束和卡夹 EPC diagram — 82C111D
线束和卡夹 — 82C111D (201806 – 999999)
Toyota COROLLA 线束和卡夹 EPC diagram — 82C117F
线束和卡夹 — 82C117F (201806 – 999999)

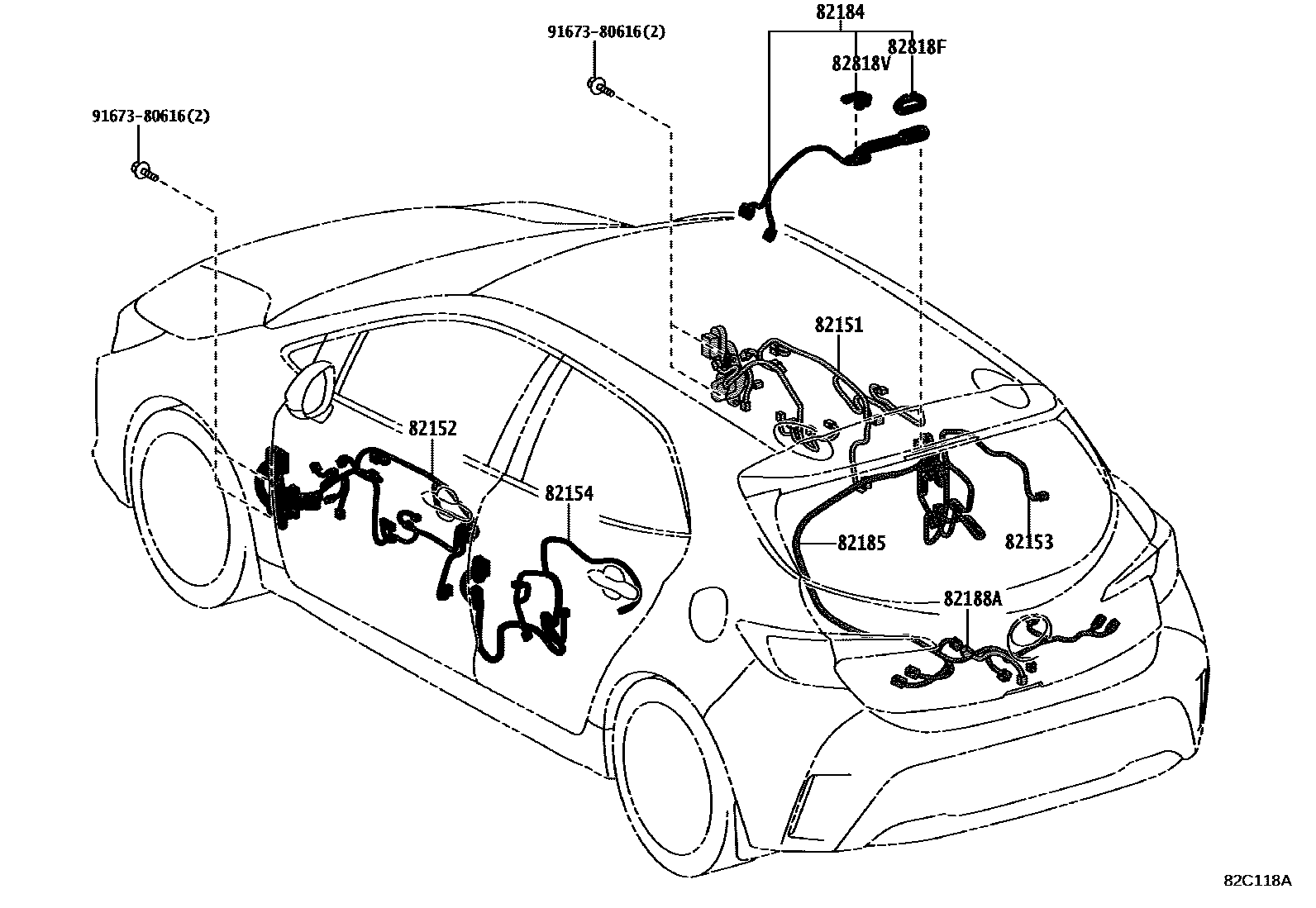

Toyota COROLLA 线束和卡夹 EPC diagram — 82C118A
线束和卡夹 — 82C118A (201806 – 999999)

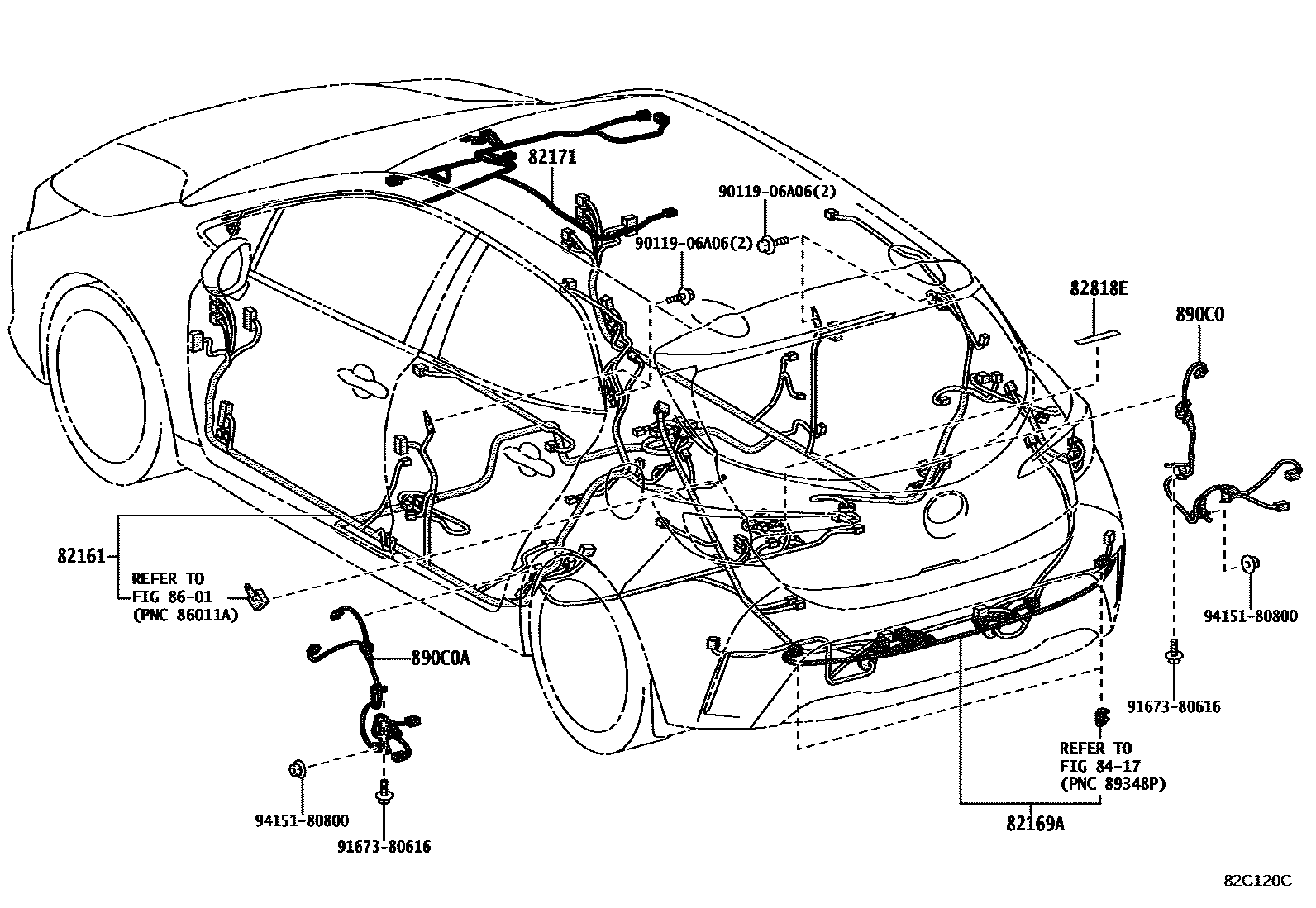

Toyota COROLLA 线束和卡夹 EPC diagram — 82C120C
线束和卡夹 — 82C120C (201806 – 999999)

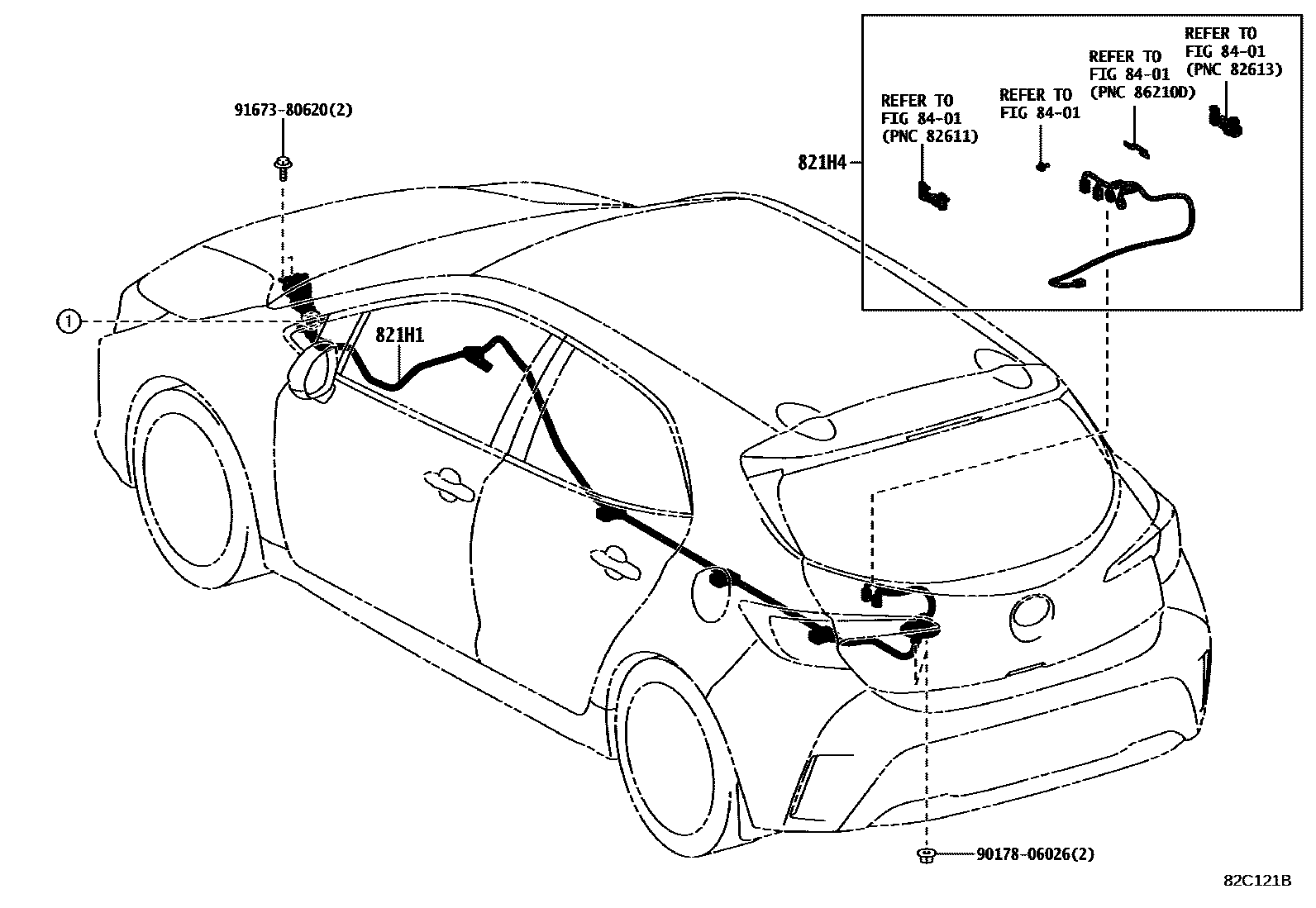

Toyota COROLLA 线束和卡夹 EPC diagram — 82C121B
线束和卡夹 — 82C121B (201806 – 999999)

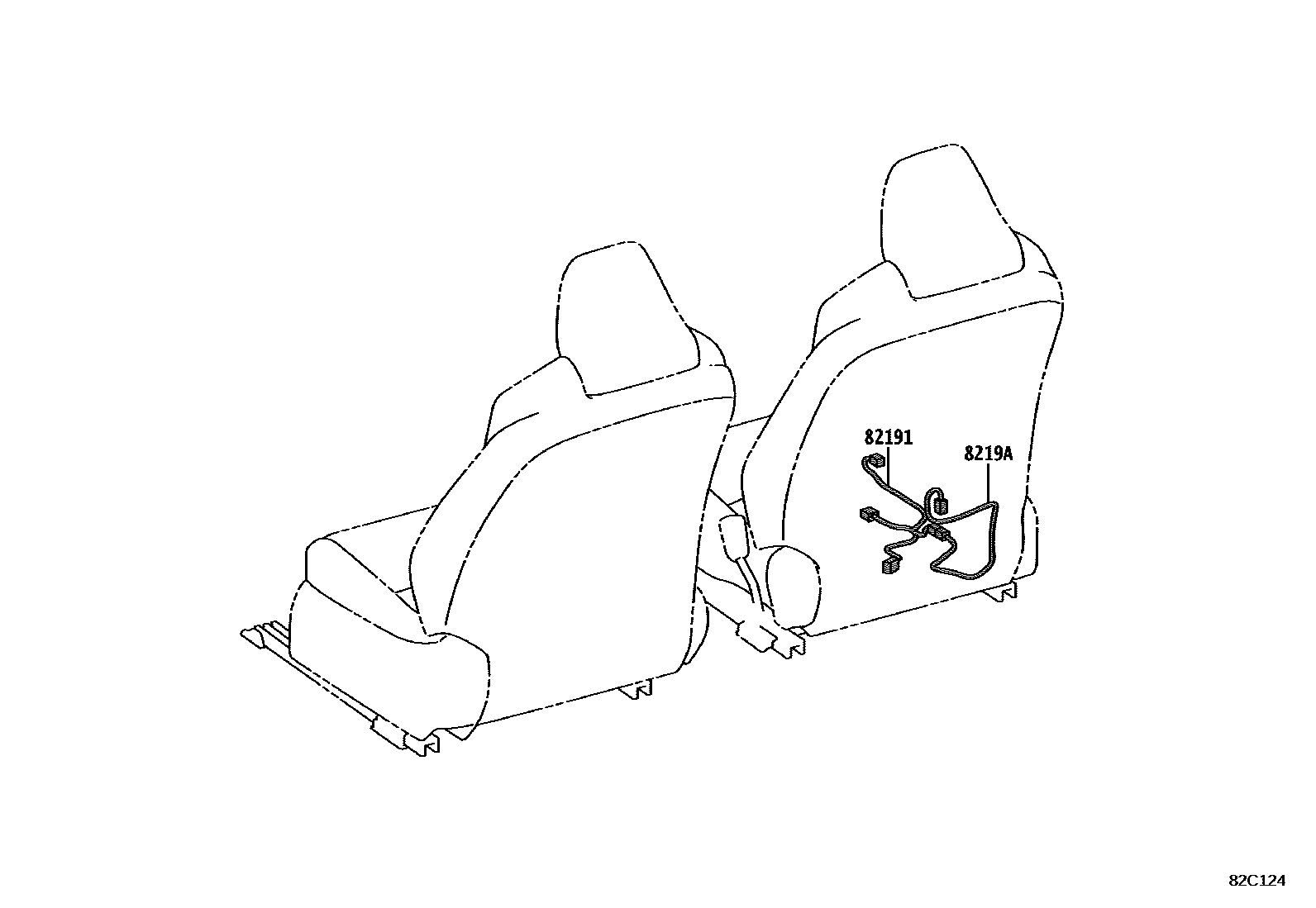

Toyota COROLLA 线束和卡夹 EPC diagram — 82C124
线束和卡夹 — 82C124 (201806 – 999999)

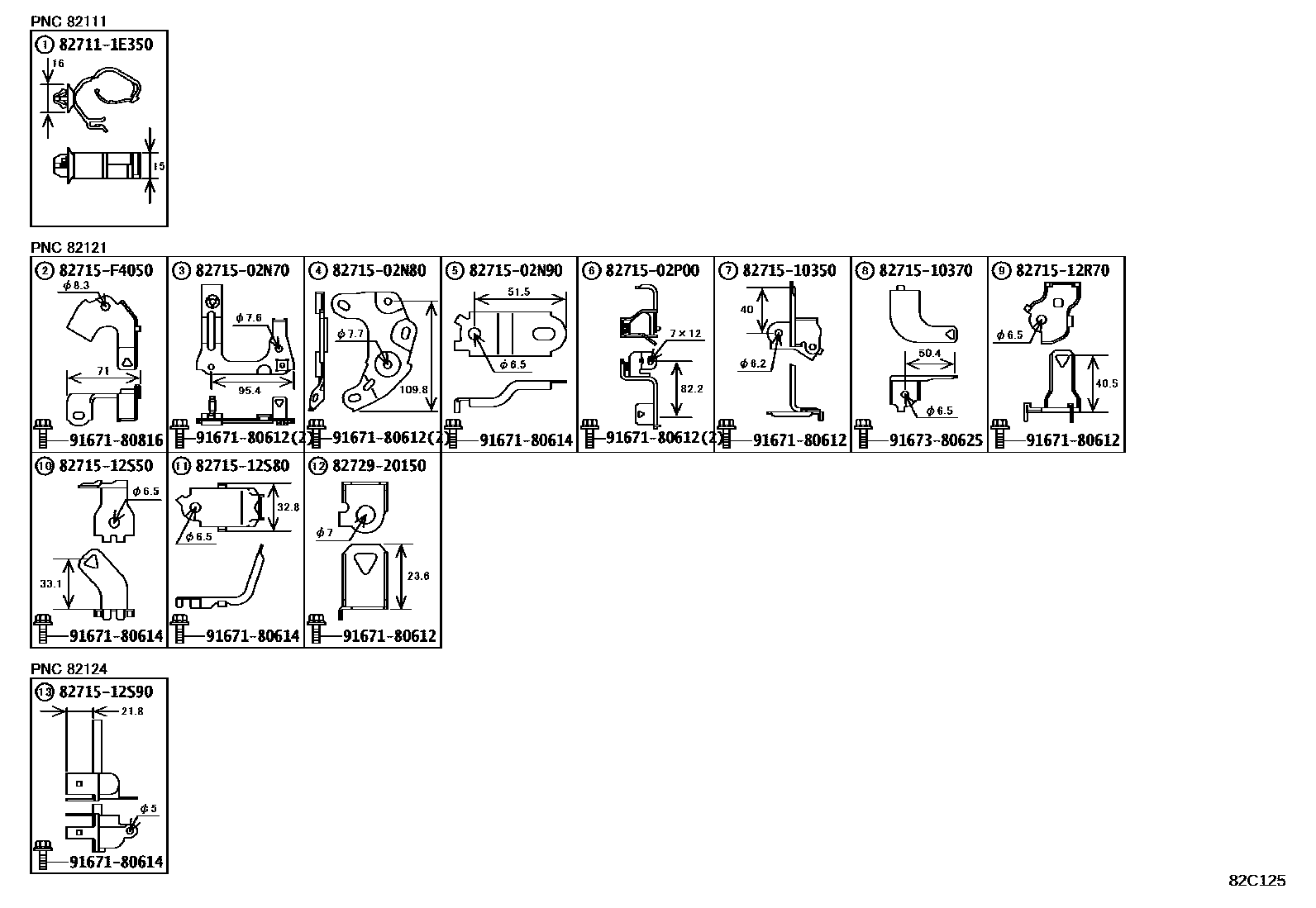

Toyota COROLLA 线束和卡夹 EPC diagram — 82C125
线束和卡夹 — 82C125 (201808 – 999999)

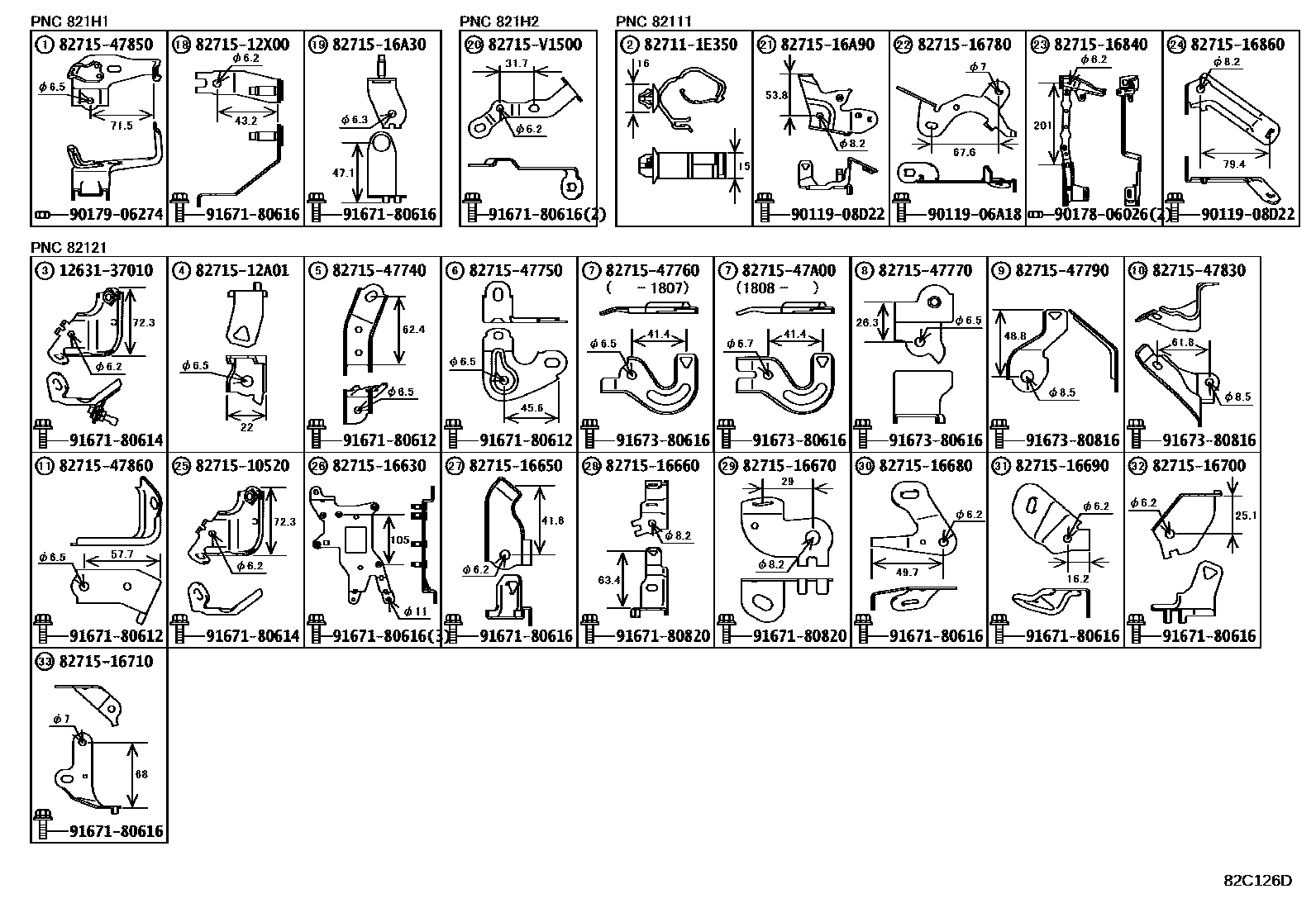

Toyota COROLLA 线束和卡夹 EPC diagram — 82C126D
线束和卡夹 — 82C126D (201806 – 999999)

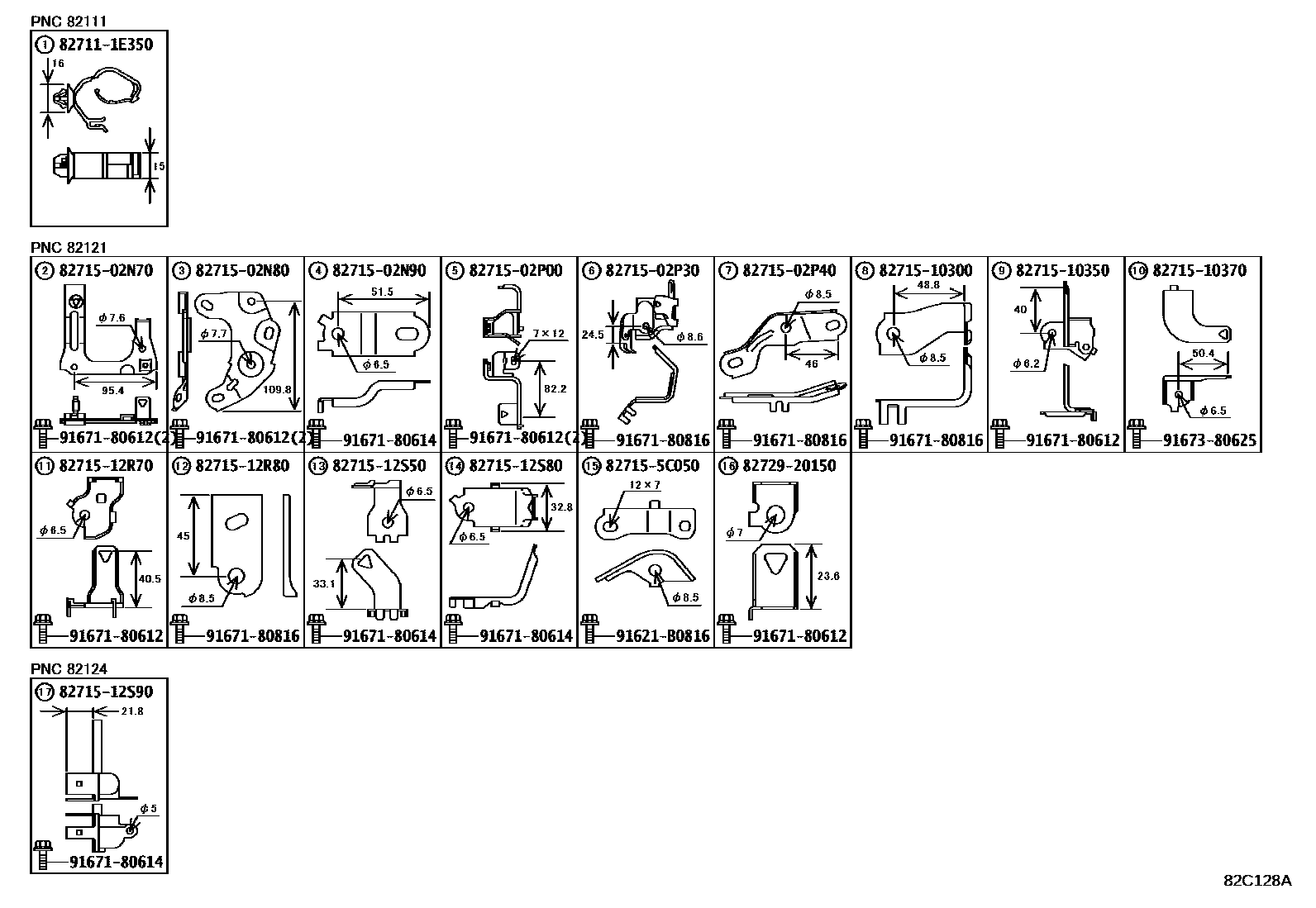

Toyota COROLLA 线束和卡夹 EPC diagram — 82C128A
线束和卡夹 — 82C128A (201806 – 999999)

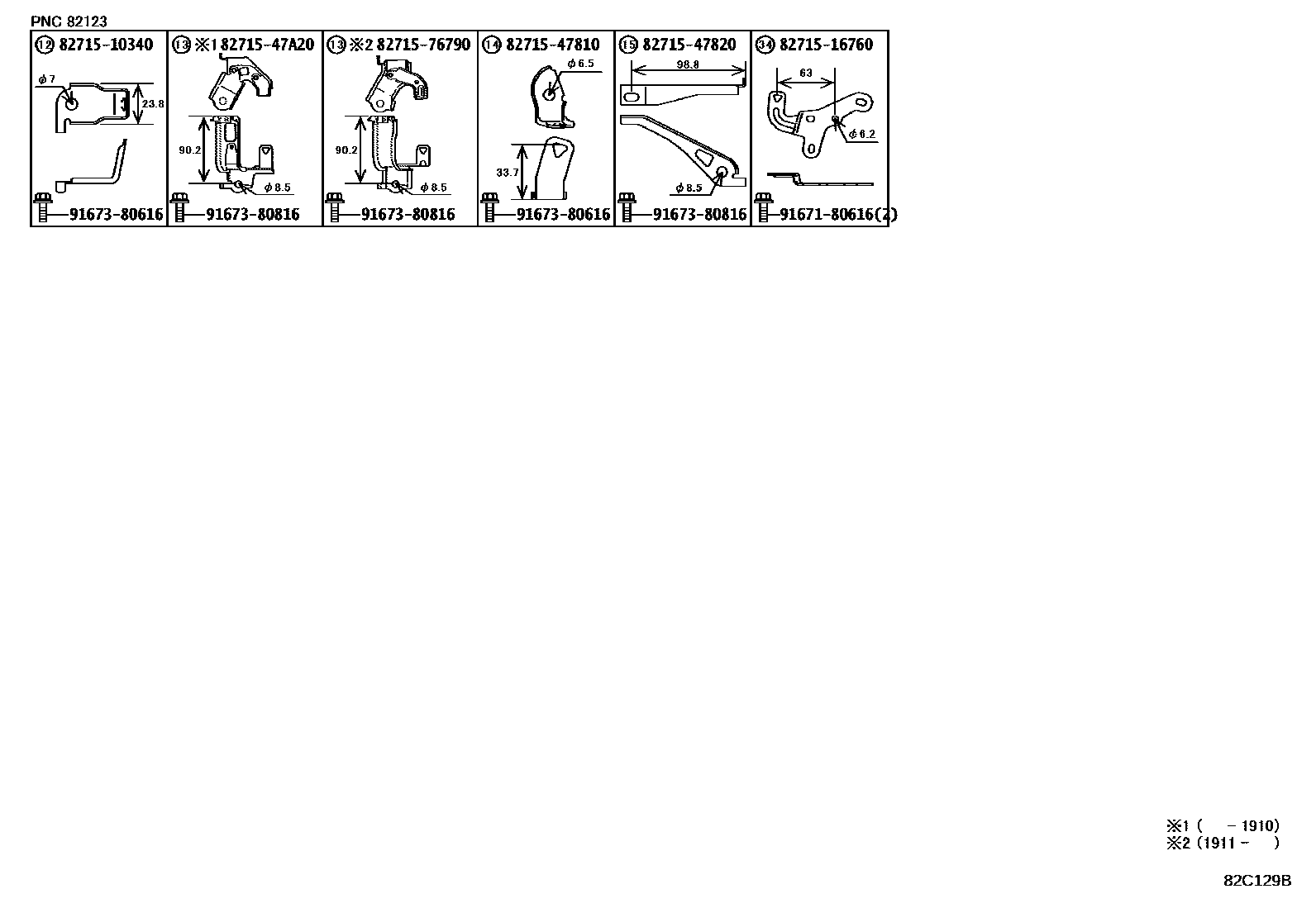

Toyota COROLLA 线束和卡夹 EPC diagram — 82C129B
线束和卡夹 — 82C129B (201806 – 999999)

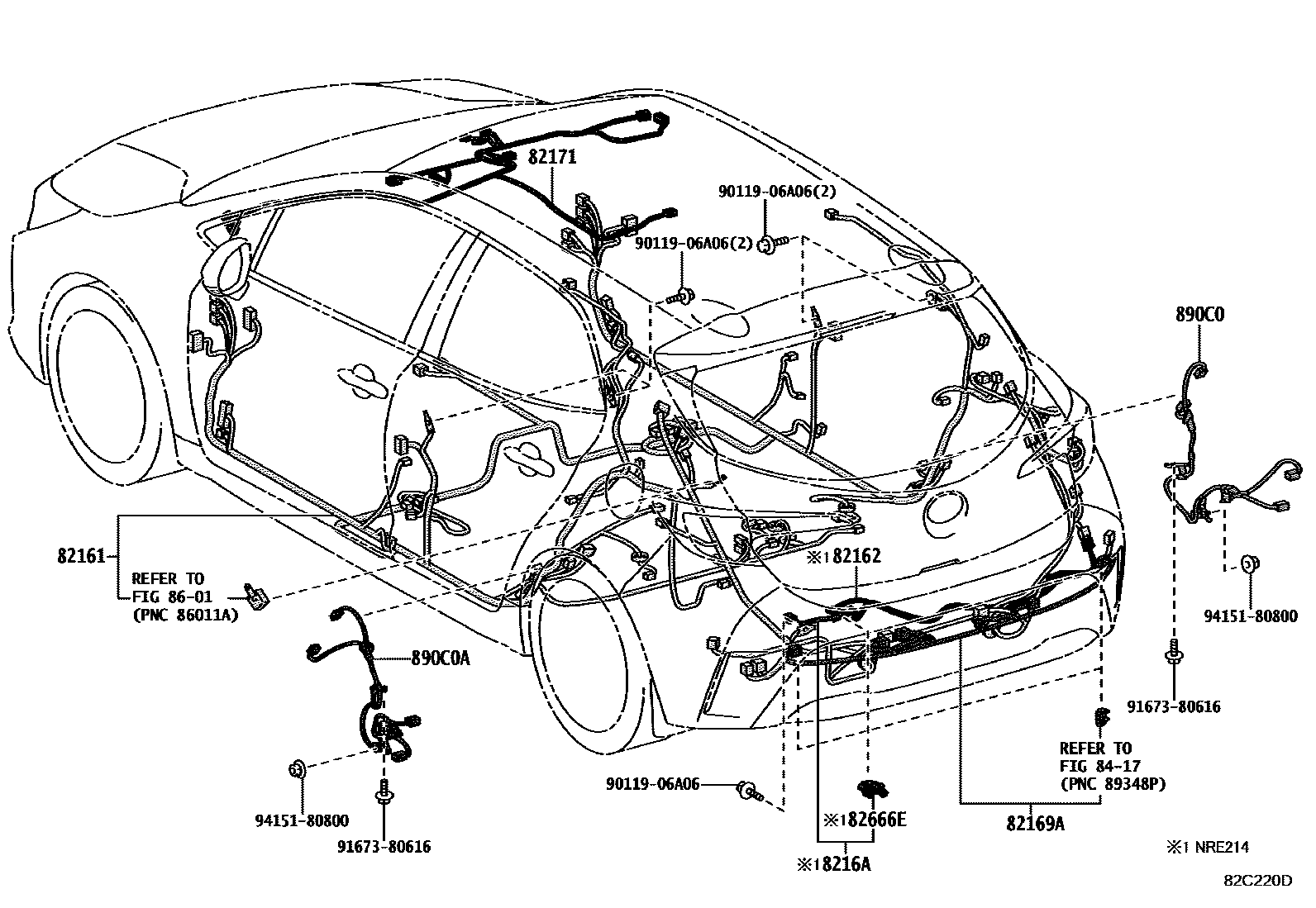

Toyota COROLLA 线束和卡夹 EPC diagram — 82C220D
线束和卡夹 — 82C220D (201806 – 999999)

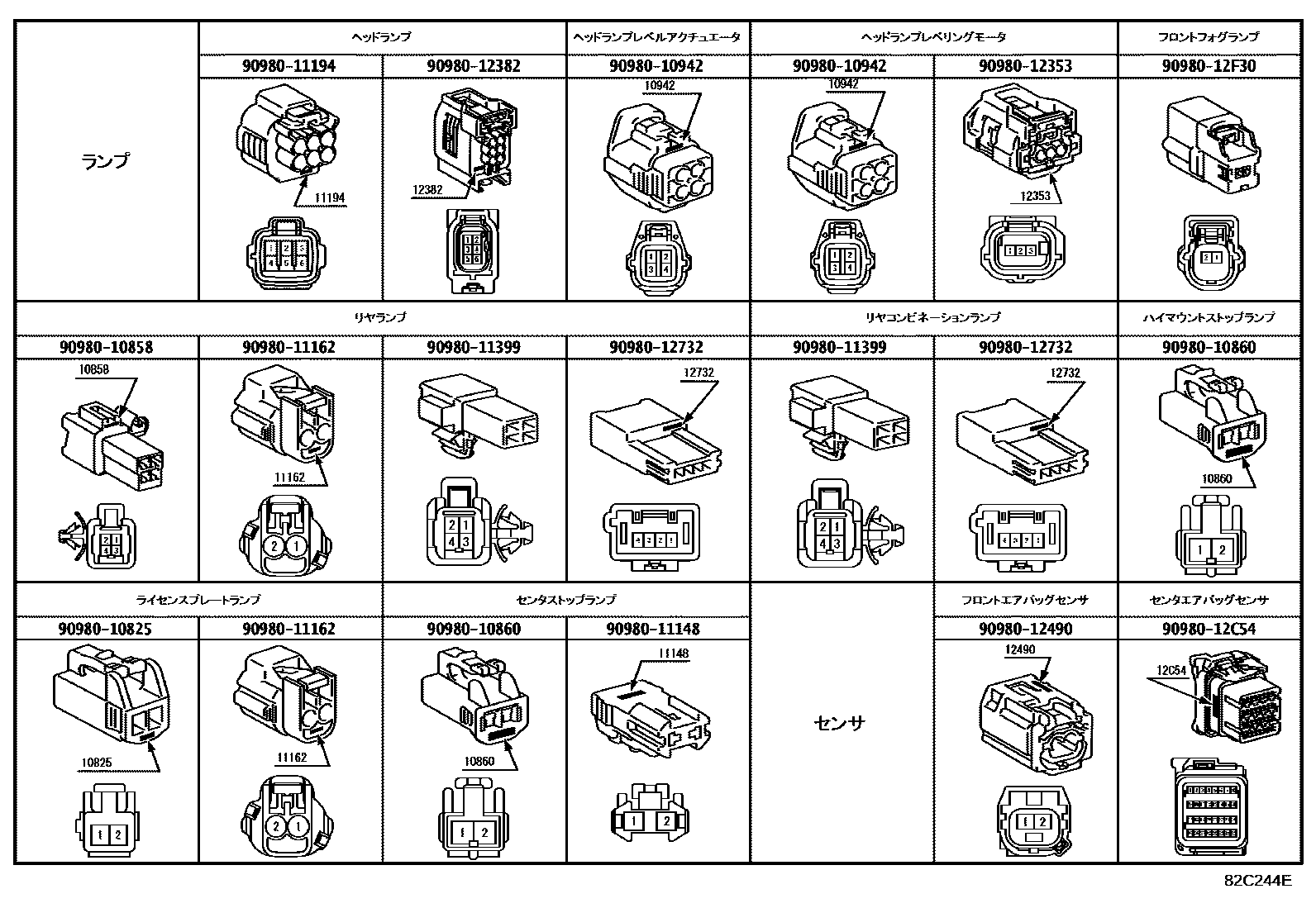

Toyota COROLLA 线束和卡夹 EPC diagram — 82C244E
线束和卡夹 — 82C244E (201806 – 999999)

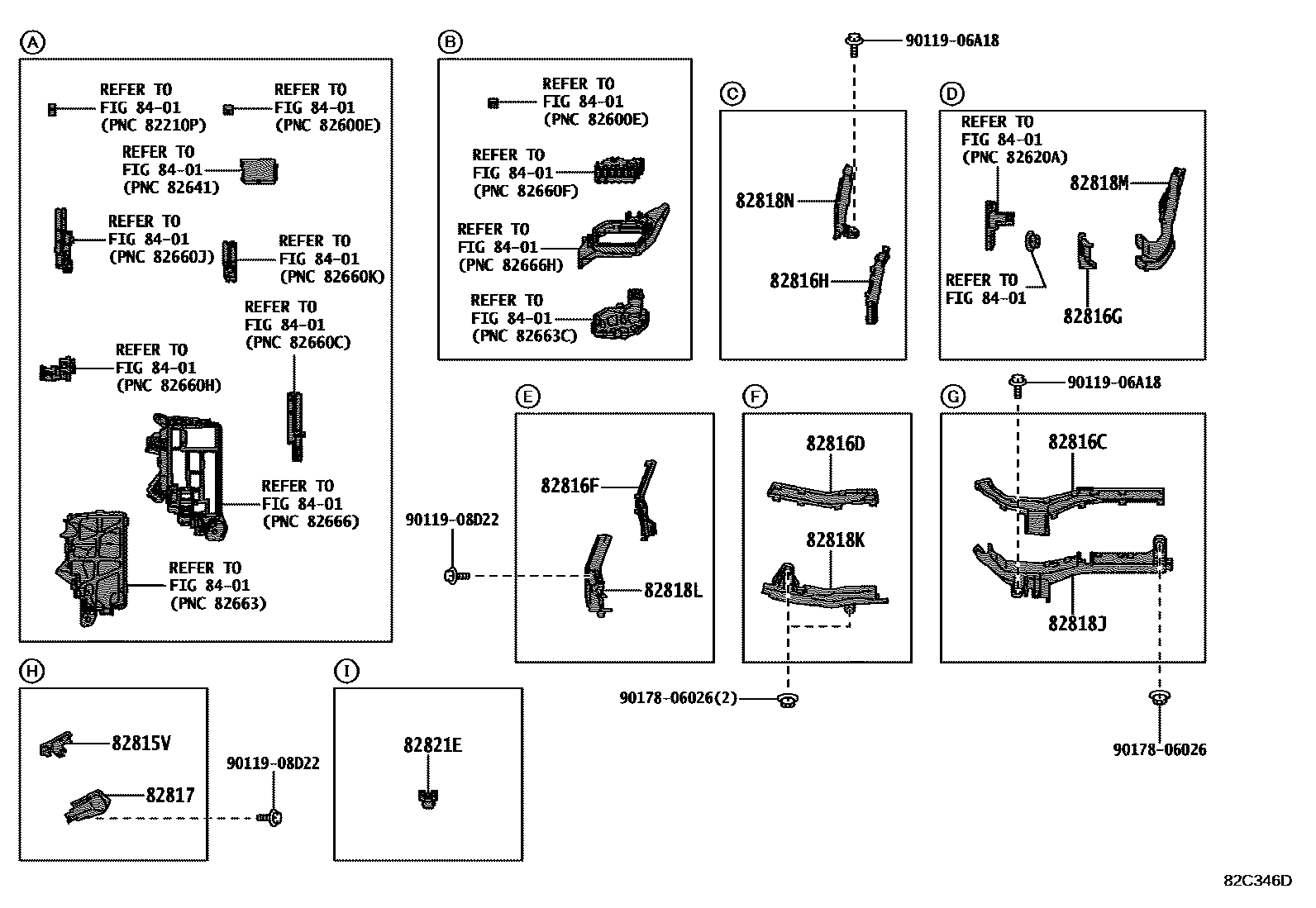

Toyota COROLLA 线束和卡夹 EPC diagram — 82C346D
线束和卡夹 — 82C346D (201806 – 999999)

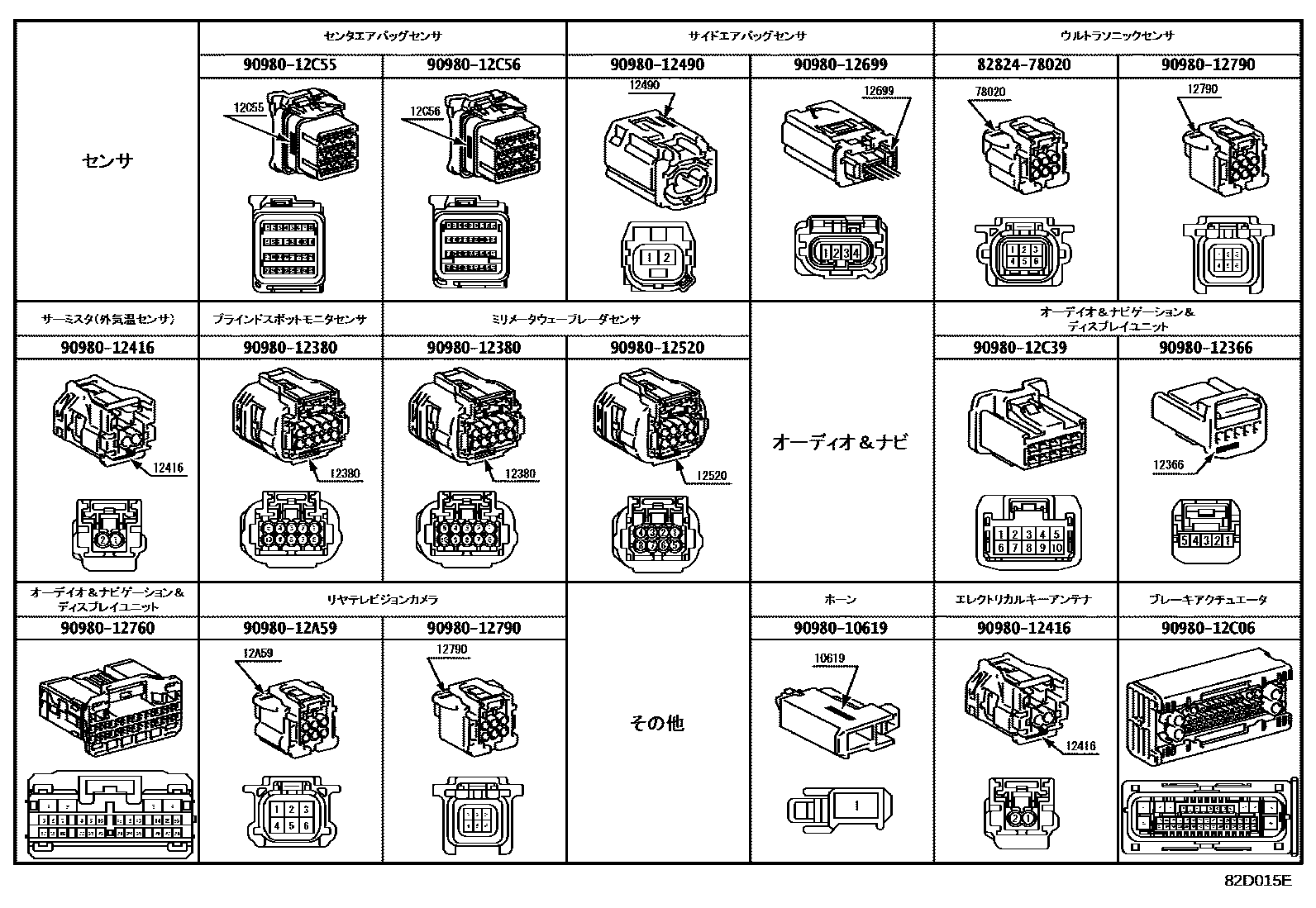

Toyota COROLLA 线束和卡夹 EPC diagram — 82D015E
线束和卡夹 — 82D015E (201806 – 999999)

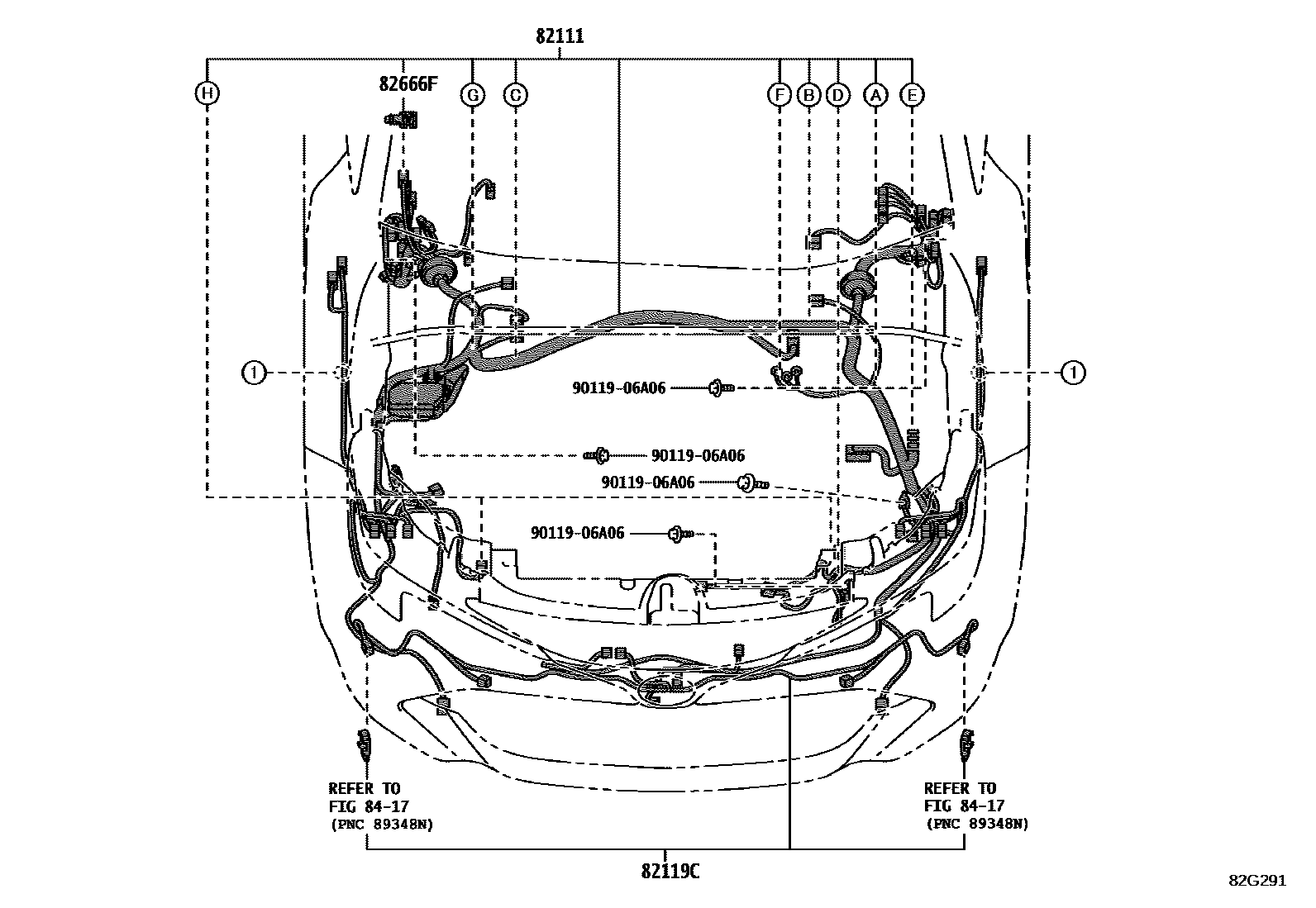

Toyota COROLLA 线束和卡夹 EPC diagram — 82G291
线束和卡夹 — 82G291 (202209 – 999999)

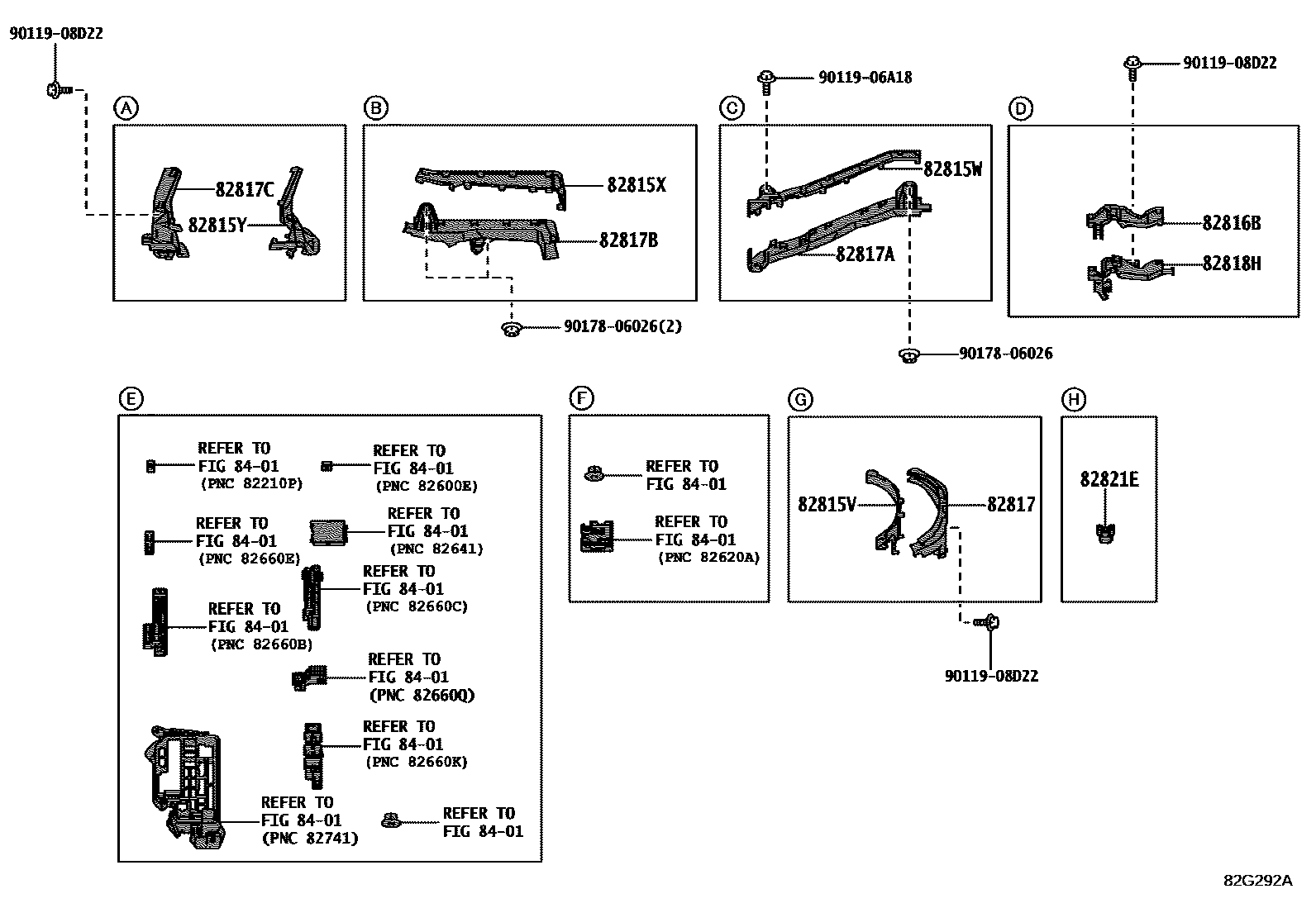

Toyota COROLLA 线束和卡夹 EPC diagram — 82G292A
线束和卡夹 — 82G292A (202209 – 999999)

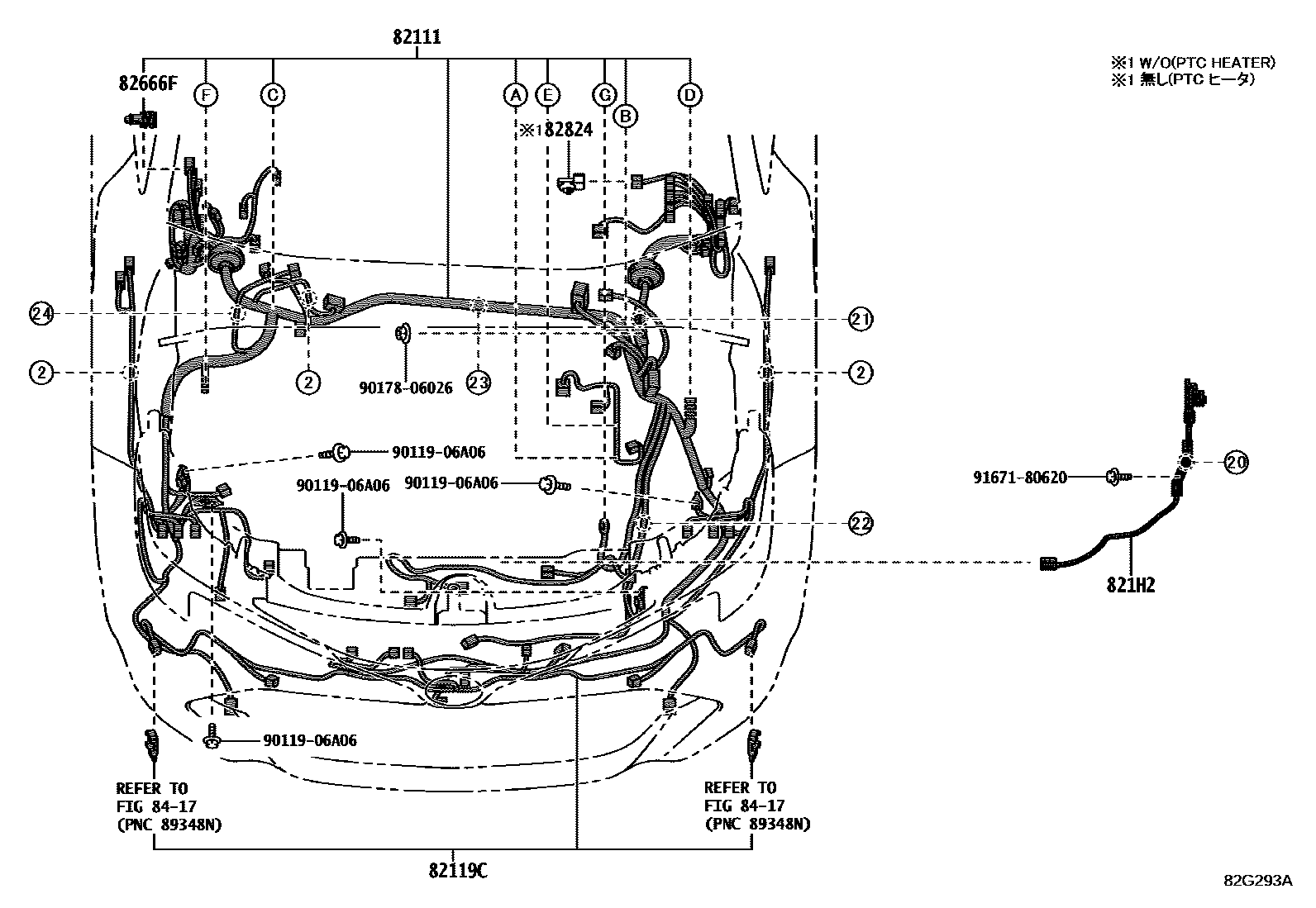

Toyota COROLLA 线束和卡夹 EPC diagram — 82G293A
线束和卡夹 — 82G293A (202209 – 999999)

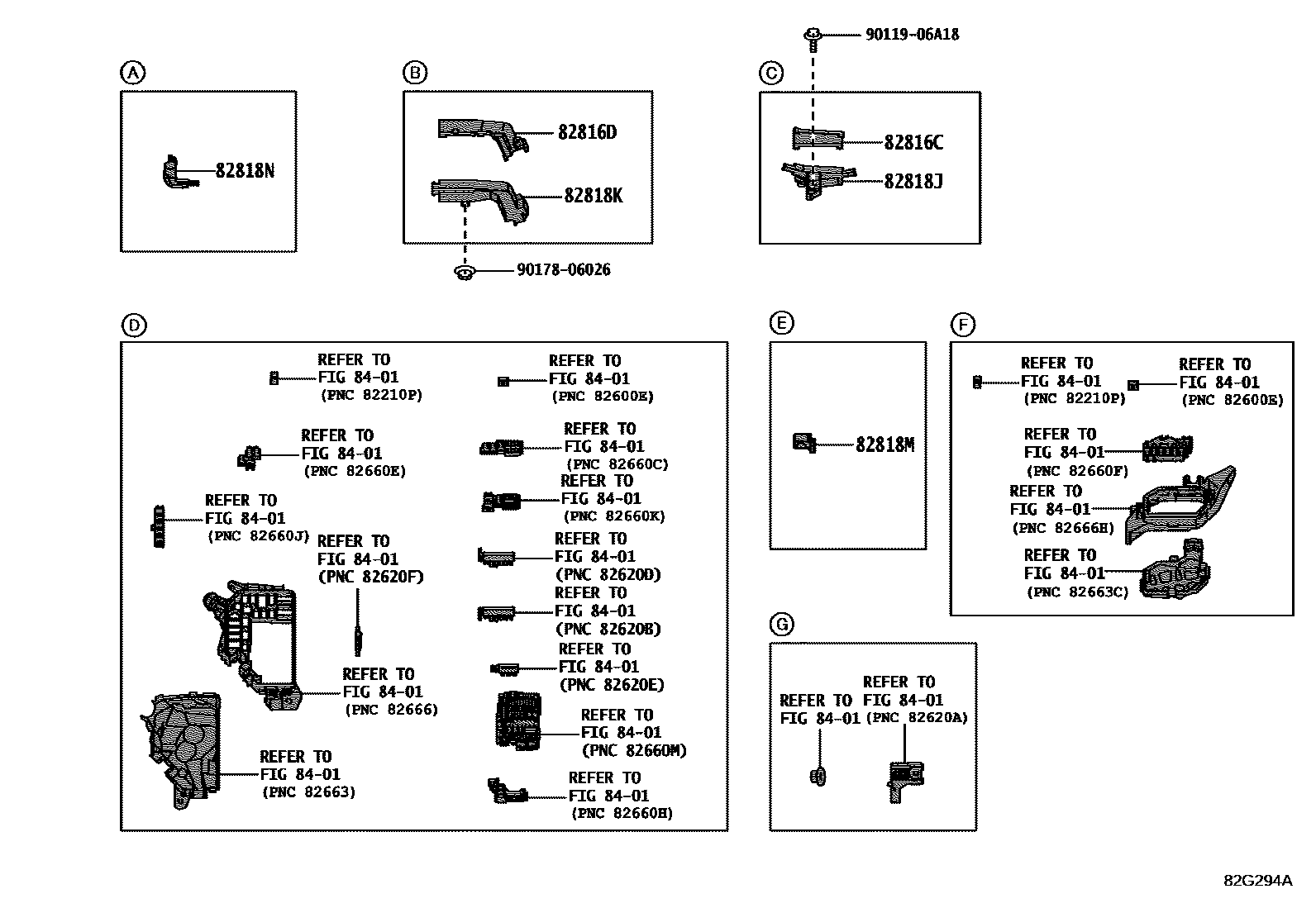

Toyota COROLLA 线束和卡夹 EPC diagram — 82G294A
线束和卡夹 — 82G294A (202209 – 999999)

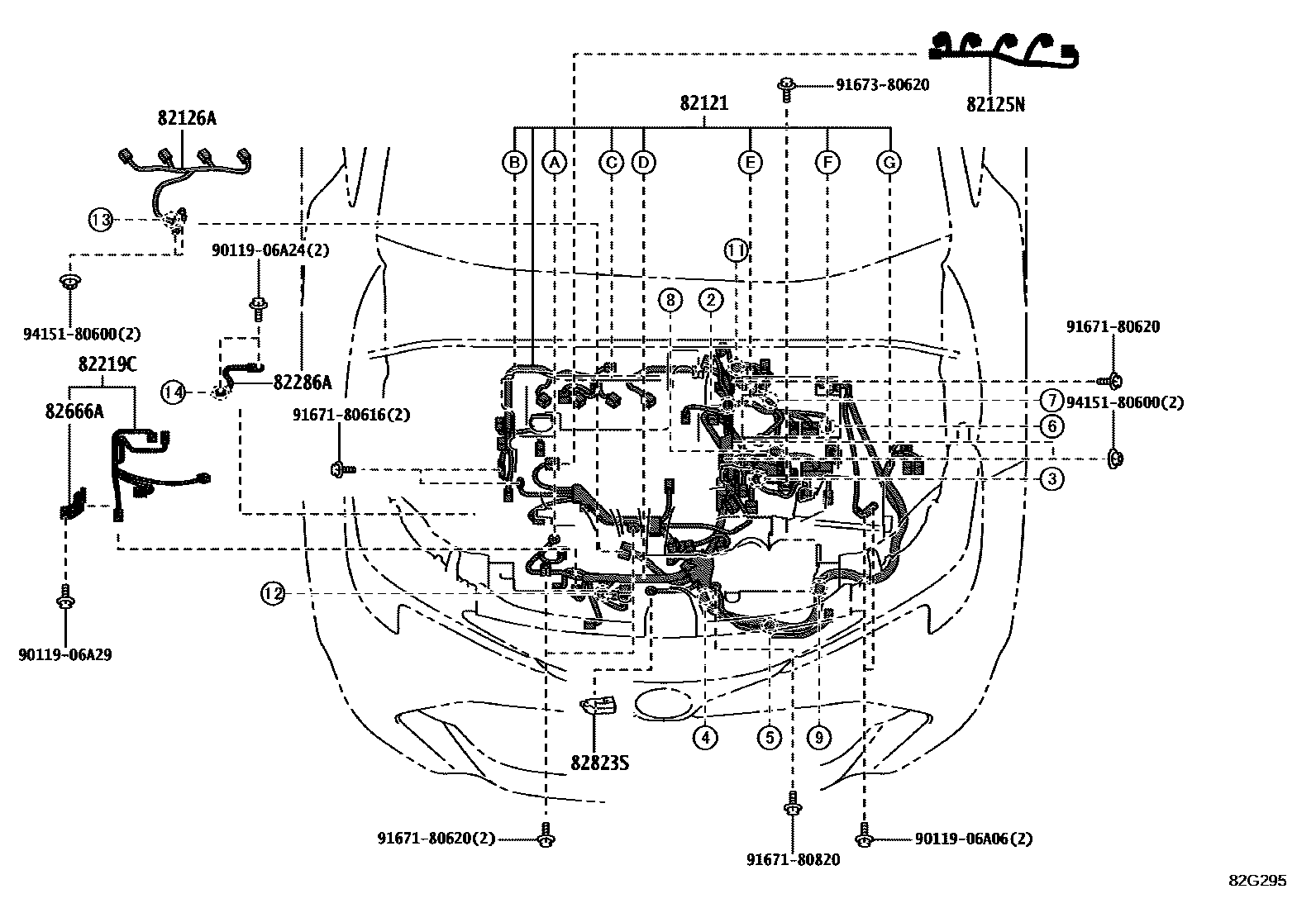

Toyota COROLLA 线束和卡夹 EPC diagram — 82G295
线束和卡夹 — 82G295 (202209 – 999999)

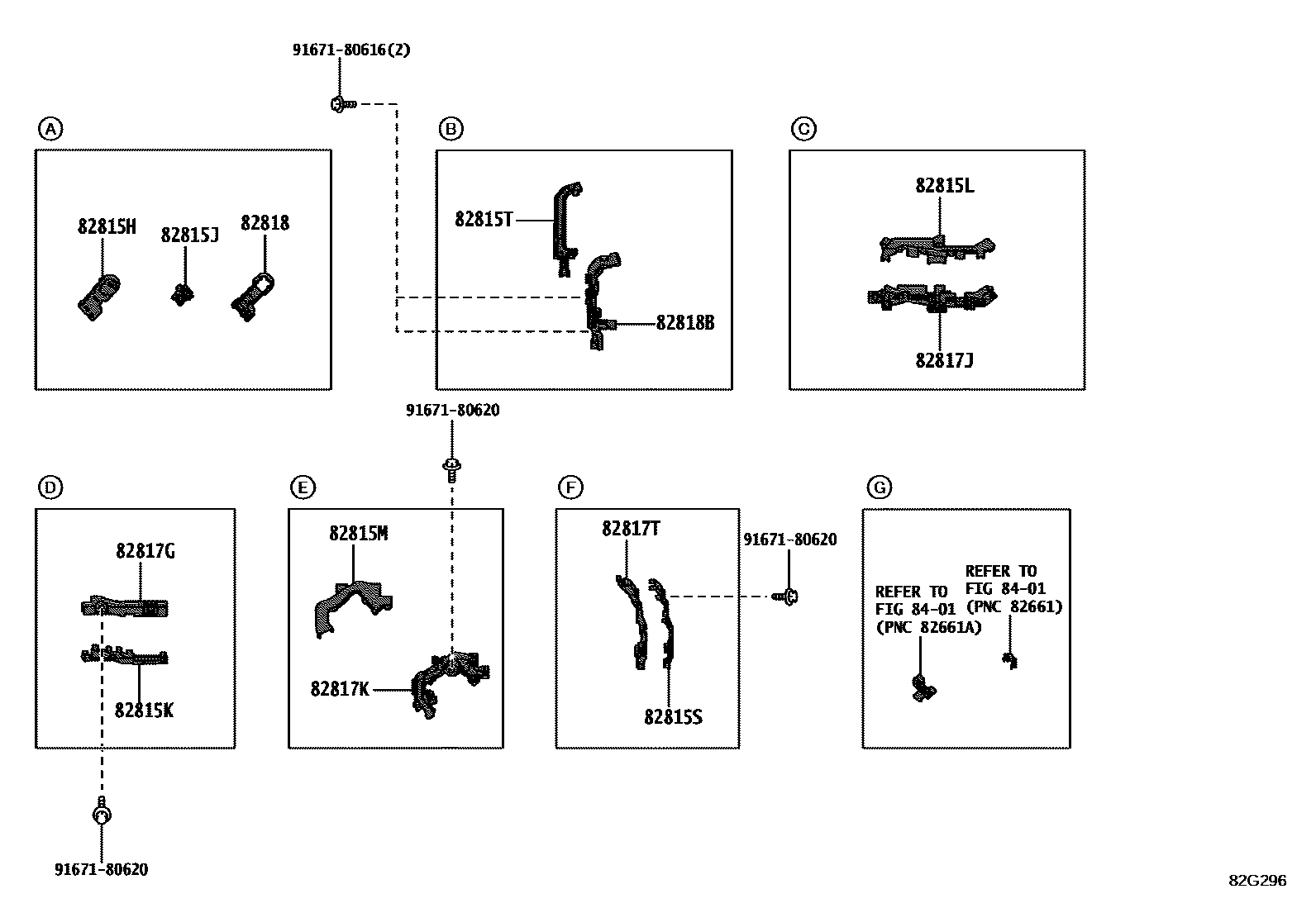

Toyota COROLLA 线束和卡夹 EPC diagram — 82G296
线束和卡夹 — 82G296 (202209 – 999999)

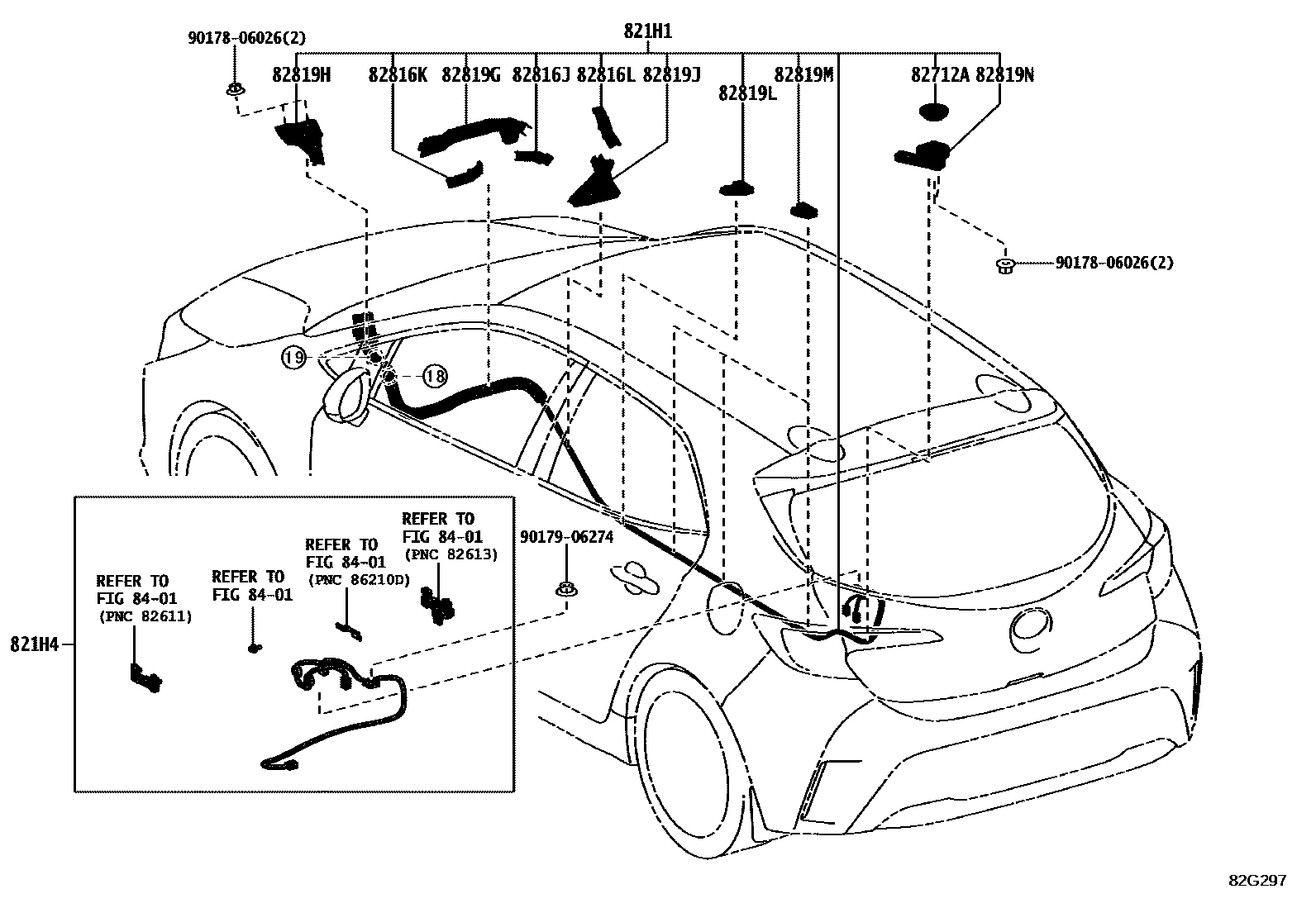

Toyota COROLLA 线束和卡夹 EPC diagram — 82G297
线束和卡夹 — 82G297 (202209 – 999999)

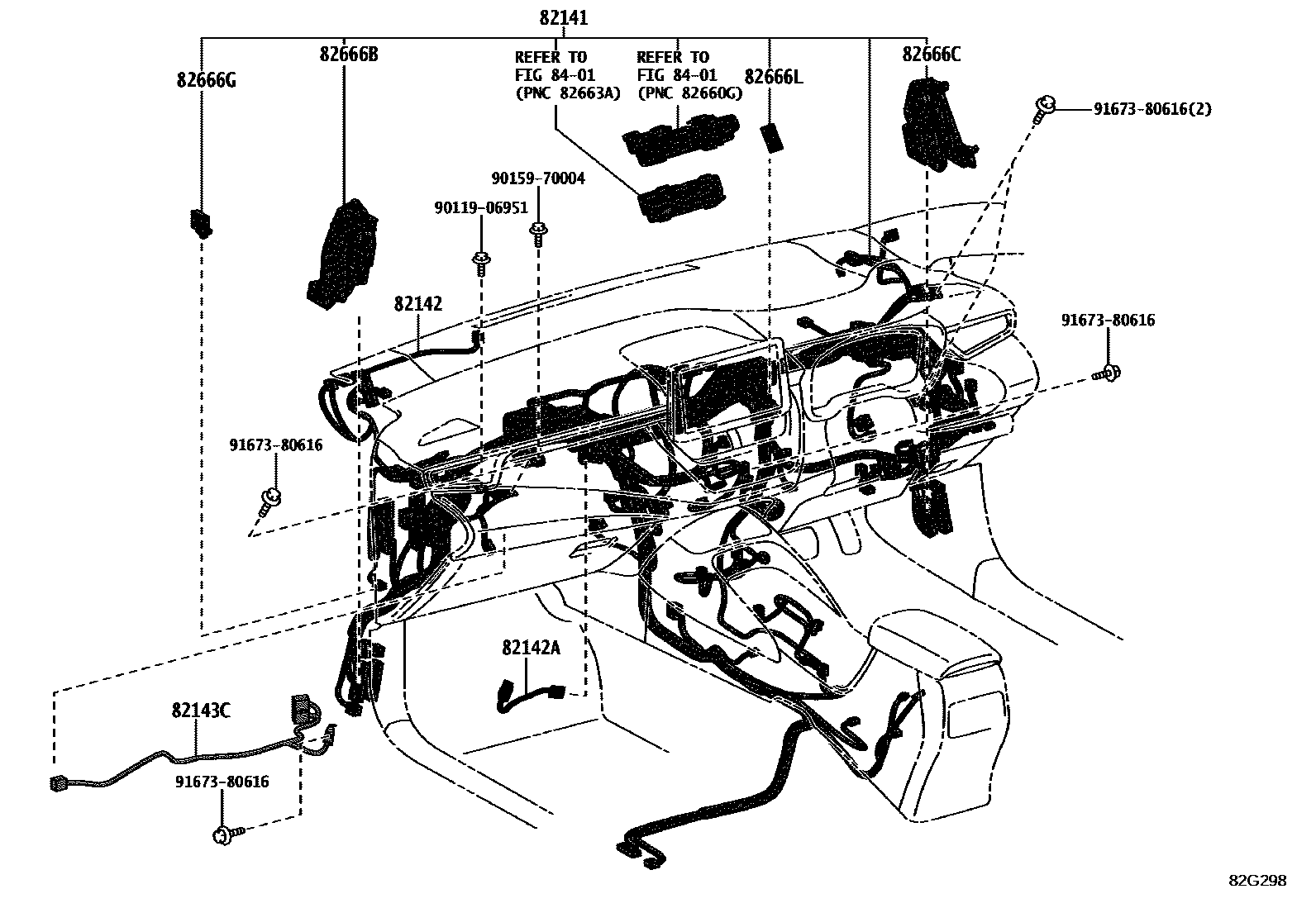

Toyota COROLLA 线束和卡夹 EPC diagram — 82G298
线束和卡夹 — 82G298 (202209 – 999999)

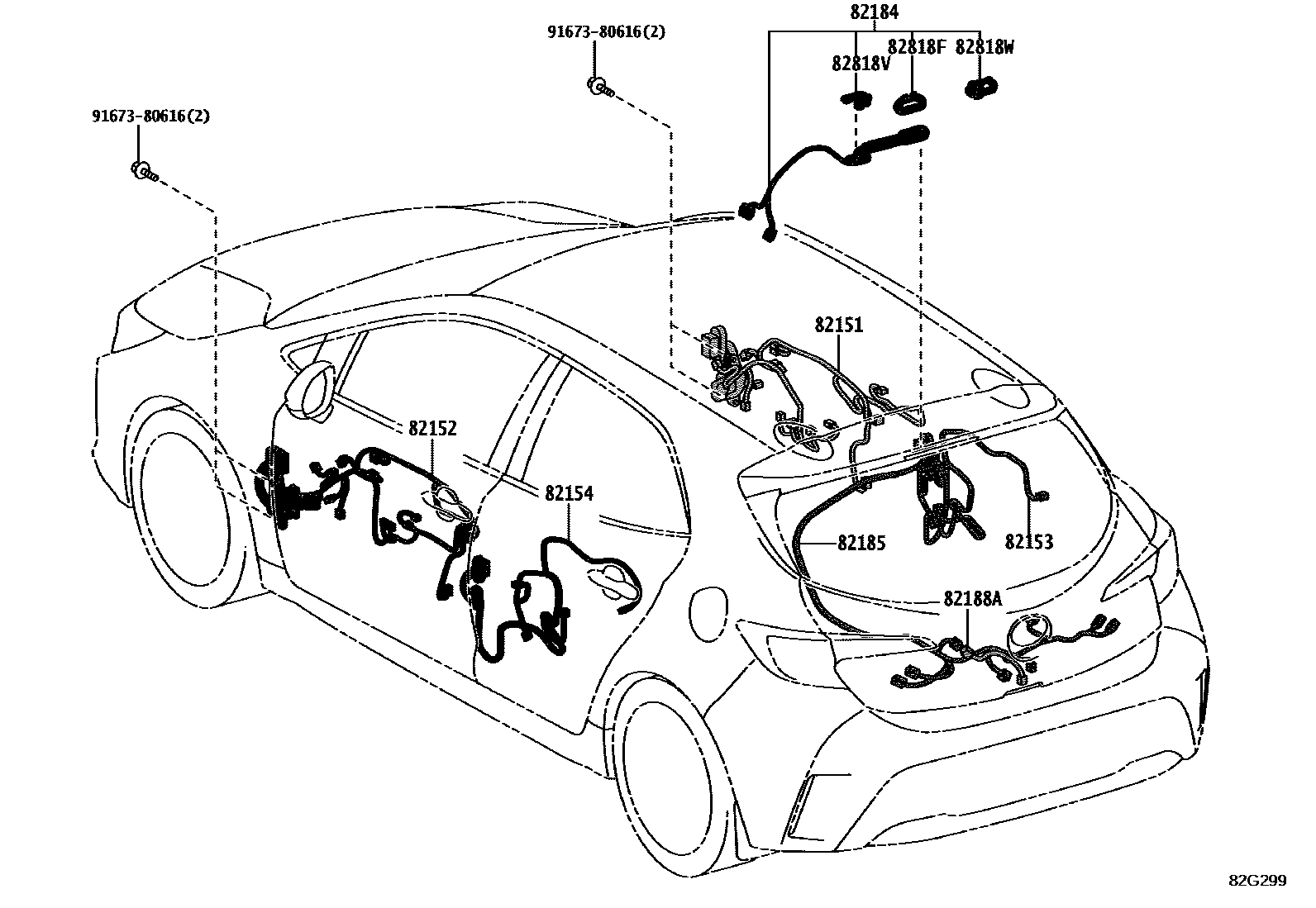

Toyota COROLLA 线束和卡夹 EPC diagram — 82G299
线束和卡夹 — 82G299 (202209 – 999999)

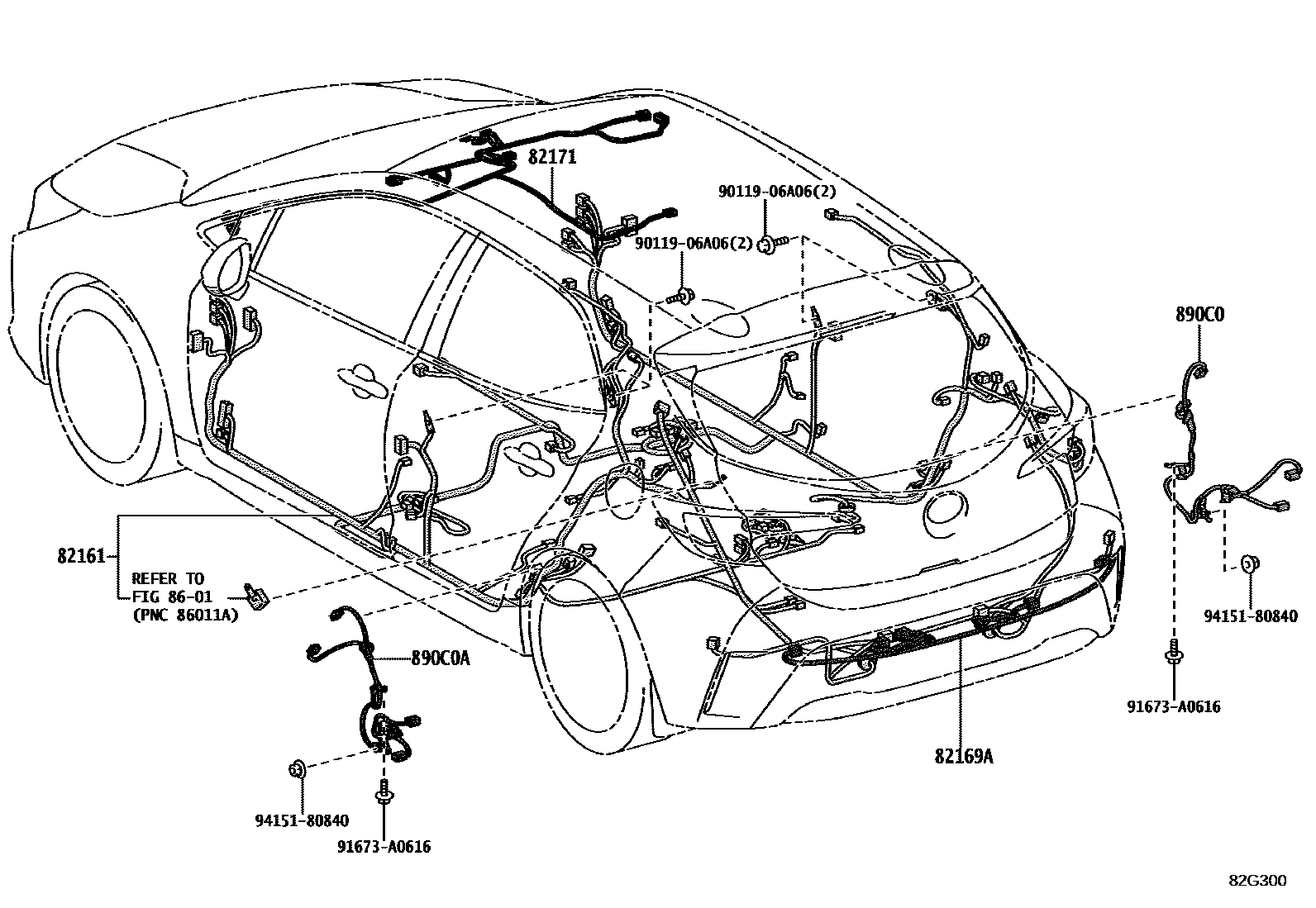

Toyota COROLLA 线束和卡夹 EPC diagram — 82G300
线束和卡夹 — 82G300 (202209 – 999999)

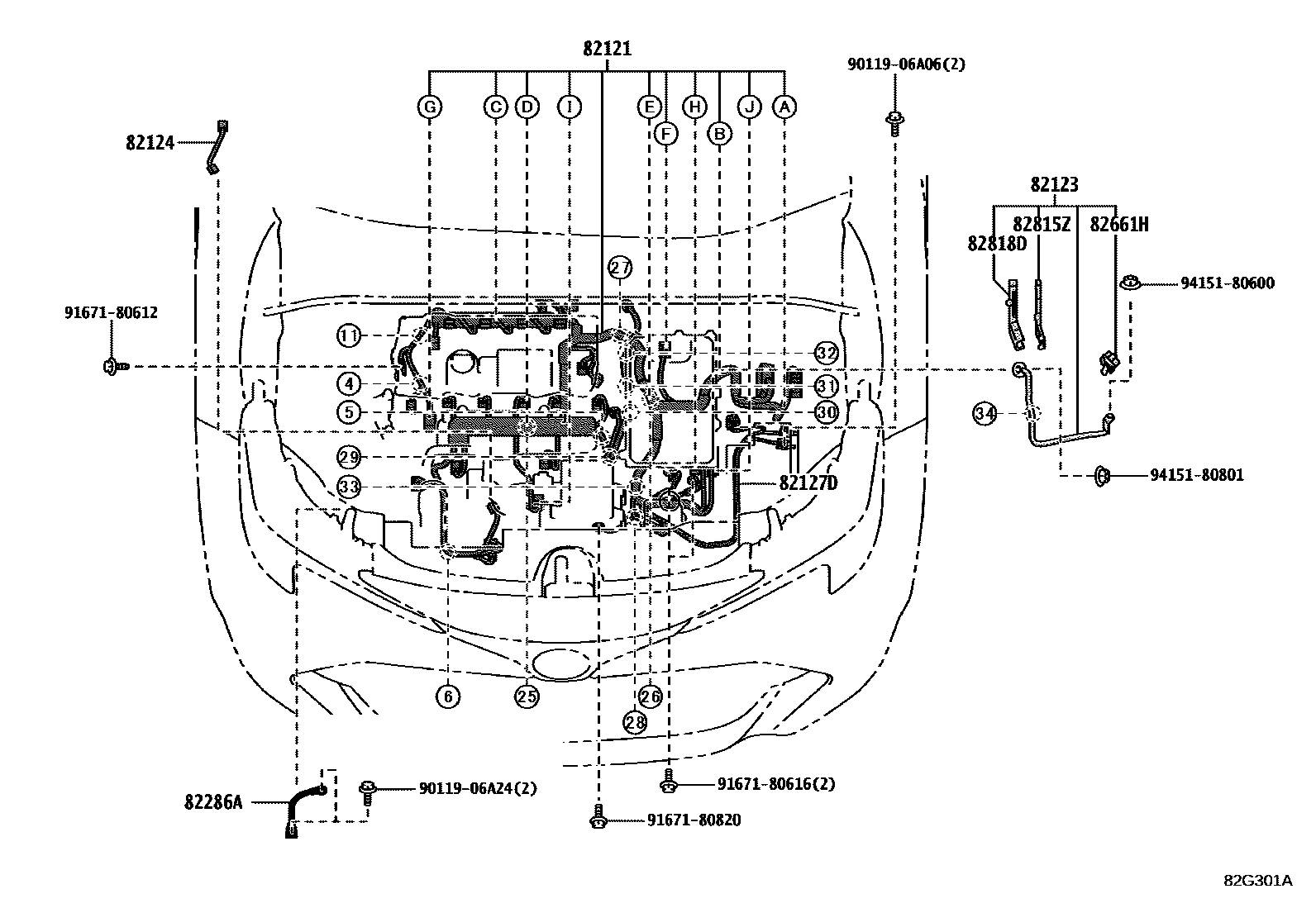

Toyota COROLLA 线束和卡夹 EPC diagram — 82G301A
线束和卡夹 — 82G301A (202209 – 999999)

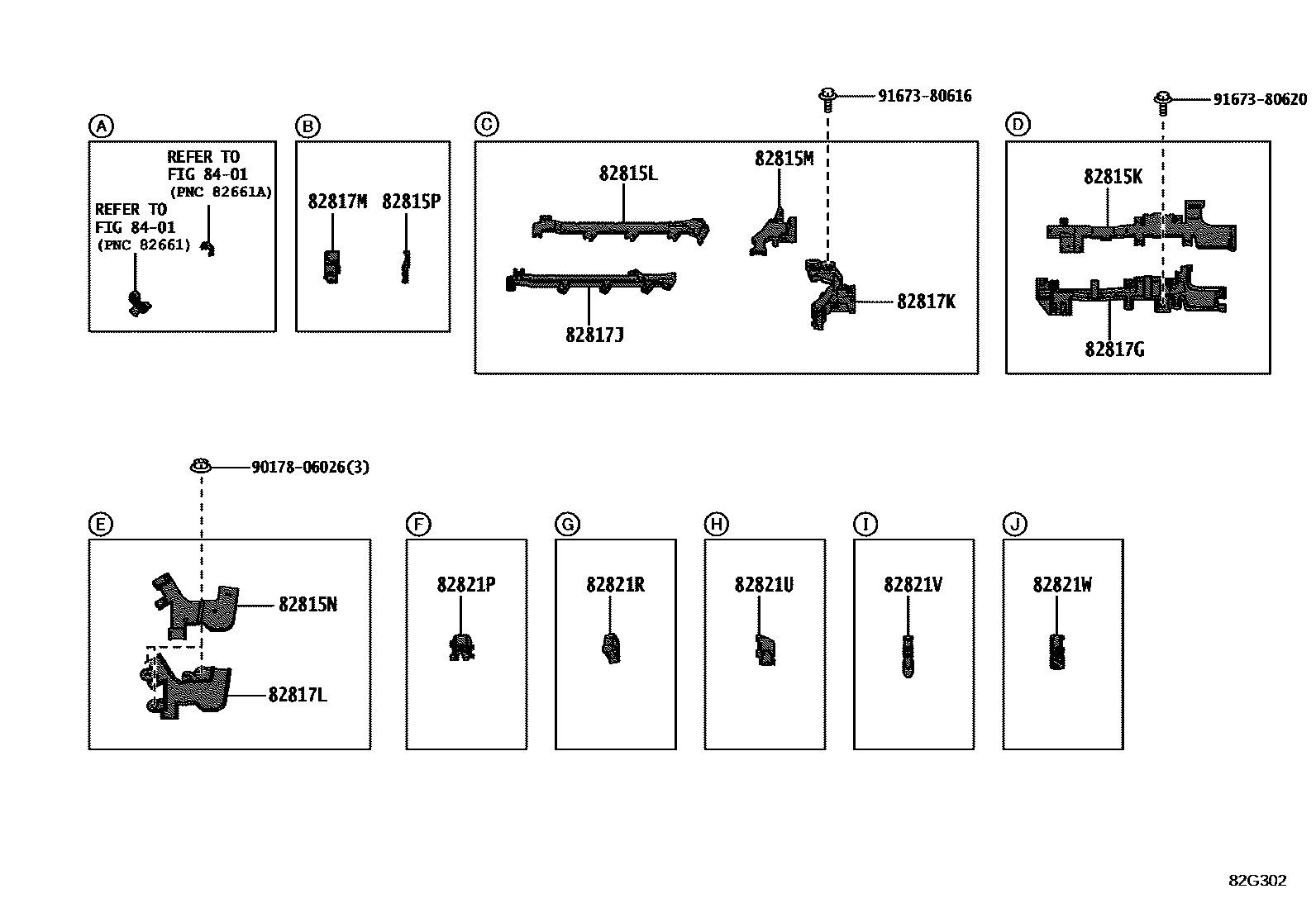

Toyota COROLLA 线束和卡夹 EPC diagram — 82G302
线束和卡夹 — 82G302 (202209 – 999999)

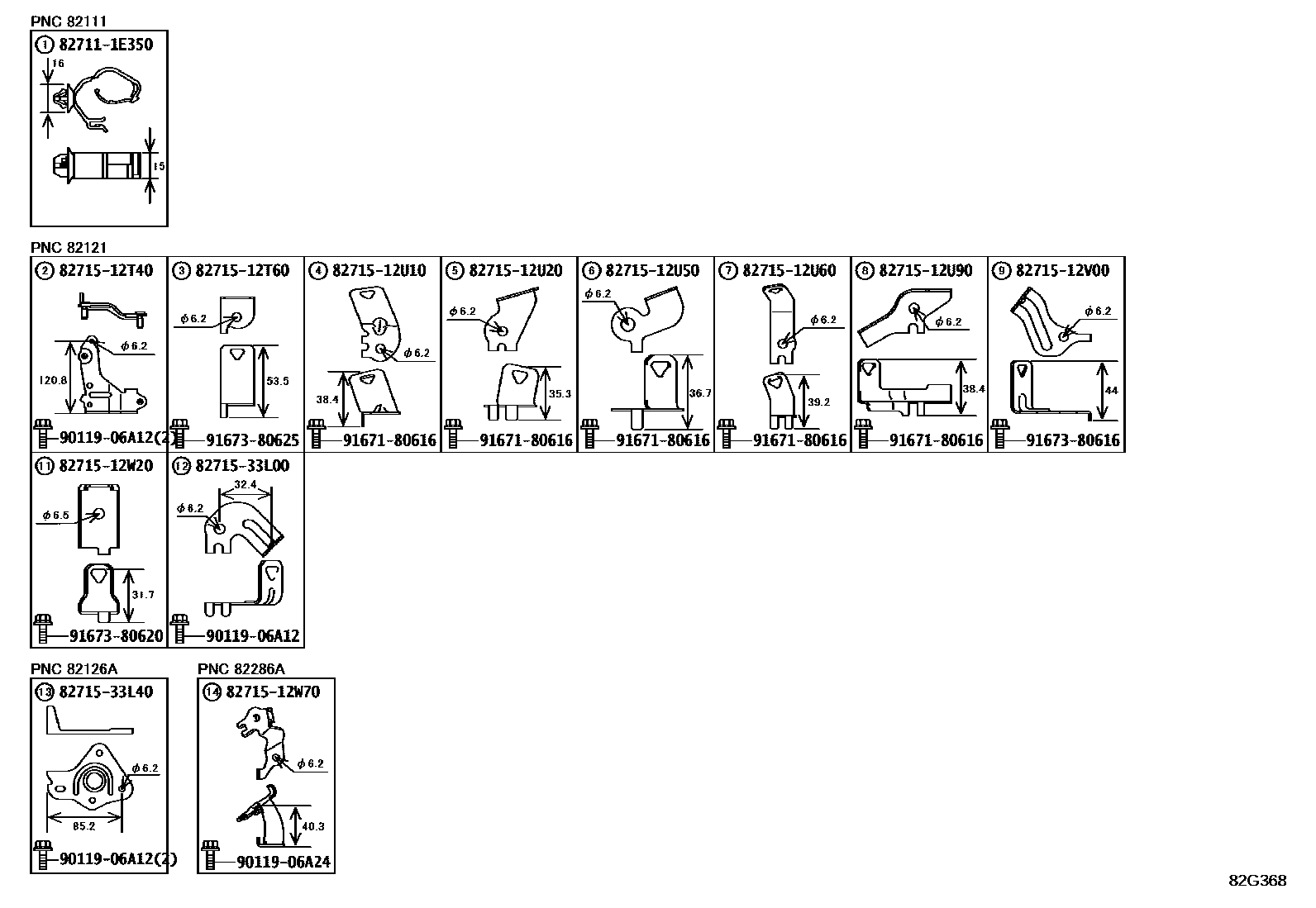

Toyota COROLLA 线束和卡夹 EPC diagram — 82G368
线束和卡夹 — 82G368 (202209 – 999999)

PNC and OE references

PNCPart nameOE numbers
16364ACooling fan harness16364-47010
82111Engine room main wiring harness82111-1KC00 · 82111-1KC02 · 82111-1KC60 · 82111-1KC62 · 82111-1KC90 · 82111-1KE90 · 82111-1KE92 · 82111-1KF10 · 82111-1KF12 · 82111-1KF20 · 82111-1KF22 · 82111-1KF30 · 82111-1KF32 · 82111-1KF70 · 82111-1KF72 · 82111-1KF90 · 82111-1KF92 · 82111-1KG40 · 82111-1KG50 · 82111-1KG52 · 82111-1KM50 · 82111-1KM52 · 82111-1KY10 · 82111-1KY40 · 82111-1KY50 · 82111-1KY60 · 82111-1KY70 · 82111-1KY80 · 82111-1KY90 · 82111-1KZ00 · 82111-1KZ20 · 82111-1KZ70 · 82111-1L430 · 82111-1L431 · 82111-1L432 · 82111-1L490 · 82111-1L491 · 82111-1L492 · 82111-1L520 · 82111-1L521 · 82111-1L522 · 82111-1L690 · 82111-1L691 · 82111-1L710 · 82111-1L711 · 82111-1L730 · 82111-1L731
82119CToyota part82119-12030 · 82119-12080
82121Engine wiring harness82121-12S10 · 82121-12S50 · 82121-12S60 · 82121-12S80 · 82121-12V20 · 82121-12V30 · 82121-12V31
82123Engine No. 3 wiring harness82123-10170 · 82123-16210
82124Engine No. 4 wiring harness82124-12160 · 82124-12170
82125NEngine No. 5 wiring harness82125-12610 · 82125-12660
82126AToyota part82126-12010
82127DEngine No. 7 wiring harness82127-16010
82128AEngine wiring harness No. 882128-12010
82141Dashboard wiring harness82141-1XB10 · 82141-1XB11 · 82141-1XB12 · 82141-1XB13 · 82141-1XB70 · 82141-1XB71 · 82141-1XB72 · 82141-1XB73 · 82141-1XC20 · 82141-1XC21 · 82141-1XC22 · 82141-1XC23 · 82141-1XL90 · 82141-1XL91 · 82141-1XL92 · 82141-1XV50 · 82141-1XV51 · 82141-1XV90 · 82141-1XV91 · 82141-1XW10 · 82141-1XW11 · 82141-1XX80 · 82141-1XX81 · 82141-1XY20 · 82141-1XY21 · 82141-1XY40 · 82141-1XY41 · 82145-12J90 · 82145-12K00 · 82145-12K10 · 82145-12K20
82142Instrument panel wiring harness No. 282142-12670 · 82142-12680
82142AInstrument panel wiring harness No. 282140-12B80
82143CInstrument panel wiring harness No. 382143-12260
82151Right front door wiring harness82151-12Z80 · 82151-12Z81 · 82151-1AA20 · 82151-1AA21 · 82151-1AB20 · 82151-1AB21 · 82151-1AB30 · 82151-1AB31 · 82151-1AG40 · 82151-1AG60 · 82151-1AJ80 · 82151-1AJ90
82152Left front door wiring harness82152-12Z00 · 82152-12Z01 · 82152-12Z40 · 82152-12Z41 · 82152-1AA20 · 82152-1AA21 · 82152-1AA30 · 82152-1AA31 · 82152-1AF20 · 82152-1AF60 · 82152-1AG50 · 82152-1AG60
82153Rear door wiring harness No. 182153-12790 · 82153-12791 · 82153-12D30
82154Rear door wiring harness No. 282154-12740 · 82154-12741 · 82154-12C80
82161floor wiring harness82161-1AX80 · 82161-1AX81 · 82161-1AX83 · 82161-1AX84 · 82161-1AX85 · 82161-1AX90 · 82161-1AX91 · 82161-1AX93 · 82161-1AX94 · 82161-1AX95 · 82161-1AY10 · 82161-1AY11 · 82161-1AY13 · 82161-1AY14 · 82161-1AY15 · 82161-1AY20 · 82161-1AY21 · 82161-1AY23 · 82161-1AY24 · 82161-1AY25 · 82161-1AY30 · 82161-1AY31 · 82161-1AY33 · 82161-1AY34 · 82161-1AY35 · 82161-1AY40 · 82161-1AY41 · 82161-1AY43 · 82161-1AY44 · 82161-1AY45 · 82161-1EA10 · 82161-1EA11 · 82161-1EA13 · 82161-1EA14 · 82161-1EA15 · 82161-1EA20 · 82161-1EA21 · 82161-1EA23 · 82161-1EA24 · 82161-1EA25 · 82161-1EA30 · 82161-1EA31 · 82161-1EA33 · 82161-1EA34 · 82161-1EA35 · 82161-1EA40 · 82161-1EA41 · 82161-1EA43 · 82161-1EA44 · 82161-1EA45 · 82161-1EA50 · 82161-1EA51 · 82161-1EA53 · 82161-1EA54 · 82161-1EA55 · 82161-1EG30 · 82161-1EG31 · 82161-1EG33 · 82161-1EG34 · 82161-1EG35 · 82161-1EG40 · 82161-1EG41 · 82161-1EG43 · 82161-1EG44 · 82161-1EG45 · 82161-1EG50 · 82161-1EG51 · 82161-1EG53 · 82161-1EG54 · 82161-1EG55 · 82161-1EU40 · 82161-1EU50 · 82161-1EU60 · 82161-1EU70 · 82161-1EV20 · 82161-1EV30 · 82161-1EX50 · 82161-1EX80 · 82161-1EY10 · 82161-1EY40 · 82161-1EY70 · 82161-1EY71 · 82161-1EZ00 · 82161-1EZ01 · 82161-1EZ30 · 82161-1EZ60 · 82161-1EZ90 · 82161-1HA20 · 82161-1HA50 · 82161-1HA51 · 82161-1HA80 · 82161-1HK80 · 82161-1HK90 · 82161-1HL00 · 82161-1HL10 · 82161-1HL20 · 82161-1HL30
82162Floor wiring harness No. 282162-12N10
82169AToyota part82169-12040 · 82169-12050 · 82183-12100
8216ANo. 7 floor wiring harness8216A-10010
82171Roof No. 1 wiring harness82171-12U00 · 82171-12U10 · 82171-12U11 · 82171-12U20 · 82171-12U21 · 82171-12Z60 · 82171-1A650
82184Rear door No. 1 wiring harness82184-12A50 · 82184-12A51 · 82184-12A52 · 82184-12A60 · 82184-12A61 · 82184-12A62 · 82184-12A70 · 82184-12A80 · 82184-12C10 · 82184-12C20 · 82184-12C30 · 82184-12C40
82185Rear door wiring harness No. 282185-12840 · 82185-12A10 · 82185-12A11 · 82185-12A40 · 82185-12A50
82188ARear door No. 3 wiring harness82184-12A90
82191Front right seat wiring harness82191-47120
8219AWire harness No. 2, right side of front seat8219A-12020
821H1Toyota part821H1-12030 · 821H1-12190
821H2Toyota part821H2-47010 · 821H2-V1010
821H4Toyota part821H4-12010 · 821H4-12160
82219Temperature sensor harness82219-12130
82219Csensor harness82219-76020
82286ALine 282286-12010 · 82286-12030 · 82286-47010
82661HToyota part82661-16250
82666AConnector holder No. 282666-12490
82666BNo. 3 connector holder82666-12670
82666CNo. 4 connector holder82666-12680
82666ENo. 6 connector holder82666-F4060
82666FNo. 7 connector holder82666-26180
82666GNo. 8 connector holder82666-12590
82666LNo. 9 connector holder82666-60220
82712AWire harness bracket82712-16040
82815GWiring harness protector cover82815-12L40
82815HWiring harness protector cover82815-33J10
82815JNo. 7 wire harness protector cover82815-33L00
82815KNo. 8 wire harness protector cover82815-02700 · 82815-12E00 · 82815-47E20 · 82815-V1610
82815LNo. 9 wire harness protector cover82815-12D60 · 82815-12G90 · 82815-47E40 · 82815-V1600
82815MNo. 10 wire harness protector cover82815-02720 · 82815-12E40 · 82815-47E30 · 82815-V1430
82815NNo. 11 wire harness protector cover82815-16100 · 82815-47E10 · 82815-F4090
82815PNo. 12 wire harness protector cover82815-16090 · 82815-47E00 · 82815-F4120
82815QNo. 13 wire harness protector cover82815-12M10 · 82815-F4100
82815RNo. 14 wire harness protector cover82815-47D80 · 82815-F4110
82815SNo. 15 wire harness protector cover82815-12E50 · 82815-12M00 · 82815-F4010
82815TNo. 16 wire harness protector cover82815-12B00
82815UNo. 17 wire harness protector cover82815-47E50
82815VNo. 1 wire harness protector cover82815-12J00 · 82815-47D40
82815WNo. 2 wire harness protector cover82815-12L90
82815XNo. 3 wire harness protector cover82815-12L80
82815YToyota part82815-12L70
82815ZToyota part82815-10080 · 82815-V1340
82816BToyota part82815-12D10
82816CToyota part82815-16230 · 82815-47D30
82816DToyota part82815-16200 · 82815-47D00
82816FToyota part82815-47C90
82816GToyota part82815-47C20
82816HToyota part82815-47880
82816JToyota part82815-12690
82816KToyota part82815-16140
82816LToyota part82815-16150
82817No. 1 wire harness protection device82817-12W50 · 82817-47P10
82817ANo. 2 wire harness protection device82817-12Z80
82817BNo. 3 wire harness protection device82817-12Z70
82817CNo. 4 wire harness protection device82817-12Z60
82817DNo. 5 wire harness protection device82817-12Z20
82817ENo. 6 wire harness protection device82817-12Z10
82817FNo. 7 wire harness protection device82817-12Z50
82817GNo. 8 wire harness protection device82817-02L30 · 82817-12S00 · 82817-47P90 · 82817-V1840
82817JNo. 9 wire harness protection device82817-12R60 · 82817-12W40 · 82817-47Q10 · 82817-V1820
82817KNo. 10 wire harness protection device82817-02L50 · 82817-12S40 · 82817-47Q00 · 82817-V1600
82817LNo. 11 wire harness protection device82817-16840 · 82817-47L20 · 82817-F4100
82817MNo. 12 wire harness protection device82817-16830 · 82817-47P70 · 82817-F4140
82817NNo. 13 wire harness protection device82817-1A890 · 82817-F4110
82817PNo. 14 wire harness protection device82817-47P50 · 82817-F4130
82817TNo. 15 wire harness protection device82817-12S50 · 82817-1A880 · 82817-F4010
82817UNo. 16 wire harness protection device82817-47S30
82817XNo. 17 wire harness protection device82817-47S40 · 82817-F4120
82818No. 2 wire harness protection device82817-33S70
82818BNo. 3 wire harness protection device82817-12V00
82818CNo. 4 wire harness protection device82817-47Q20
82818DNo. 5 wire harness protection device82817-10360 · 82817-V1510
82818ENo. 6 wire harness protection device82817-52A60
82818FNo. 7 wire harness protection device82817-1AA90
82818HToyota part82817-12V50
82818JToyota part82817-16820 · 82817-47P00
82818KToyota part82817-16790 · 82817-47N70
82818LToyota part82817-47N60
82818MToyota part82817-16770 · 82817-47N40
82818NToyota part82817-16780 · 82817-47N30
82818SToyota part82817-F4540
82818TToyota part82817-F4500
82818UToyota part82817-02L60
82818VToyota part82817-47L50
82818WToyota part82817-12Q00
82819GToyota part82817-12P10
82819HToyota part82817-16700
82819JToyota part82817-16720
82819LToyota part82817-16730
82819MToyota part82817-16740
82819NToyota part82817-16750
82821AConnector cover82821-47330
82821EConnector cover82821-30650
82821HConnector cover82821-50500
82821MConnector cover82821-47420
82821NToyota part82821-47430
82821PToyota part82821-28420
82821RConnector cover82821-30600
82821UConnector cover82821-33690
82821VConnector cover82821-60100
82821WConnector cover82821-V1030
82823No. 1 terminal cover82823-47050
82823SToyota part28192-24030 · 28192-47030
82823TToyota part82823-22050
82824Harness connector82824-12530
82824AHarness connector82824-12710
890C0Toyota part890C0-12010 · 890C0-12030
890C0AToyota part890C0-12020 · 890C0-12040
G921DToyota partG921D-47020
