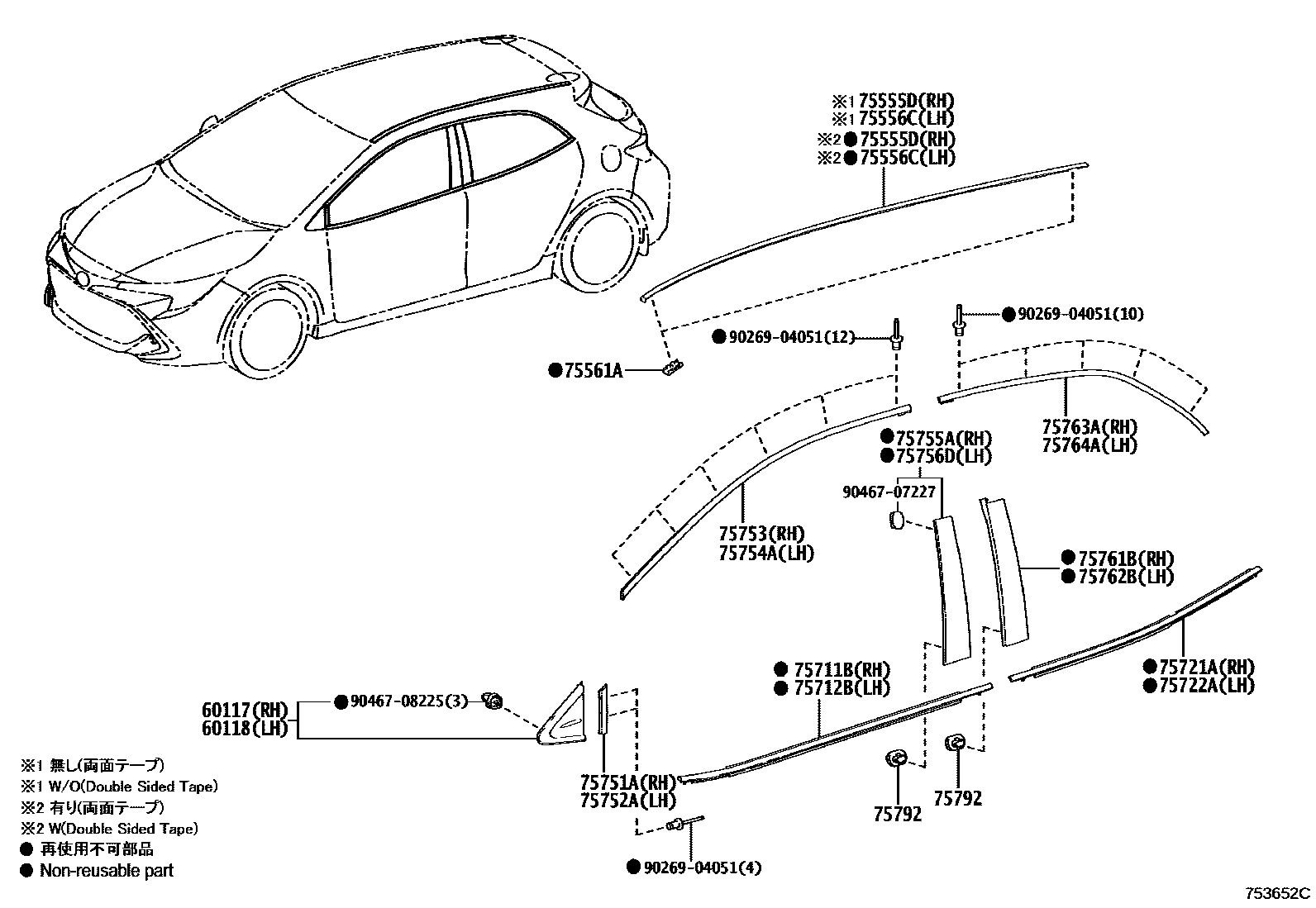

Toyota COROLLA 侧防护条 — Figure 7503
Toyota COROLLA EPC diagram 7503, 侧防护条, with 2 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 60117 | Right front pillar upper cover sub-assembly | 60117-12070 · 60117-12090 |
| 60118 | Left front pillar upper cover sub-assembly | 60118-12070 · 60118-12090 |
| 75555D | Drainage channel side decorative strip in the middle section on the right side of the roof | 75555-12210 |
| 75556C | Drainage channel side decorative strip in the middle section on the left side of the roof | 75556-12220 |
| 75561A | Roof drain channel side decorative strip clip | 75561-33030 |
| 75711B | Right front door waistline protection strip | 75710-12850 · 75710-12890 |
| 75712B | Left front door waistline protection strip | 75720-12850 · 75720-12A30 |
| 75721A | Right rear door waistline protection strip | 75730-12440 · 75730-12441 |
| 75722A | Left rear door waistline protection strip | 75740-12530 · 75740-12531 |
| 75751A | Toyota part | 75751-12250 |
| 75752A | Toyota part | 75752-12250 |
| 75753 | Protective strip on right front door window frame | 75753-12100 · 75753-12110 |
| 75754A | Protective strip on left front door window frame | 75754-12080 · 75754-12090 |
| 75755A | Toyota part | 75755-12140 · 75755-12160 |
| 75756D | Toyota part | 75756-12160 · 75756-12180 |
| 75761B | Toyota part | 75761-12090 · 75761-12100 |
| 75762B | Toyota part | 75762-12090 · 75762-12100 |
| 75763A | Protective strip on right rear door window frame | 75763-12110 · 75763-12120 |
| 75764A | Protective strip on left rear door window frame | 75764-12120 · 75764-12130 |
| 75792 | Car door window frame protective strip clip | 75792-47010 |
| 75867A | Door sill panel protective strip clip | 75867-52020 |
