Toyota COROLLA 丰田徽标和铭牌(车外和车内) — Figure 7501

Toyota COROLLA EPC diagram 7501, 丰田徽标和铭牌(车外和车内), with 1 images and 6 PNC and OE references.

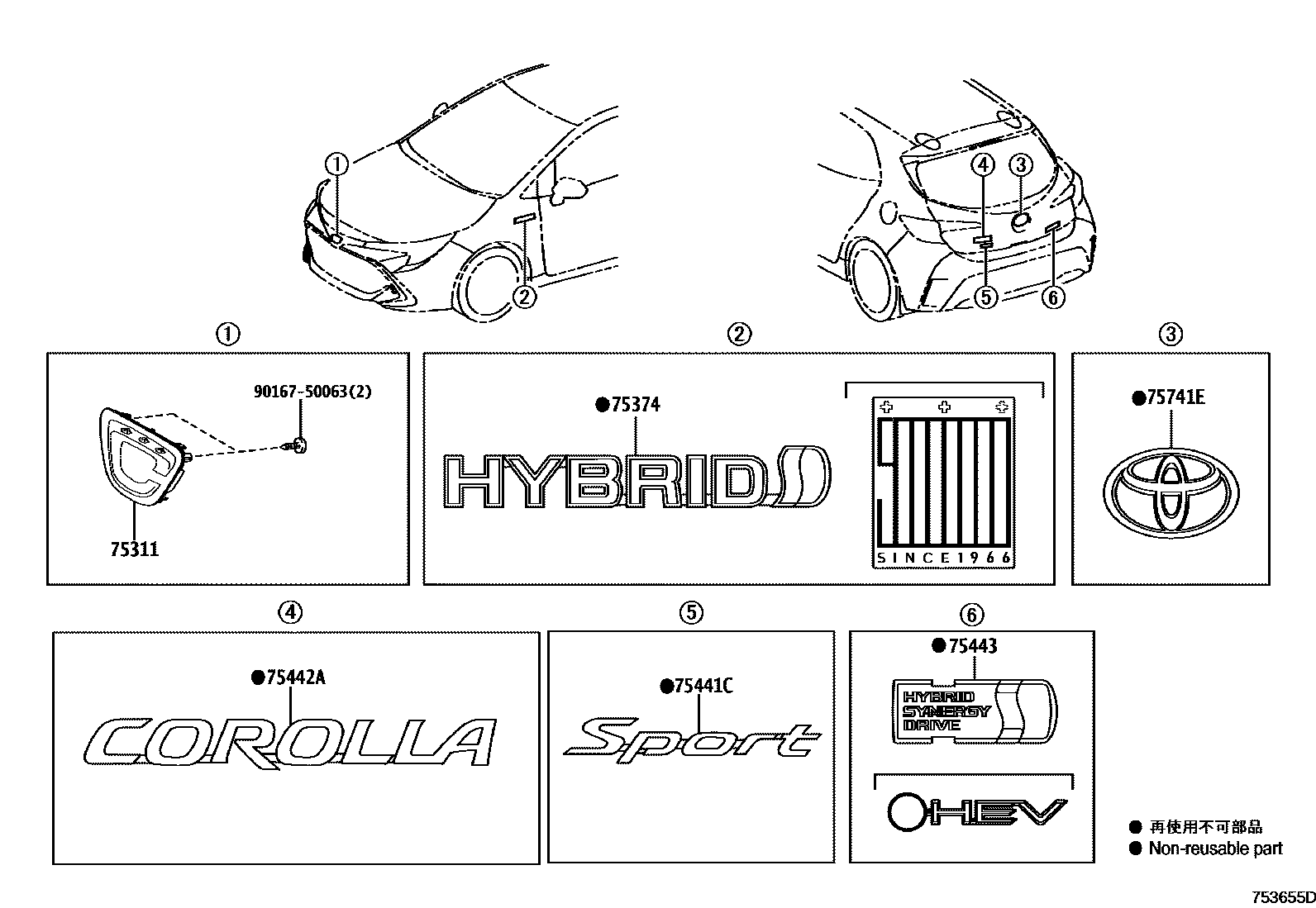

Toyota COROLLA 丰田徽标和铭牌(车外和车内) EPC diagram — 753655D
丰田徽标和铭牌(车外和车内) — 753655D (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
75311Radiator grille (or front panel) plate53141-12320 · 53141-12330
75374side panel sign75374-12090 · 75374-12100
75441CBack door nameplate75441-12B10 · 75441-12B11
75442ANo. 2 nameplate on back door75442-12C00
75443No. 3 nameplate on back door75440-16010 · 75441-12B20
75741Elogo75403-12040 · 90975-02072
