Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 4 images and 4 PNC and OE references.

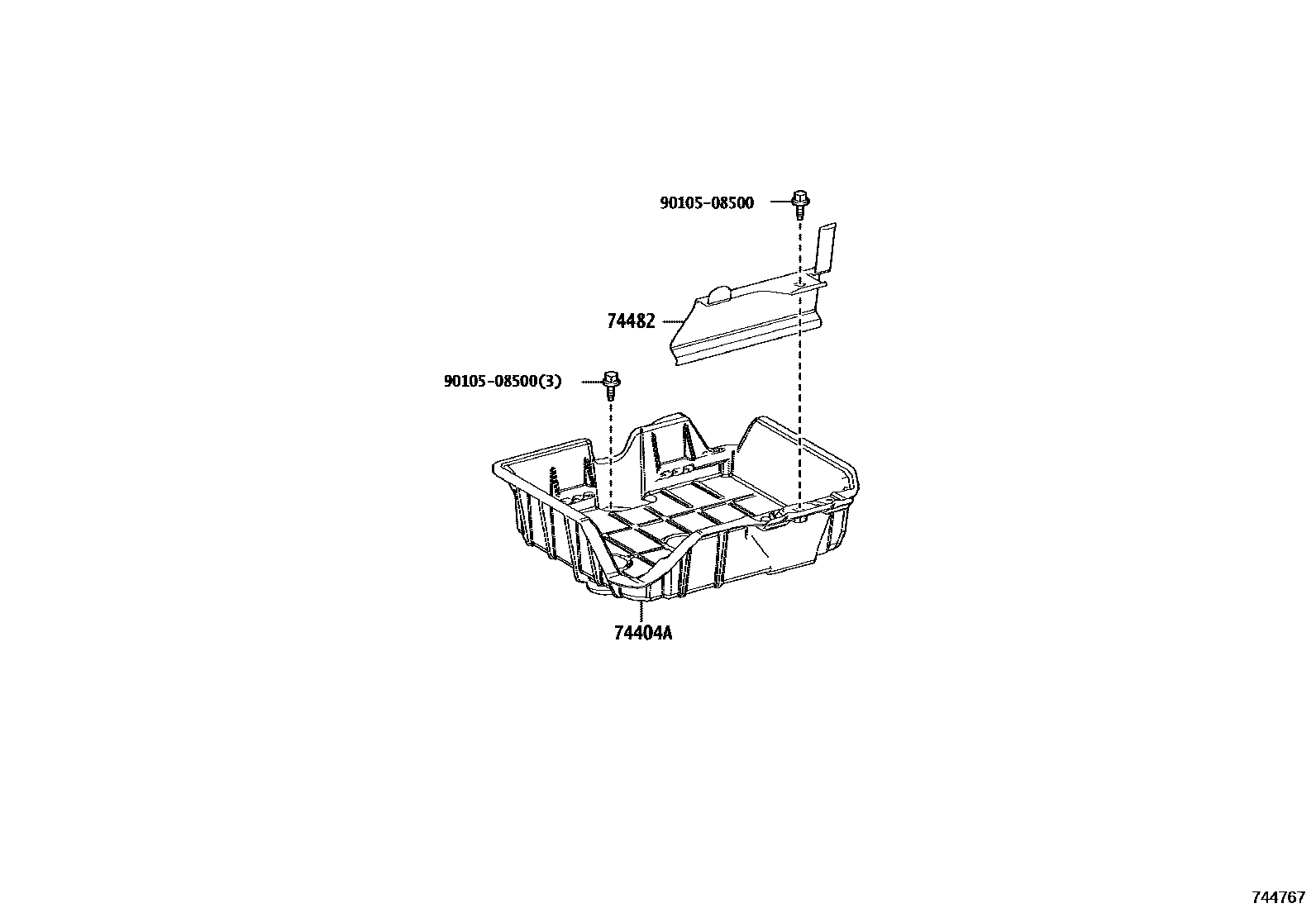

Toyota COROLLA battery holder EPC diagram — 744767 — battery holder — 744767 (201806 – 999999)

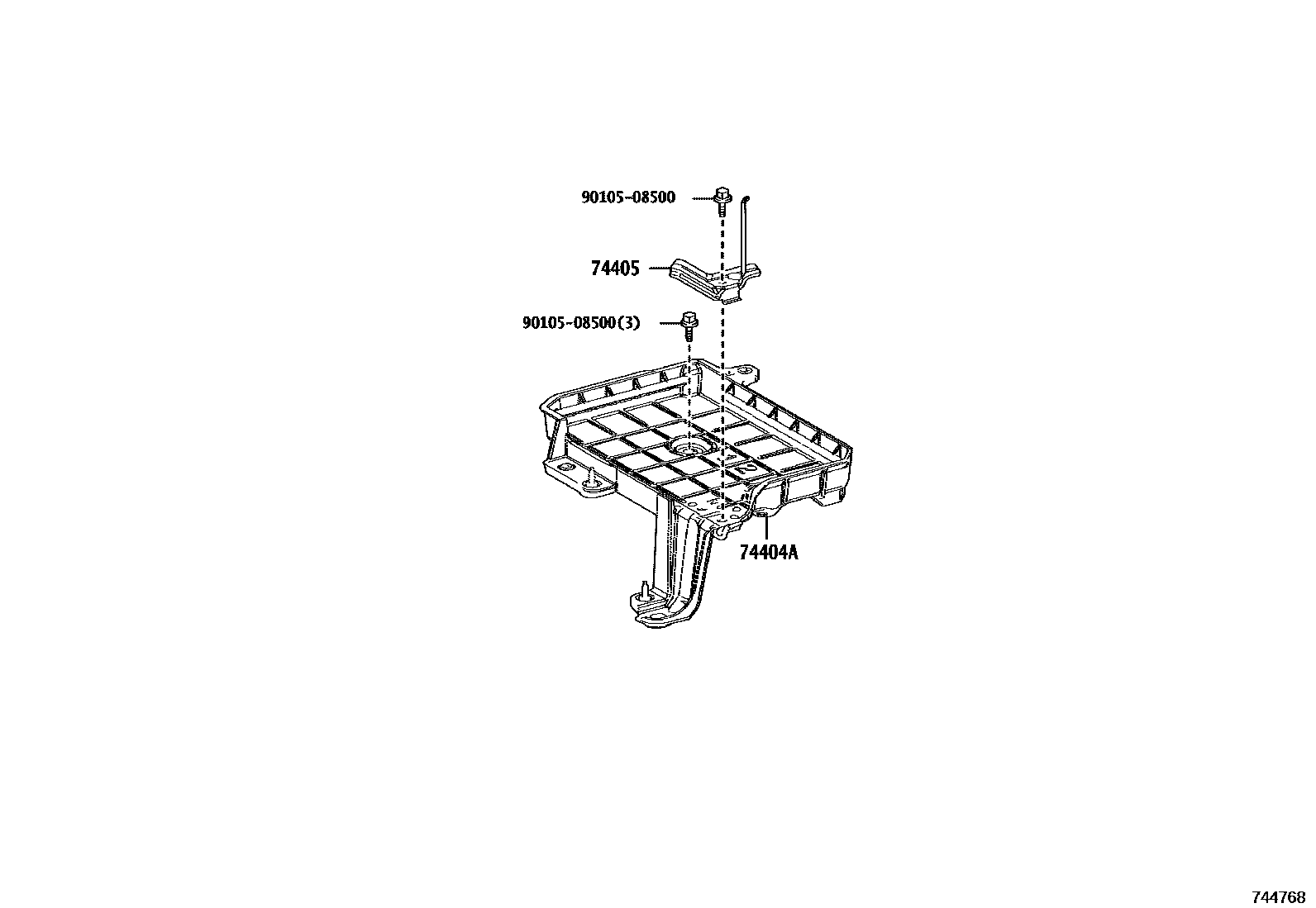

Toyota COROLLA battery holder EPC diagram — 744768 — battery holder — 744768 (201806 – 999999)

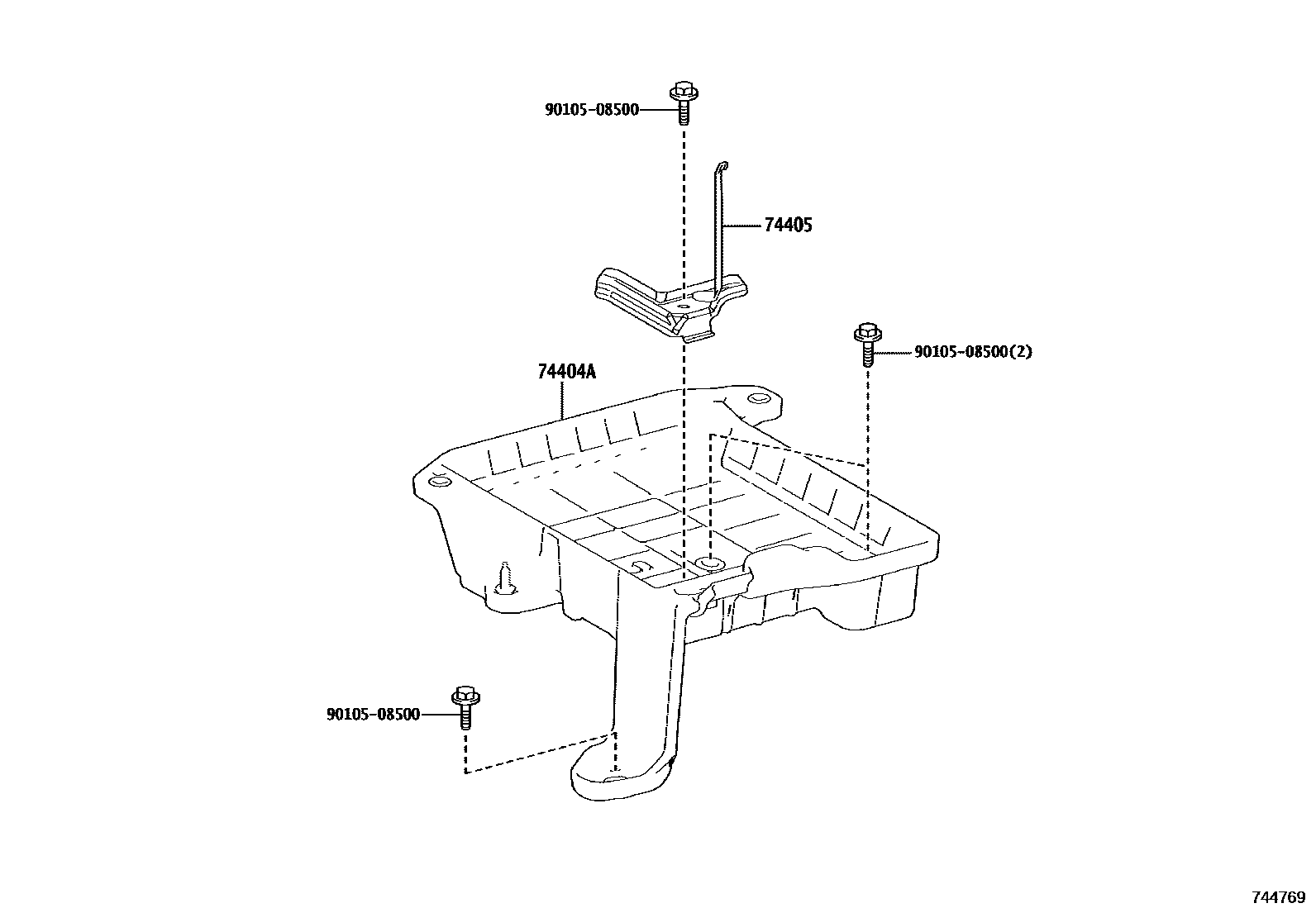

Toyota COROLLA battery holder EPC diagram — 744769 — battery holder — 744769 (202210 – 999999)

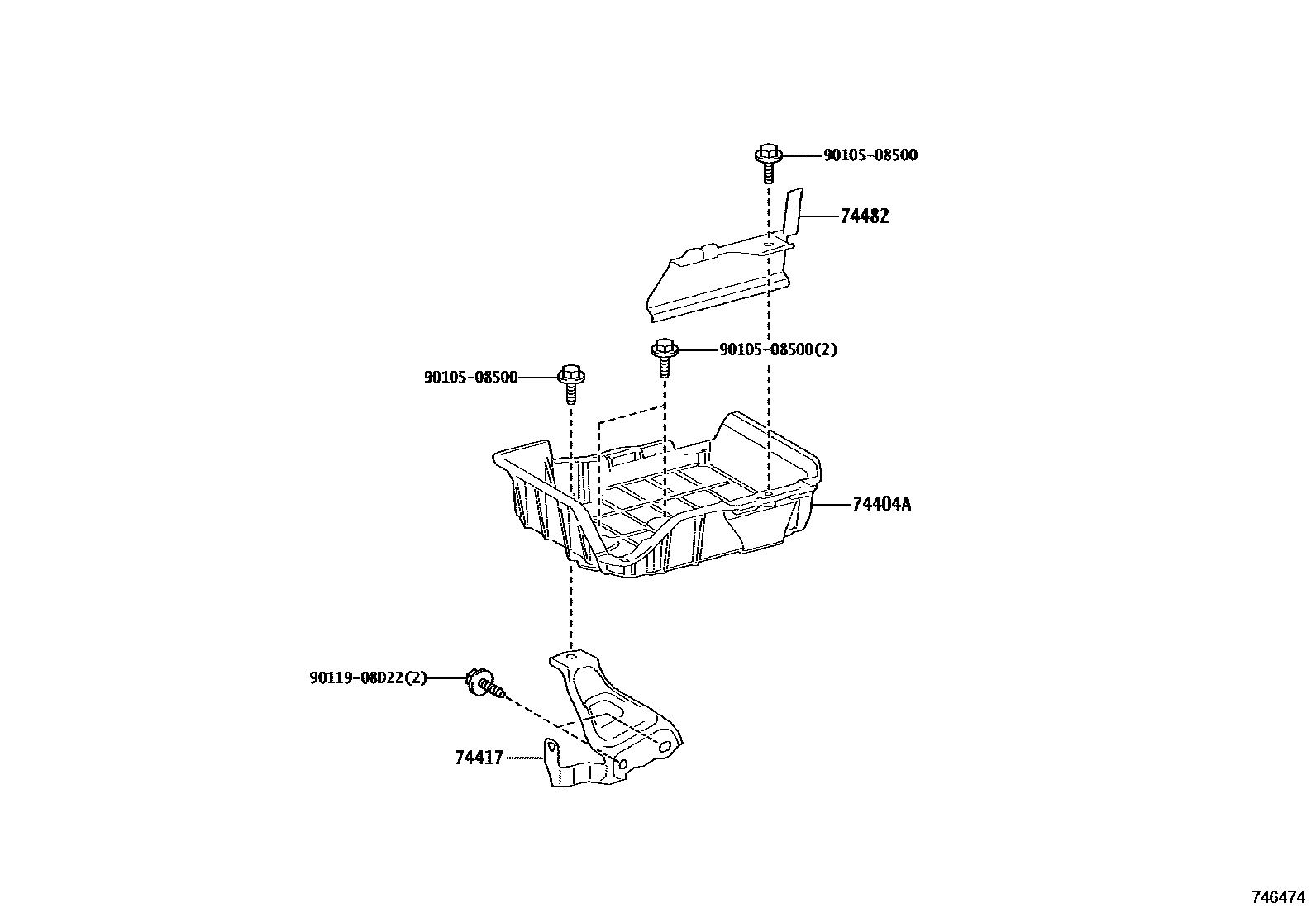

Toyota COROLLA battery holder EPC diagram — 746474 — battery holder — 746474 (202210 – 999999)

PNC and OE references

PNC	Part name	OE numbers
74404A	Battery clip sub-assembly	74404-10211 · 74404-12600 · 74404-12610 · 74404-47030
74405	No. 2 battery clip sub-assembly	74405-76021
74417	battery holder bracket	74417-12060
74482	No. 2 battery clip	74482-47010
