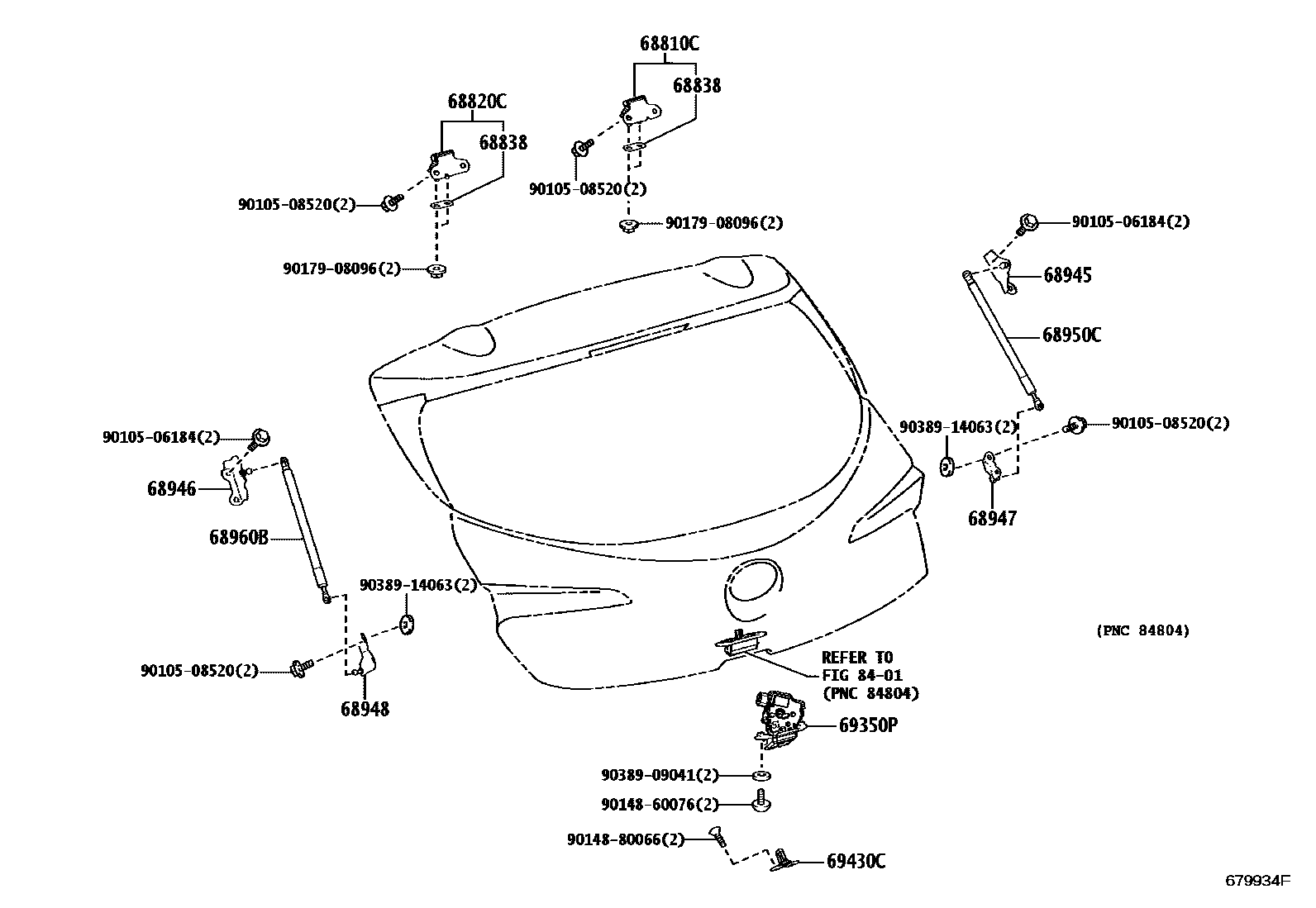

Toyota COROLLA 背门锁和背门把手 — Figure 6709
Toyota COROLLA EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68810C | Back door right hinge assembly | 68810-12050 |
| 68820C | Back door left hinge assembly | 68820-12030 |
| 68838 | Back door hinge No. 1 gasket | 68838-47020 |
| 68945 | Back door right damping stay upper bracket | 68945-12080 |
| 68946 | Rear door left damping strut upper bracket | 68946-12050 |
| 68947 | Back door right damping strut lower bracket | 68947-12070 |
| 68948 | Rear door left damping strut lower bracket | 68948-12070 |
| 68950C | Back door right support rod assembly | 68950-0WE20 |
| 68960B | Back door left support rod assembly | 68960-0WE20 |
| 69350P | Toyota part | 69350-13380 |
| 69430C | Back door lock assembly | 69430-52050 |
