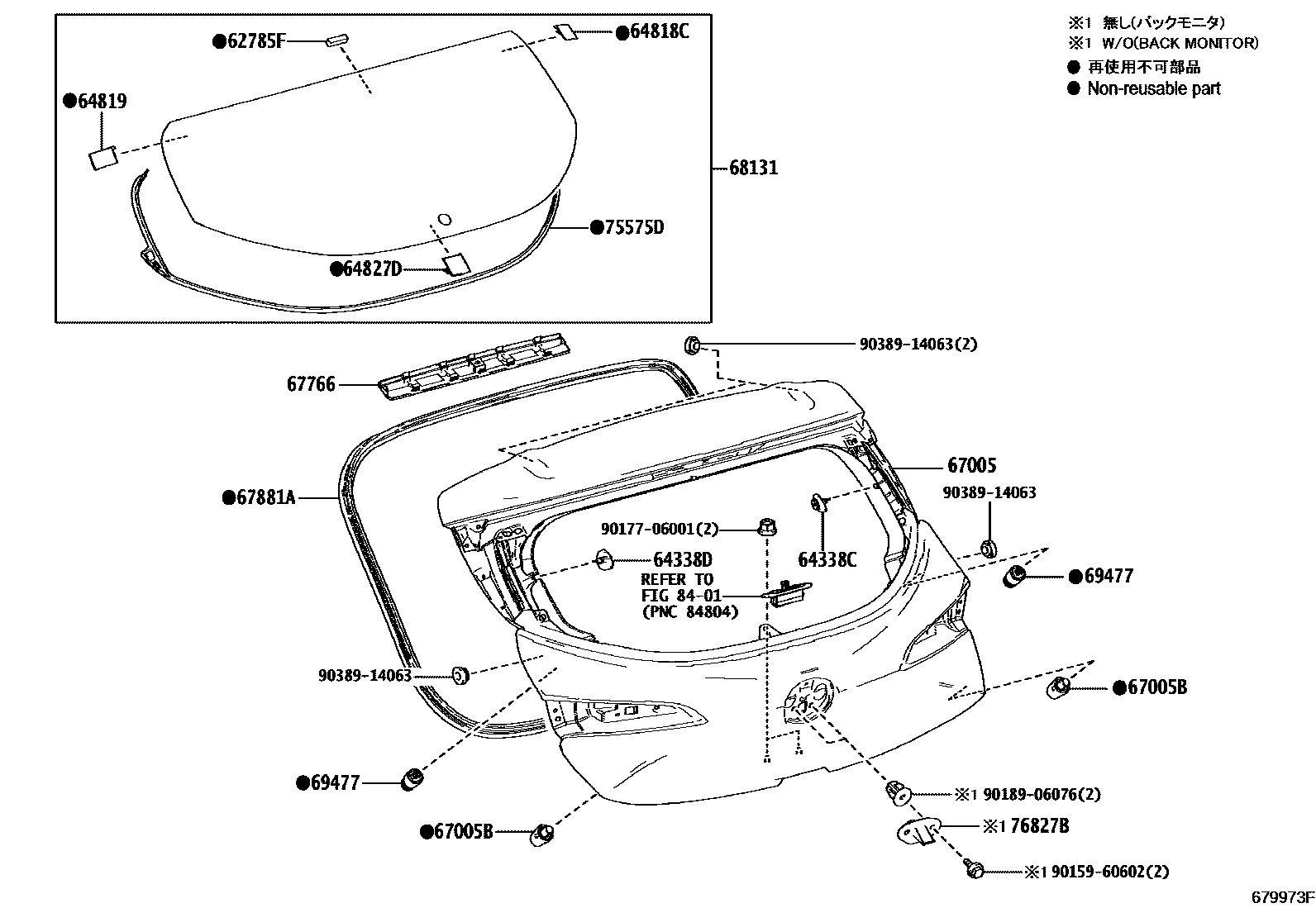

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62785F | Back door glass spacer | 62785-60030 |

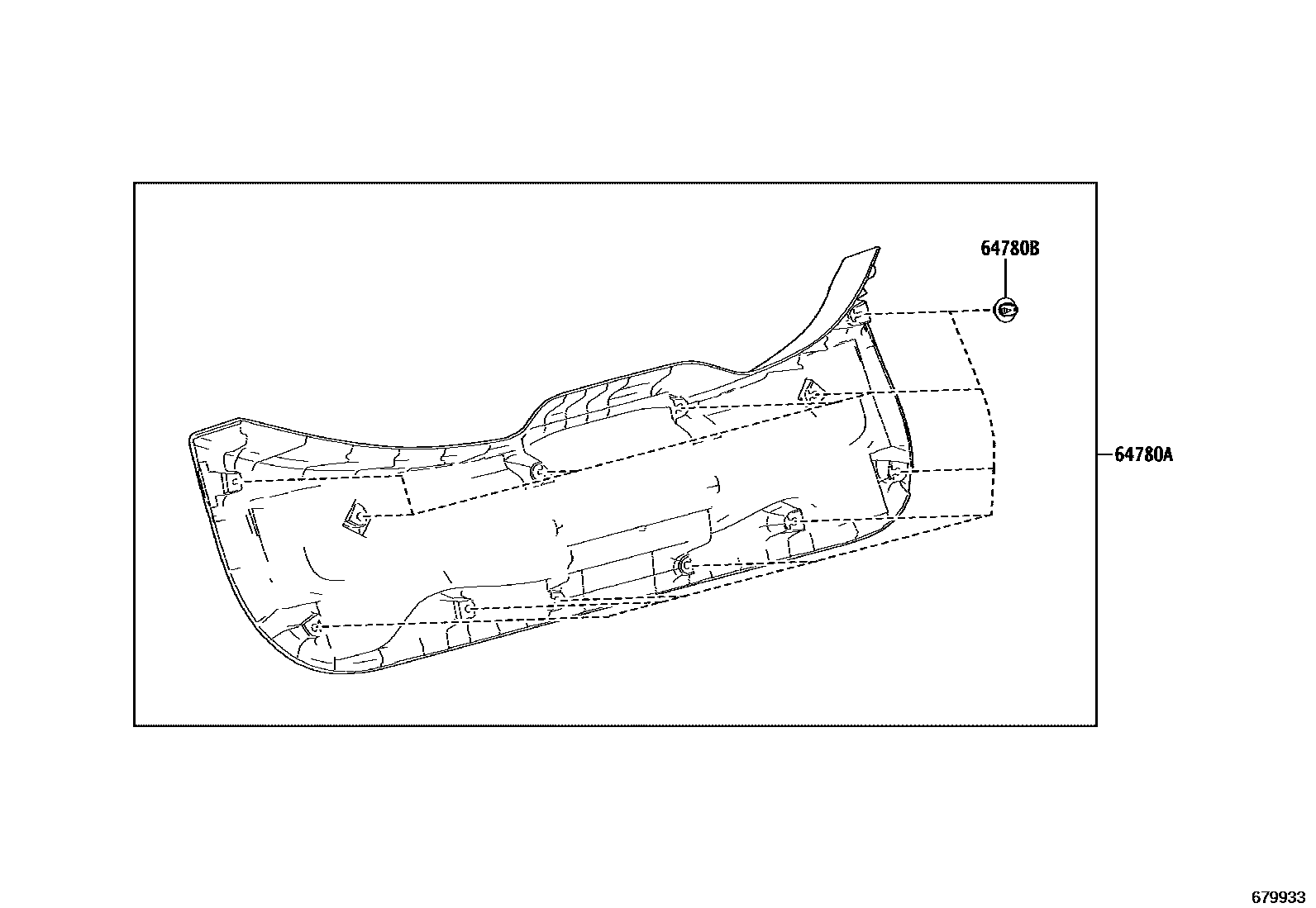

| 64780B | Clip (for rear door trim panel) | 90467-08232 · 90467-09232 |
| 64818C | No. 1 back window glass spacer | 64818-12080 |
| 64819 | No. 2 back window glass spacer | 64819-12060 |
| 64827D | Back window glass clip | 64827-12020 |
| 67005 | Rear door panel sub-assembly | 67005-12F60 |
| 67005B | Cushion pad (for back door panel) | 90541-09147 |
| 67881A | Back door seal | 67881-12320 |
| 68131 | back door glass | 68105-12470 · 68105-12530 |
| 69477 | Back door upper stop buffer pad | 69477-12020 |
| 75575D | Protective strip under rear window | 75575-12480 |
| 76827B | Toyota part | 76827-12060 · 76827-12061 |
