Toyota COROLLA 天窗板和背窗玻璃 — Figure 6104

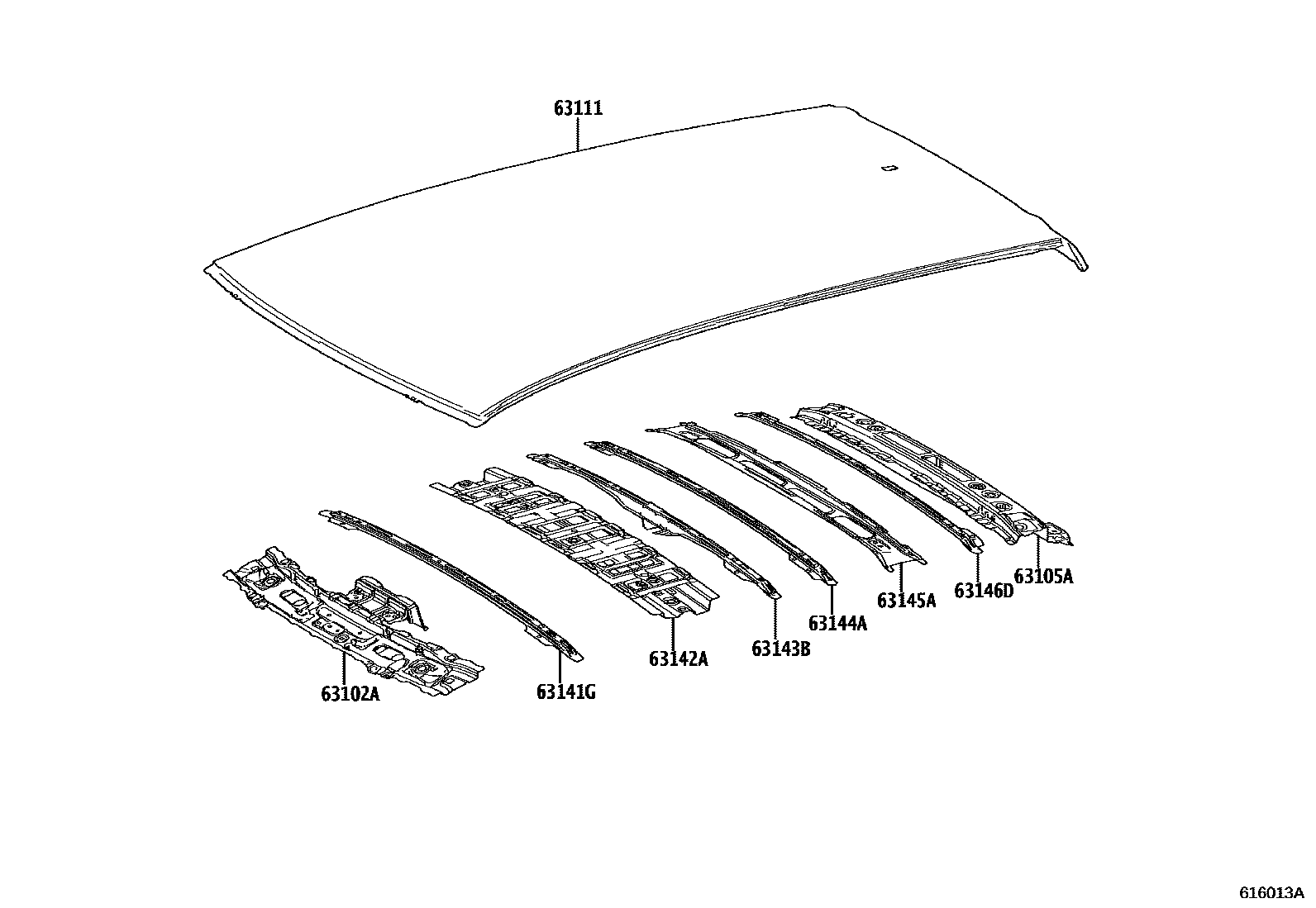

Toyota COROLLA EPC diagram 6104, 天窗板和背窗玻璃, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63102A | Windshield roof sub-assembly | 63102-12911 |
| 63105A | Back door opening frame sub-assembly | 63105-12310 |
| 63111 | roof panel | 63111-12B20 |
| 63141G | No. 1 roof panel reinforcement | 63142-12150 |
| 63142A | No. 2 roof panel reinforcement | 63103-12150 · 63103-12170 |
| 63143B | No. 3 roof panel reinforcement | 63143-12200 |
| 63144A | No. 4 roof panel reinforcement | 63144-12170 |
| 63145A | No. 5 roof panel reinforcement | 63128-12050 |
| 63146D | No. 6 roof panel reinforcement | 63148-12100 |
