Toyota COROLLA 地板隔热垫 — Figure 5802

Toyota COROLLA EPC diagram 5802, 地板隔热垫, with 4 images and 4 PNC and OE references.

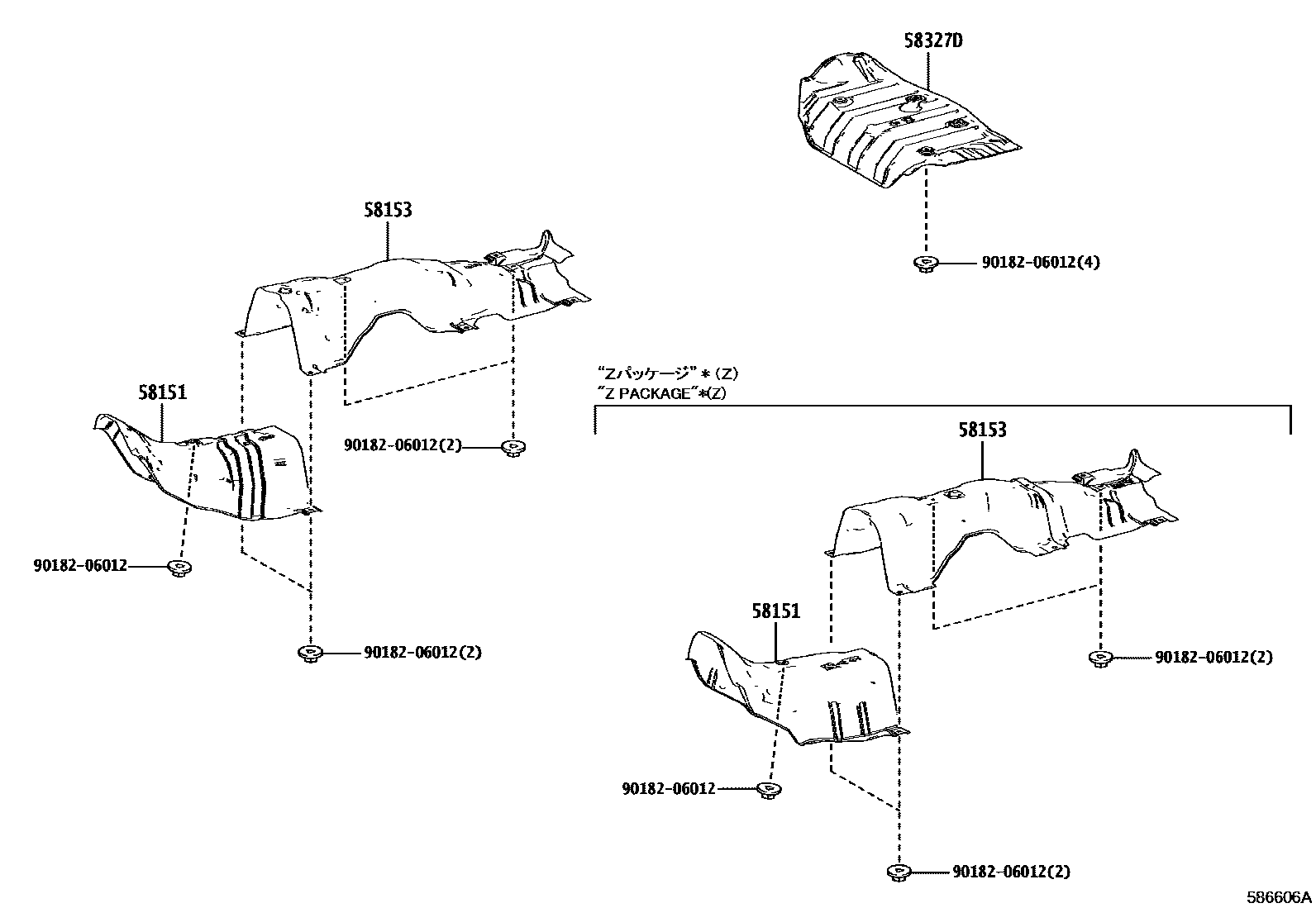

Toyota COROLLA 地板隔热垫 EPC diagram — 586606A
地板隔热垫 — 586606A (202210 – 999999)

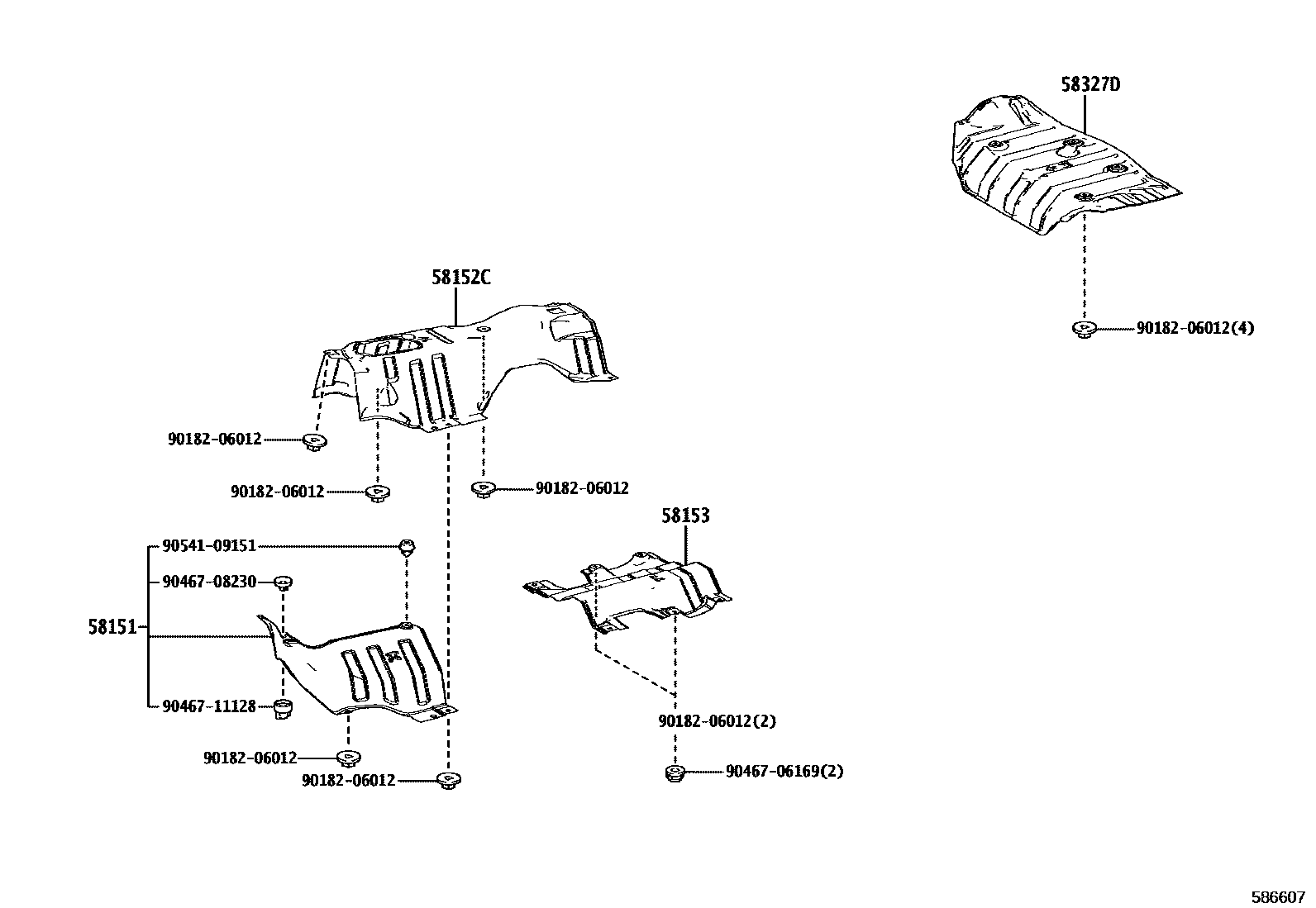

Toyota COROLLA 地板隔热垫 EPC diagram — 586607
地板隔热垫 — 586607 (201806 – 999999)

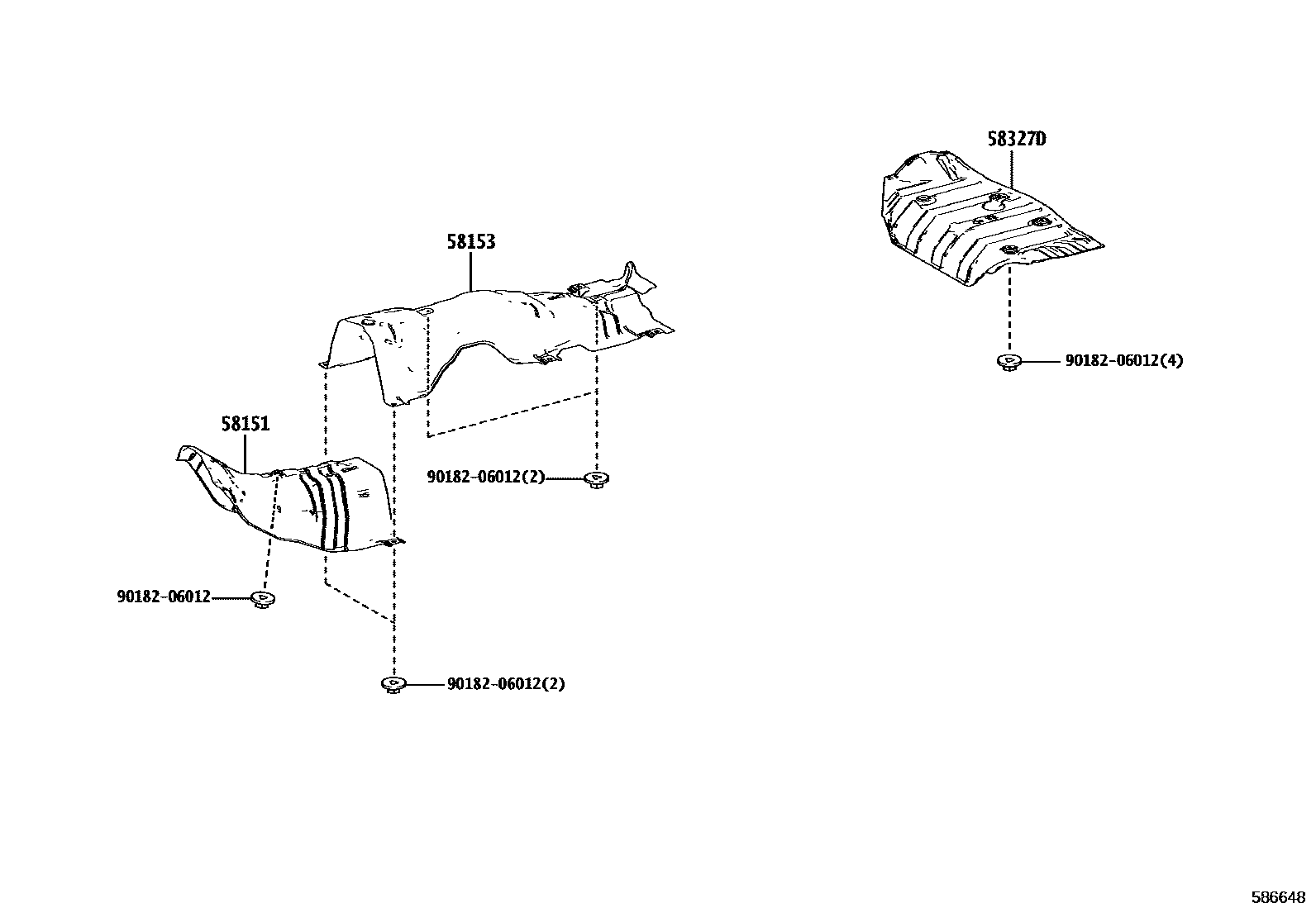

Toyota COROLLA 地板隔热垫 EPC diagram — 586648
地板隔热垫 — 586648 (201806 – 999999)

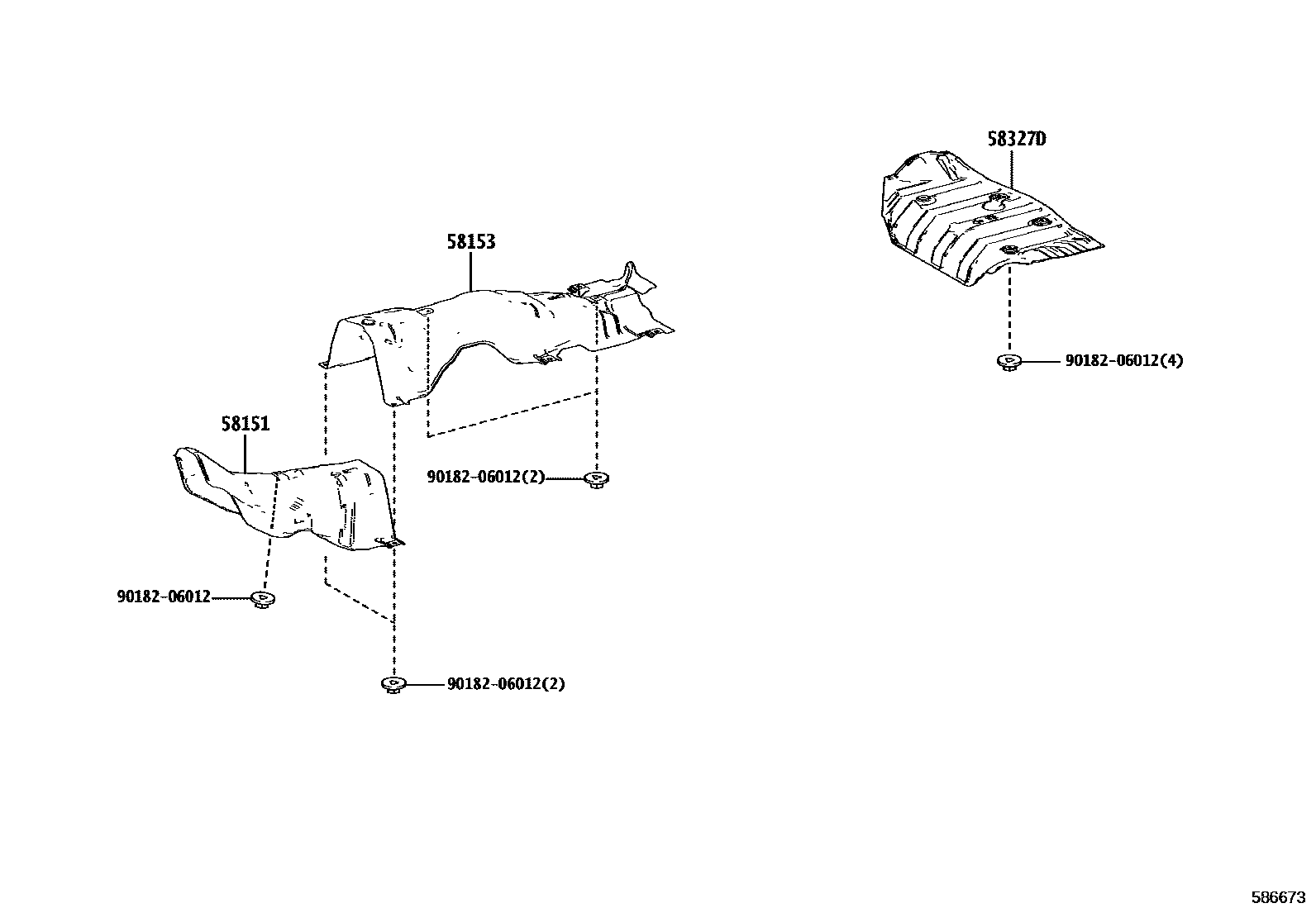

Toyota COROLLA 地板隔热垫 EPC diagram — 586673
地板隔热垫 — 586673 (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
58151Front floor insulation mat No. 158151-10060 · 58151-12380 · 58151-12390 · 58151-12420 · 58151-16060
58152CToyota part58152-10030
58153Front floor insulation mat No. 258153-10040 · 58153-12230 · 58153-12231
58327DHeat insulation pad on main muffler58327-12250
