Toyota COROLLA hole plug — Figure 5701

Toyota COROLLA EPC diagram 5701, hole plug, with 6 images and 0 PNC and OE references.

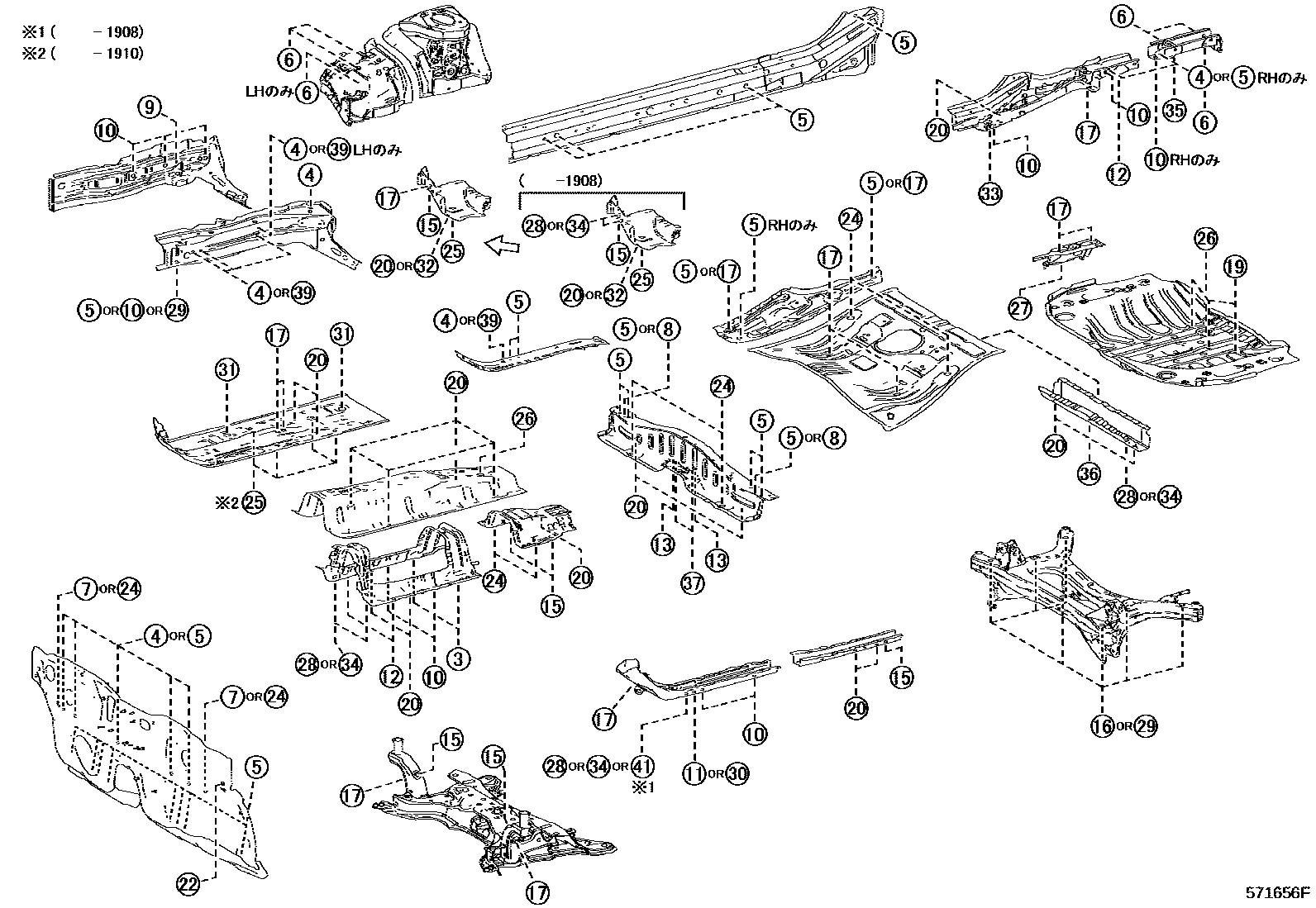

Toyota COROLLA hole plug EPC diagram — 571656F
hole plug — 571656F (201806 – 999999)

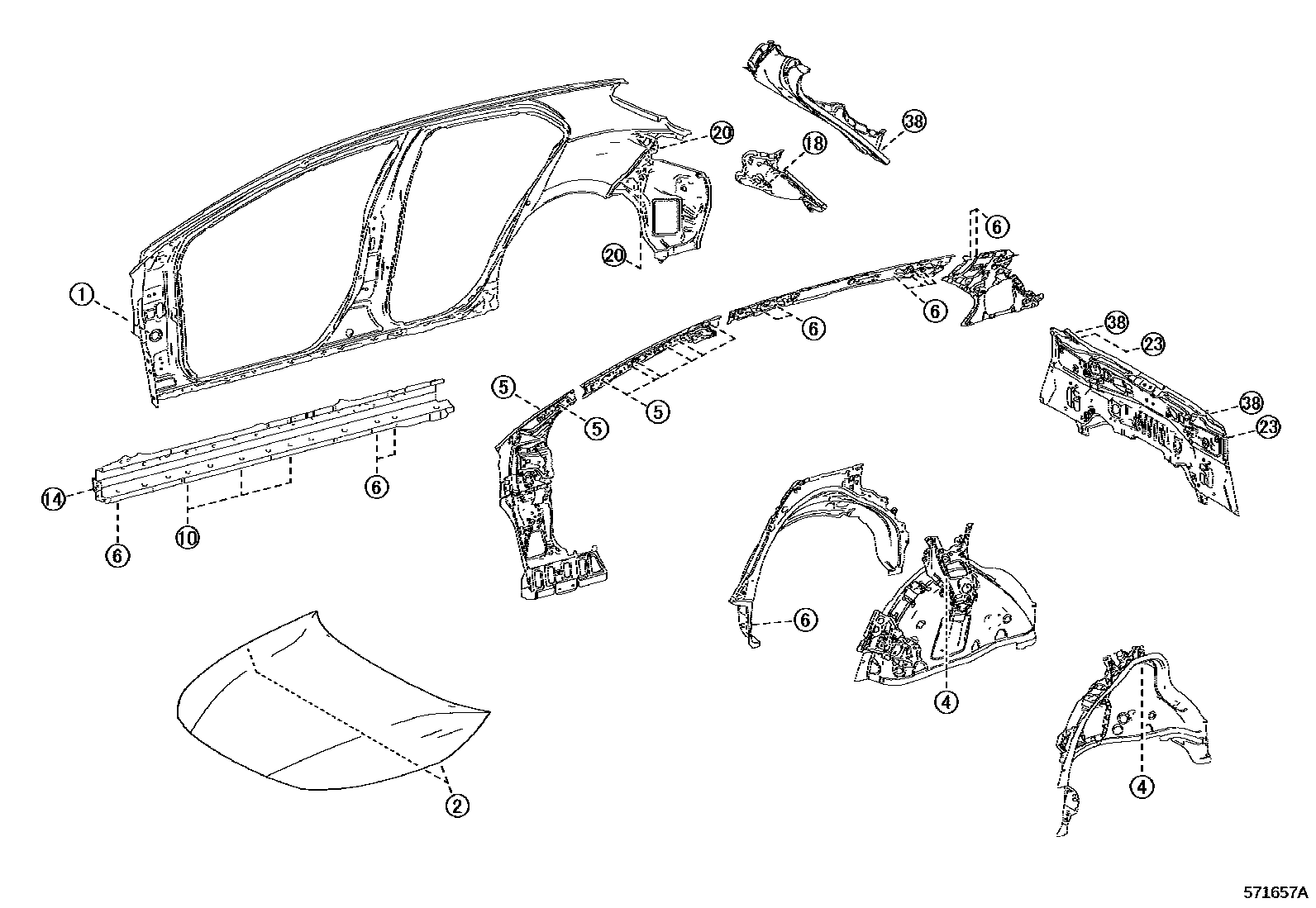

Toyota COROLLA hole plug EPC diagram — 571657A
hole plug — 571657A (201806 – 999999)

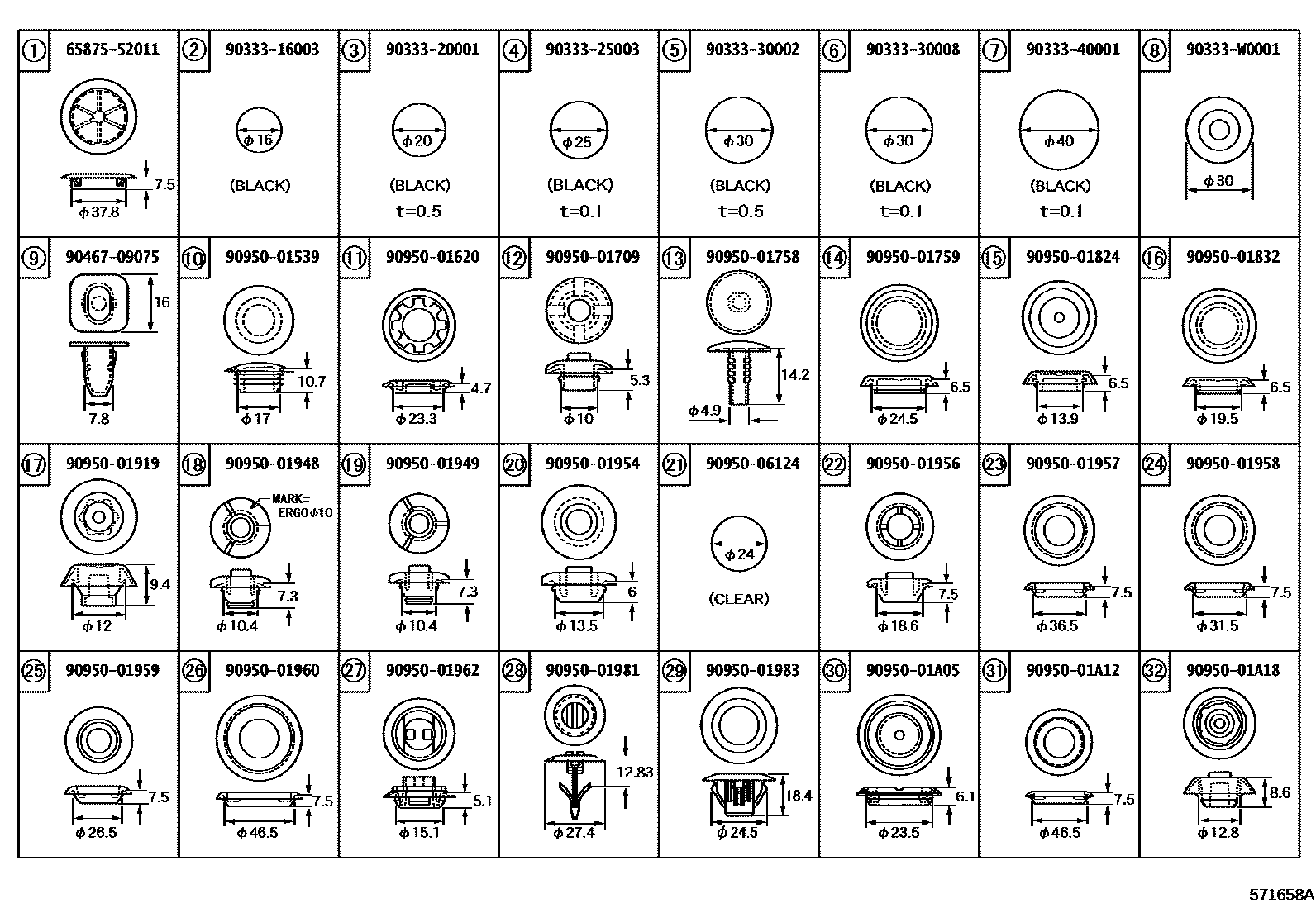

Toyota COROLLA hole plug EPC diagram — 571658A
hole plug — 571658A (201806 – 999999)

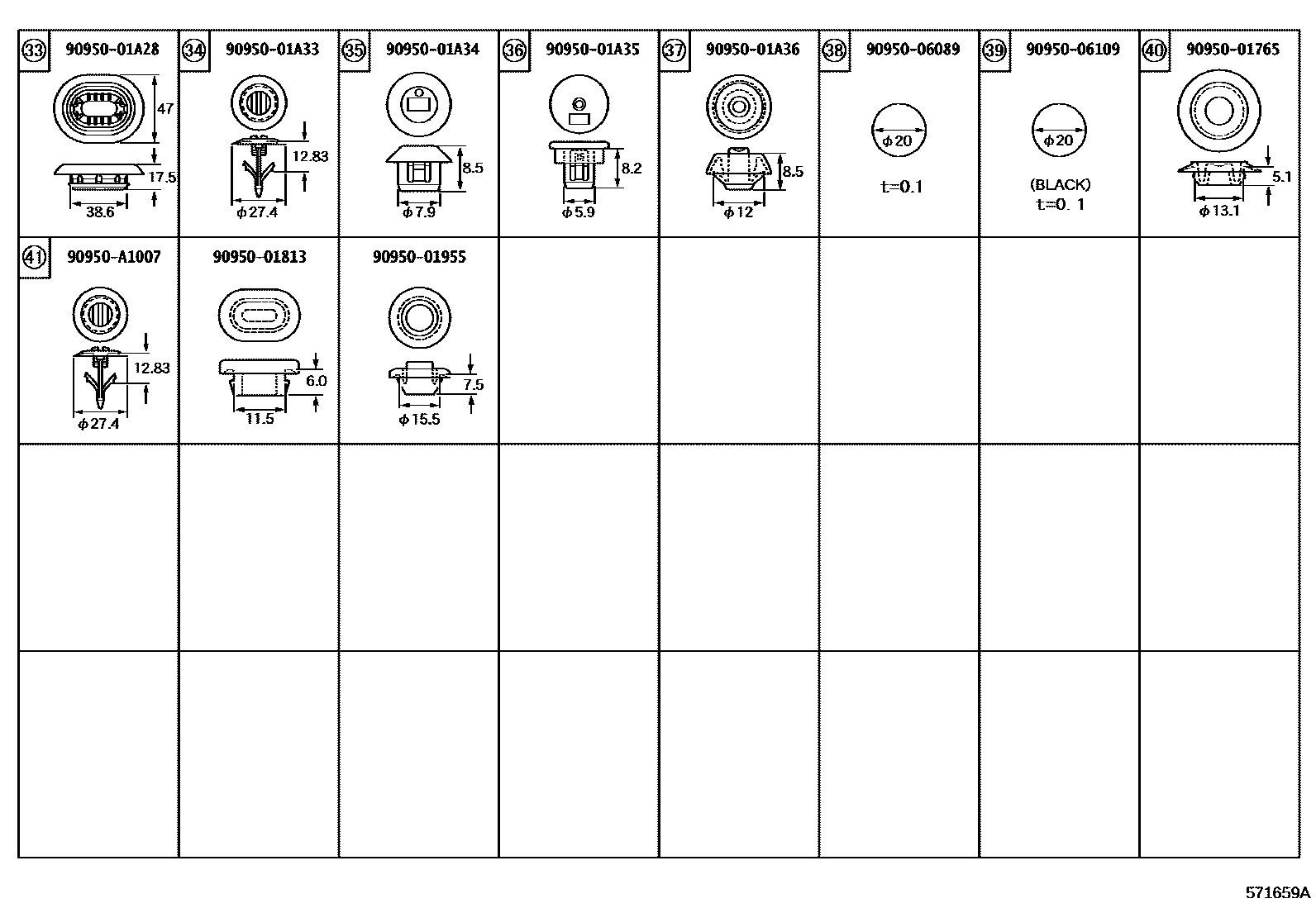

Toyota COROLLA hole plug EPC diagram — 571659A
hole plug — 571659A (201806 – 999999)

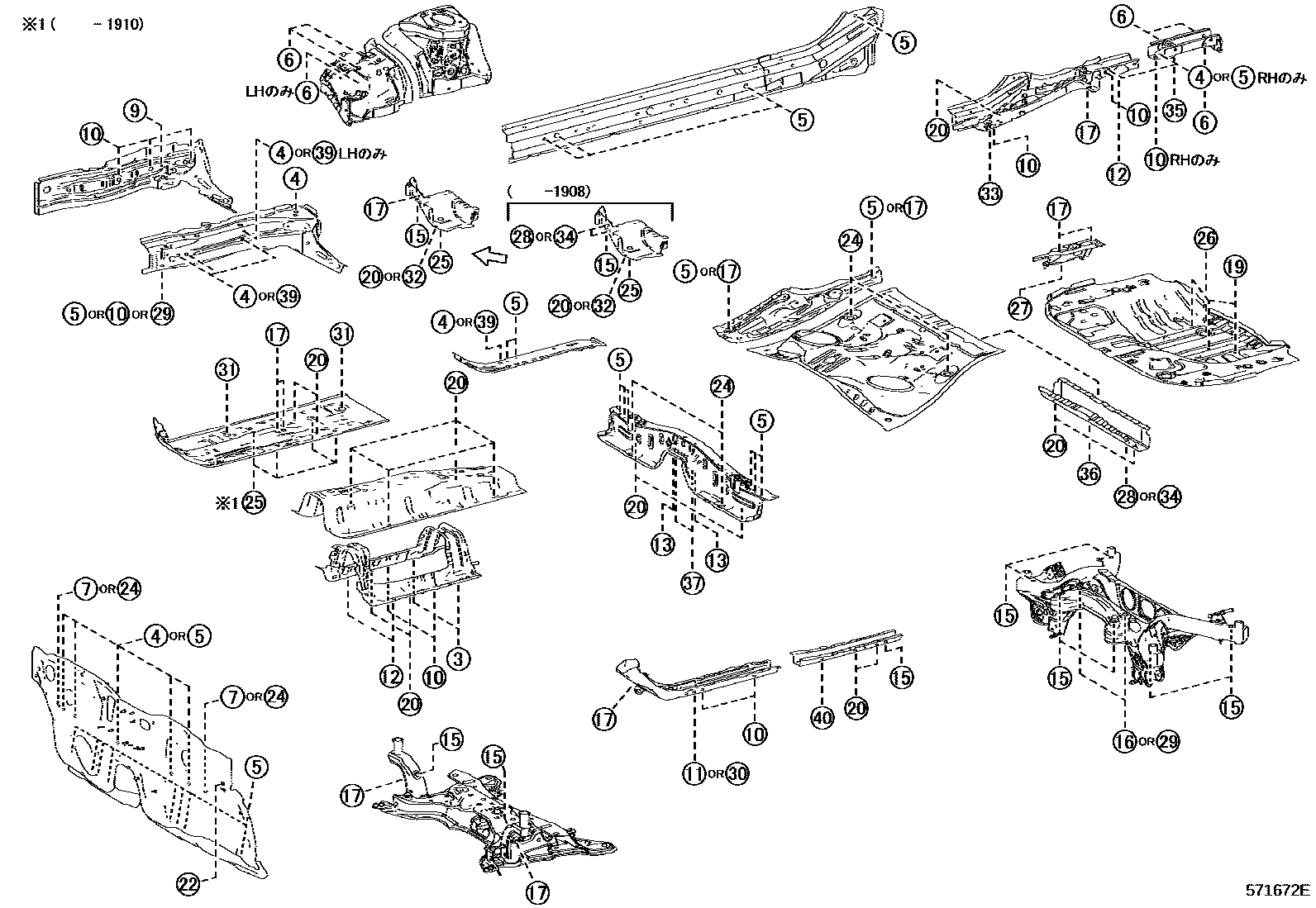

Toyota COROLLA hole plug EPC diagram — 571672E
hole plug — 571672E (201806 – 999999)

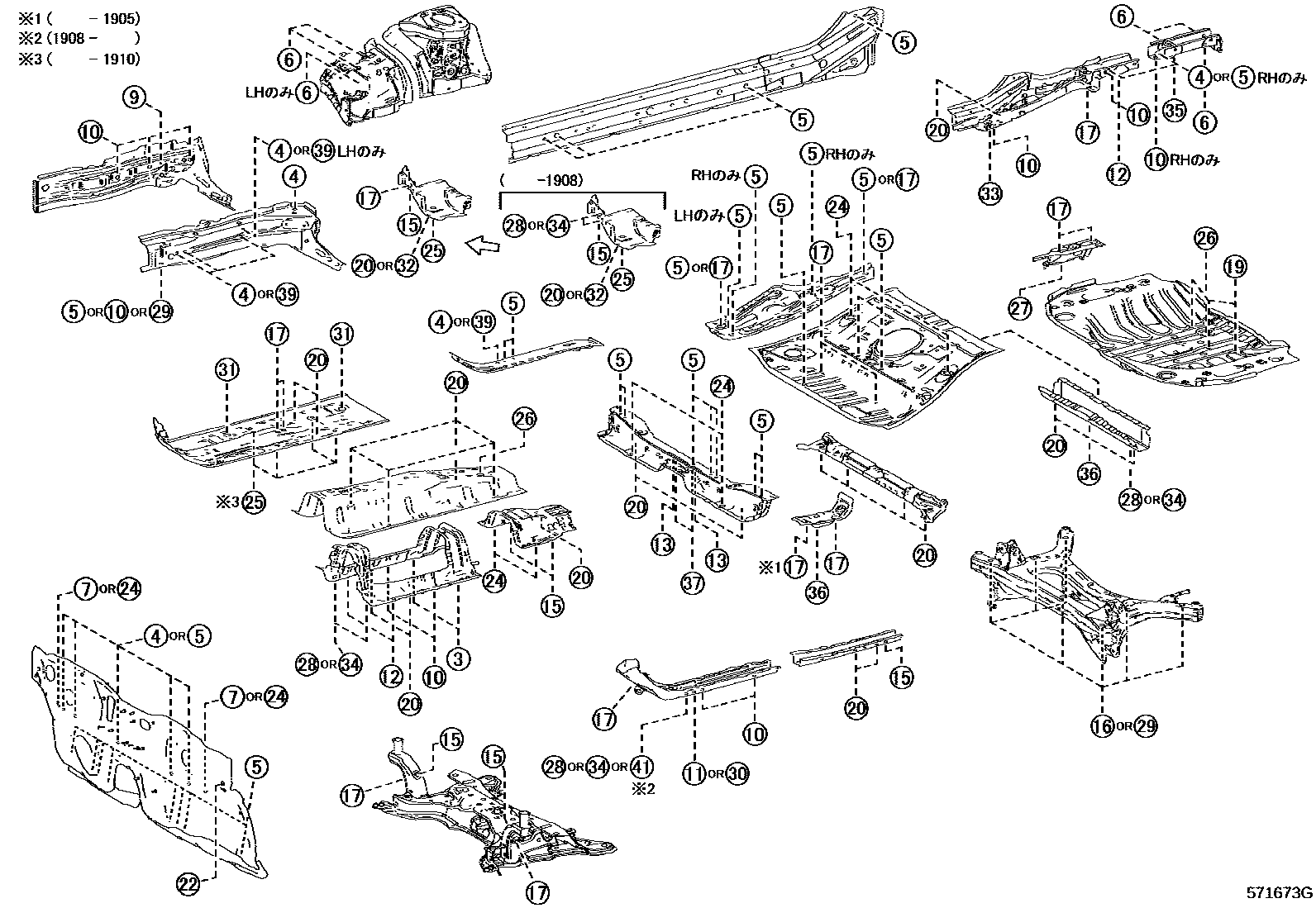

Toyota COROLLA hole plug EPC diagram — 571673G
hole plug — 571673G (201806 – 999999)
