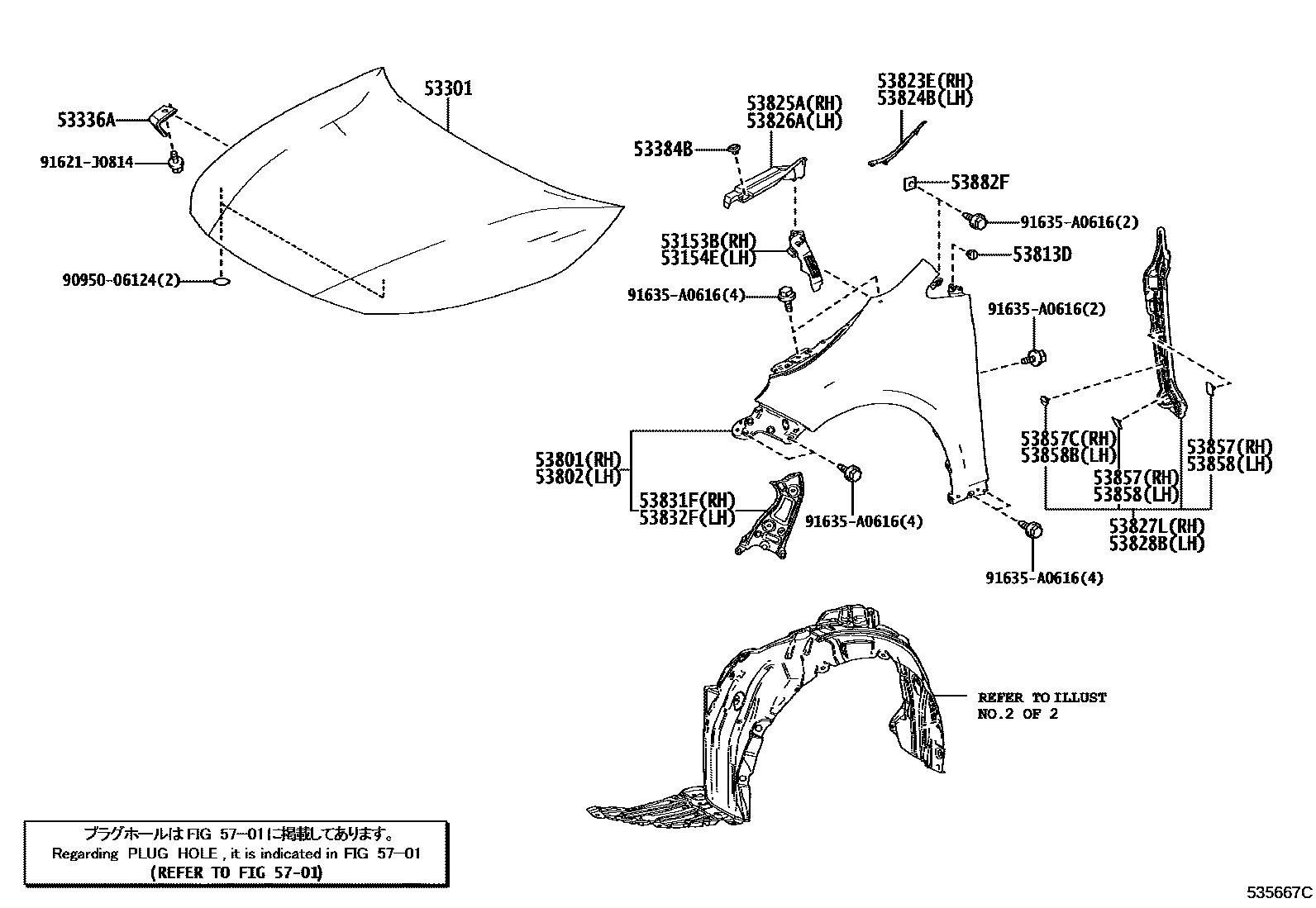

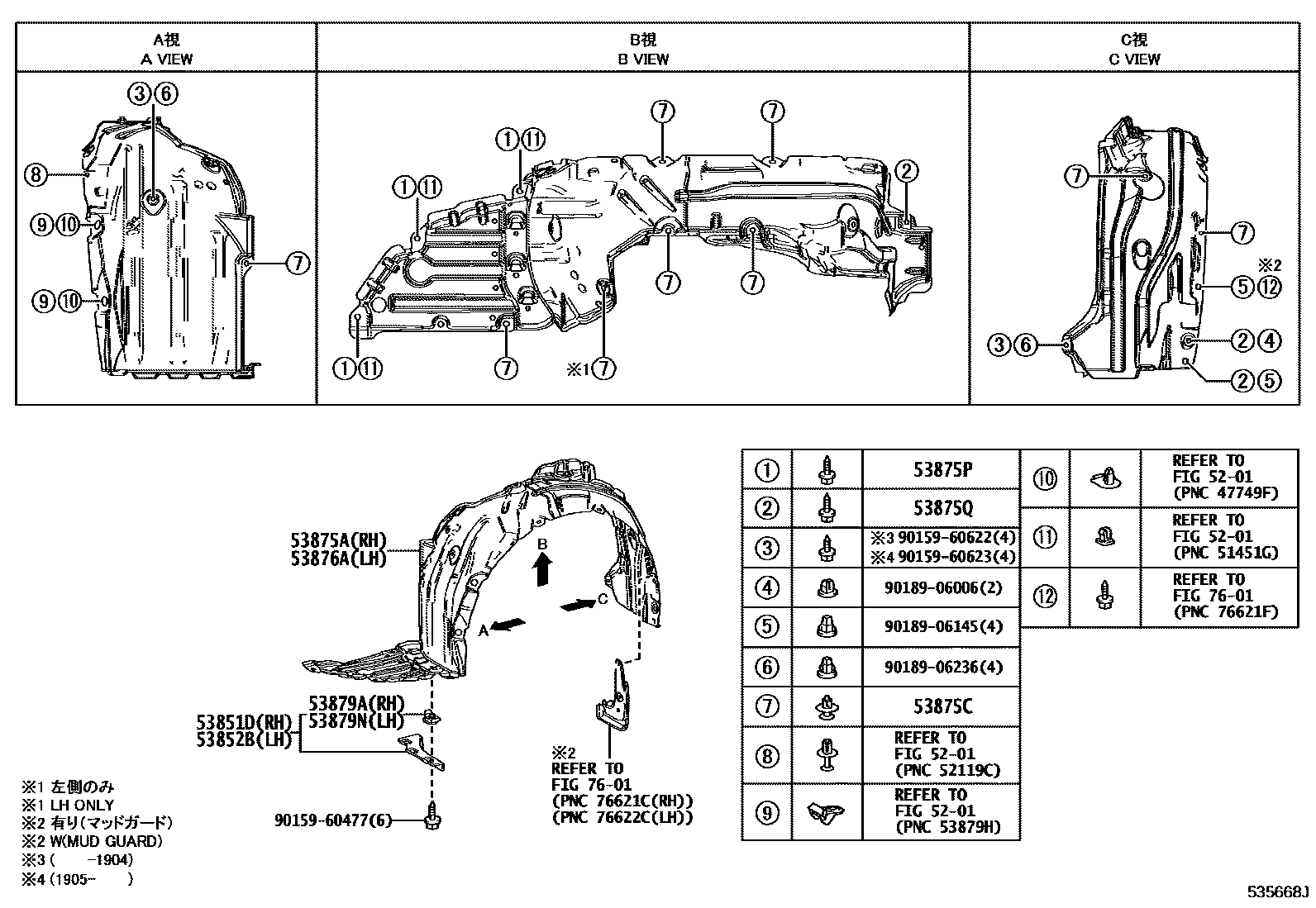

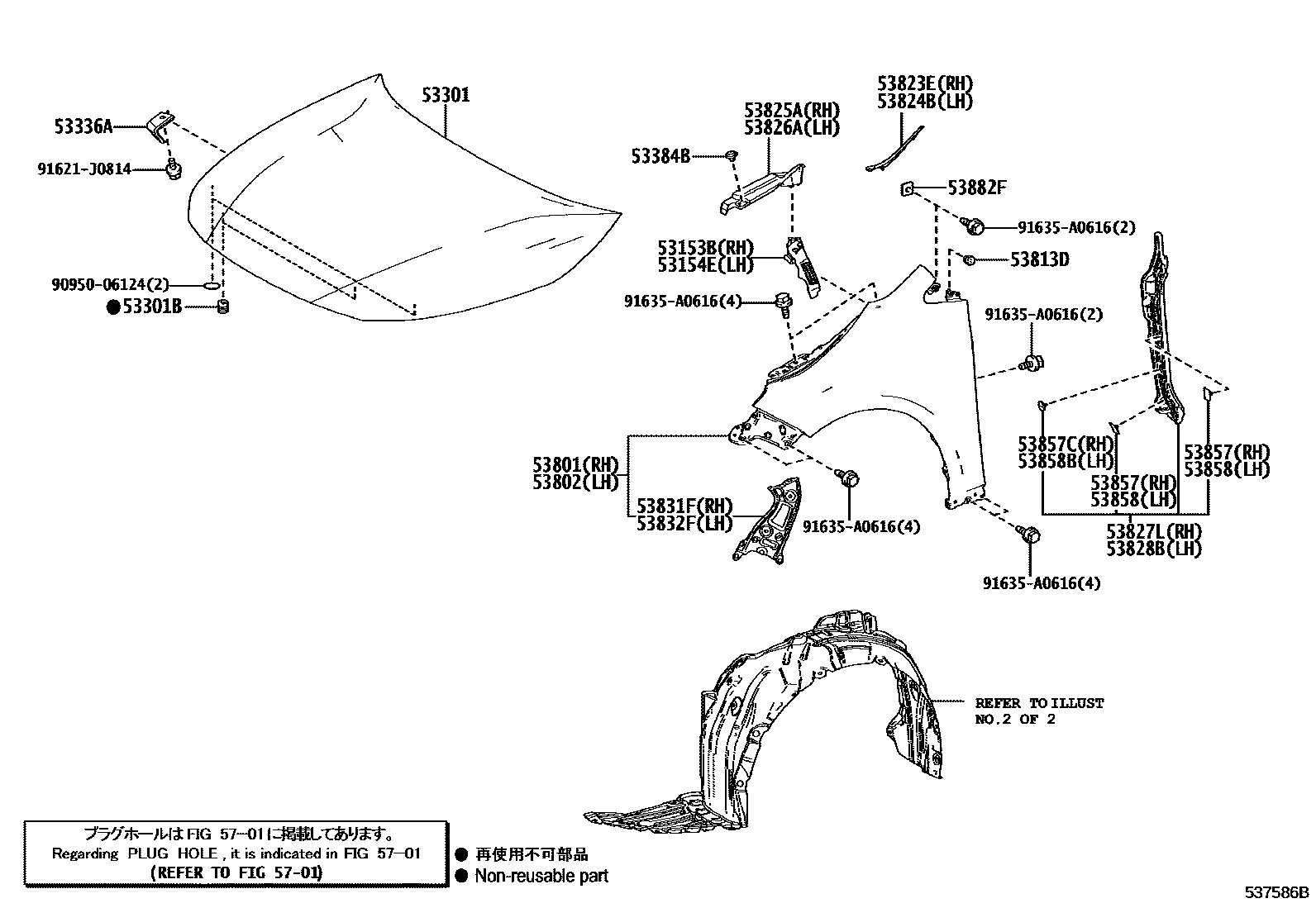

Toyota COROLLA 发动机盖和前翼子板 — Figure 5302
Toyota COROLLA EPC diagram 5302, 发动机盖和前翼子板, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53153B | front side deflector | 53153-12040 |
| 53154E | Toyota part | 53154-12030 |
| 53301 | Engine cover sub-assembly | 53301-12B50 · 53301-12B70 |
| 53301B | engine cover cushion | 90541-09117 |
| 53336A | Engine cover strut bracket | 53336-12020 · 53336-12030 |
| 53384B | Engine cover center cushion | 53384-78010 |
| 53801 | Right front fender sub-assembly | 53801-12B10 |
| 53802 | Left front fender sub-assembly | 53802-12B10 |
| 53813D | front fender extension | 53813-47040 |
| 53823E | No. 2 right front side panel protector | 53823-12060 |
| 53824B | No. 2 left front side panel protector | 53824-12050 |
| 53825A | Right front fender protection piece | 53825-12100 |
| 53826A | Protection piece on left front fender | 53826-12080 |
| 53827L | Right front fender side panel protector | 53827-12150 |
| 53828B | Left front fender side panel protector | 53828-12150 |
| 53831F | Toyota part | 53831-12360 |
| 53832F | Toyota part | 53832-12360 |
| 53851D | Right front fender outer panel pad | 53851-47061 |
| 53852B | Left front fender exterior panel pad | 53852-47041 |
| 53857 | Right front fender external panel fixing piece | 53857-12010 |
| 53857C | Toyota part | 53857-47011 |
| 53858 | Left front fender external panel fixing piece | 53857-12010 |
| 53858B | Left front fender external panel fixing piece | 53857-47011 |
| 53875A | Right front fender lining | 53805-12090 |
| 53875C | Front fender lining clip | 90467-07214 |
| 53875P | Toyota part | 90159-60477 |
| 53875Q | Toyota part | 90159-60622 · 90159-60623 |
| 53876A | Left front fender lining | 53806-12090 |
| 53879A | Front fender lining fixing parts | 53879-47020 |
| 53879N | Left front fender lining fixing | 53879-47020 |
| 53882F | front fender seal | 53882-33060 |
