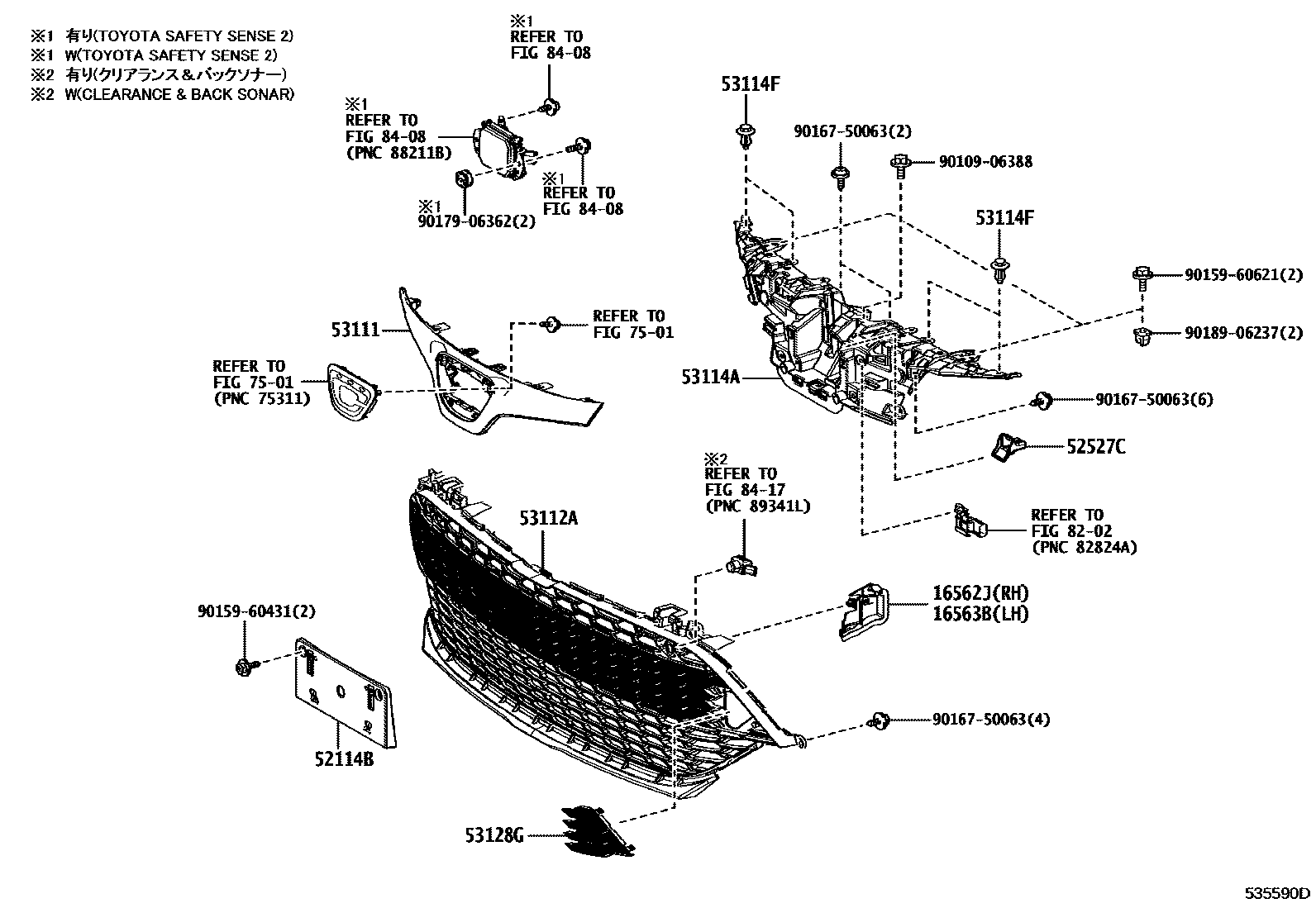

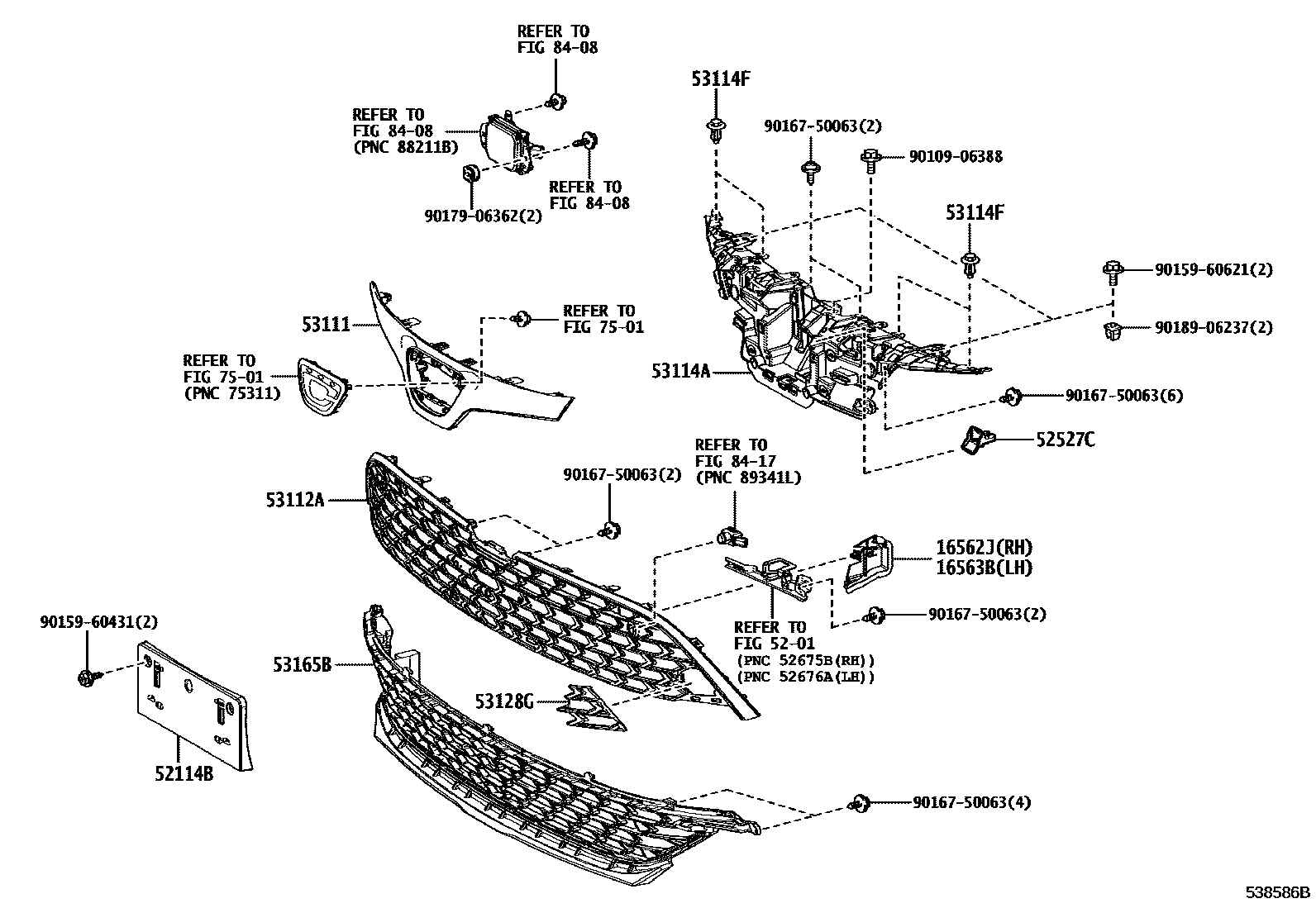

Toyota COROLLA radiator grille — Figure 5301
Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16562J | Toyota part | 16562-37050 |
| 16563B | Toyota part | 16563-37050 |
| 52114B | Toyota part | 52114-12250 · 52114-12320 |
| 52527C | Front bumper No. 2 lower fixing bracket | 52527-12060 |
| 53111 | radiator grille | 53111-12F20 |
| 53112A | Lower radiator grille | 53102-12140 · 53102-12370 · 53102-12380 · 53112-12540 · 53112-12550 |
| 53114A | inner radiator grille | 53114-12230 |
| 53128G | Toyota part | 53128-12090 · 53128-12100 · 53128-12210 · 53128-12220 |
| 53165B | Radiator center bracket | 53165-12050 · 53165-12060 |
