Toyota COROLLA Brake Pedal & Bracket — Figure 4701

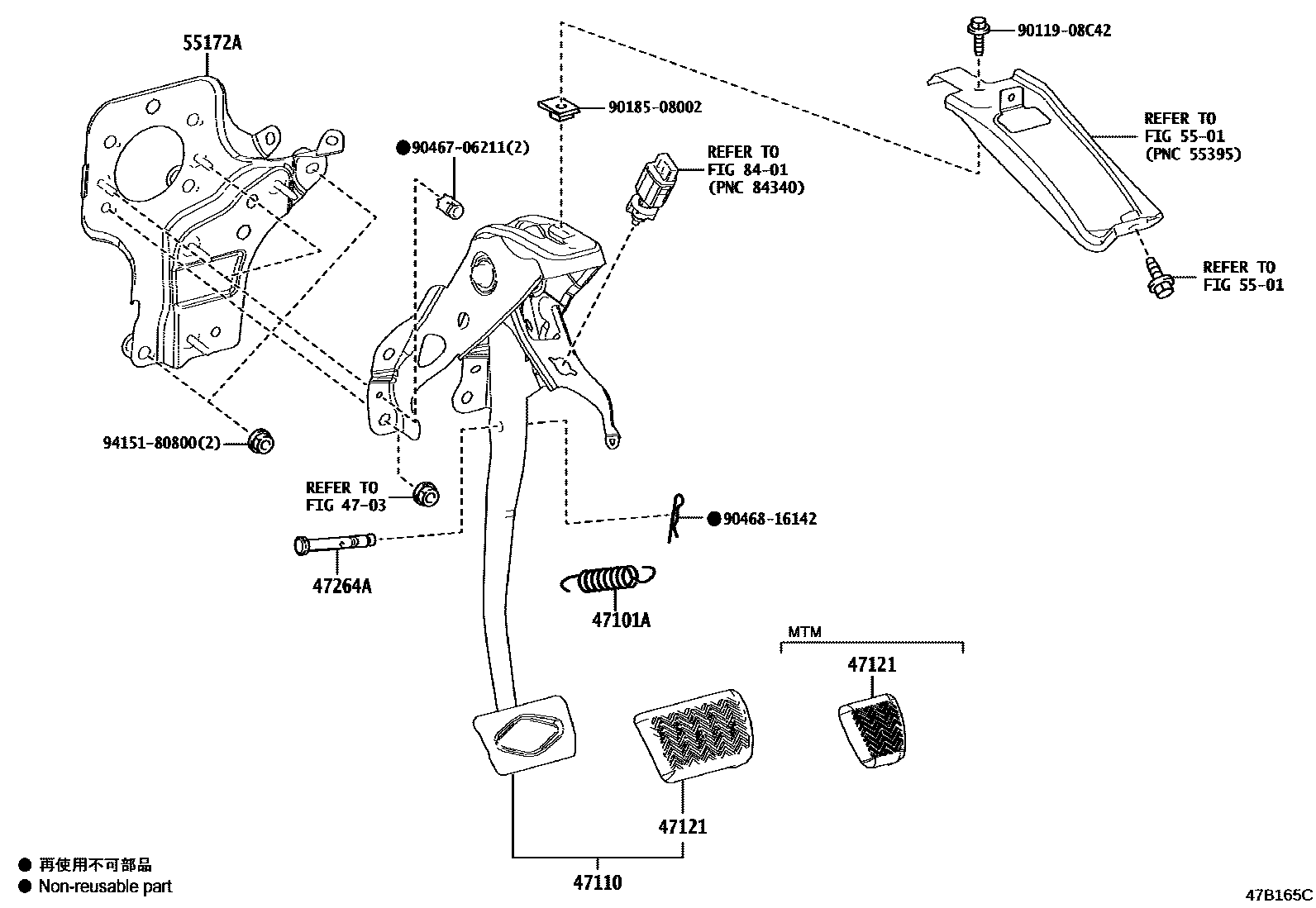

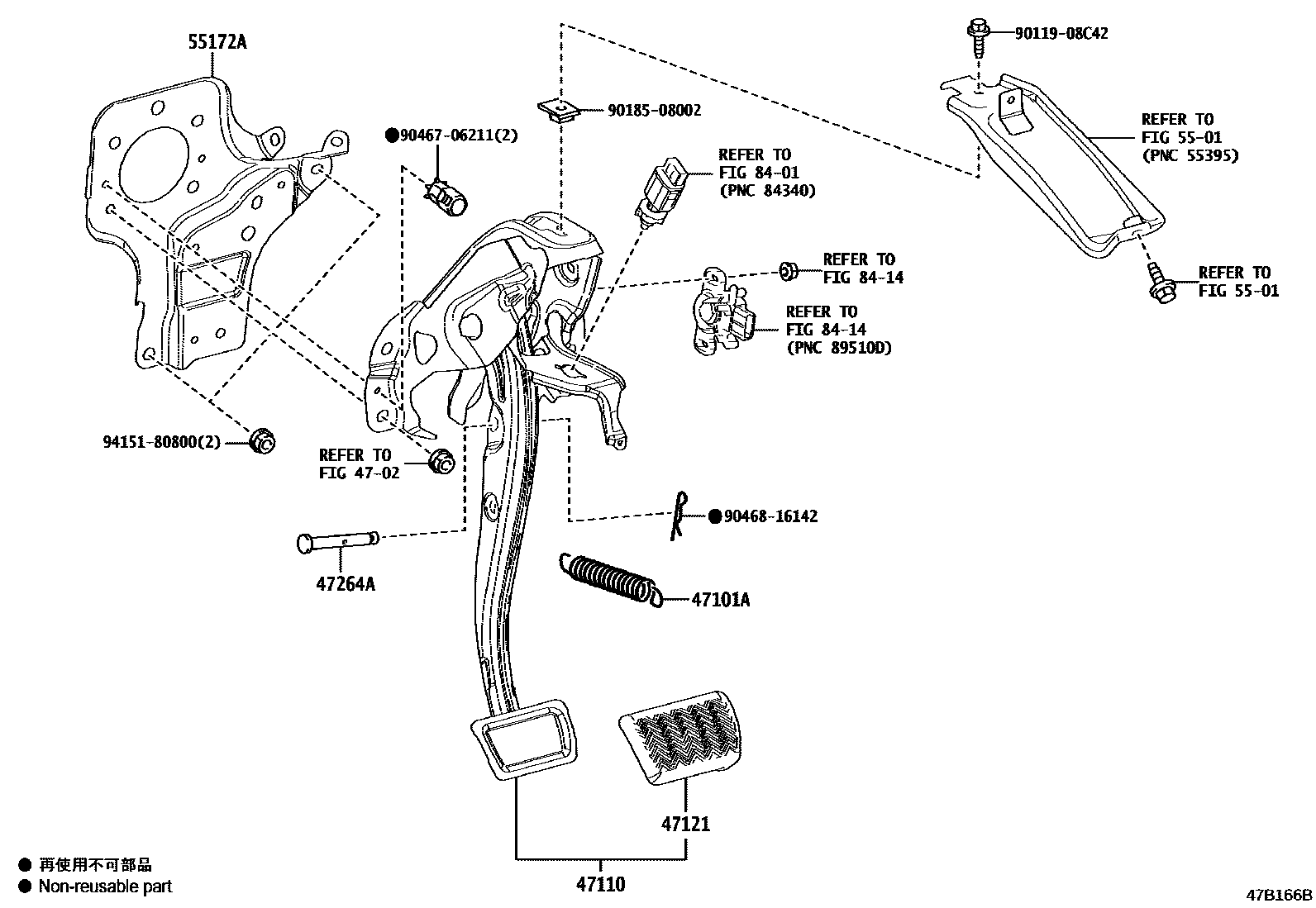

Toyota COROLLA EPC diagram 4701, Brake Pedal & Bracket, with 2 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101A | Spring (for brake pedal return) | 90507-15009 · 90507-15010 |
| 47110 | Brake pedal bracket assembly | 47110-12420 · 47110-12421 · 47110-12430 · 47110-12510 · 47110-47070 · 47110-76090 |
| 47121 | brake pedal pad | 47121-12040 · 47121-16020 · 47121-47010 |
| 47264A | Pin (for push rod) | 90249-08221 · 90249-08309 |
| 55172A | Toyota part | 55172-12170 |
