Toyota COROLLA Front Drive Shaft — Figure 4302

Toyota COROLLA EPC diagram 4302, Front Drive Shaft, with 4 images and 36 PNC and OE references.

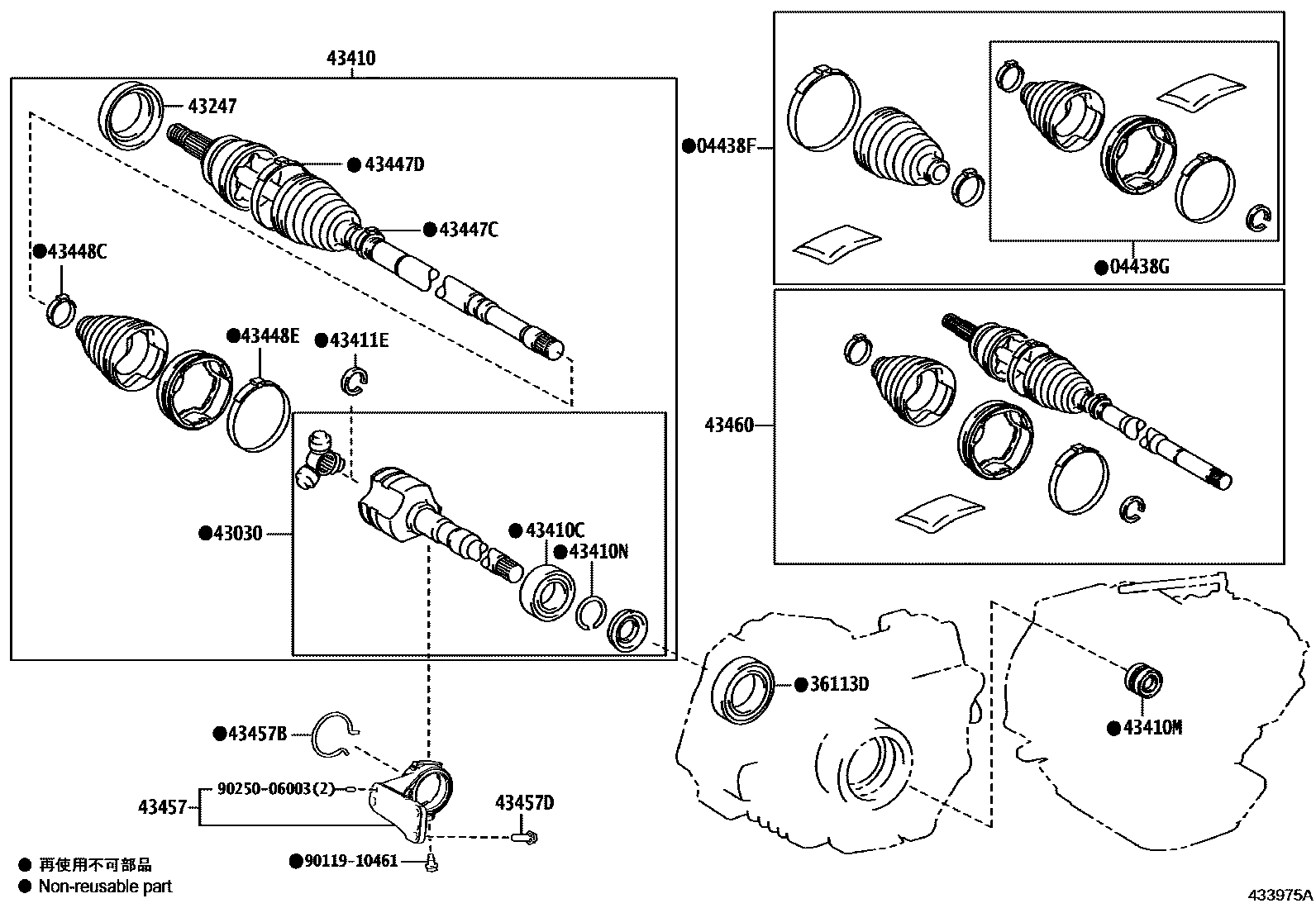

Toyota COROLLA Front Drive Shaft EPC diagram — 433975A
Front Drive Shaft — 433975A (201806 – 999999)

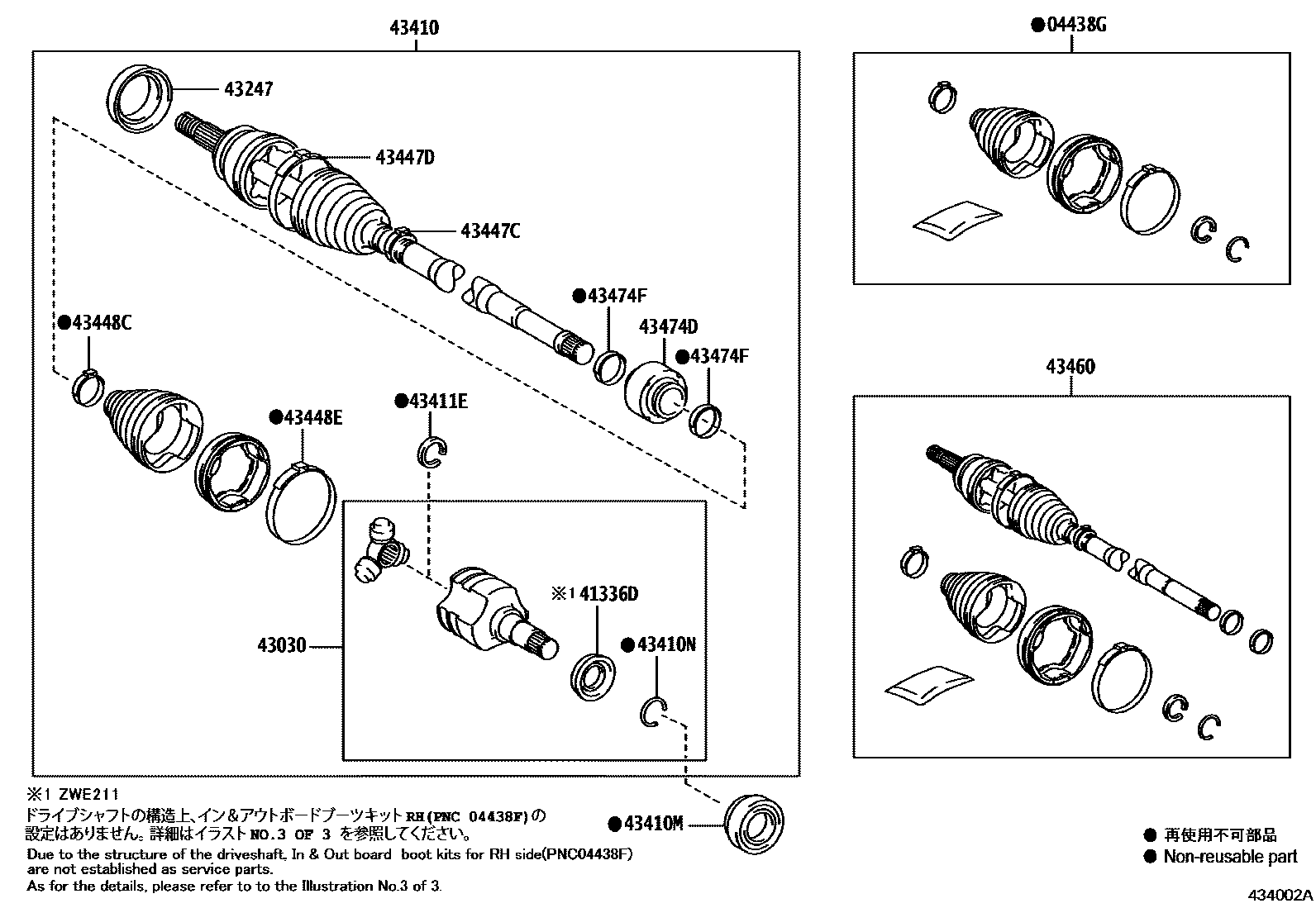

Toyota COROLLA Front Drive Shaft EPC diagram — 434002A
Front Drive Shaft — 434002A (201806 – 999999)

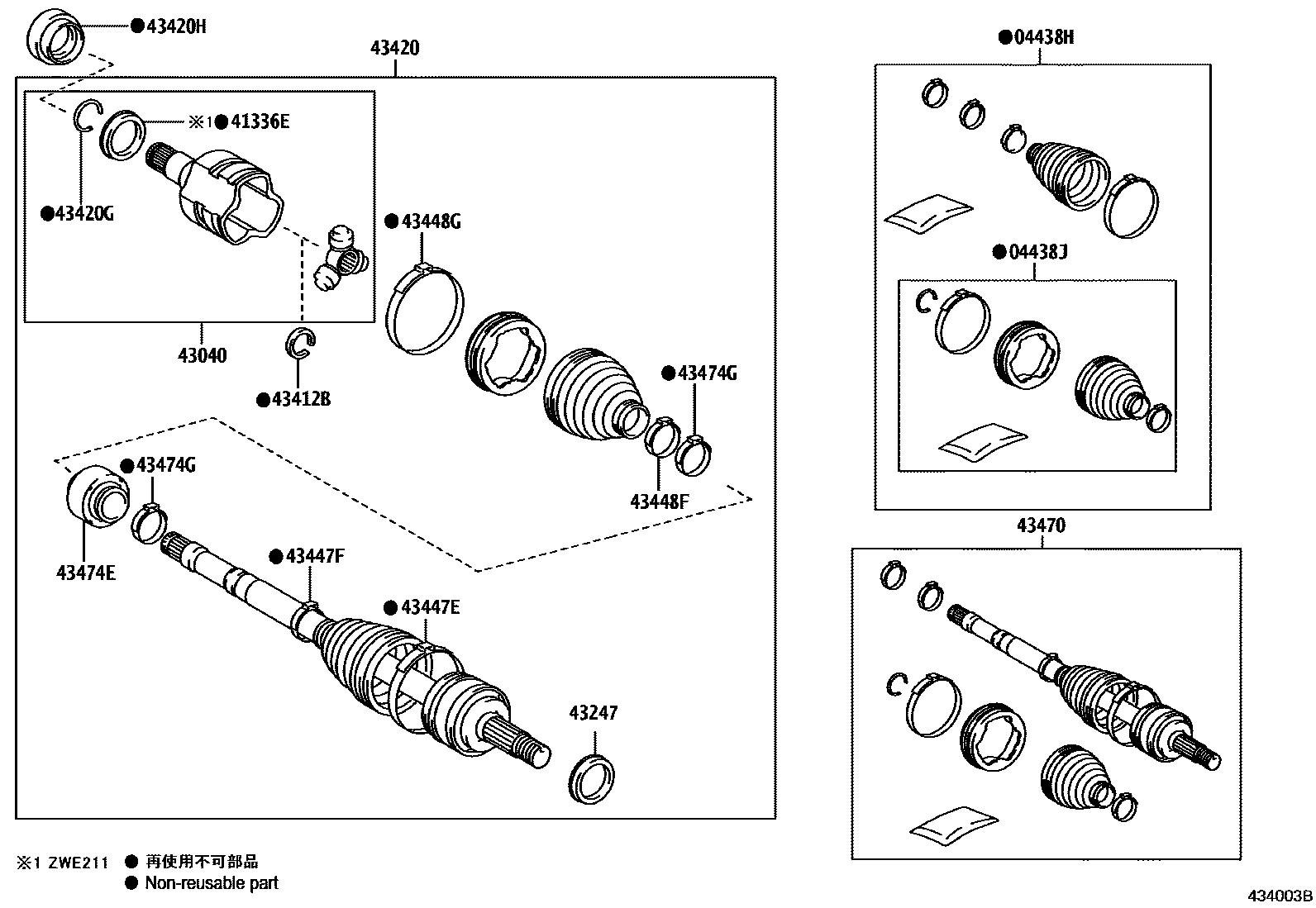

Toyota COROLLA Front Drive Shaft EPC diagram — 434003B
Front Drive Shaft — 434003B (201806 – 999999)
Toyota COROLLA Front Drive Shaft EPC diagram — 434004
Front Drive Shaft — 434004 (201806 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-10010 · 04427-10011
04438GRight front drive shaft inner universal joint dust boot assembly04437-10020 · 04437-10030 · 04437-47033
04438HLeft front driveshaft inboard and outboard dust boot assembly04428-10030 · 04428-10031 · 04428-47065 · 04428-47066
04438JLeft front drive shaft inner universal joint dust boot assembly04437-10020 · 04437-47033
36113DToyota part90311-35056
41336DRight front driveshaft dust cover41336-12020
41336ELeft front driveshaft dust cover41336-28020
43030Right front drive shaft inner universal joint assembly43030-12131 · 43040-12120 · 43040-12160 · 43040-47010
43040Left front drive shaft inner universal joint assembly43040-12120 · 43040-12170 · 43040-47030
43247No. 2 front wheel bearing dust cover43247-47010 · 43247-F4020
43410Right front driveshaft assembly43410-12B60 · 43410-12B80 · 43410-12B90 · 43410-47040
43410CBearings (for front driveshaft)90363-36006
43410MToyota part90311-35065 · 90311-35076 · 90311-40038 · 90311-40047 · 90311-40051 · 90316-28003
43410NHole snap ring (for right front driveshaft)90520-33008 · 90521-27005 · 90521-33002
43411EInner shaft snap ring (for right front axle inner drive shaft)43425-12070
43412BInner shaft snap ring (for left front axle inner drive shaft)43425-12070
43420Left front drive shaft assembly43420-12B00 · 43420-12B20 · 43420-47040
43420GHole snap ring (for left front driveshaft)90521-27005 · 90521-33002
43420HToyota part90311-35075 · 90311-35077 · 90311-35080 · 90311-50045 · 90311-50058 · 90311-50062 · 90311-50064
43447CClamp (for the outer universal joint dust cover of the right front axle)42345-12230
43447DNo. 2 clip (for the universal joint dust cover on the outside of the right front axle)42345-12240
43447EClamp (for left front axle outer universal joint dust cover)42345-12240
43447FNo. 2 clip (for left front axle outer universal joint dust cover)42345-12230
43448CClamp (for the universal joint dust cover inside the right front axle)42345-12230
43448ENo. 2 clip (for the universal joint dust cover inside the right front axle)42345-12180
43448FClamp (for left front axle inner universal joint dust cover)42345-12230
43448GClamp No. 2 (for the universal joint dust cover inside the left front axle)42345-12180
43457drive shaft bearing bracket43457-10020
43457BHole snap ring (for drive shaft bearing bracket)90521-75002
43457DBolts (for securing the No. 2 drive shaft bearing bracket)90105-10381
43460Right front outer drive universal joint shaft assembly43460-49427 · 43460-80186 · 43470-80441
43470Left front outer drive universal joint shaft assembly43470-80407 · 43470-80442
43474DRight front driveshaft shock absorber43474-12210 · 43474-47020
43474ELeft front driveshaft shock absorber43474-12160 · 43474-12200
43474FClamp (for right front driveshaft shock absorber)42345-12090 · 42345-12100
43474GClamp (for left front driveshaft shock absorber)42345-12090
