Toyota COROLLA HV或FCV传动桥总成 — Figure 3901

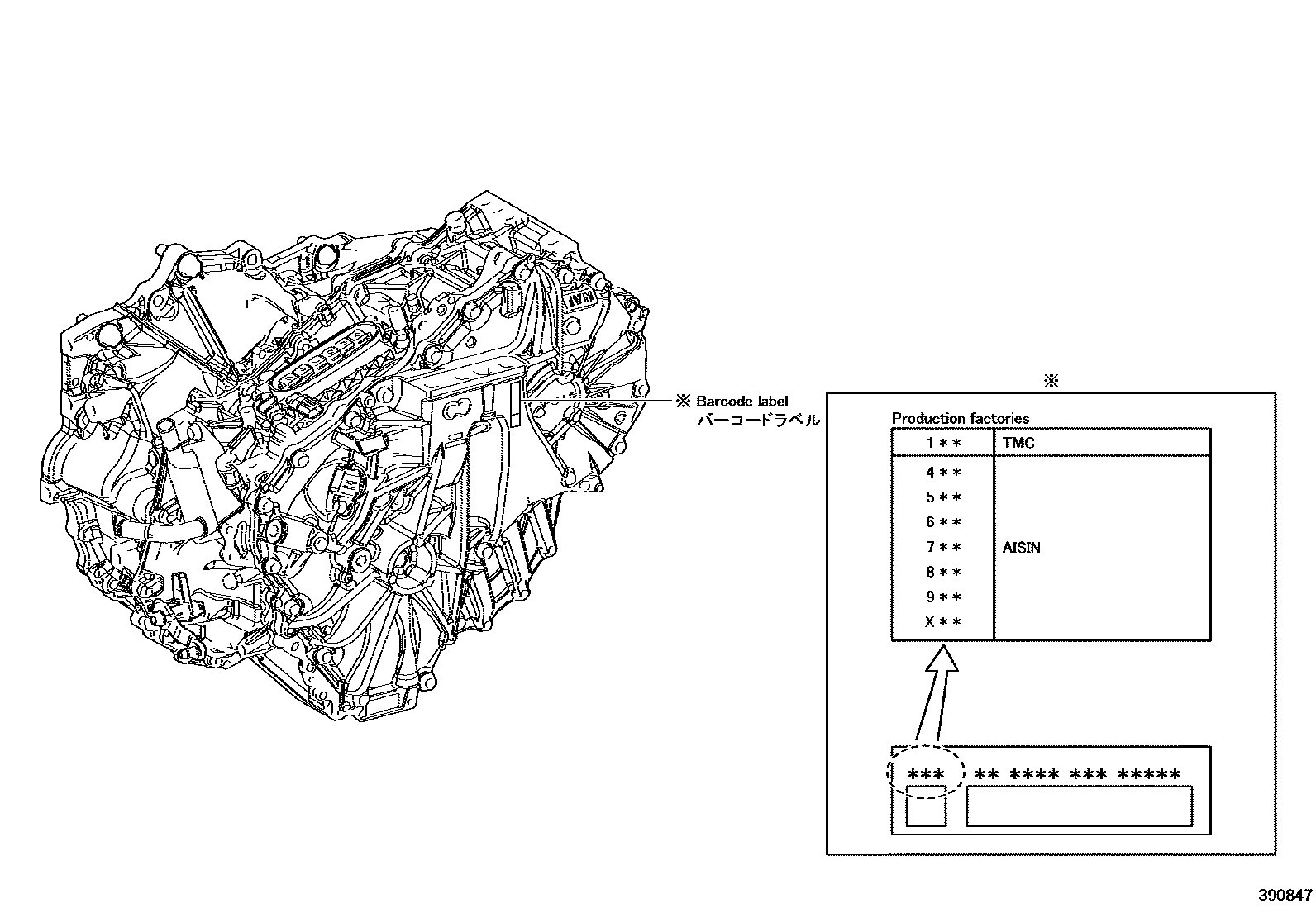

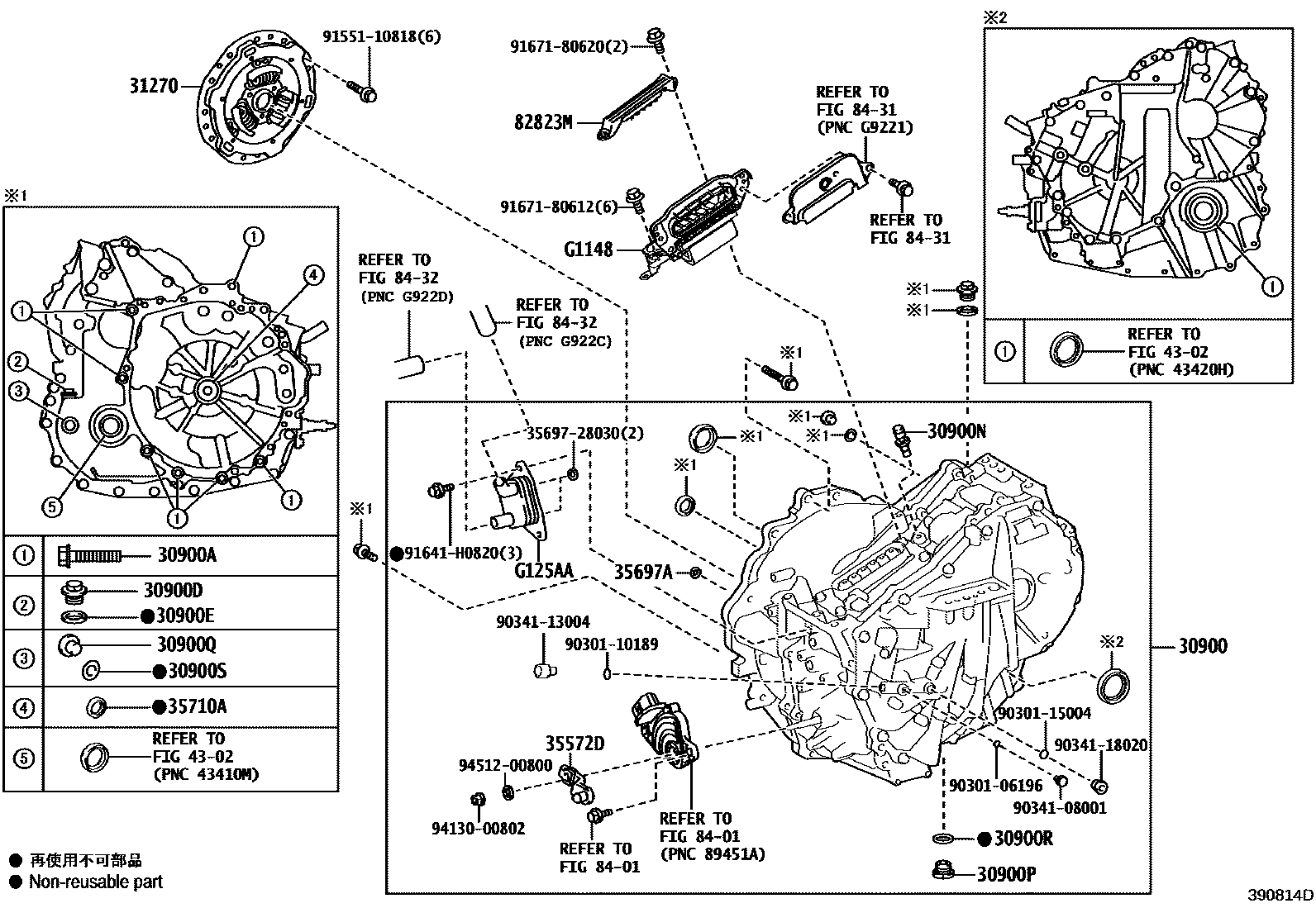

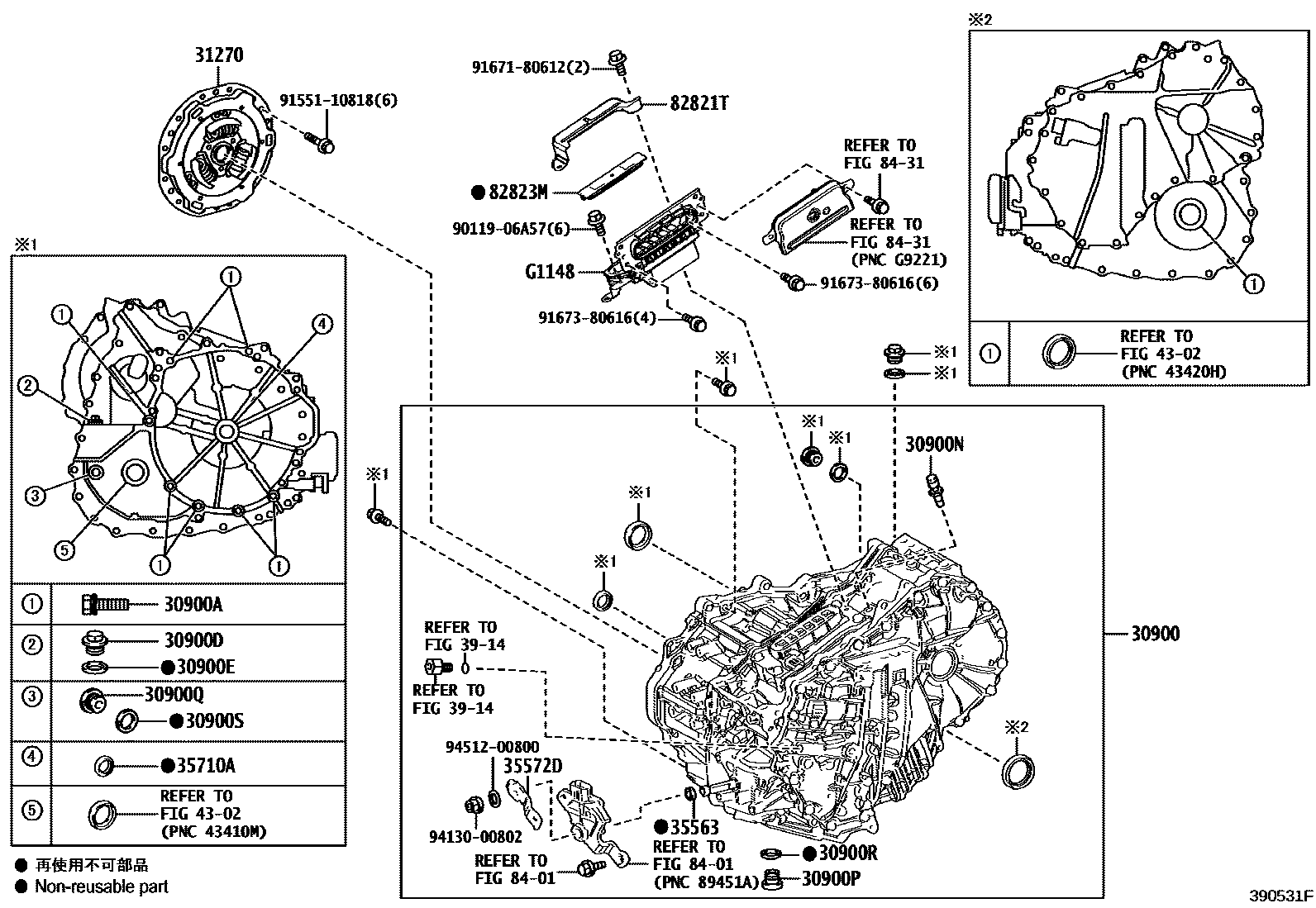

Toyota COROLLA EPC diagram 3901, HV或FCV传动桥总成, with 3 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 30900 | Hybrid vehicle transmission axle assembly | 30900-12020 · 30900-12040 · 30900-12080 |
| 30900A | Bolts (used to secure the transaxle and engine of hybrid vehicles) | 91612-61045 |
| 30900D | Headed straight thread plug (for transaxle housing and transaxle housing) | 90341-18060 |
| 30900E | Gasket (for transaxle housing and transaxle housing) | 90430-18008 |
| 30900N | Breather plug (for transaxle) | 90930-03201 |
| 30900P | Toyota part | 90341-18016 |
| 30900Q | Toyota part | 90341-18016 · 90341-18090 |
| 30900R | Toyota part | 90430-18008 |
| 30900S | Toyota part | 90430-18008 |
| 31270 | Transmission input damper assembly | 31270-28020 · 31270-47070 |
| 35563 | Shift control actuator seal | 90311-12016 |
| 35572D | transmission control lever | 35572-10040 · 35572-28140 |
| 35697A | Toyota part | 35697-52030 |
| 35710A | T-type oil seal (for input shaft) | 90311-25025 · 90311-25035 |
| 82821T | Connector cover | 82821-47240 |
| 82823M | Terminal cover | 82823-28110 · 82823-47040 |
| G1148 | Motor cable | G1148-28040 · G1148-28041 · G1148-47070 |
| G125AA | Toyota part | G125A-28010 |
