Toyota COROLLA 起动机 — Figure 1904

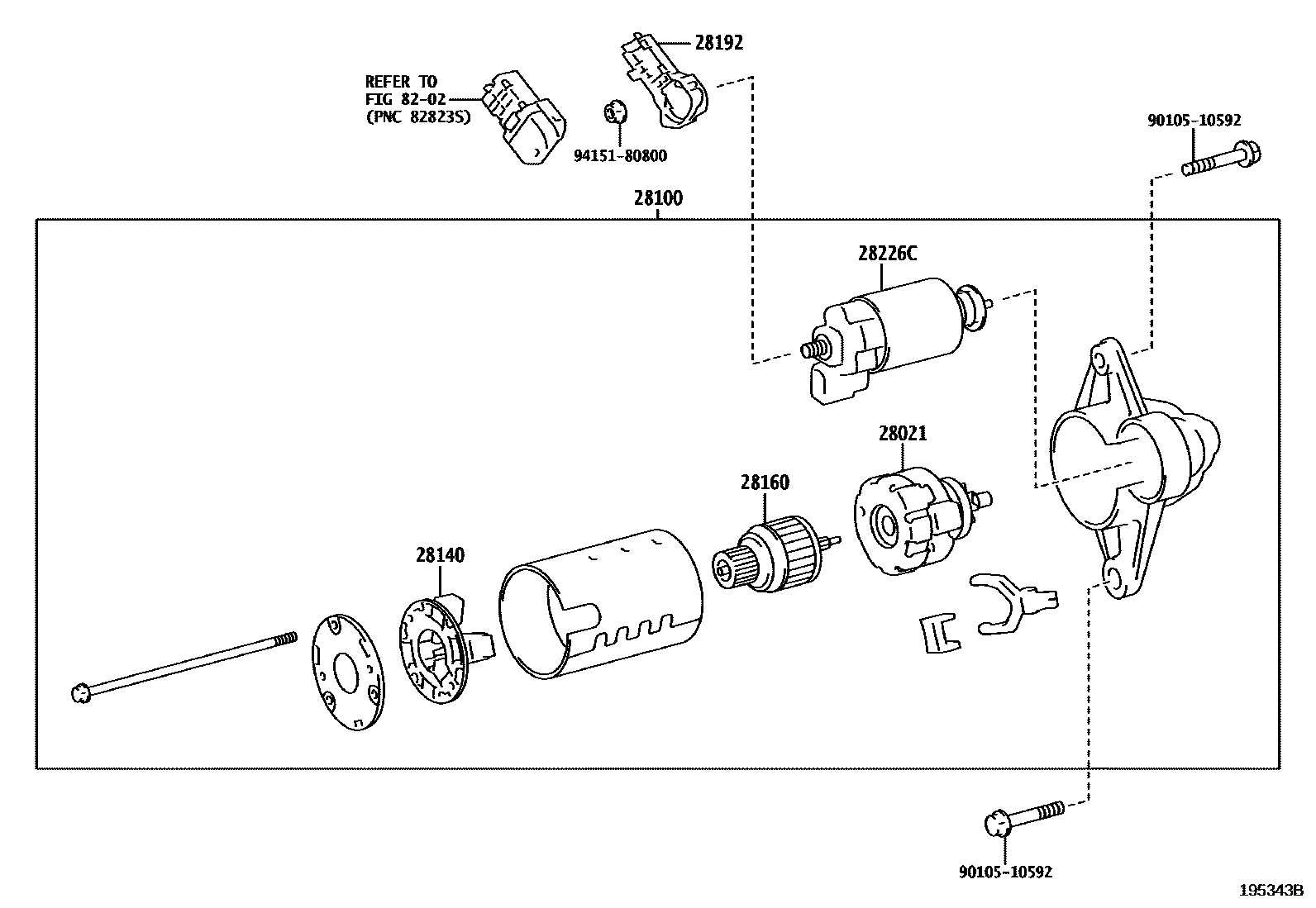

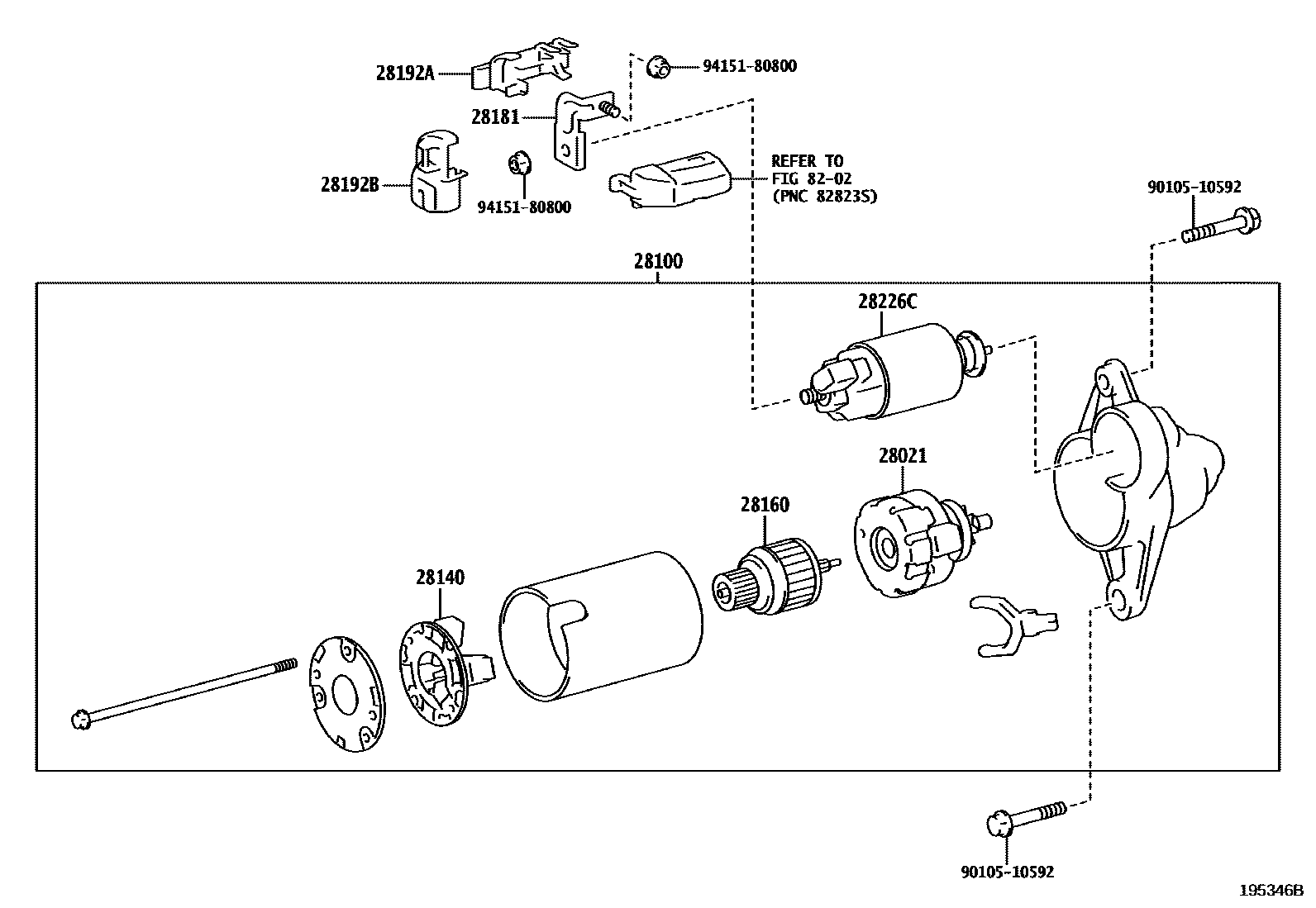

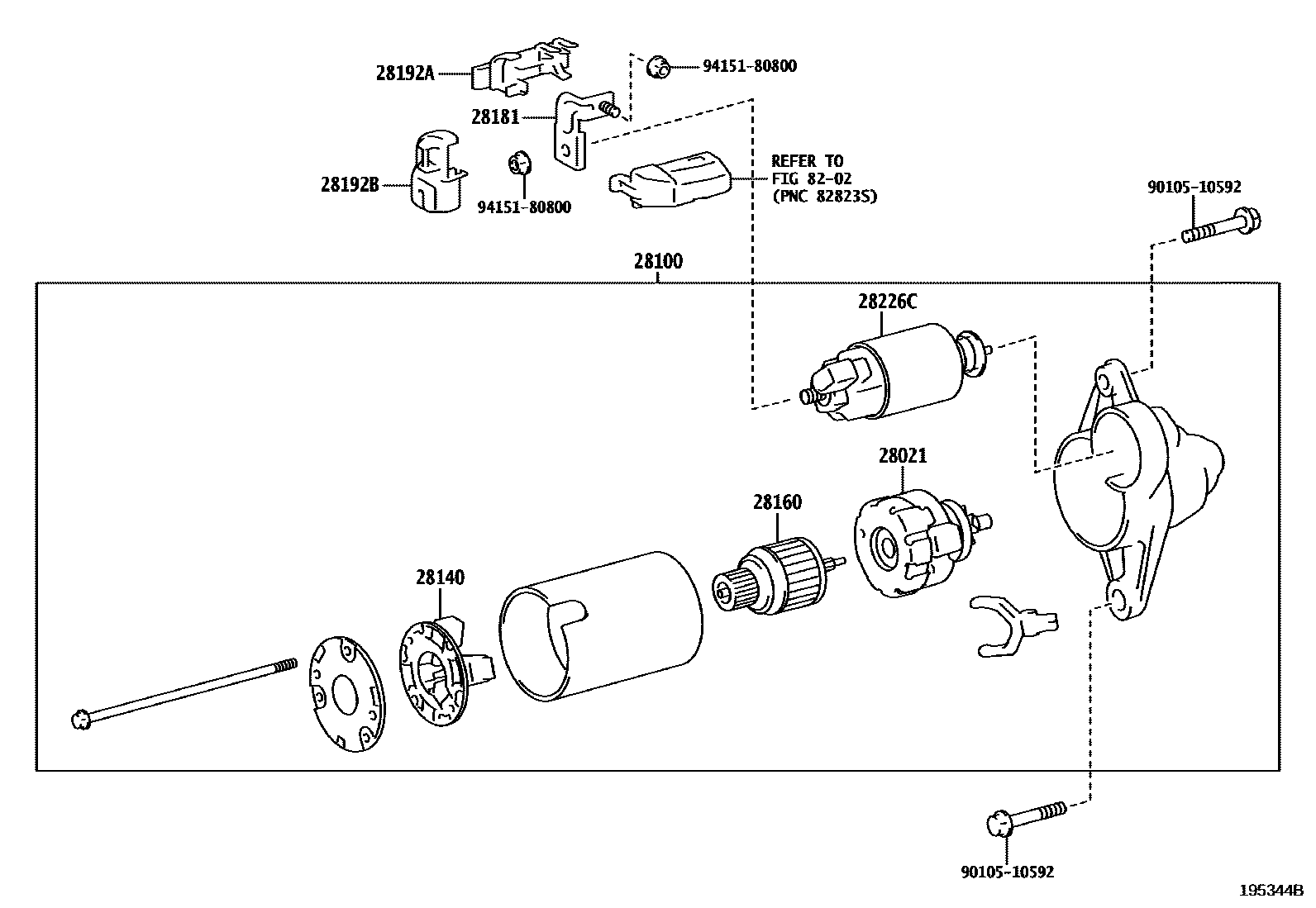

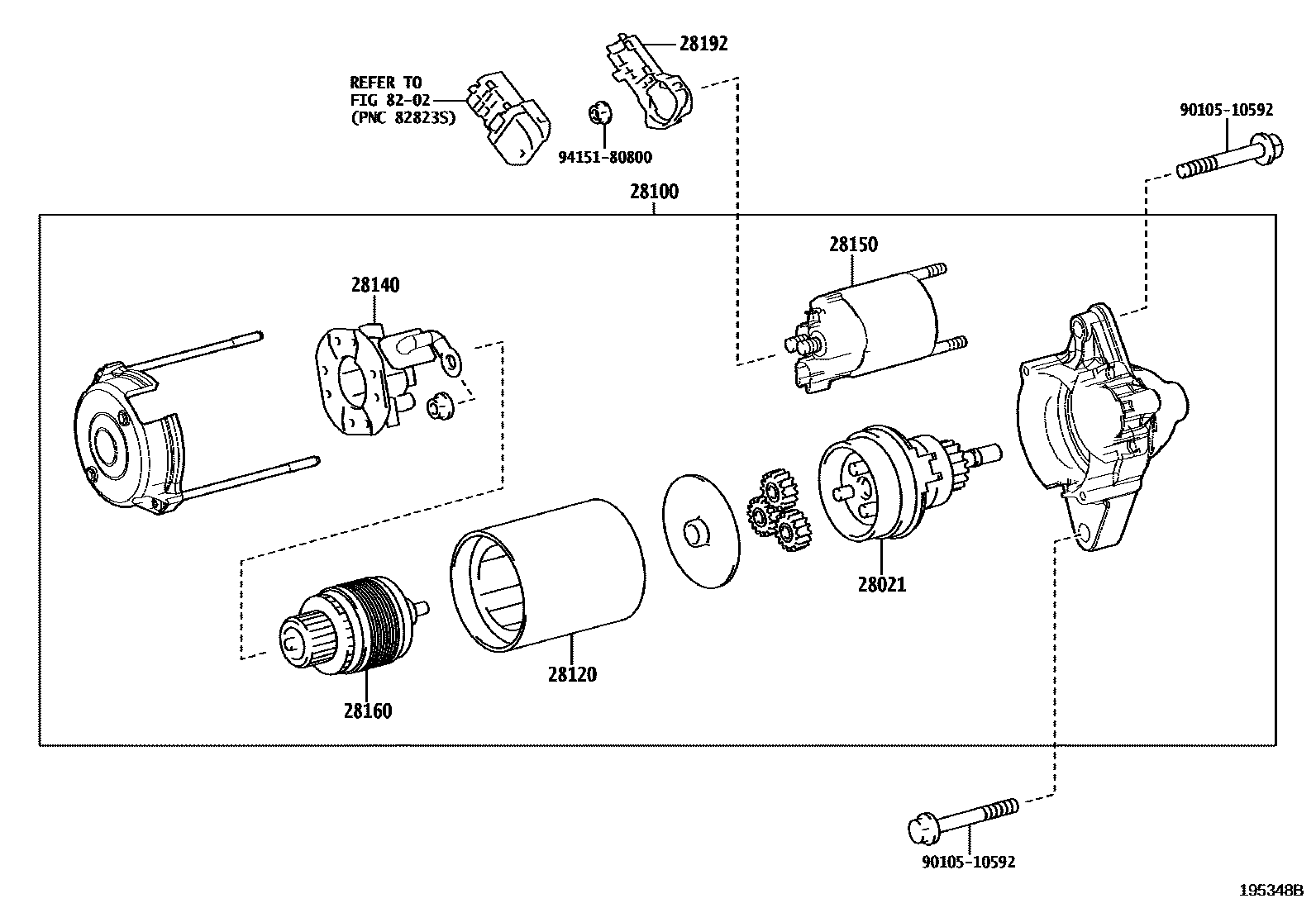

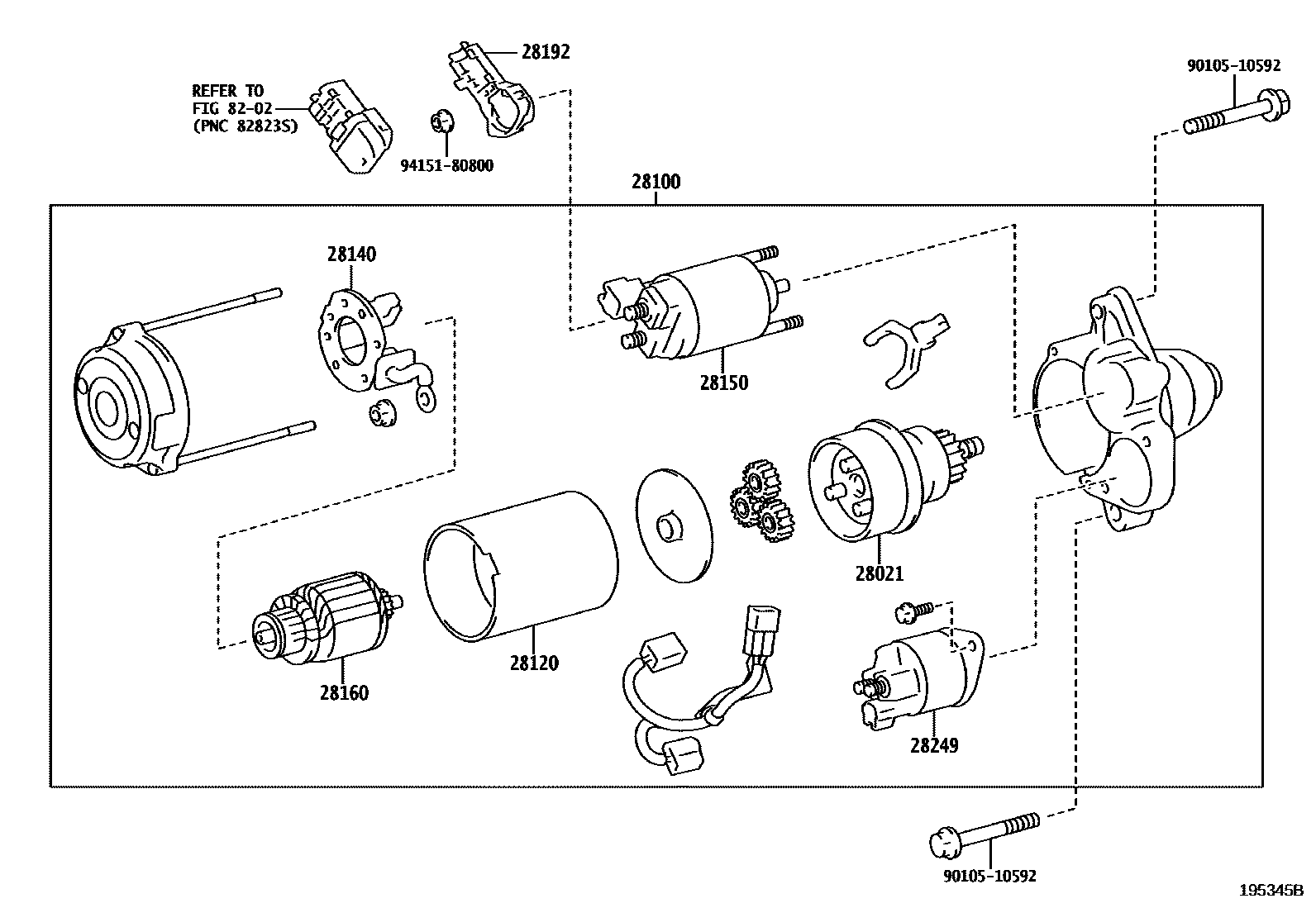

Toyota COROLLA EPC diagram 1904, 起动机, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21100 · 28021-24120 · 28021-47170 · 28021-47270 |
| 28100 | Starter assembly | 28100-24120 · 28100-24160 · 28100-37150 · 28100-47270 · 28100-47280 |
| 28120 | Starter yoke assembly | 28120-37050 · 28120-37100 |
| 28140 | Starter brush holder assembly | 28140-21070 · 28140-21100 · 28140-37050 |
| 28150 | Starter electromagnetic switch assembly | 28150-21120 · 28150-37050 |
| 28160 | Starter armature assembly | 28160-21070 · 28160-21080 · 28160-36110 · 28160-38080 · 28160-47270 · 28160-47280 |
| 28181 | starter terminal | 28181-24010 |
| 28192 | starter cover | 28192-47020 |
| 28192A | Toyota part | 28192-24010 |
| 28192B | Toyota part | 28192-24020 |
| 28226C | No. 2 starter magnetic switch | 28226-24120 · 28226-37130 |
| 28249 | Toyota part | 28249-47280 |
