Toyota COROLLA Manifold — Figure 1701

Toyota COROLLA EPC diagram 1701, Manifold, with 6 images and 27 PNC and OE references.

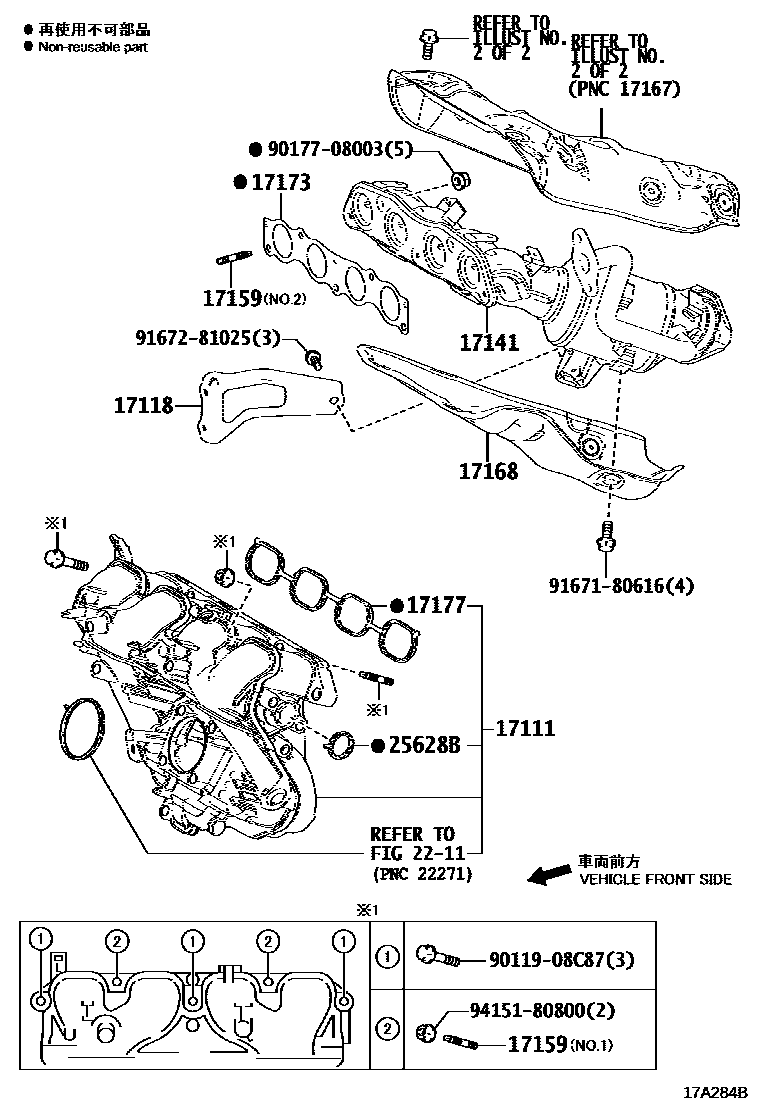

Toyota COROLLA Manifold EPC diagram — 17A284B — Manifold — 17A284B (201806 – 999999)

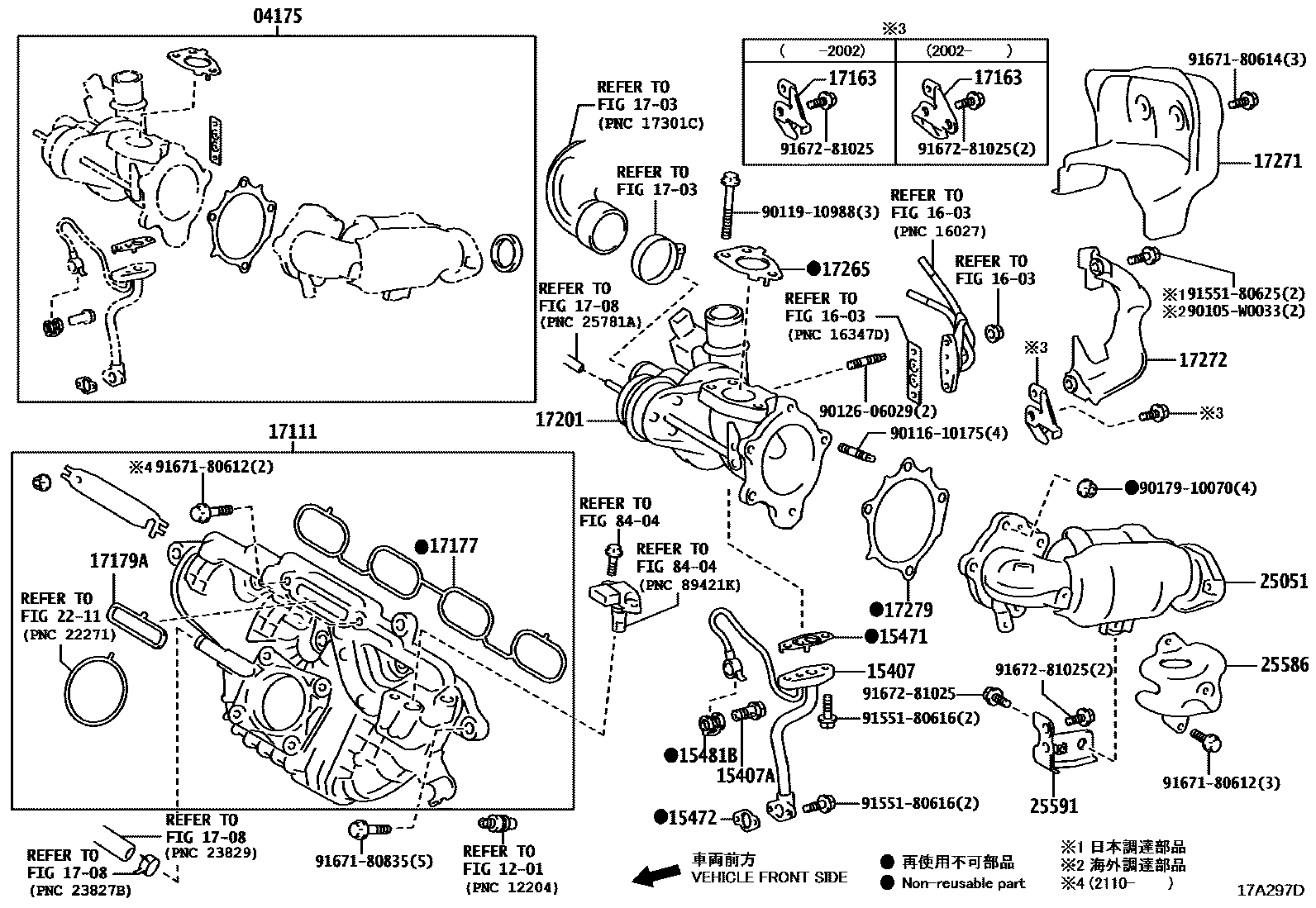

Toyota COROLLA Manifold EPC diagram — 17A297D — Manifold — 17A297D (201806 – 999999)

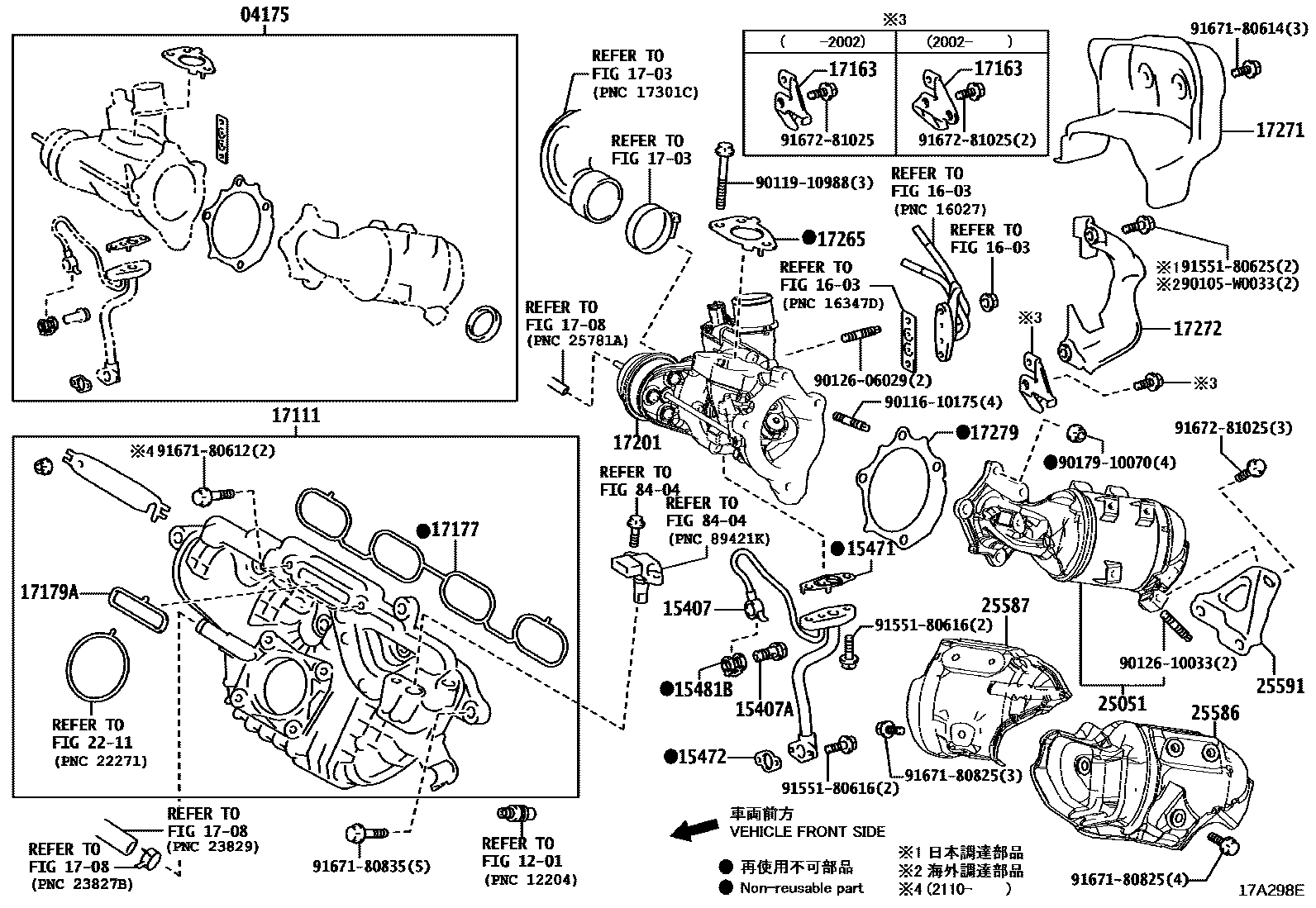

Toyota COROLLA Manifold EPC diagram — 17A298E — Manifold — 17A298E (201806 – 999999)

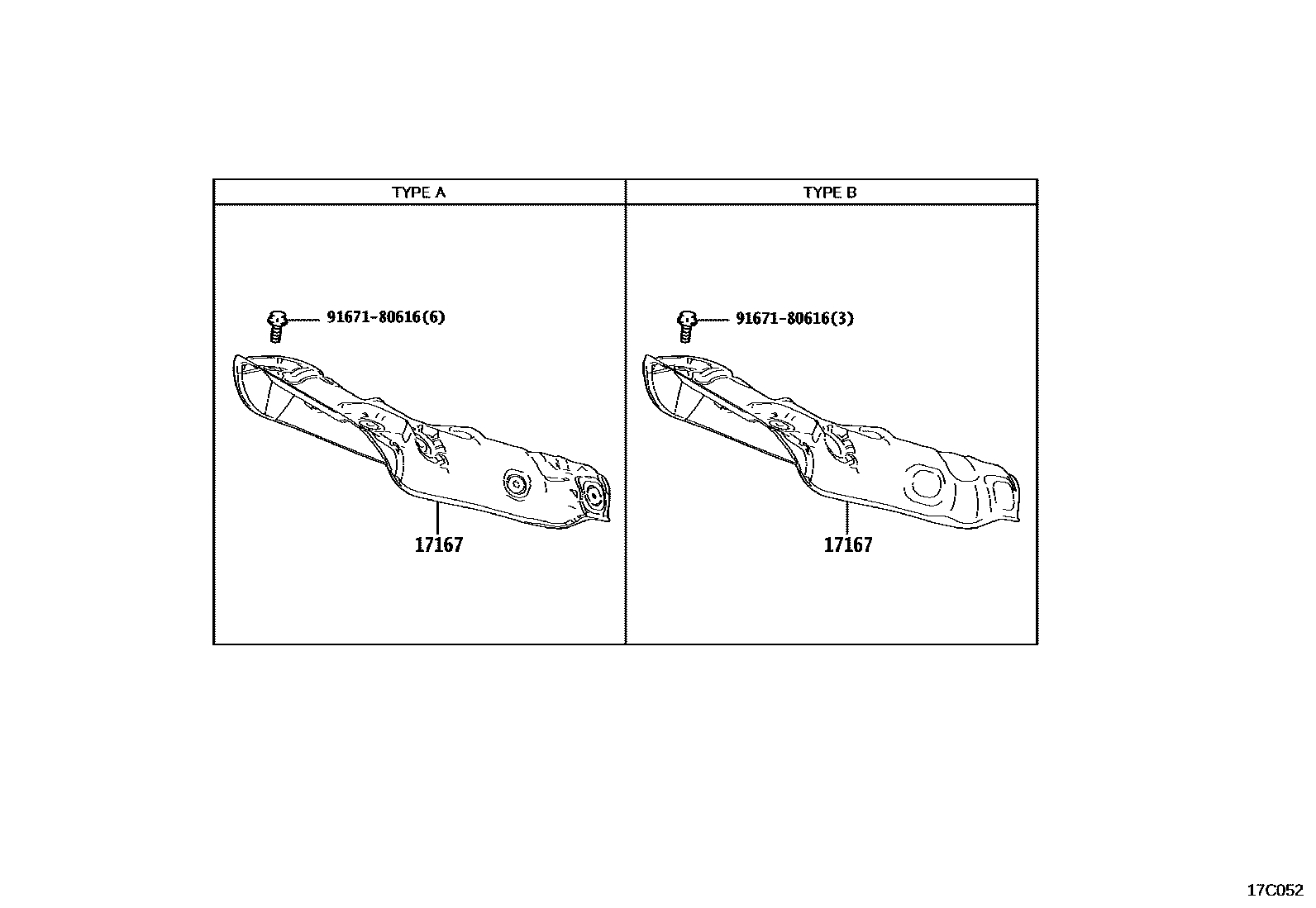

Toyota COROLLA Manifold EPC diagram — 17C052 — Manifold — 17C052 (201806 – 999999)

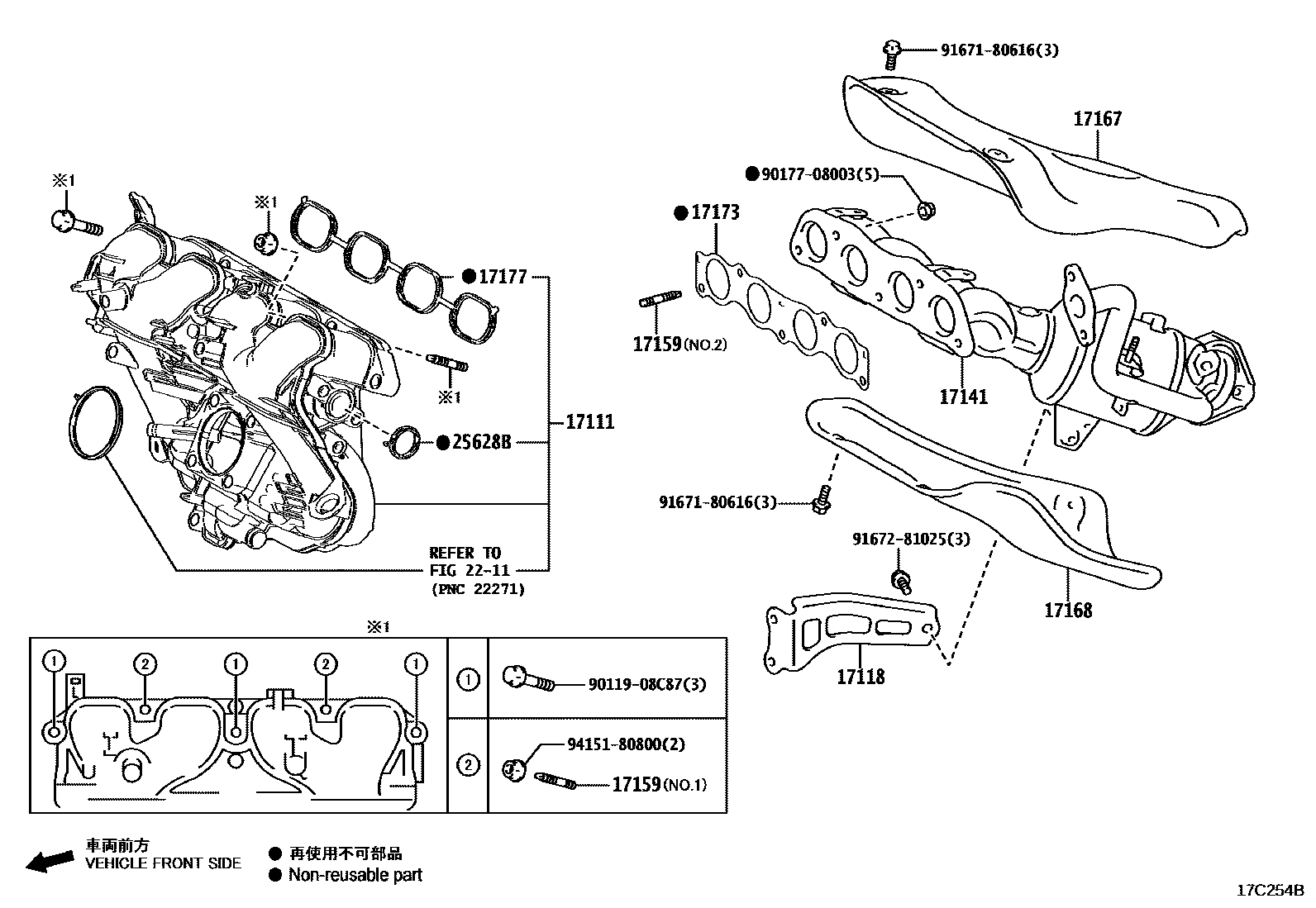

Toyota COROLLA Manifold EPC diagram — 17C254B — Manifold — 17C254B (202209 – 999999)

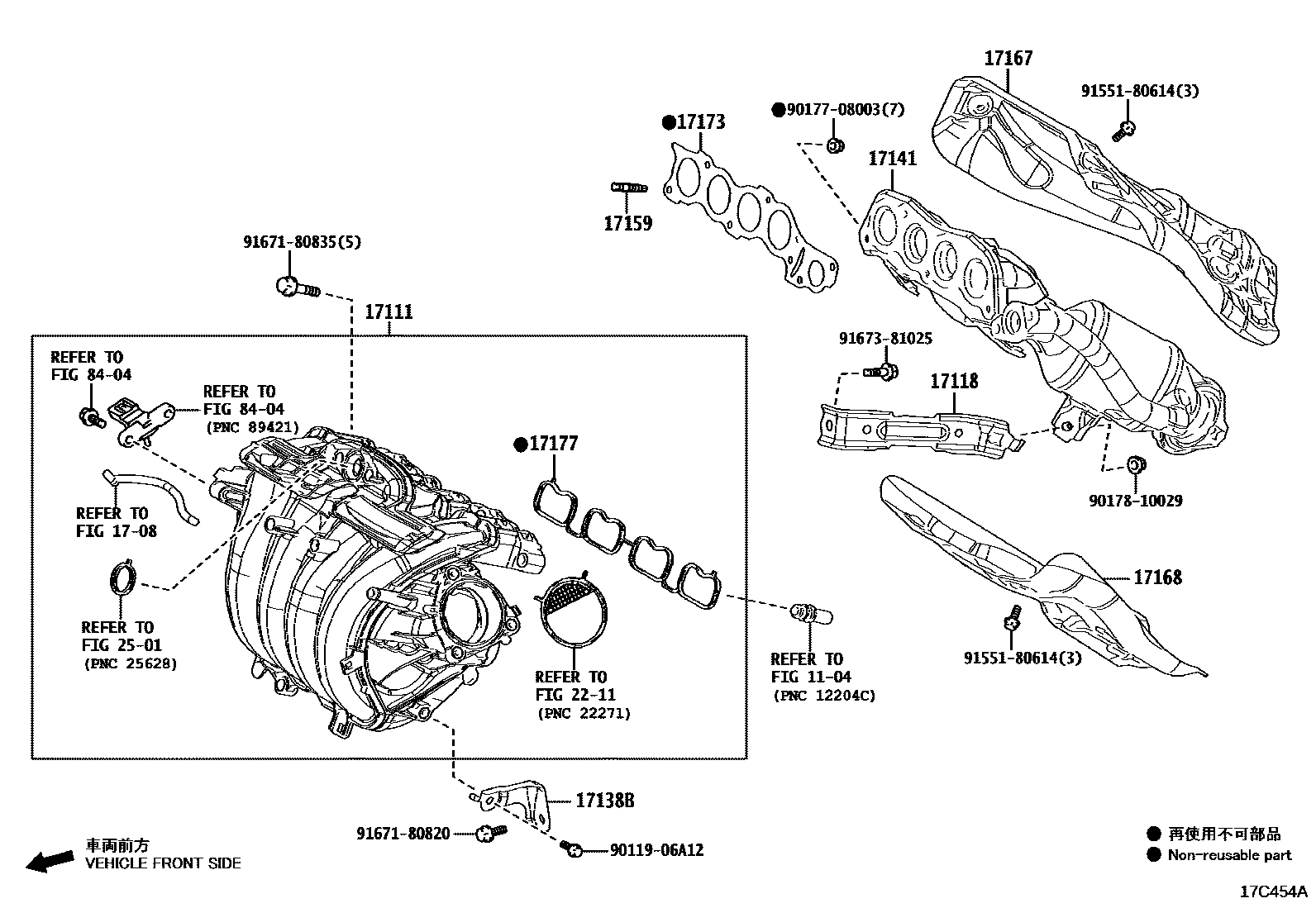

Toyota COROLLA Manifold EPC diagram — 17C454A — Manifold — 17C454A (202210 – 999999)

PNC and OE references

PNC	Part name	OE numbers
04175	Turbocharger gasket assembly	04175-47010 · 04175-47030
15407	Turbine oil inlet pipe sub-assembly	15407-47011
15407A	Connector bolt (for turbine oil inlet pipe)	96341-11200
15471	Turbine oil inlet pipe gasket	15471-47010
15472	No. 1 turbine oil outlet pipe gasket	15472-47010
15481B	Gasket (for No. 1 joint bolt)	90430-12037
17111	Intake Manifold	17120-24010 · 17120-37110 · 17120-47100
17118	Manifold stays	17118-24010 · 17118-37090 · 17118-37100
17138B	Intake manifold stay	17138-24010
17141	exhaust manifold	17141-24070 · 17141-37220 · 17141-37221 · 17141-37280 · 17141-37350
17159	Studs (for manifold to cylinder head)	90126-08026 · 90126-08052
17163	No. 1 insulation pad bracket	17586-47011 · 17586-47020
17167	Exhaust manifold No. 1 heat shield	17167-24030 · 17167-37040 · 17167-37120 · 17167-37140
17168	Exhaust manifold No.2 insulation pad	17168-24030 · 17168-37120 · 17168-37150 · 17168-F2050
17173	Gasket (exhaust manifold to cylinder head)	17173-24010 · 17173-37010
17177	No. 1 gasket (intake manifold to cylinder head)	17171-24020 · 17177-37030 · 17177-47050
17179A	No. 2 intake manifold gasket	17179-47010
17201	Turbocharger sub-assembly	17201-47011 · 17201-47030
17265	Toyota part	17265-47010
17271	No. 1 turbine vibration isolation pad	17271-47010
17272	No. 2 turbine vibration isolation pad	17272-47010
17279	Turbine outlet elbow gasket	17279-47010 · 17279-47020
25051	Exhaust manifold three-way catalytic converter sub-assembly	25051-47210 · 25051-47220
25586	No. 1 manifold three-way catalytic converter vibration isolation pad	25586-47010 · 25586-47020
25587	No. 2 manifold three-way catalytic converter vibration isolation pad	25587-47010
25591	Manifold bracket	25591-47010 · 25591-47020
25628B	EGR air intake gasket	25628-36020
