Toyota COROLLA Engine Overhaul Gasket Kit — Figure 1103

Toyota COROLLA EPC diagram 1103, Engine Overhaul Gasket Kit, with 6 images and 2 PNC and OE references.

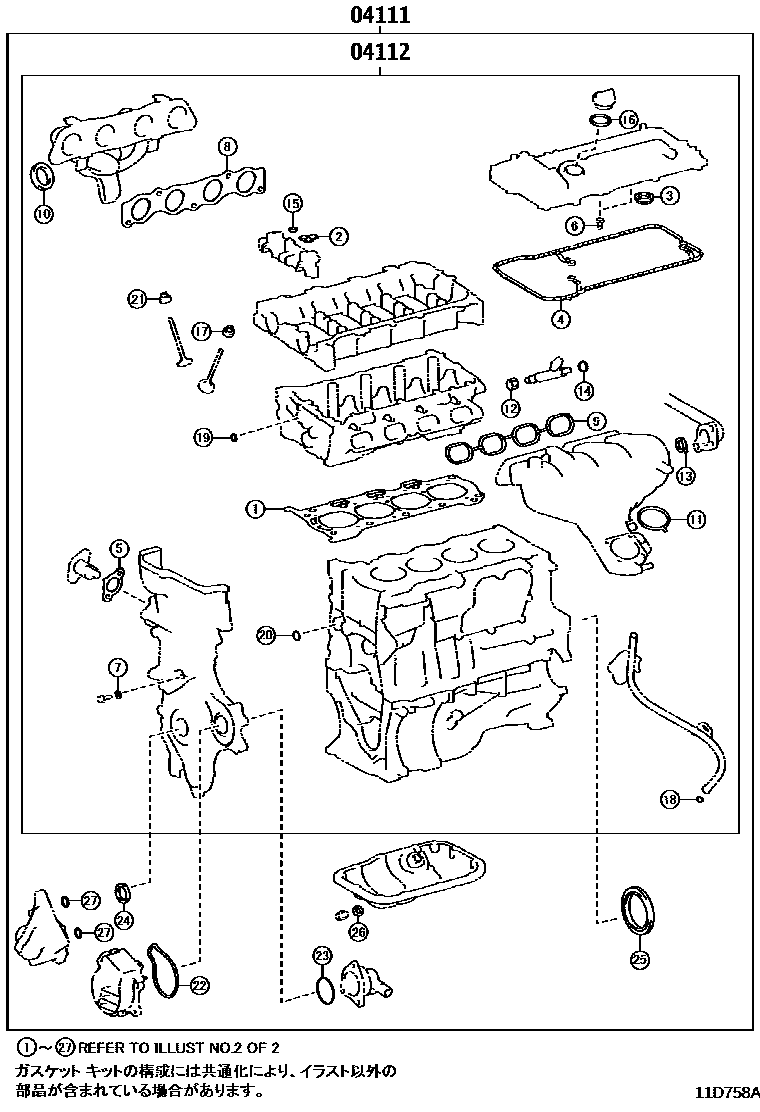

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D758A
Engine Overhaul Gasket Kit — 11D758A (201806 – 999999)

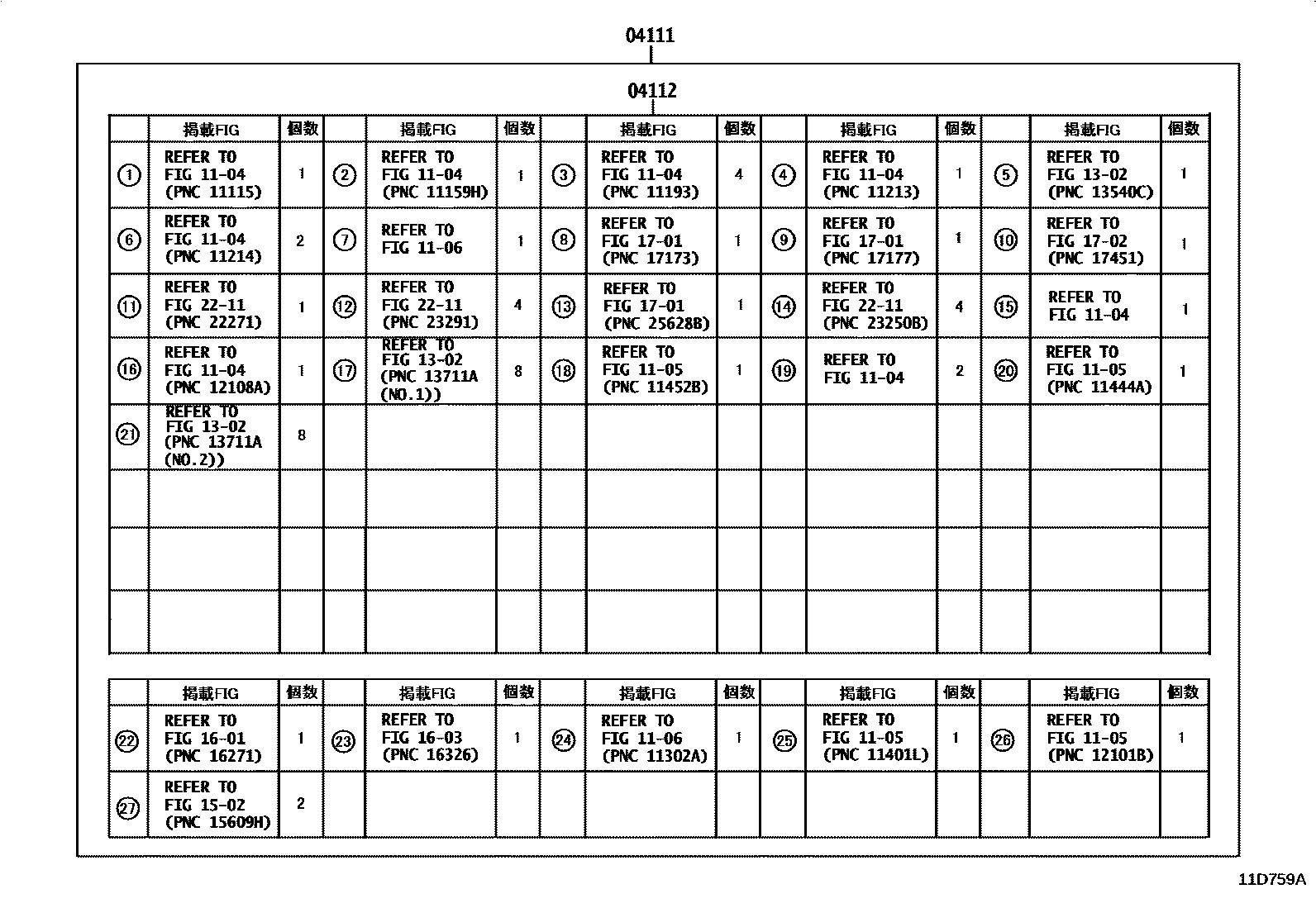

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D759A
Engine Overhaul Gasket Kit — 11D759A (201806 – 999999)

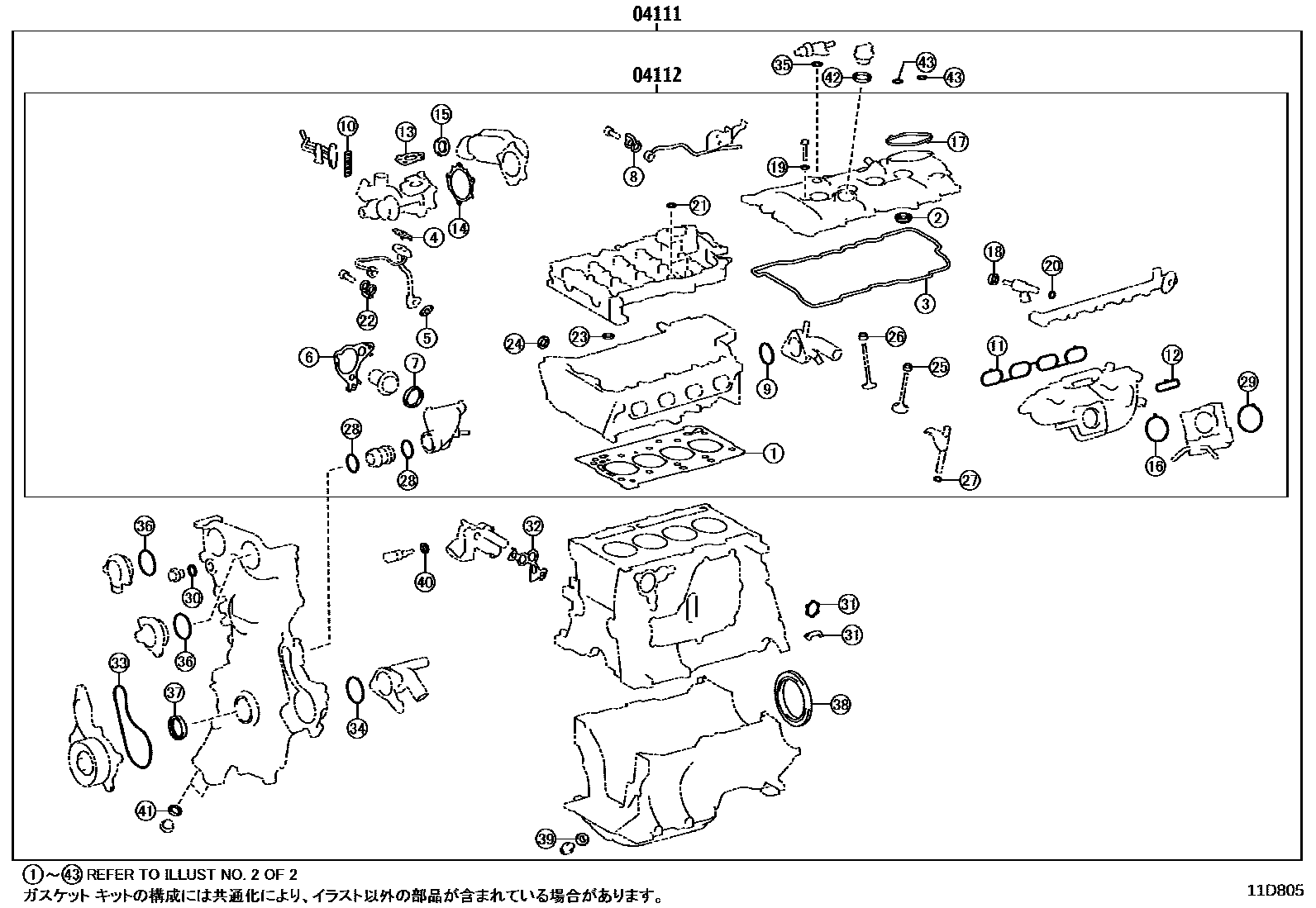

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D805
Engine Overhaul Gasket Kit — 11D805 (201806 – 999999)

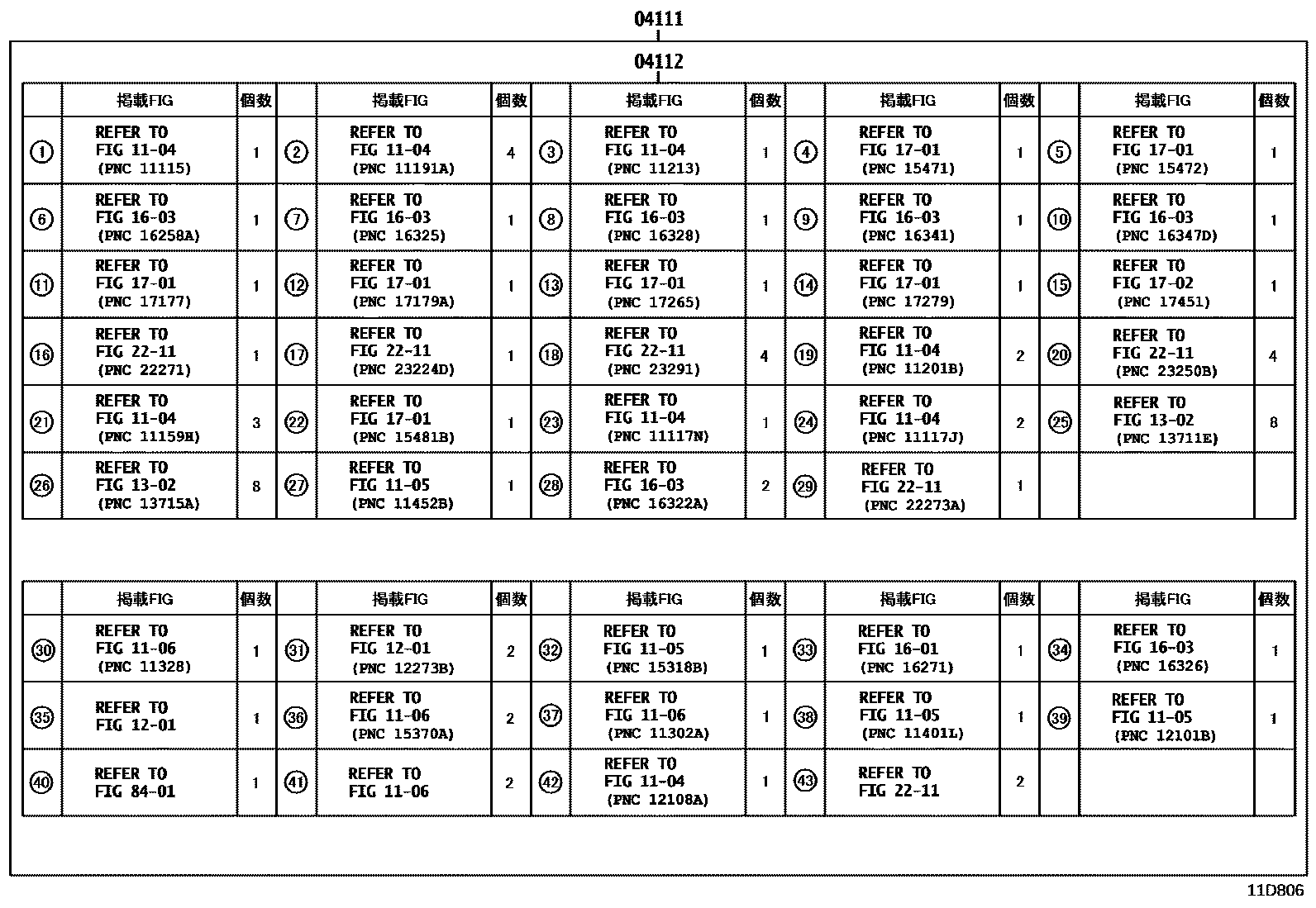

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11D806
Engine Overhaul Gasket Kit — 11D806 (201806 – 999999)

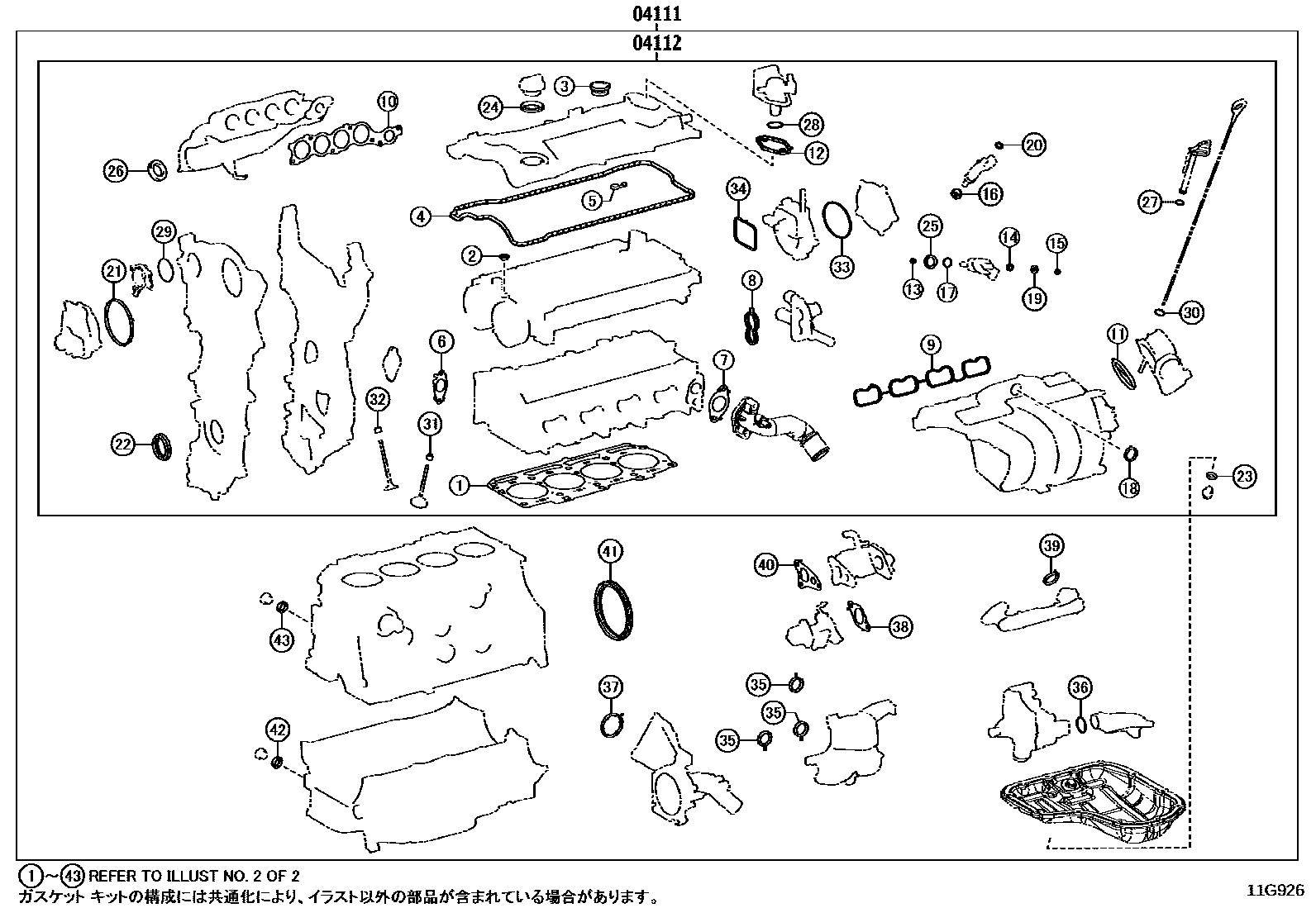

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G926
Engine Overhaul Gasket Kit — 11G926 (202210 – 999999)

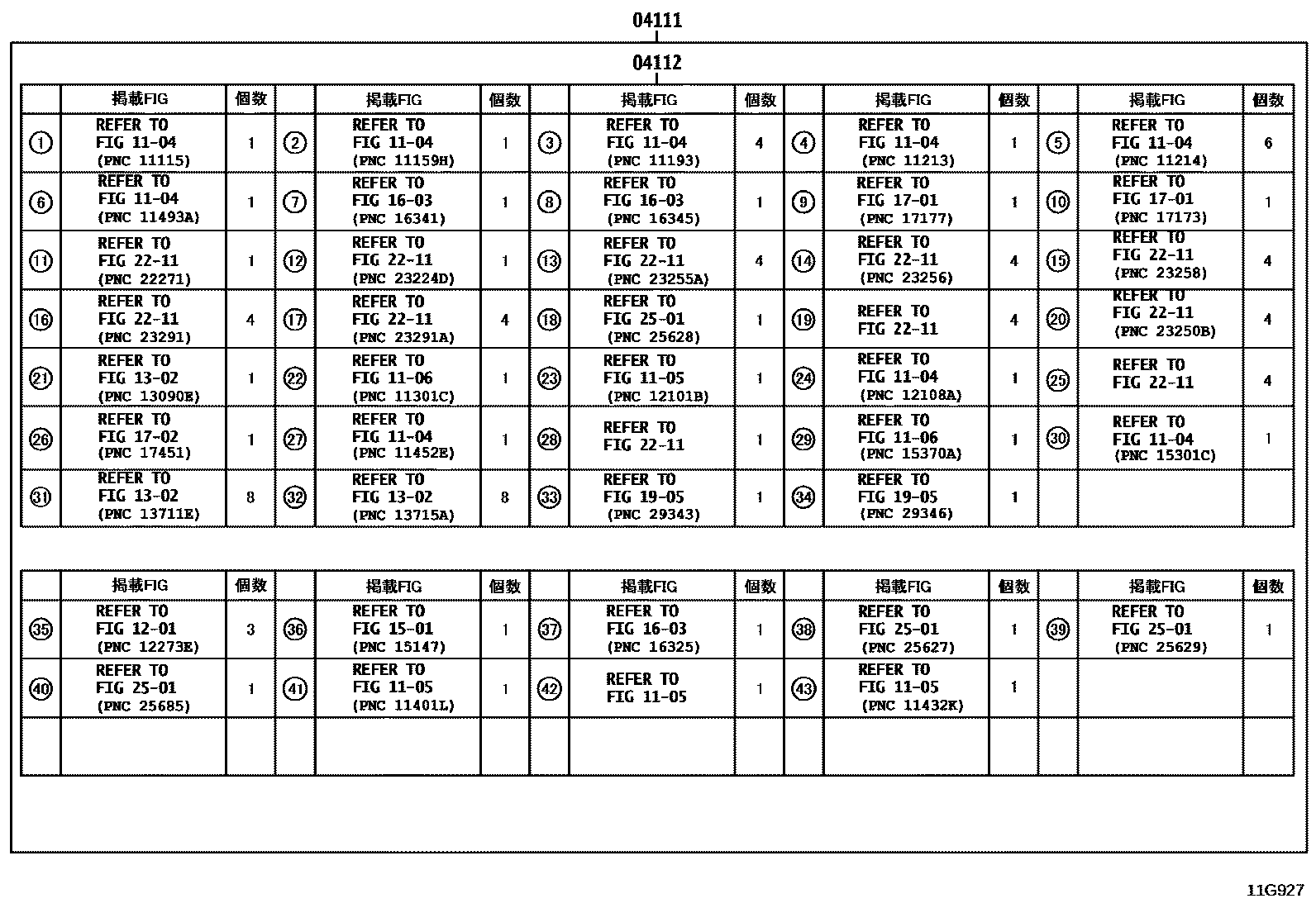

Toyota COROLLA Engine Overhaul Gasket Kit EPC diagram — 11G927
Engine Overhaul Gasket Kit — 11G927 (202210 – 999999)

PNC and OE references

PNCPart nameOE numbers
04111Engine overhaul gasket assembly04111-24200 · 04111-37501 · 04111-37560 · 04111-37561 · 04111-47272 · 04111-47291
04112Engine valve grinding pad assembly04112-24120 · 04112-37381 · 04112-37400 · 04112-37401 · 04112-47182 · 04112-47201
