Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719

Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 10 PNC and OE references.

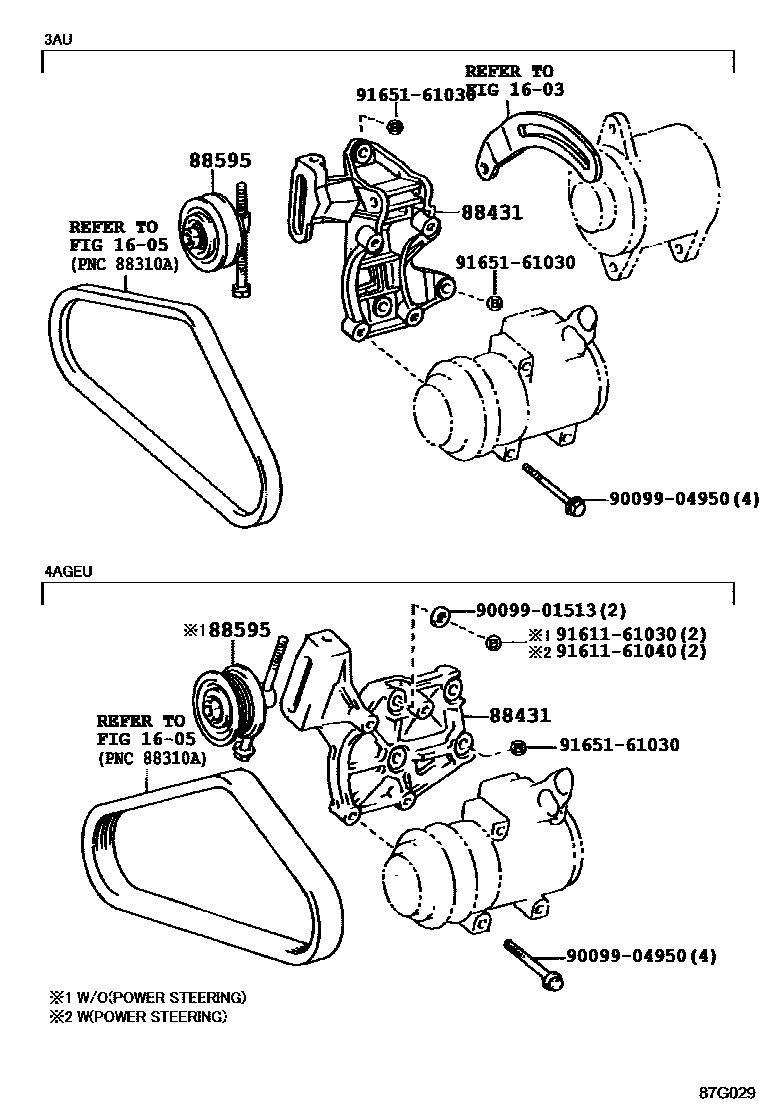

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87G029
Heating & Air Conditioning - Compressor — 87G029 (198305 – 999999)

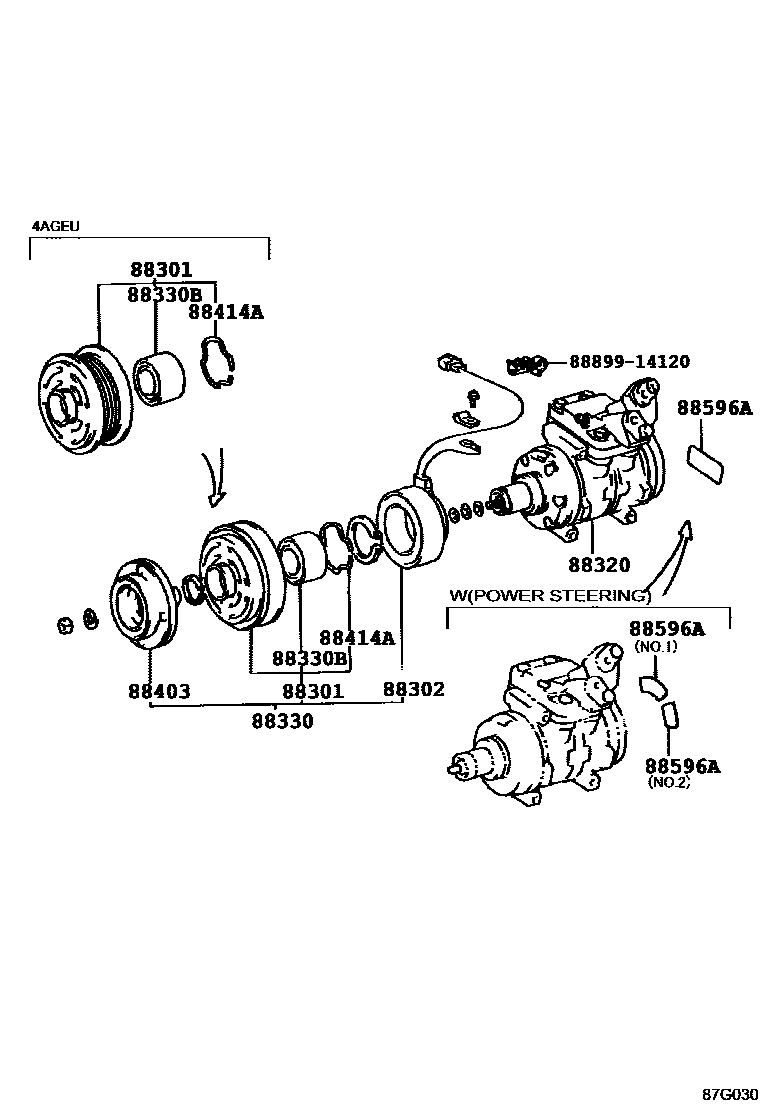

Toyota COROLLA Heating & Air Conditioning - Compressor EPC diagram — 87G030
Heating & Air Conditioning - Compressor — 87G030 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
88301Electromagnetic clutch rotor sub-assembly88412-12110 · 88412-14030
88302Electromagnetic clutch stator sub-assembly88411-12110 · 88411-14060 · 88411-22070 · 88411-22100
88320Cooler Compressor Assembly88320-12270 · 88320-12300 · 88320-12400 · 88320-12420 · 88320-12450
88330Magnetic Clutch Assembly88410-12150 · 88410-12200 · 88410-14110
88330BElectromagnetic clutch bearing90099-10133 · 90099-10135
88403Electromagnetic clutch hub sub-assembly88403-12030 · 88403-12040 · 88403-14030 · 88403-14040
88414AGuard plate snap ring90099-07094 · 90099-07114
88431Compressor No. 1 mounting bracket88431-12280 · 88431-12300 · 88431-12301 · 88431-12320 · 88431-12321
88595Cooler compressor idler pulley88440-12110 · 88440-12120
88596Awarning nameplate88356-12010 · 88356-12020 · 88356-12030
