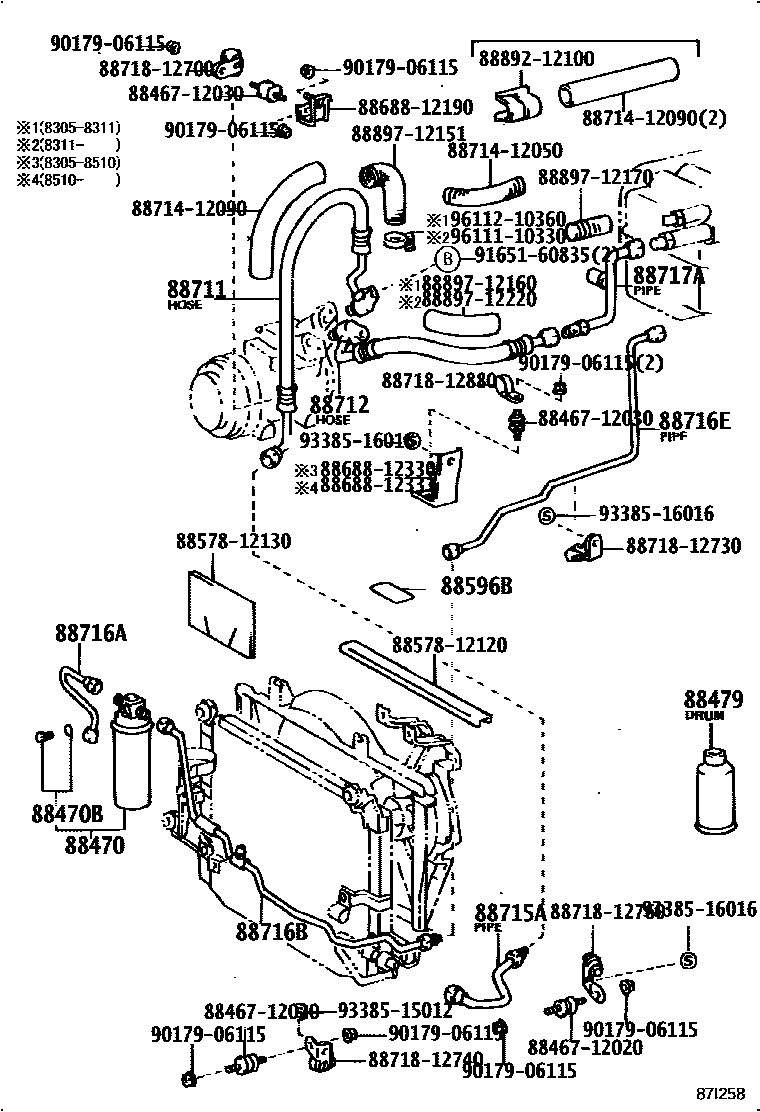

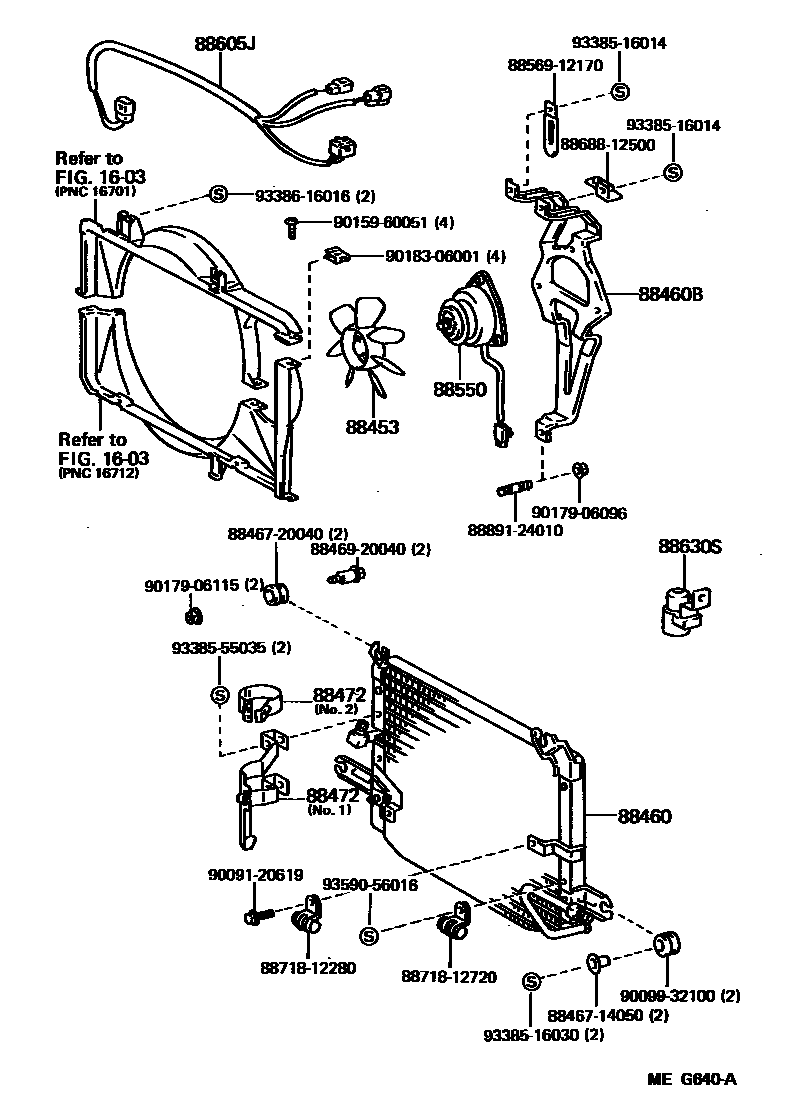

Toyota COROLLA Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota COROLLA EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88453 | Cooling fan (for condenser) | 88453-12040 |
| 88460 | Air conditioning condenser assembly | 88460-12220 · 88460-12221 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-12480 |
| 88470 | Cooler reservoir and dryer assembly | 88470-12070 |
| 88470B | fuse bolt | 88475-12020 |
| 88472 | No. 1 liquid storage tank bracket | 88473-12010 · 88473-12030 |
| 88479 | Air conditioning Freon gas (cooler refrigerant drum) | 90986-02001 |
| 88550 | Blower motor assembly (for condenser) | 88550-12110 |
| 88596B | No. 1 warning nameplate | 88596-14010 · 88596-24010 |
| 88605J | Air conditioning wiring harness sub-assembly | 88605-1A200 |
| 88630S | Cooler relay assembly | 88630-12070 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-12311 · 88711-12320 · 88711-12330 · 88711-12341 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-12440 · 88712-12450 · 88712-12580 · 88712-12590 |
| 88715A | Cooler refrigerant discharge pipe A | 88715-12270 |
| 88716A | Cooler refrigerant liquid pipe A | 88716-12690 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-12730 · 88726-12210 |
| 88716E | Cooler refrigerant liquid pipe E | 88716-12740 · 88716-12741 |
| 88717A | Cooler refrigerant suction pipe A | 88717-12270 · 88717-12271 |
