Toyota COROLLA 暖风和空调系统 - 真空管 — Figure 8717

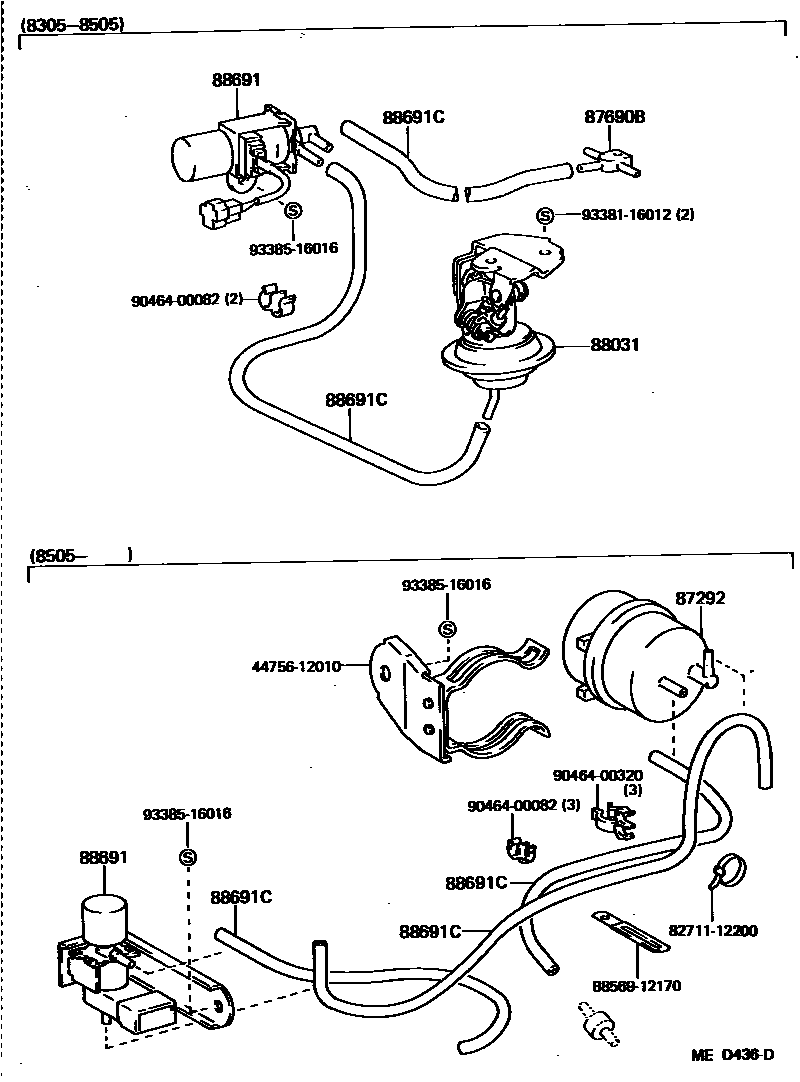

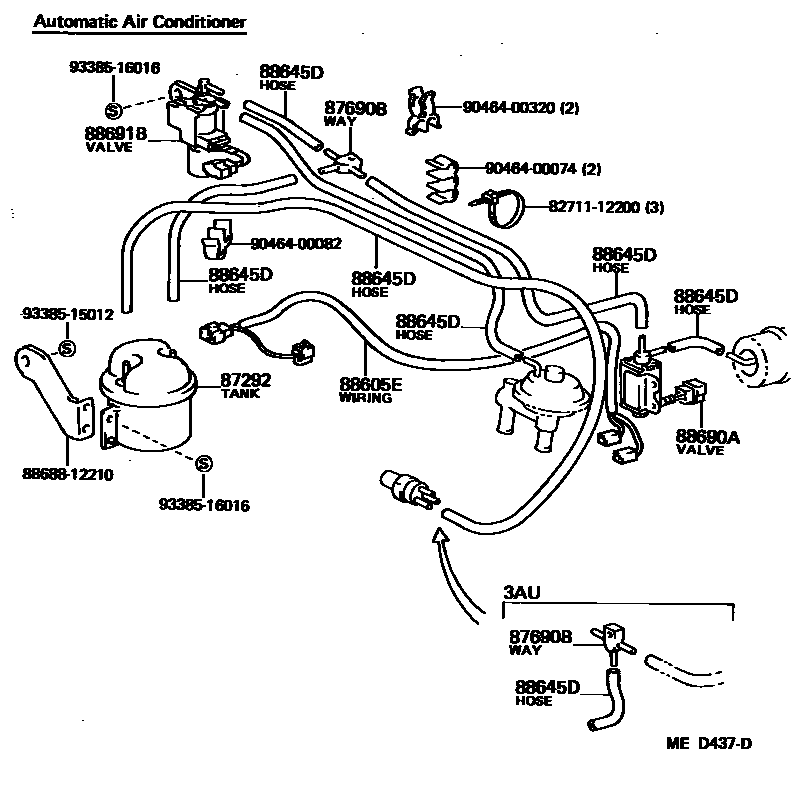

Toyota COROLLA EPC diagram 8717, 暖风和空调系统 - 真空管, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87292 | vacuum tank | 25719-15010 · 88683-16010 |
| 87690B | tee pipe | 90413-04005 · 90414-04002 |
| 88031 | Idle speed lift actuator assembly | 88031-16020 |
| 88605E | Air conditioner No. 1 wiring harness | 88648-12260 · 88648-12290 |
| 88645D | Hoses (for idle lift) | 95411-10360 · 95411-10430 |
| 88690A | Composite valve assembly | 88690-12190 |
| 88691 | Solenoid valve (for idle speed lifting device) | 88690-12340 · 88690-12400 · 88691-12060 |
| 88691B | Solenoid valve (for water valve) | 88690-12340 · 88690-12341 |
| 88691C | Vacuum hose No. 1 (for idle lift) | 88689-12030 · 88689-12040 |
