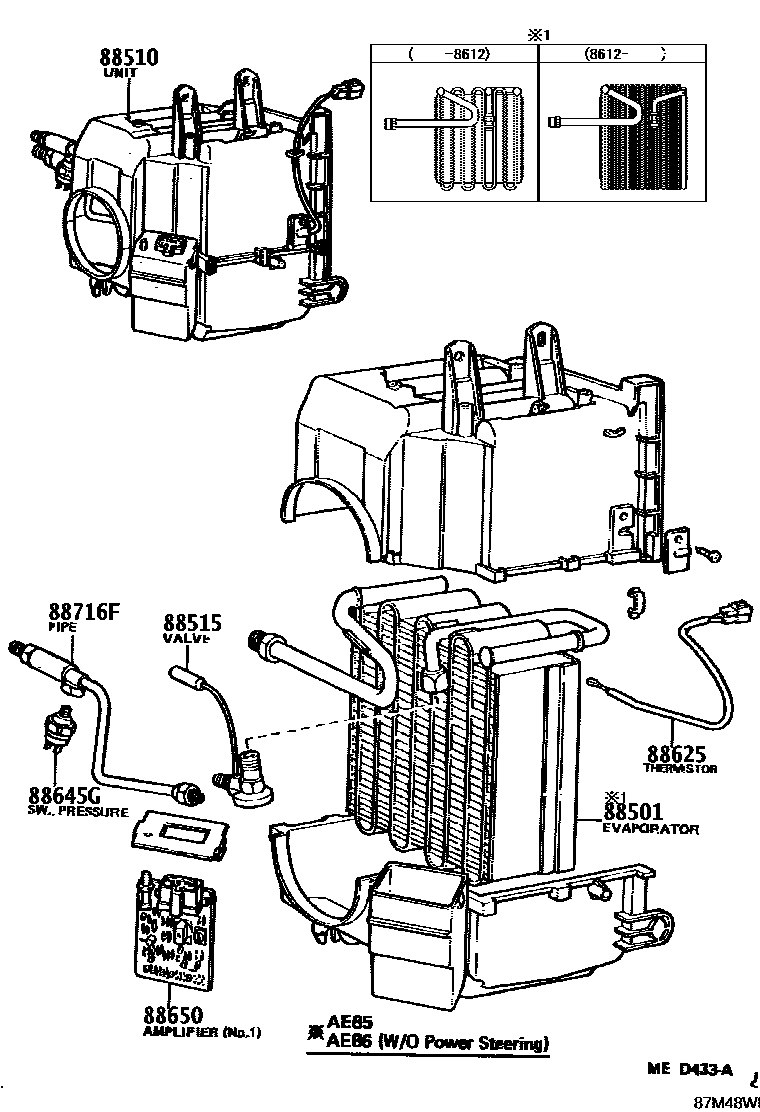

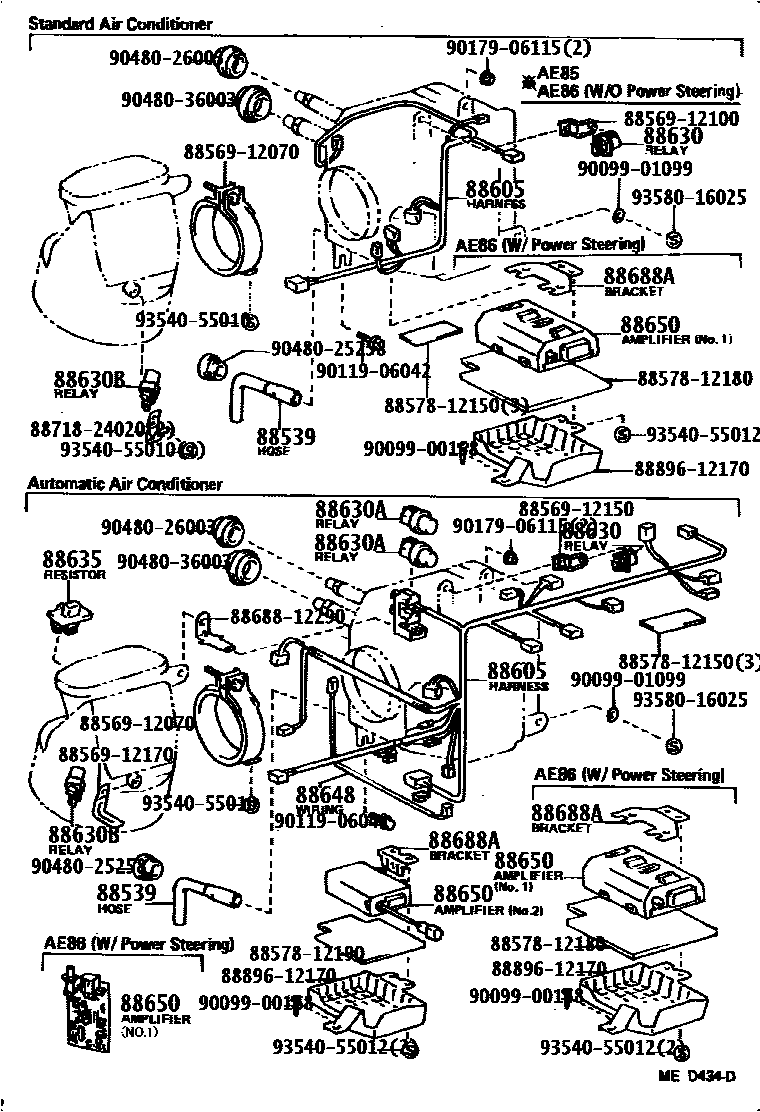

Toyota COROLLA 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota COROLLA EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 2 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-12290 · 88501-12291 · 88501-12292 · 88501-12293 · 88501-12320 |
| 88510 | Cooler device assembly | 88510-12430 · 88510-12431 · 88510-12432 · 88510-12440 · 88510-12441 · 88510-12442 · 88510-12520 · 88510-12521 · 88510-12522 · 88510-12740 · 88510-12810 · 88510-12820 |
| 88515 | Cooler expansion valve | 88515-16030 · 88515-16031 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-12070 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-12420 · 88605-12430 · 88605-12440 · 88605-12450 · 88605-12460 · 88605-12470 · 88605-1A230 · 88605-1A240 · 88605-1A250 · 88605-1A260 |
| 88625 | Cooler No. 1 Thermistor | 88625-12070 · 88625-95A00 |
| 88630 | Cooler relay assembly | 88630-60020 |
| 88630A | Cooler relay assembly | 90987-03001 |
| 88630B | Cooler relay assembly | 88630-12080 |
| 88635 | Cooler unit blower resistor | 88635-12030 |
| 88645G | pressure switch | 88645-12020 |
| 88648 | No. 1 cooler wiring harness | 88648-12270 |
| 88650 | Cooler stabilized amplifier assembly | 88650-10030 · 88650-12130 · 88650-12210 · 88650-12230 · 88650-12231 |
| 88688A | Cooler stabilized amplifier stand | 88688-12200 · 88688-12230 |
| 88716F | Cooler refrigerant liquid pipe F | 88716-12470 · 88716-12880 |
