Toyota COROLLA 后视镜 — Figure 8701

Toyota COROLLA EPC diagram 8701, 后视镜, with 2 images and 9 PNC and OE references.

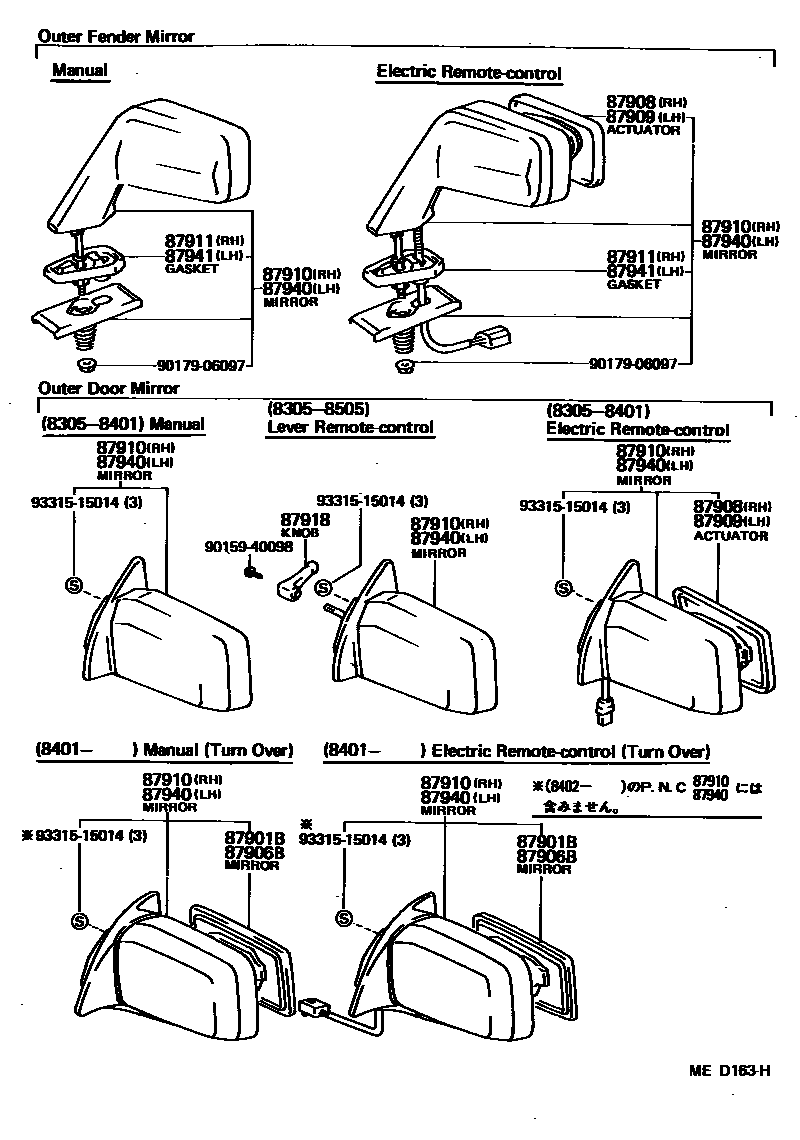

Toyota COROLLA 后视镜 EPC diagram — MED163H
后视镜 — MED163H (198305 – 999999)
Toyota COROLLA 后视镜 EPC diagram — MEE288
后视镜 — MEE288 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
87901BRight exterior rearview mirror sub-assembly87901-12130 · 87901-12140 · 87931-12600 · 87931-17030
87906BLeft exterior rearview mirror sub-assembly87906-12220 · 87906-12230 · 87961-12670 · 87961-1A211
87908Right exterior rearview mirror actuator assembly87908-12080 · 87908-12090
87909Left exterior rearview mirror actuator assembly87909-12070 · 87909-12080
87910Right exterior rearview mirror assembly87910-12600 · 87910-12601 · 87910-1A130 · 87910-1A131 · 87910-1A132 · 87910-1A140 · 87910-1A141 · 87910-1A142 · 87910-80037 · 87910-80038 · 87910-80045 · 87910-80057 · 87910-80058 · 87910-80065 · 87910-80120 · 87910-80121
87911Right exterior mirror pad87911-12120 · 87911-12170 · 87911-12180
87918Exterior rearview mirror control handle87918-12030
87940Left exterior rearview mirror assembly87940-12670 · 87940-12671 · 87940-1A200 · 87940-1A201 · 87940-1A202 · 87940-1A210 · 87940-1A211 · 87940-1A212 · 87940-80037 · 87940-80038 · 87940-80045 · 87940-80058 · 87940-80059 · 87940-80066 · 87940-80120 · 87940-80121
87941Left exterior mirror pad87941-12060 · 87941-12150 · 87941-12160
