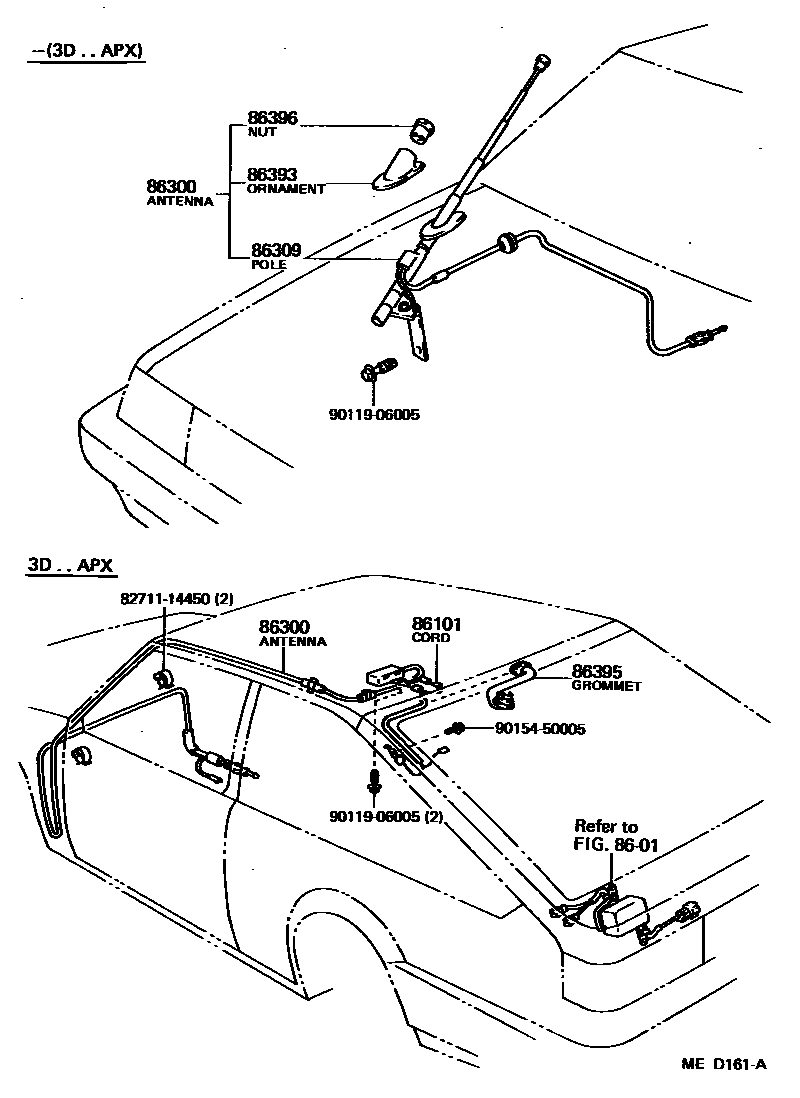

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-12100 |
| 86300 | Antenna assembly with fixing parts | 86300-12250 · 86300-12260 |
| 86309 | Cylindrical antenna sub-assembly | 86309-12090 |
| 86393 | Antenna decorative parts | 86392-12050 |
| 86395 | Antenna seal | 86395-12010 |
| 86396 | Antenna nut | 86396-12020 |
