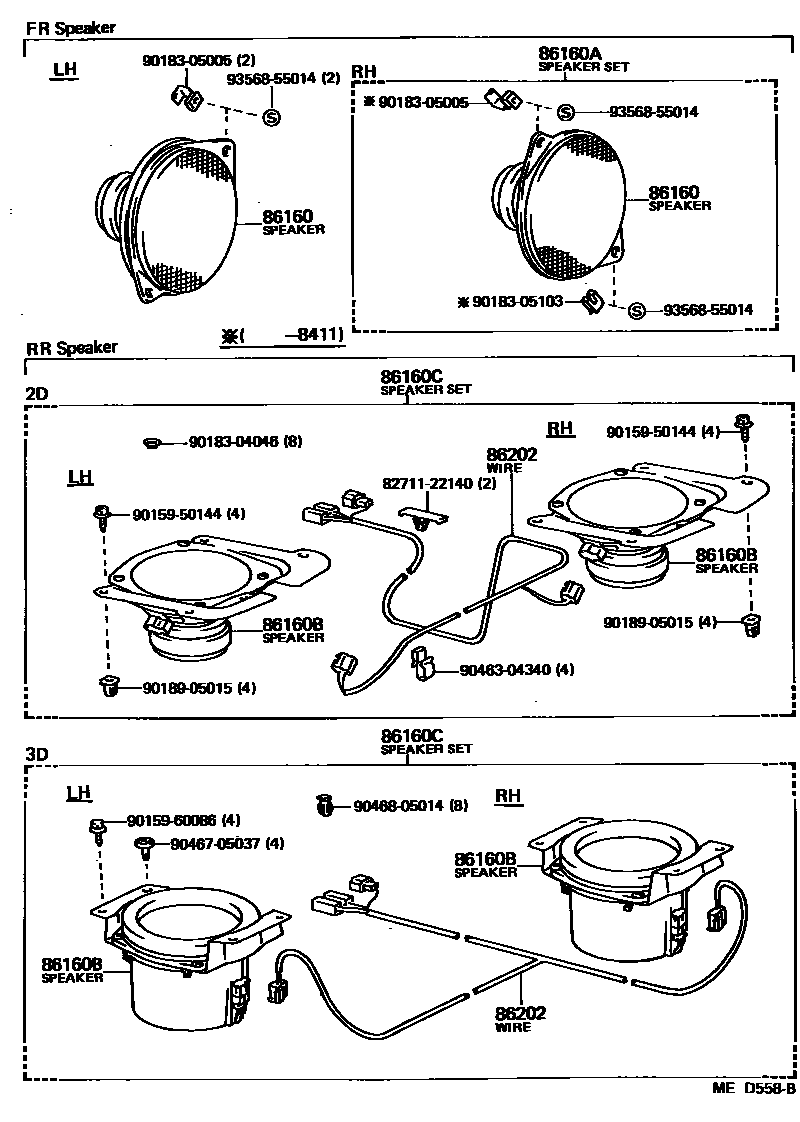

Toyota COROLLA 扬声器 — Figure 8602
Toyota COROLLA EPC diagram 8602, 扬声器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86160 | No. 1 front speaker assembly | 86160-12170 · 86160-12210 |
| 86160A | front speaker assembly | 86160-19665 |
| 86160B | Rear speaker assembly | 86150-12040 · 86160-12140 · 86160-12150 · 86160-12160 |
| 86160C | rear speaker assembly | 86160-19705 · 86160-19715 |
| 86202 | No. 1 speaker harness | 86203-12140 · 86203-12150 |
