Toyota COROLLA 后清洗器 — Figure 8504

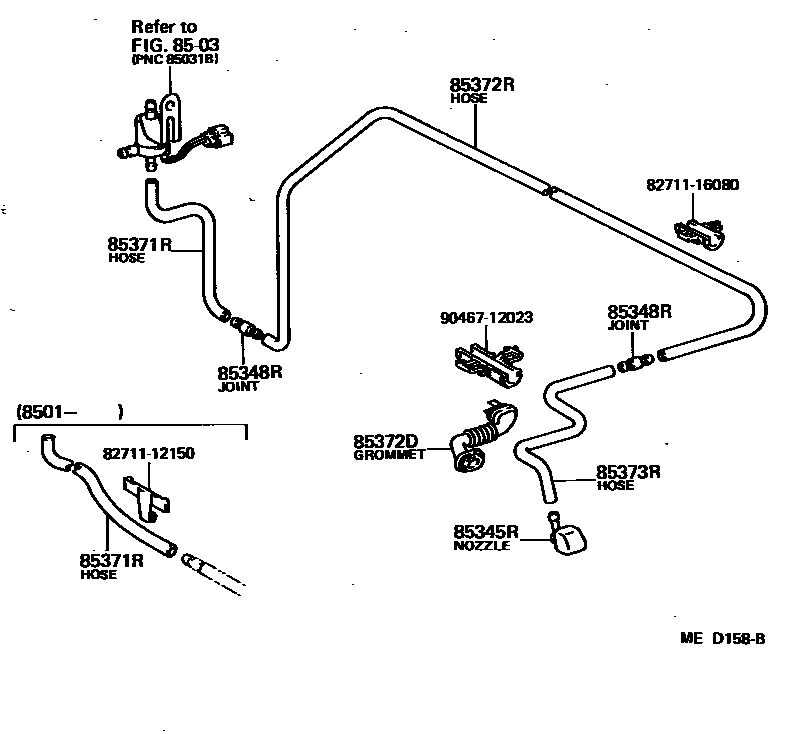

Toyota COROLLA EPC diagram 8504, 后清洗器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85345R | Rear washer nozzle | 85035-12160 · 85035-12280 |
| 85348R | No. 1 rear washer hose connector | 85355-87201 · 85355-89122 |
| 85371R | Rear washer hose (from motor to connector) | 85370-12220 |
| 85372D | Rear washer hose seal | 85372-12010 |
| 85372R | Rear washer hose (from fitting to fitting or nozzle) | 90099-33420 · 90099-33497 |
| 85373R | Rear washer hose (from connector to nozzle) | 90099-33082 |
