Toyota COROLLA 挡风玻璃清洗器 — Figure 8503

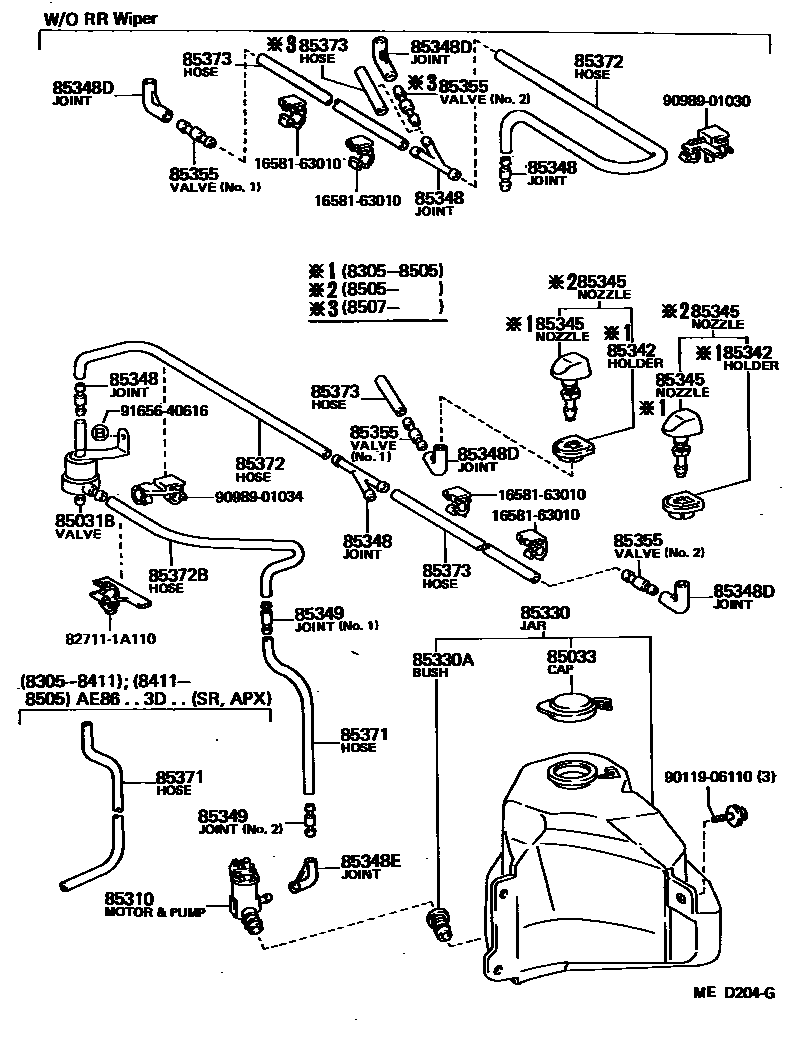

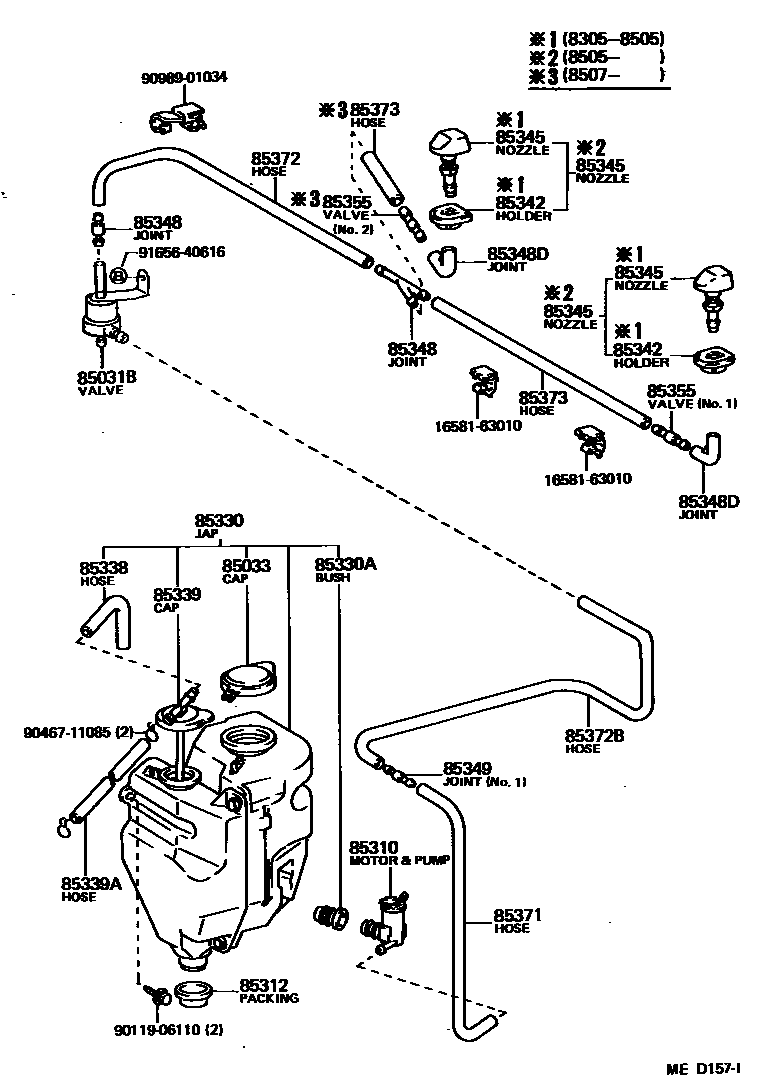

Toyota COROLLA EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031B | Cleaner valve sub-assembly | 85031-12060 · 85031-12080 · 85031-12110 |
| 85033 | Windshield washer cover assembly | 85332-12320 |
| 85310 | Windshield washer motor and pump assembly | 85310-22080 |
| 85312 | Windshield washer tank seal | 85312-32010 |
| 85330 | Windshield washer fluid tank assembly | 85331-12320 · 85331-12330 · 85331-12340 · 85331-12350 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85338 | Breather hose | 85338-16010 |
| 85339 | Liquid storage tank cover sub-assembly | 85339-12010 |
| 85339A | Hoses (for radiator reservoir) | 90445-12073 |
| 85342 | Washer nozzle retainer | 85342-14010 |
| 85345 | windshield washer nozzle | 85035-12150 · 85035-12250 |
| 85348 | Windshield washer hose connector No. 1 | 85348-12250 · 85349-89122 · 85355-87201 |
| 85348D | No. 1 windshield washer elbow joint | 85355-20070 |
| 85348E | No. 2 windshield washer elbow joint | 85355-14481 |
| 85349 | Windshield washer hose connector No. 1 | 85349-89122 · 85355-87201 · 85355-89122 |
| 85355 | Windshield washer hose valve | 85031-12250 · 85031-14080 · 85349-89122 · 85355-87201 |
| 85372 | Windshield washer hose No. 1 (from connector to connector) | 90099-33087 |
