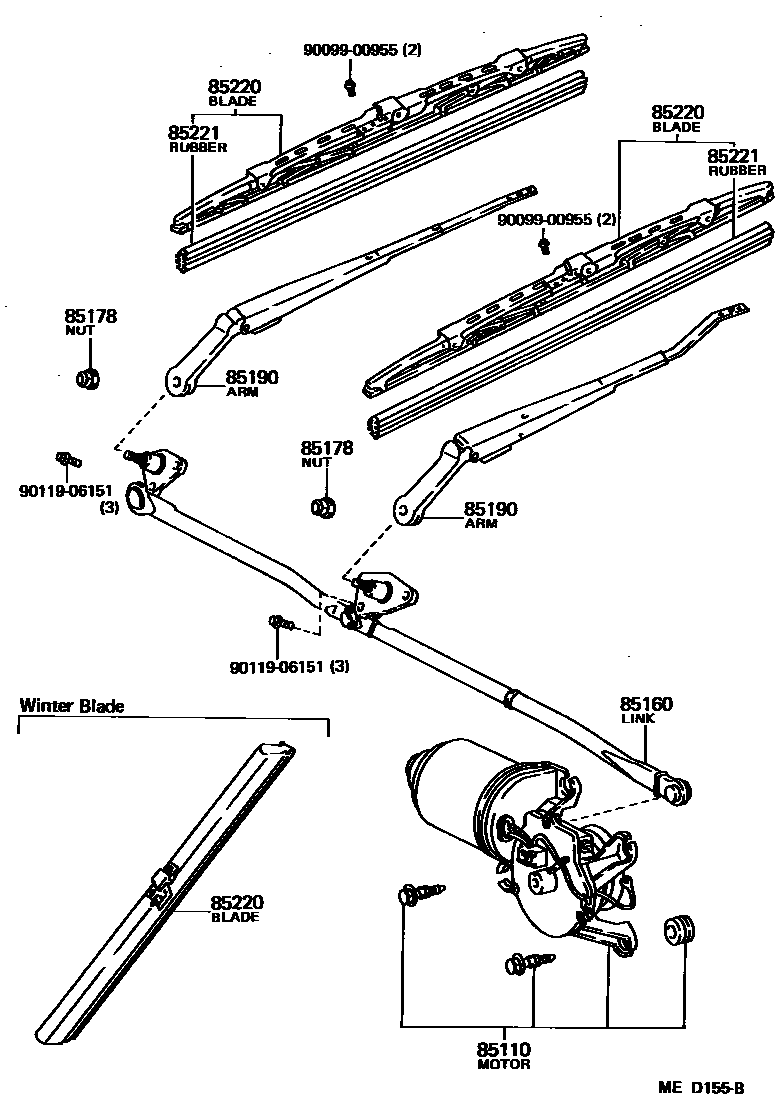

Toyota COROLLA 挡风玻璃刮水器 — Figure 8501
Toyota COROLLA EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-12290 · 85110-12540 · 85110-12550 · 85110-12610 |
| 85160 | Windshield wiper connecting rod assembly | 85160-12340 |
| 85178 | Nut (for securing front wiper arm) | 90176-08029 · 90176-08033 |
| 85190 | Windshield wiper arm assembly | 85190-12570 · 85210-12110 |
| 85220 | Windshield wiper blade assembly | 85220-12450 · 85220-14170 · 85220-16580 · 85220-32300 · 85220-32310 · 85220-40040 |
| 85221 | Windshield wiper blade | 85221-12230 · 85221-30110 |
