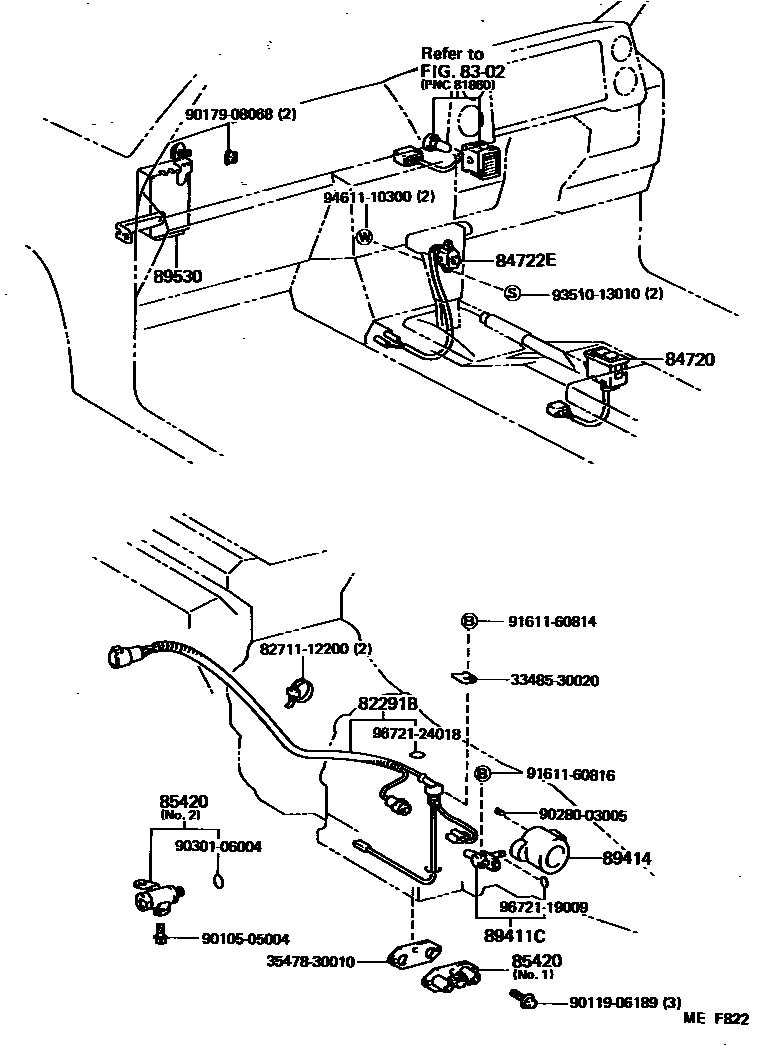

Toyota COROLLA 电子控制变速器 — Figure 8412
Toyota COROLLA EPC diagram 8412, 电子控制变速器, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82291B | to solenoid valve harness (for transmission) | 82125-12240 |
| 85420 | Transmission solenoid valve assembly | 85420-30050 · 85420-30070 |
| 89411C | Speed sensor | 89411-30081 |
| 89414 | sensor rotor | 89414-30010 |
| 89530 | Transmission control ECU assembly | 89530-12060 |
