Toyota COROLLA 电子燃油喷射系统 — Figure 8404

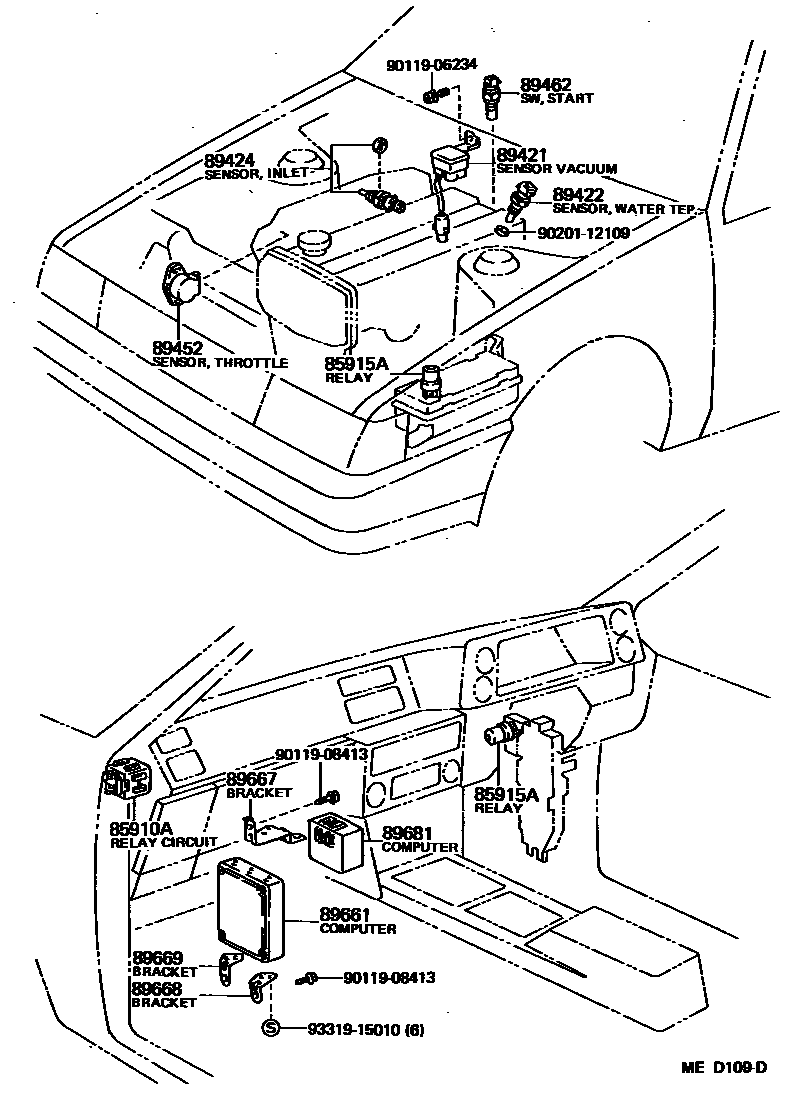

Toyota COROLLA EPC diagram 8404, 电子燃油喷射系统, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 85910-30050 |
| 85915A | main relay | 90987-02004 |
| 89421 | Vacuum sensor assembly (for E.F.I.) | 89421-12020 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-30020 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-28010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-20070 · 89452-28010 |
| 89462 | Start injector timing switch | 89462-30011 |
| 89661 | Engine control ECU | 89661-12050 · 89661-12051 · 89661-12150 |
| 89667 | Engine control ECU bracket | 89667-12030 · 89667-12060 |
| 89668 | No. 2 engine control ECU bracket | 89668-12010 |
| 89669 | No. 3 engine control ECU bracket | 89669-12010 |
| 89681 | Idle speed boost ECU assembly | 89681-12010 |
