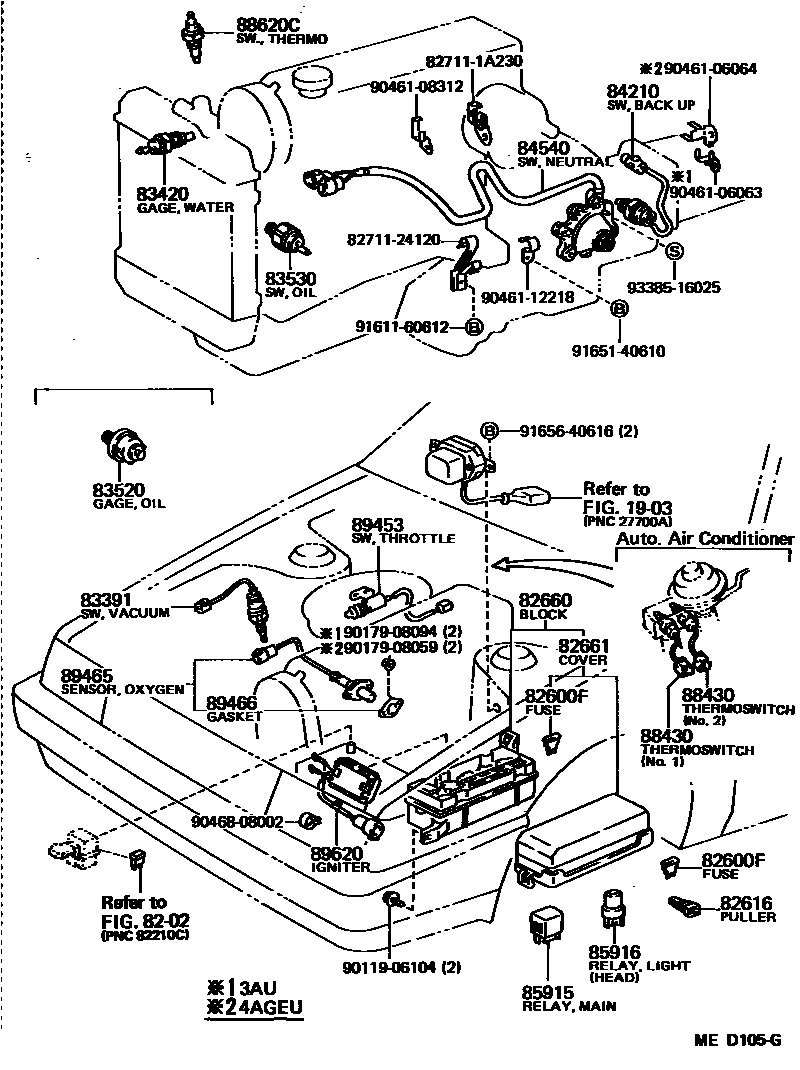

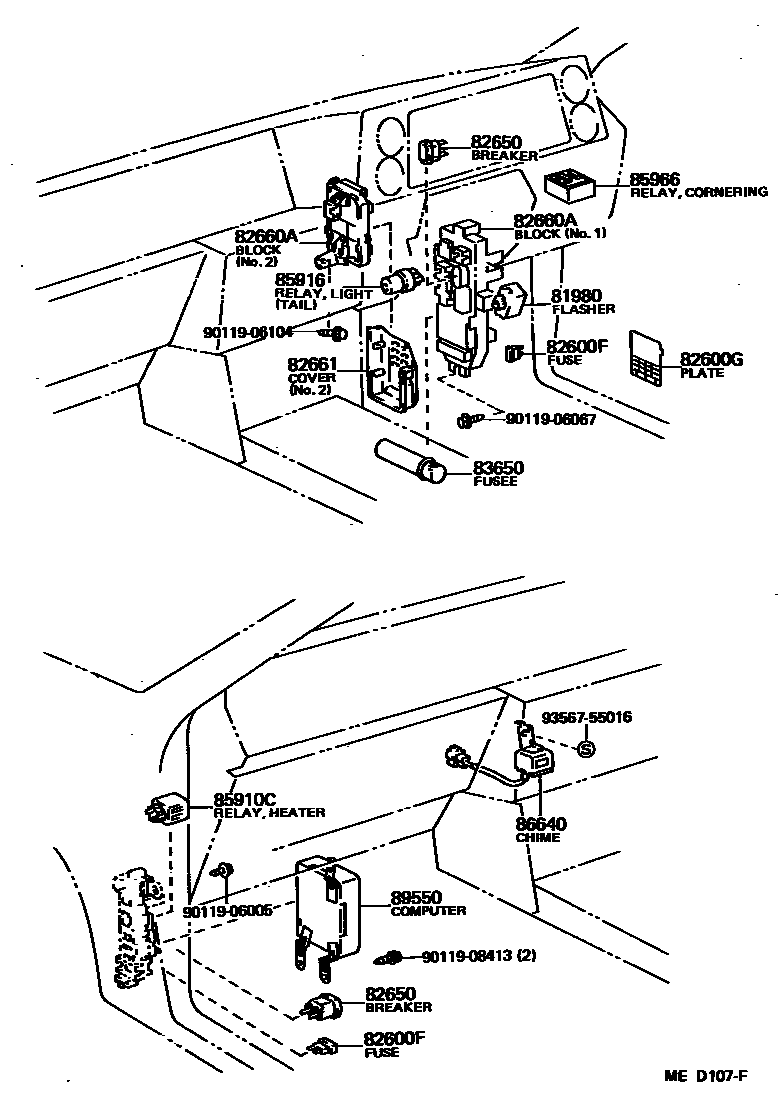

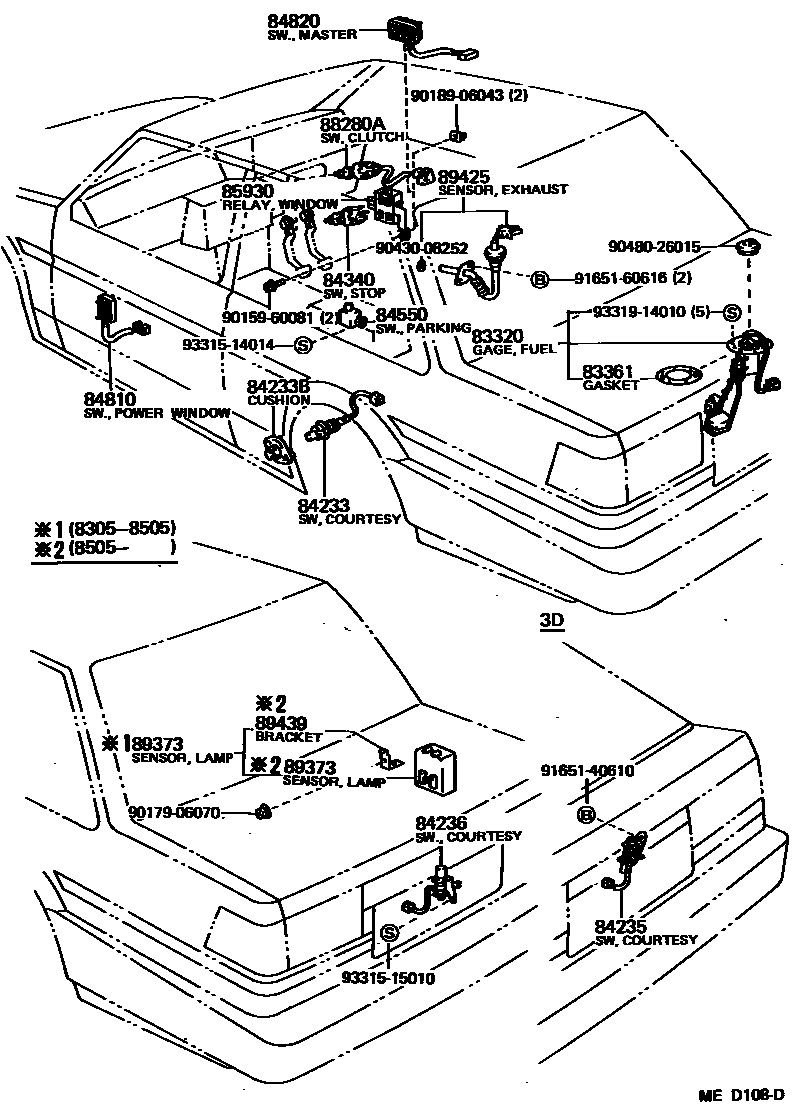

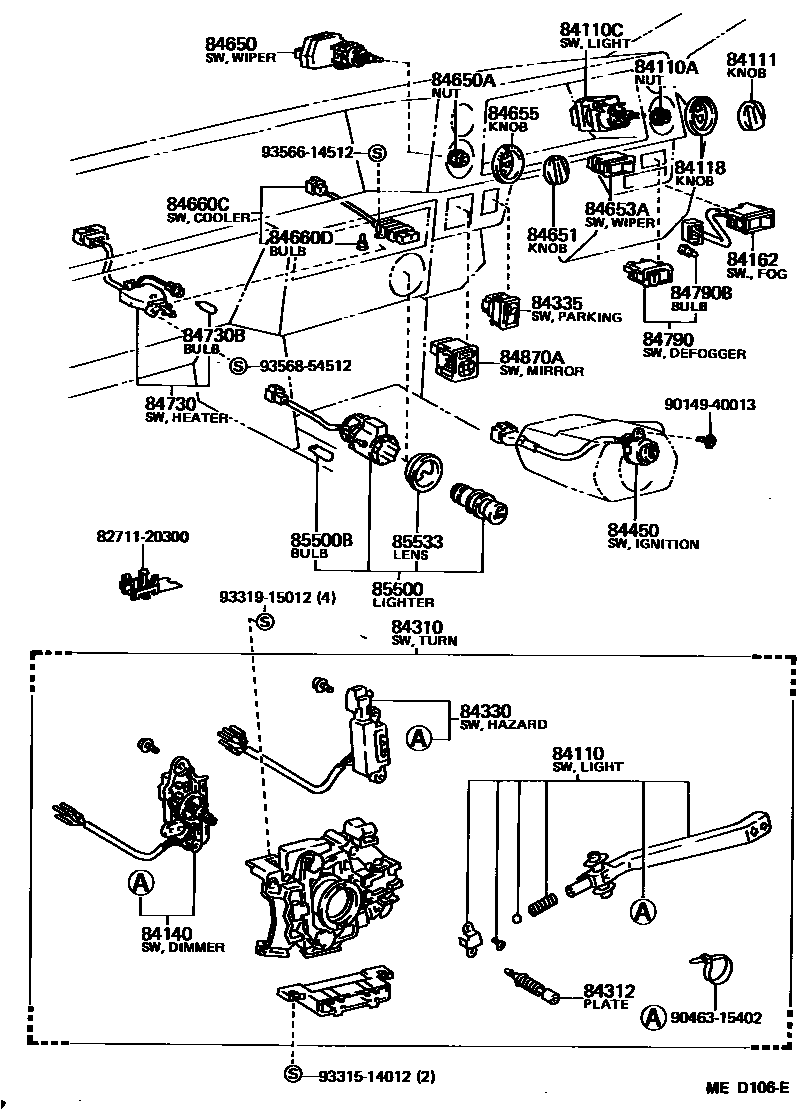

Toyota COROLLA 开关和继电器和ECU — Figure 8401
Toyota COROLLA EPC diagram 8401, 开关和继电器和ECU, with 4 images and 67 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81980 | Turn signal flasher relay assembly | 81980-16010 · 81980-22070 |
| 82600F | Spare fuse | 90982-07011 · 90982-09002 · 90982-09003 · 90982-09004 · 90982-09005 |
| 82600G | Warning nameplate (for fuses) | 82683-12020 · 82683-12070 |
| 82616 | fuse puller | 82616-12010 |
| 82650 | No. 1 circuit breaker assembly | 82650-12010 · 82650-20011 · 82650-35010 |
| 82660 | Engine room relay box assembly | 82660-12190 · 82660-12191 |
| 82660A | Front wall side relay box assembly | 82660-12130 · 82660-12220 |
| 82661 | No. 1 relay box cover | 82661-12100 · 82661-12130 · 82661-12131 |
| 83320 | Fuel gauge sensor assembly | 83320-19715 · 83320-19725 |
| 83361 | fuel gauge sensor gasket | 77169-14020 |
| 83391 | Vacuum switch | 83391-14061 · 83391-22070 |
| 83420 | Water temperature sensor assembly | 83420-16010 · 83420-20020 |
| 83520 | Oil pressure gauge sensor assembly | 83520-14022 · 83520-55011 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-12040 · 83530-14020 · 83530-30080 |
| 83650 | fuse | 90986-01003 |
| 84110 | No. 1 light control switch assembly | 84112-19545 |
| 84110A | Light switch fixing bolt or nut | 90179-14010 |
| 84110C | No. 2 light control switch assembly | 84110-12090 · 84110-12100 · 84110-12140 |
| 84111 | Light control button | 84111-12060 |
| 84118 | Light control rheostat button | 84118-12040 · 84118-12050 |
| 84140 | Headlight dimmer switch assembly | 84140-19285 |
| 84162 | front fog light switch | 84162-12010 |
| 84210 | Reversing light switch assembly | 84210-10051 · 84210-10071 |
| 84233 | Door control light switch assembly (for front door) | 84230-12130 · 84230-12131 |
| 84233B | Door light switch cushion (for front doors) | 84234-24010 |
| 84235 | Door control light switch assembly (for back door) | 84231-32010 |
| 84236 | Door control light switch assembly (for trunk) | 84231-12030 |
| 84310 | Turn signal switch assembly | 84310-12500 |
| 84312 | Speaker contact piece | 84312-32010 |
| 84330 | Hazard warning signal switch assembly | 84332-19255 |
| 84335 | Parking light switch assembly | 84330-12120 · 84330-14110 |
| 84340 | brake light switch assembly | 84340-30030 · 84340-32010 |
| 84450 | Ignition or starter switch assembly | 84450-12120 · 84450-17030 |
| 84540 | Neutral start switch assembly | 84540-22170 · 84540-35020 |
| 84550 | Parking brake switch assembly | 84550-12060 |
| 84650 | Windshield wiper switch assembly | 84650-12040 · 84650-12050 · 84650-12090 |
| 84650A | Windshield wiper switch retaining bolt or nut | 90179-14010 |
| 84651 | Windshield wiper switch button | 84651-12040 |
| 84653A | Rear wiper switch | 84653-12120 |
| 84655 | Windshield wiper level switch button | 84118-12040 · 84655-12010 |
| 84660C | Cooler switch | 84660-12070 · 84660-12071 |
| 84660D | Light bulb (for cooler switch) | 88607-12010 |
| 84730 | Heater blower switch assembly | 84732-12140 · 84732-12150 |
| 84730B | heater blower switch light bulb | 90981-11014 |
| 84790 | Rear window defogger switch assembly | 84790-12120 · 84790-12131 |
| 84790B | Bulb (for rear window defogger switch) | 84999-10110 · 84999-20060 |
| 84870A | Exterior rearview mirror switch assembly | 84870-22040 |
| 85500 | Cigarette lighter assembly | 85500-12190 |
| 85500B | Cigarette lighter bulb | 90981-11014 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-20011 |
| 85910C | Relay assembly (for heater blower motor) | 85913-30020 · 90987-04002 |
| 85915 | main relay | 85913-30020 · 90987-04002 |
| 85916 | Light control relay | 90987-01003 |
| 85930 | Electric window relay assembly | 85930-12010 |
| 85966 | Turn indicator light control relay | 85966-28010 |
| 86640 | Warning bell assembly | 86640-12070 |
| 88280A | Clutch switch assembly | 88280-12010 |
| 88430 | Air conditioning temperature switch assembly | 83430-30010 · 83430-30020 · 88655-12010 · 88655-12020 |
| 88620C | Temperature switch assembly | 88620-12020 |
| 89373 | Malfunction indicator light sensor | 89373-12070 · 89373-12100 |
| 89425 | Exhaust gas temperature sensor | 89425-19295 · 89425-19305 |
| 89439 | Sensor holder | 89439-12020 |
| 89453 | Throttle position switch (for T.C.S.) | 89453-14010 |
| 89465 | oxygen sensor | 89465-10010 · 89465-19085 · 89465-19095 · 89465-29105 |
| 89466 | Oxygen sensor pad | 89466-30010 · 89466-32010 |
| 89550 | Emission control ECU assembly | 89550-12660 · 89550-12661 · 89550-12670 · 89550-12671 · 89550-12840 · 89550-12850 |
| 89620 | Ignition assembly | 89620-12270 |
