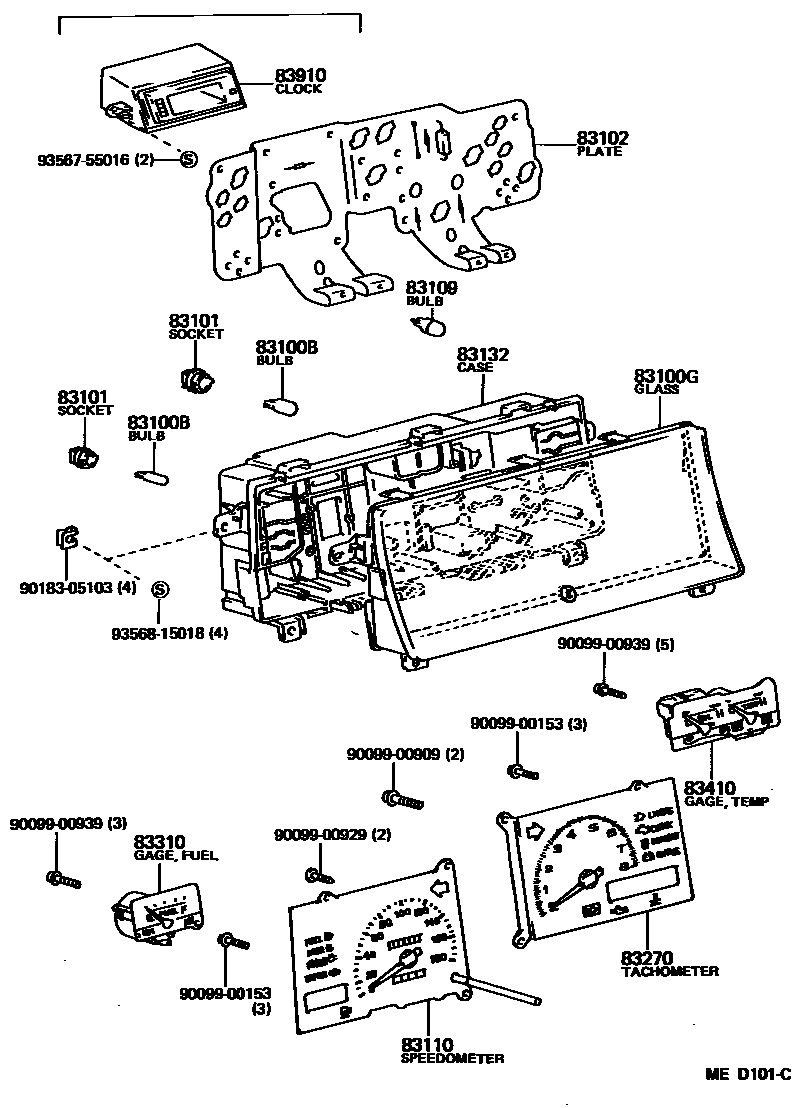

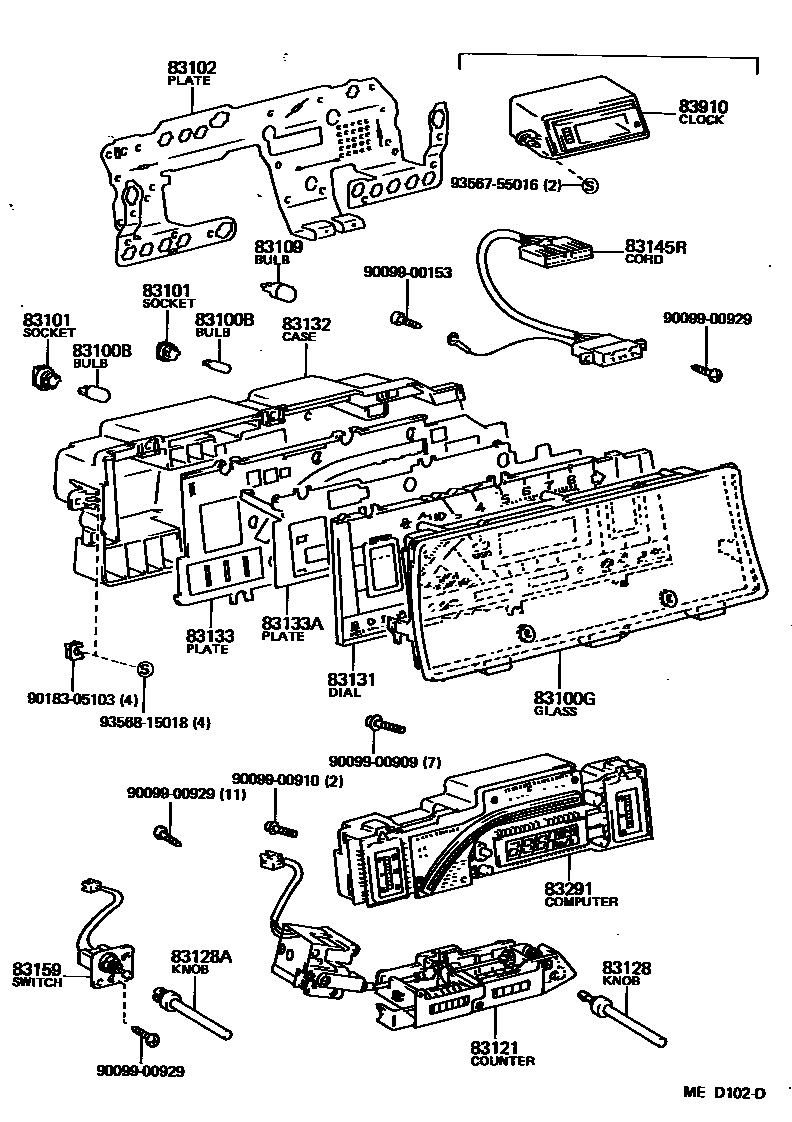

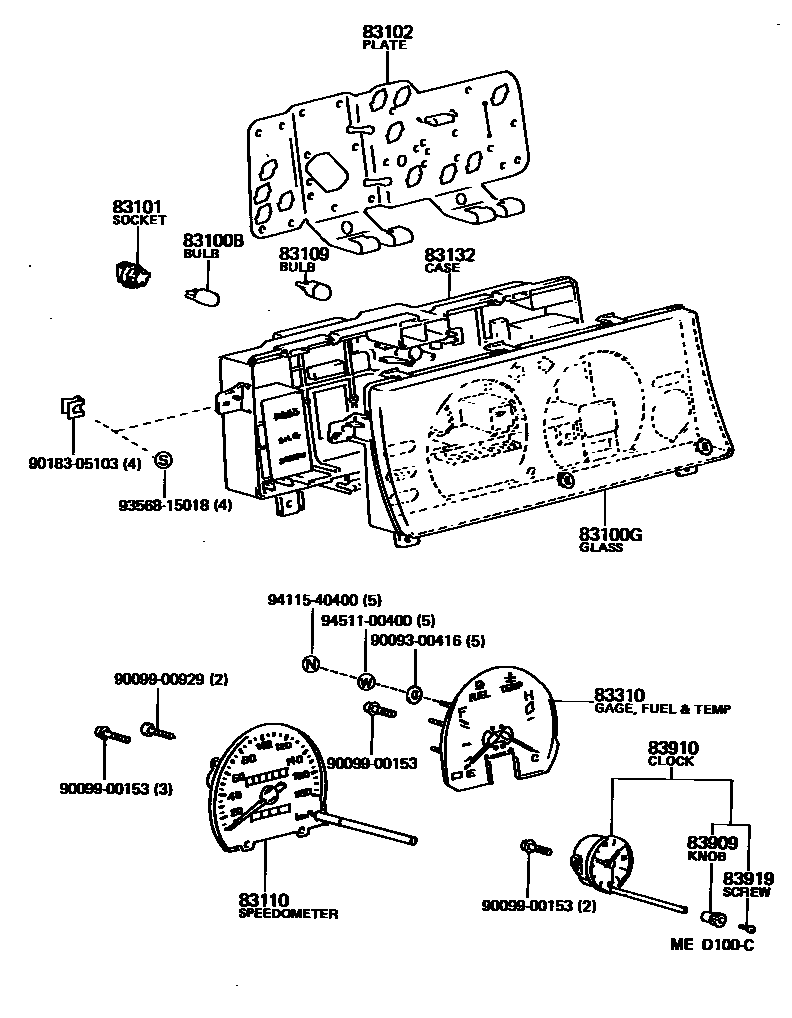

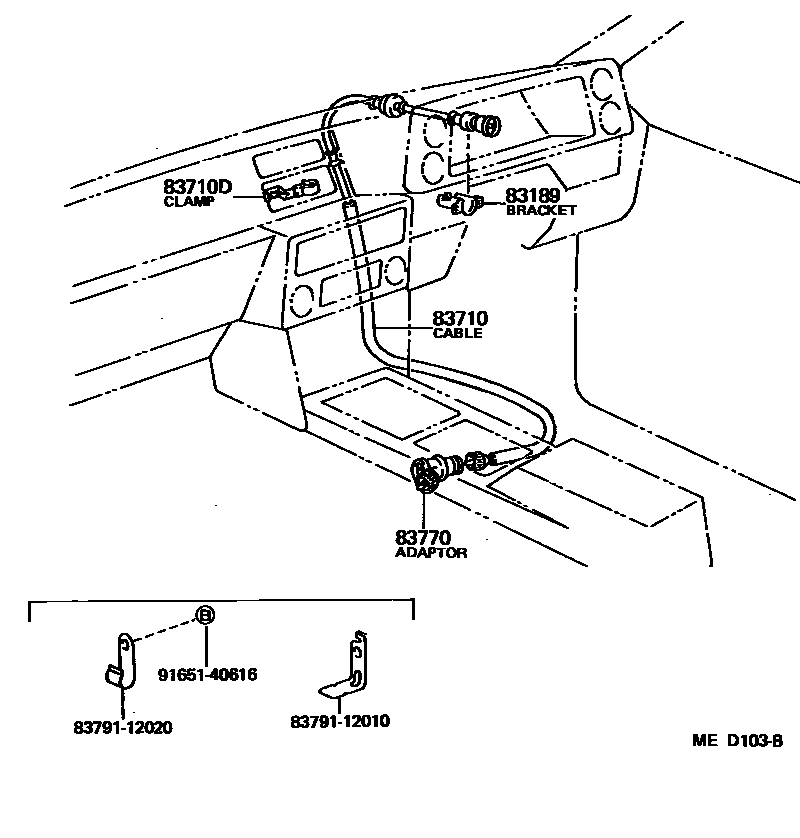

Toyota COROLLA 仪表 — Figure 8301
Toyota COROLLA EPC diagram 8301, 仪表, with 4 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 83100B | Combination instrument bulb No. 1 | 90981-11018 · 99132-12034 |
| 83100G | Instrument cluster glass | 83133-12690 · 83133-12710 · 83133-12750 |
| 83101 | Combined instrument lamp holder sub-assembly | 83101-14030 · 83101-14040 |
| 83102 | Combination instrument No. 1 circuit board sub-assembly | 83247-1E170 · 83247-1E190 · 83247-1E191 · 83247-1E210 · 83247-1E211 · 83247-1E230 · 83247-1E250 |
| 83109 | Combined instrument bulb No. 2 | 83109-12010 · 83109-24030 · 83109-24040 |
| 83110 | Speedometer assembly | 83110-1A200 · 83110-1A201 · 83110-1A230 · 83110-1A231 · 83110-1A240 · 83110-1A241 · 83110-1A770 |
| 83121 | total counter | 83121-12030 |
| 83128 | trip odometer handle | 83128-32030 |
| 83128A | instrument handle | 83128-32050 |
| 83131 | Instrument panel No. 1 | 83131-12050 · 83131-12051 |
| 83132 | Instrument cluster housing | 83132-12730 · 83132-12750 · 83132-12770 · 83132-12780 |
| 83133 | Combined instrument panel No. 1 | 83133-12810 |
| 83133A | Combined instrument panel No. 2 | 83133-12830 |
| 83145R | instrument wires | 83247-1E550 |
| 83159 | No.1 instrument switch | 83159-12030 |
| 83189 | instrument bracket | 83189-20020 |
| 83270 | Engine tachometer assembly | 83242-12730 · 83242-12731 · 83242-12750 · 83242-12751 · 83242-12770 · 83242-12771 |
| 83291 | Instrument cluster ECU | 83291-12020 · 83291-12021 · 83291-12022 |
| 83310 | Fuel gauge assembly | 83243-12650 · 83243-12651 · 83243-12730 · 83243-12731 |
| 83410 | Water temperature meter assembly | 83244-1A071 · 83244-1A170 · 83244-1A171 · 83244-1A290 |
| 83710 | No. 1 speedometer transmission cable assembly | 83710-12220 · 83710-12230 · 83710-12280 · 83710-12380 |
| 83710D | Clip (for speedometer cable) | 83791-12050 |
| 83770 | Speedometer transmission flexible shaft joint assembly | 83770-22060 · 83770-30070 |
| 83909 | clock button | 83909-14012 |
| 83910 | clock assembly | 83910-12340 · 83910-12341 · 83910-12350 · 83910-12351 |
| 83919 | clock screw | 83919-14012 |
