Toyota COROLLA 线束和卡夹 — Figure 8202

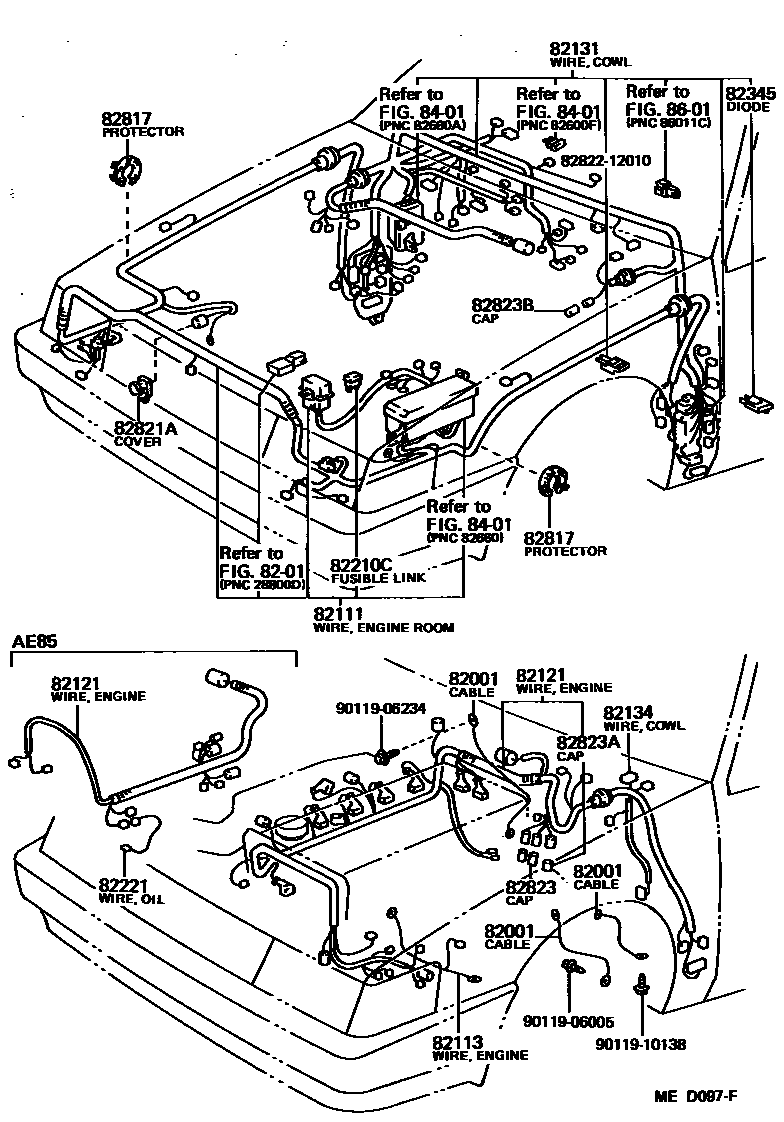

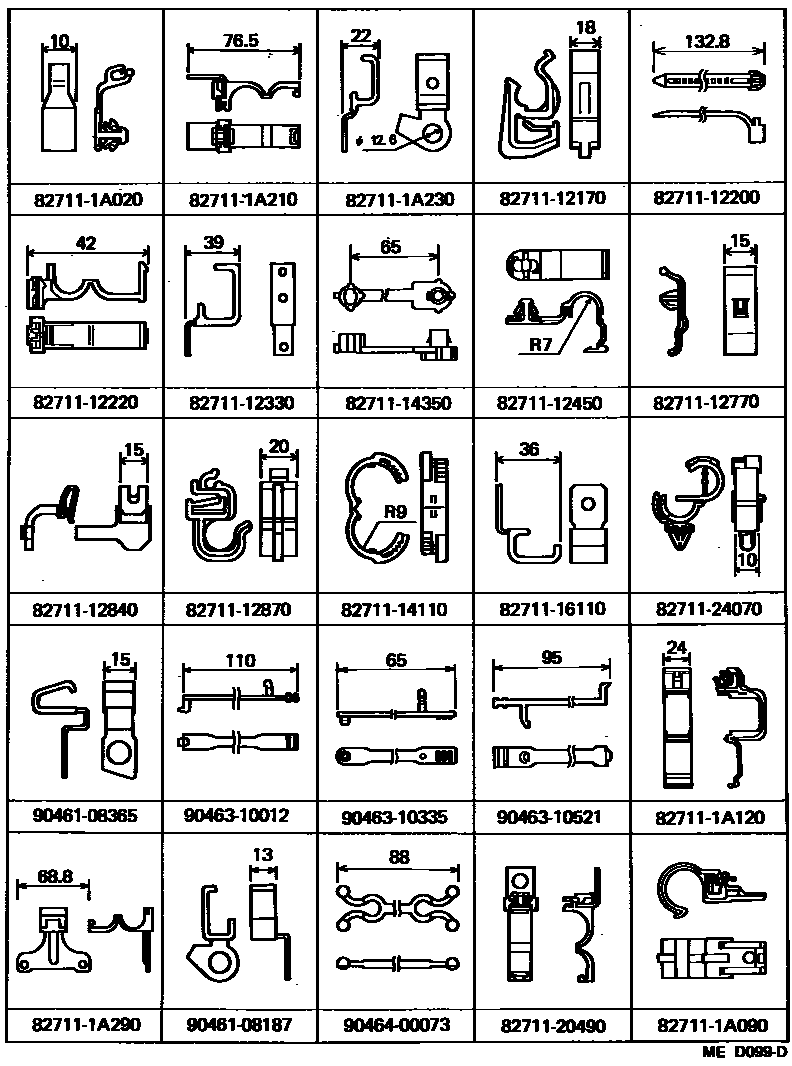

Toyota COROLLA EPC diagram 8202, 线束和卡夹, with 5 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 82001 | Connection cable No. 1 | 90980-07118 · 90980-07147 · 90980-07148 · 90980-07200 · 90980-07226 · 90980-07233 · 90980-07253 · 90980-07263 |
| 82111 | Engine room main wiring harness | 82111-12330 · 82111-12370 · 82111-12371 · 82111-12810 · 82111-12850 · 82111-12851 · 82111-12852 |
| 82113 | Engine room wiring harness No. 3 | 82113-12090 |
| 82121 | Engine wiring harness | 82121-12180 · 82121-12190 · 82121-12270 · 82121-12770 · 82121-12780 · 82121-12790 · 82121-12850 |
| 82131 | Front panel wiring harness | 82131-12560 · 82131-12561 · 82131-12562 · 82131-12570 · 82131-12571 · 82131-12580 · 82131-12581 · 82131-1A260 · 82131-1A270 · 82131-1A280 |
| 82134 | Front No. 4 wiring harness | 82134-12050 |
| 82151 | Right front door wiring harness | 82151-12040 · 82151-12041 · 82151-12210 · 82151-12230 |
| 82152 | Left front door wiring harness | 82151-12040 · 82151-12041 · 82151-12210 · 82152-12180 |

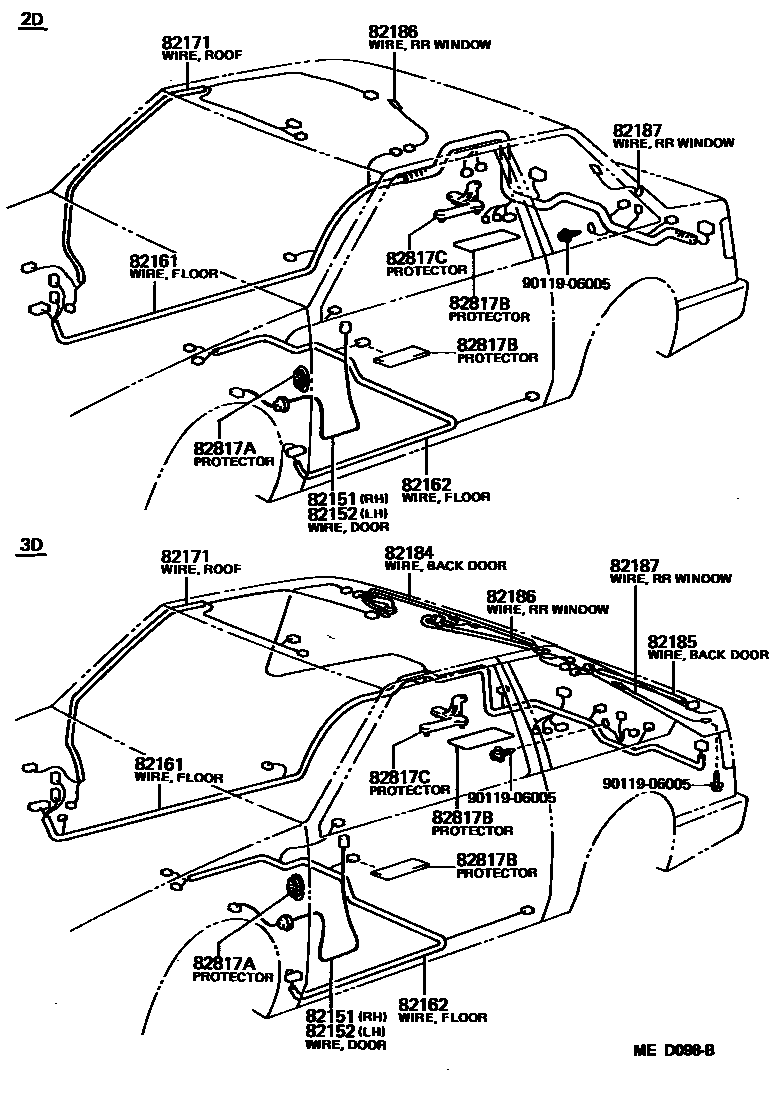

| 82161 | floor wiring harness | 82161-12160 · 82161-12180 · 82161-12200 · 82161-12300 · 82161-12720 · 82161-12730 · 82161-12740 · 82161-12750 |
| 82162 | Floor wiring harness No. 2 | 82162-12190 · 82162-12200 · 82162-12210 · 82162-12550 · 82162-12560 · 82162-12570 |
| 82171 | Roof No. 1 wiring harness | 82171-12100 · 82171-12110 |
| 82184 | Rear door No. 1 wiring harness | 82184-12050 · 82184-12060 · 82184-12170 |
| 82185 | Rear door wiring harness No. 2 | 82185-12050 · 82185-12060 · 82185-12210 · 82185-12220 |
| 82186 | Rear window wiring harness No. 1 | 82186-12030 · 82186-12040 · 82186-12050 · 82186-12100 · 82186-12120 |
| 82187 | Rear window wiring harness No. 2 | 82187-12040 · 82187-12050 · 82187-12110 · 82187-12120 |
| 82210C | fuse | 90982-08188 · 90982-08190 · 90982-08203 · 90982-08223 |
| 82221 | Oil pressure switch wiring harness | 82221-16010 |
| 82345 | diode | 82345-22010 |
| 82817 | No. 1 wire harness protection device | 82817-32010 |
| 82817A | No. 2 wire harness protection device | 82817-12630 |
| 82817B | No. 3 wire harness protection device | 82817-16100 |
| 82817C | No. 4 wire harness protection device | 82817-12600 |
| 82821A | Connector cover | 82821-12210 |
| 82823 | No. 1 terminal cover | 82823-14040 · 82823-22060 · 82823-30010 |
| 82823A | Terminal cover No. 2 | 82823-20010 |
| 82823B | Terminal cover No. 3 | 82823-30010 |

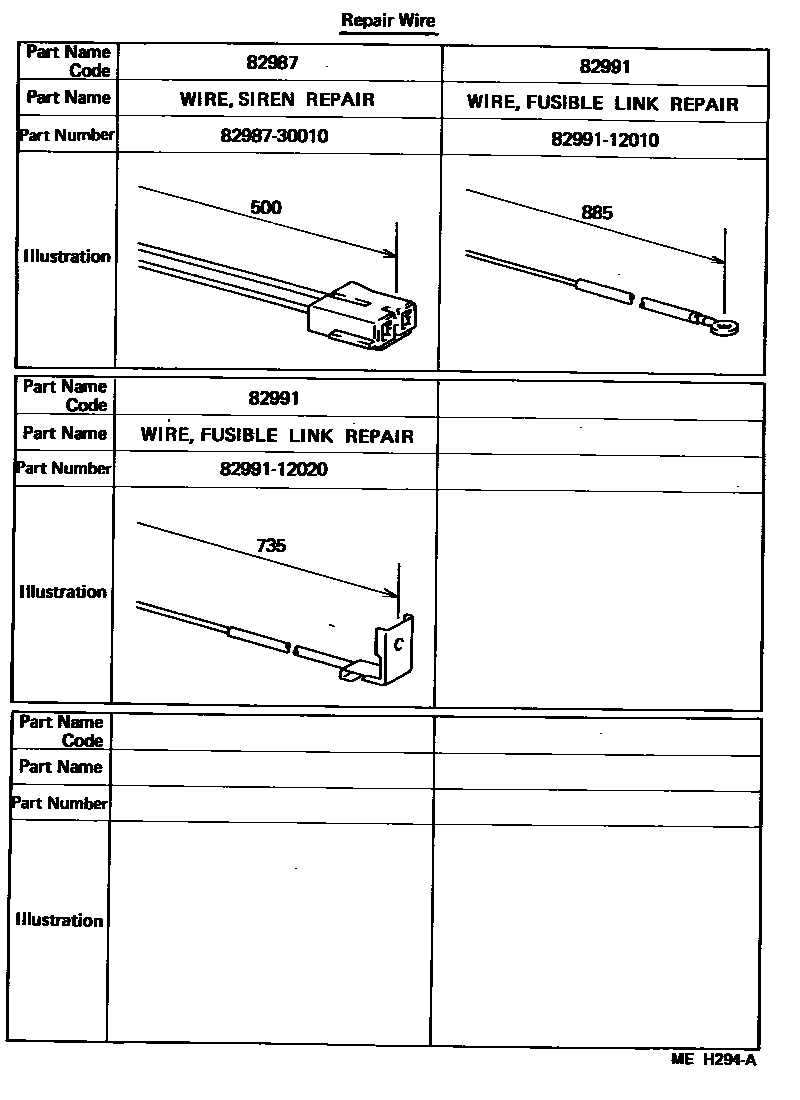

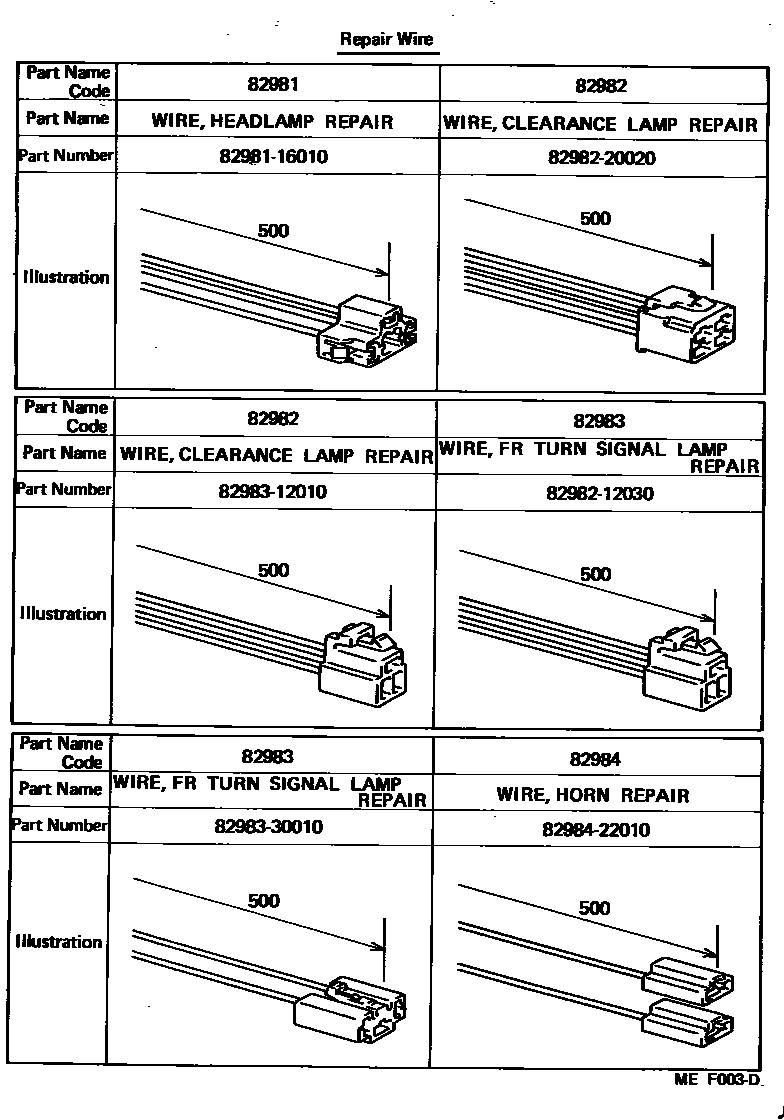

| 82981 | Headlight repair line | 82981-16010 |
| 82982 | Width light repair line | 82982-20020 · 82983-12010 |
| 82983 | Front turn signal lamp repair line | 82982-12030 · 82983-30010 |
| 82984 | Speaker repair line | 82984-22010 |
| 82987 | Fog light repair line | 82987-30010 |
| 82991 | Fuse repair line | 82991-12010 · 82991-12020 |
