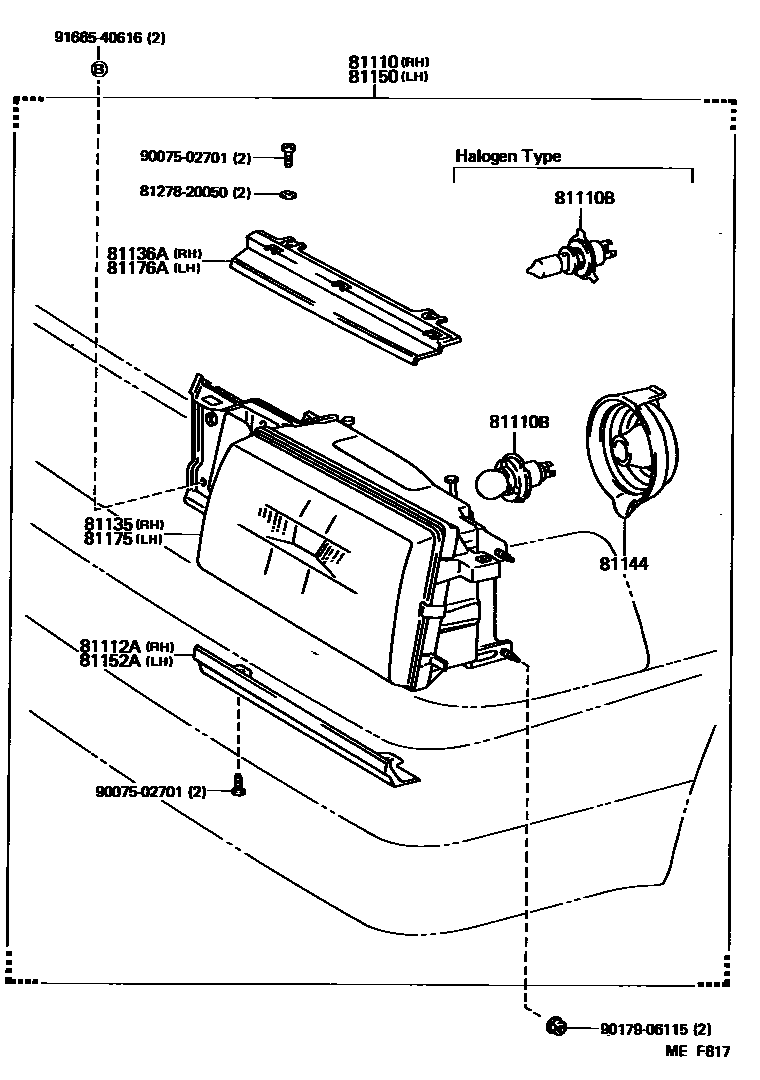

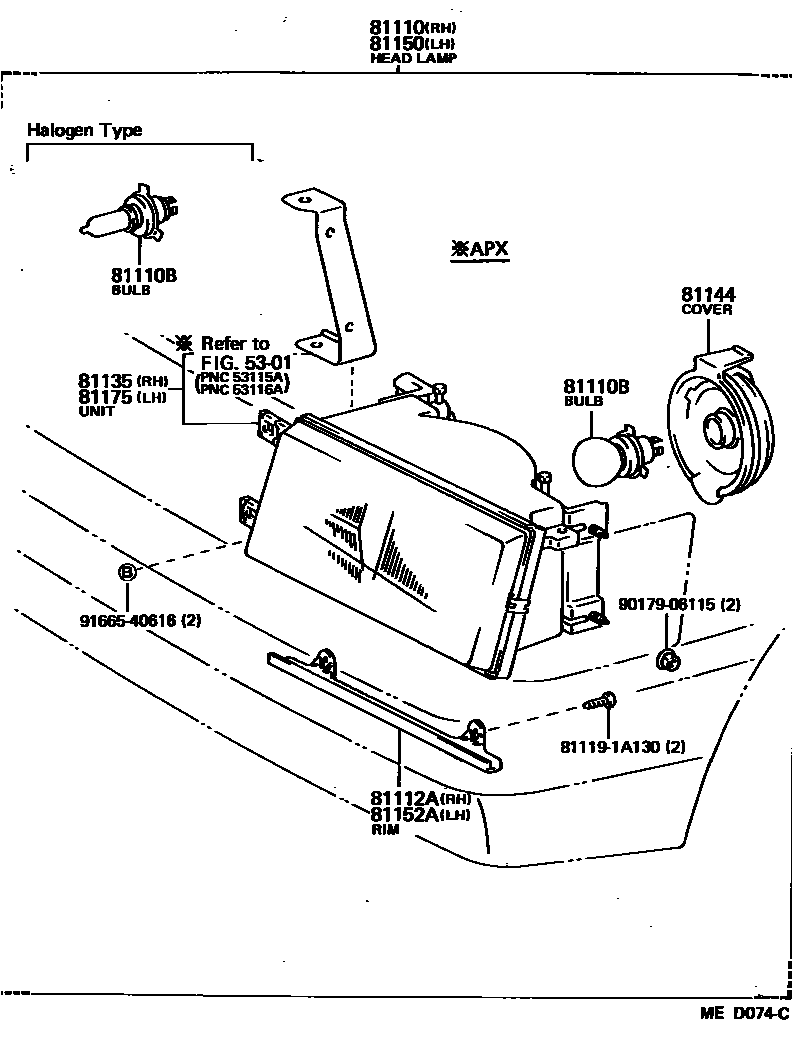

Toyota COROLLA Headlamp — Figure 8101
Toyota COROLLA EPC diagram 8101, Headlamp, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81110 | Right headlight assembly | 81110-1A071 · 81110-1A261 · 81110-1A520 · 81110-80322 · 81110-80323 · 81110-80344 |
| 81110B | Bulb (for headlight No. 1) | 90981-13015 · 90981-13016 · 90981-13022 |
| 81112A | Right headlight frame | 81112-1A130 · 81117-1A261 |
| 81135 | Right headlight assembly | 81130-1A071 · 81130-1A261 · 81135-1A070 · 81135-1A100 · 81135-1A260 |
| 81136A | Right headlight frame | 81116-1A261 |
| 81144 | No. 1 headlight cover | 81139-20730 |
| 81150 | Left headlight assembly | 81150-12710 · 81150-1A011 · 81150-1A021 · 81150-80319 · 81150-80320 · 81150-80341 |
| 81152A | Left headlight frame | 81152-1A080 · 81157-1A021 |
| 81175 | Left headlight assembly | 81170-1A011 · 81170-1A021 · 81175-1A010 · 81175-1A020 · 81175-1A050 |
| 81176A | Left headlight frame | 81156-1A021 |
